Avamar PDM fails right away with "Error while fetching tasks Failed with HTTP error code:404 additional information" HTTP Status 404 - Not Found

Summary: This article explains how to resolve the issue with the Proxy Deployment Manager (PDM) error message: "Error while fetching tasks. Failed with HTTP error code:404 additional information" HTTP Status 404 - Not Found ...

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

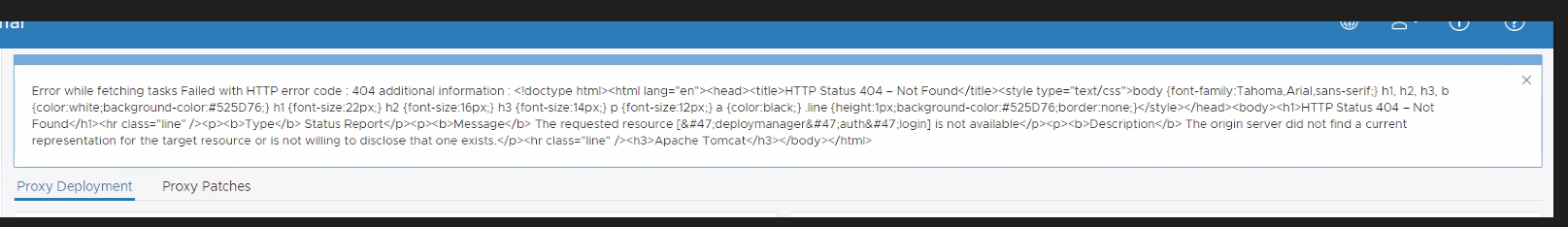

Unable to use Proxy Deployment Manager (PDM) to create recommendations in the Avamar User Interface (AUI) or Avamar Administrator console.



Cause

</pre><p><b>Root Cause</b></p><pre>com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.

There is an authentication issue with RabbitMQ.

The 404 error code can be seen in /usr/local/avamar/var/mc/server_log/mcserver.log.0 when using PDM using Avamar Administrator console:

WARNING: Failed (https://localhost:8543/deploymanager/auth/login)(attempt 1 of 3): Failed with HTTP error code : 404
  additional information : <!doctype html><html lang="en"><head><title>HTTP Status 404 ▒~@~S Not Found</title><style type="text/css">body {font-family:Tahoma,Arial,sans-serif;} h1, h2, h3, b {color:white;background-color:#525D76;} h1 {font-size:22px;} h2 {font-size:16px;} h3 {font-size:14px;} p {font-size:12px;} a {color:black;} .line {height:1px;background-color:#525D76;border:none;}</style></head><body><h1>HTTP Status 404 ▒~@~S Not Found</h1><hr class="line" /><p><b>Type</b> Status Report</p><p><b>Message</b> The requested resource [&#47;deploymanager&#47;auth&#47;login] is not available</p><p><b>Description</b> The origin server did not find a current representation for the target resource or is not willing to disclose that one exists.</p><hr class="line" /><h3>Apache Tomcat</h3></body></html>
08/25-16:53:06.00956 [MCS Counter monitor thread#168] com.avamar.mc.mon.MCSPerformanceMonitor.monitor
FINE: enter
08/25-16:53:06.00975 [RMI TCP Connection(122)-192.168.33.10#1523] com.avamar.mc.pdm.ProxyDeploymentManagerService.submitJsonWithRetry
WARNING: Failed (https://localhost:8543/deploymanager/auth/login)(attempt 2 of 3): Failed with HTTP error code : 404
  additional information : <!doctype html><html lang="en"><head><title>HTTP Status 404 ▒~@~S Not Found</title><style type="text/css">body {font-family:Tahoma,Arial,sans-serif;} h1, h2, h3, b {color:white;background-color:#525D76;} h1 {font-size:22px;} h2 {font-size:16px;} h3 {font-size:14px;} p {font-size:12px;} a {color:black;} .line {height:1px;background-color:#525D76;border:none;}</style></head><body><h1>HTTP Status 404 ▒~@~S Not Found</h1><hr class="line" /><p><b>Type</b> Status Report</p><p><b>Message</b> The requested resource [&#47;deploymanager&#47;auth&#47;login] is not available</p><p><b>Description</b> The origin server did not find a current representation for the target resource or is not willing to disclose that one exists.</p><hr class="line" /><h3>Apache Tomcat</h3></body></html>
08/25-16:53:07.00035 [RMI TCP Connection(122)-192.168.33.10#1523] com.avamar.mc.pdm.ProxyDeploymentManagerService.submitJsonWithRetry
WARNING: Failed (https://localhost:8543/deploymanager/auth/login)(attempt 3 of 3): Failed with HTTP error code : 404
  additional information : <!doctype html><html lang="en"><head><title>HTTP Status 404 ▒~@~S Not Found</title><style type="text/css">body {font-family:Tahoma,Arial,sans-serif;} h1, h2, h3, b {color:white;background-color:#525D76;} h1 {font-size:22px;} h2 {font-size:16px;} h3 {font-size:14px;} p {font-size:12px;} a {color:black;} .line {height:1px;background-color:#525D76;border:none;}</style></head><body><h1>HTTP Status 404 ▒~@~S Not Found</h1><hr class="line" /><p><b>Type</b> Status Report</p><p><b>Message</b> The requested resource [&#47;deploymanager&#47;auth&#47;login] is not available</p><p><b>Description</b> The origin server did not find a current representation for the target resource or is not willing to disclose that one exists.</p><hr class="line" /><h3>Apache Tomcat</h3></body></html>
08/25-16:53:07.00036 [RMI TCP Connection(122)-192.168.33.10#1523] com.avamar.mc.util.MCException.logException
WARNING: com.avamar.asn.service.ServiceException: Failed with HTTP error code : 404
  additional information : <!doctype html><html lang="en"><head><title>HTTP Status 404 ▒~@~S Not Found</title><style type="text/css">body {font-family:Tahoma,Arial,sans-serif;} h1, h2, h3, b {color:white;background-color:#525D76;} h1 {font-size:22px;} h2 {font-size:16px;} h3 {font-size:14px;} p {font-size:12px;} a {color:black;} .line {height:1px;background-color:#525D76;border:none;}</style></head><body><h1>HTTP Status 404 ▒~@~S Not Found</h1><hr class="line" /><p><b>Type</b> Status Report</p><p><b>Message</b> The requested resource [&#47;deploymanager&#47;auth&#47;login] is not available</p><p><b>Description</b> The origin server did not find a current representation for the target resource or is not willing to disclose that one exists.</p><hr class="line" /><h3>Apache Tomcat</h3></body></html>
  at com.avamar.mc.pdm.ProxyDeploymentManagerService.login(ProxyDeploymentManagerService.java:577)
  at com.avamar.mc.pdm.ProxyDeploymentManagerService.getAllTasks(ProxyDeploymentManagerService.java:377)
  at sun.reflect.GeneratedMethodAccessor95.invoke(Unknown Source)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
  at java.lang.reflect.Method.invoke(Unknown Source)
  at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:318)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.invokeJoinpoint(ReflectiveMethodInvocation.java:183)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:150)
  at org.springframework.security.access.intercept.aopalliance.MethodSecurityInterceptor.invoke(MethodSecurityInterceptor.java:61)
  at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:172)
  at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:202)
  at com.sun.proxy.$Proxy96.getAllTasks(Unknown Source)
  at com.avamar.mc.pdm.ProxyDeploymentManagerServiceContext.getAllTasks(ProxyDeploymentManagerServiceContext.java:69)
  at sun.reflect.GeneratedMethodAccessor94.invoke(Unknown Source)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
  at java.lang.reflect.Method.invoke(Unknown Source)
  at sun.rmi.server.UnicastServerRef.dispatch(Unknown Source)
  at sun.rmi.transport.Transport$1.run(Unknown Source)
  at sun.rmi.transport.Transport$1.run(Unknown Source)
  at java.security.AccessController.doPrivileged(Native Method)
  at sun.rmi.transport.Transport.serviceCall(Unknown Source)
  at sun.rmi.transport.tcp.TCPTransport.handleMessages(Unknown Source)


Confirm the 404 error at the following endpoint:

admin@ave:/usr/local/avamar/var/mc/server_log/>: curl -kv https://localhost:8543/deploymanager/auth/login
*   Trying ::1...
* TCP_NODELAY set
* Connected to localhost (::1) port 8543 (#0)
* ALPN, offering h2
* ALPN, offering http/1.1
* Cipher selection: ALL:!EXPORT:!EXPORT40:!EXPORT56:!aNULL:!LOW:!RC4:@STRENGTH
* TLSv1.2 (OUT), TLS handshake, Client hello (1):
* TLSv1.2 (IN), TLS handshake, Server hello (2):
* TLSv1.2 (IN), TLS handshake, Certificate (11):
* TLSv1.2 (IN), TLS handshake, Server key exchange (12):
* TLSv1.2 (IN), TLS handshake, Server finished (14):
* TLSv1.2 (OUT), TLS handshake, Client key exchange (16):
* TLSv1.2 (OUT), TLS change cipher, Client hello (1):
* TLSv1.2 (OUT), TLS handshake, Finished (20):
* TLSv1.2 (IN), TLS change cipher, Client hello (1):
* TLSv1.2 (IN), TLS handshake, Finished (20):
* SSL connection using TLSv1.2 / ECDHE-RSA-AES256-GCM-SHA384
* ALPN, server did not agree to a protocol
* Server certificate:
*  subject: C=US; ST=CA; L=Irvine; OU=Dell EMC; O=Dell Technologies; CN=ave.lab
*  start date: Jul  1 12:02:13 2022 GMT
*  expire date: Jun 28 12:02:13 2032 GMT
*  issuer: C=US; ST=CA; L=Irvine; OU=Dell EMC; O=Dell Technologies; CN=ave.lab
*  SSL certificate verify result: self signed certificate (18), continuing anyway.
> GET /deploymanager/auth/login HTTP/1.1
> Host: localhost:8543
> User-Agent: curl/7.60.0
> Accept: */*
>
< HTTP/1.1 404
< Content-Type: text/html;charset=utf-8
< Content-Language: en
< Content-Length: 776
< Date: Thu, 25 Aug 2022 14:54:36 GMT
< Connection: close
< Server: Avamar
<
* Closing connection 0
* TLSv1.2 (OUT), TLS alert, Client hello (1):
<!doctype html><html lang="en"><head><title>HTTP Status 404 – Not Found</title><style type="text/css">body {font-family:Tahoma,Arial,sans-serif;} h1, h2, h3, b {color:white;background-color:#525D76;} h1 {font-size:22px;} h2 {font-size:16px;} h3 {font-size:14px;} p {font-size:12px;} a {color:black;} .line {height:1px;background-color:#525D76;border:none;}</style></head><body><h1>HTTP Status 404 – Not Found</h1><hr class="line" /><p><b>Type</b> Status Report</p><p><b>Message</b> The requested resource [&#47;deploymanager&#47;auth&#47;login] is not available</p><p><b>Description</b> The origin server did not find a current representation for the target resource or is not willing to disclose that one exists.</p><hr class="line" /><h3>Apache Tomcat</h3></body></html>


The snapshot manager endpoint shows the following exception stack:

root@ave:/usr/local/avamar/var/mc/server_data/prefs/#: curl -kv https://localhost:8543/snapshotmanager/about
*   Trying ::1...
* TCP_NODELAY set
* Connected to localhost (::1) port 8543 (#0)
* ALPN, offering h2
* ALPN, offering http/1.1
* Cipher selection: ALL:!EXPORT:!EXPORT40:!EXPORT56:!aNULL:!LOW:!RC4:@STRENGTH
* TLSv1.2 (OUT), TLS handshake, Client hello (1):
* TLSv1.2 (IN), TLS handshake, Server hello (2):
* TLSv1.2 (IN), TLS handshake, Certificate (11):
* TLSv1.2 (IN), TLS handshake, Server key exchange (12):
* TLSv1.2 (IN), TLS handshake, Server finished (14):
* TLSv1.2 (OUT), TLS handshake, Client key exchange (16):
* TLSv1.2 (OUT), TLS change cipher, Client hello (1):
* TLSv1.2 (OUT), TLS handshake, Finished (20):
* TLSv1.2 (IN), TLS change cipher, Client hello (1):
* TLSv1.2 (IN), TLS handshake, Finished (20):
* SSL connection using TLSv1.2 / ECDHE-RSA-AES256-GCM-SHA384
* ALPN, server did not agree to a protocol
* Server certificate:
*  subject: C=US; ST=CA; L=Irvine; OU=Dell EMC; O=Dell Technologies; CN=ave.lab
*  start date: Jul  1 12:02:13 2022 GMT
*  expire date: Jun 28 12:02:13 2032 GMT
*  issuer: C=US; ST=CA; L=Irvine; OU=Dell EMC; O=Dell Technologies; CN=ave.lab
*  SSL certificate verify result: self signed certificate (18), continuing anyway.
> GET /snapshotmanager/about HTTP/1.1
> Host: localhost:8543
> User-Agent: curl/7.60.0
> Accept: */*
>
< HTTP/1.1 500
< Content-Type: text/html;charset=utf-8
< Content-Language: en
< Transfer-Encoding: chunked
< Date: Thu, 25 Aug 2022 15:04:43 GMT
< Connection: close
< Server: Avamar
<
<!doctype html><html lang="en"><head><title>HTTP Status 500 – Internal Server Error</title><style type="text/css">body {font-family:Tahoma,Arial,sans-serif;} h1, h2, h3, b {color:white;background-color:#525D76;} h1 {font-size:22px;} h2 {font-size:16px;} h3 {font-size:14px;} p {font-size:12px;} a {color:black;} .line {height:1px;background-color:#525D76;border:none;}</style></head><body><h1>HTTP Status 500 – Internal Server Error</h1><hr class="line" /><p><b>Type</b> Exception Report</p><p><b>Message</b> Servlet.init() for servlet [snapshotmanager] threw exception</p><p><b>Description</b> The server encountered an unexpected condition that prevented it from fulfilling the request.</p><p><b>Exception</b></p><pre>javax.servlet.ServletException: Servlet.init() for servlet [snapshotmanager] threw exception
        org.apache.catalina.authenticator.AuthenticatorBase.invoke(AuthenticatorBase.java:543)
        org.apache.catalina.valves.ErrorReportValve.invoke(ErrorReportValve.java:81)
    [...]
        java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)
        org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
        java.lang.Thread.run(Unknown Source)
</pre><p><b>Root Cause</b></p><pre>org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name &#39;snapshotManagerServerConfiguration&#39;: Unsatisfied dependency expressed through field &#39;snapshotRequestHandler&#39;; nested exception is org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name &#39;snapshotHandler&#39;: Unsatisfied dependency expressed through field &#39;snapshotTemplate&#39;; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name &#39;getRestTemplate&#39; defined in com.emc.avamar.vmware.snapshot.config.server.SnapshotManagerServerConfiguration: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.rabbit.core.RabbitTemplate]: Circular reference involving containing bean &#39;snapshotManagerServerConfiguration&#39; - consider declaring the factory method as static for independence from its containing instance. Factory method &#39;getRestTemplate&#39; threw exception; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name &#39;replySnapshotQueue&#39; defined in com.emc.avamar.vmware.snapshot.config.server.SnapshotManagerServerConfiguration: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.core.Queue]: Circular reference involving containing bean &#39;snapshotManagerServerConfiguration&#39; - consider declaring the factory method as static for independence from its containing instance. Factory method &#39;replySnapshotQueue&#39; threw exception; nested exception is org.springframework.amqp.AmqpAuthenticationException: com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.
        org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.inject(AutowiredAnnotationBeanPostProcessor.java:598)
        org.springframework.beans.factory.annotation.InjectionMetadata.inject(InjectionMetadata.java:90)
    [...]
        java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)
        org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
        java.lang.Thread.run(Unknown Source)
</pre><p><b>Root Cause</b></p><pre>org.springframework.beans.factory.UnsatisfiedDependencyException: Error creating bean with name &#39;snapshotHandler&#39;: Unsatisfied dependency expressed through field &#39;snapshotTemplate&#39;; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name &#39;getRestTemplate&#39; defined in com.emc.avamar.vmware.snapshot.config.server.SnapshotManagerServerConfiguration: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.rabbit.core.RabbitTemplate]: Circular reference involving containing bean &#39;snapshotManagerServerConfiguration&#39; - consider declaring the factory method as static for independence from its containing instance. Factory method &#39;getRestTemplate&#39; threw exception; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name &#39;replySnapshotQueue&#39; defined in com.emc.avamar.vmware.snapshot.config.server.SnapshotManagerServerConfiguration: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.core.Queue]: Circular reference involving containing bean &#39;snapshotManagerServerConfiguration&#39; - consider declaring the factory method as static for independence from its containing instance. Factory method &#39;replySnapshotQueue&#39; threw exception; nested exception is org.springframework.amqp.AmqpAuthenticationException: com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.
        org.springframework.beans.factory.annotation.AutowiredAnnotationBeanPostProcessor$AutowiredFieldElement.inject(AutowiredAnnotationBeanPostProcessor.java:598)
    [...]
        java.lang.Thread.run(Unknown Source)
</pre><p><b>Root Cause</b></p><pre>org.springframework.beans.factory.BeanCreationException: Error creating bean with name &#39;getRestTemplate&#39; defined in com.emc.avamar.vmware.snapshot.config.server.SnapshotManagerServerConfiguration: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.rabbit.core.RabbitTemplate]: Circular reference involving containing bean &#39;snapshotManagerServerConfiguration&#39; - consider declaring the factory method as static for independence from its containing instance. Factory method &#39;getRestTemplate&#39; threw exception; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name &#39;replySnapshotQueue&#39; defined in com.emc.avamar.vmware.snapshot.config.server.SnapshotManagerServerConfiguration: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.core.Queue]: Circular reference involving containing bean &#39;snapshotManagerServerConfiguration&#39; - consider declaring the factory method as static for independence from its containing instance. Factory method &#39;replySnapshotQueue&#39; threw exception; nested exception is org.springframework.amqp.AmqpAuthenticationException: com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.
        org.springframework.beans.factory.support.ConstructorResolver.instantiate(ConstructorResolver.java:627)
    [...]
        java.lang.Thread.run(Unknown Source)
</pre><p><b>Root Cause</b></p><pre>org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.rabbit.core.RabbitTemplate]: Circular reference involving containing bean &#39;snapshotManagerServerConfiguration&#39; - consider declaring the factory method as static for independence from its containing instance. Factory method &#39;getRestTemplate&#39; threw exception; nested exception is org.springframework.beans.factory.BeanCreationException: Error creating bean with name &#39;replySnapshotQueue&#39; defined in com.emc.avamar.vmware.snapshot.config.server.SnapshotManagerServerConfiguration: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.core.Queue]: Circular reference involving containing bean &#39;snapshotManagerServerConfiguration&#39; - consider declaring the factory method as static for independence from its containing instance. Factory method &#39;replySnapshotQueue&#39; threw exception; nested exception is org.springframework.amqp.AmqpAuthenticationException: com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.
        org.springframework.beans.factory.support.SimpleInstantiationStrategy.instantiate(SimpleInstantiationStrategy.java:185)
    [...]
        java.lang.Thread.run(Unknown Source)
</pre><p><b>Root Cause</b></p><pre>org.springframework.beans.factory.BeanCreationException: Error creating bean with name &#39;replySnapshotQueue&#39; defined in com.emc.avamar.vmware.snapshot.config.server.SnapshotManagerServerConfiguration: Bean instantiation via factory method failed; nested exception is org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.core.Queue]: Circular reference involving containing bean &#39;snapshotManagerServerConfiguration&#39; - consider declaring the factory method as static for independence from its containing instance. Factory method &#39;replySnapshotQueue&#39; threw exception; nested exception is org.springframework.amqp.AmqpAuthenticationException: com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.
        org.springframework.beans.factory.support.ConstructorResolver.instantiate(ConstructorResolver.java:627)
        org.springframework.beans.factory.support.ConstructorResolver.instantiateUsingFactoryMethod(ConstructorResolver.java:456)
    [...]
        java.lang.Thread.run(Unknown Source)
</pre><p><b>Root Cause</b></p><pre>org.springframework.beans.BeanInstantiationException: Failed to instantiate [org.springframework.amqp.core.Queue]: Circular reference involving containing bean &#39;snapshotManagerServerConfiguration&#39; - consider declaring the factory method as static for independence from its containing instance. Factory method &#39;replySnapshotQueue&#39; threw exception; nested exception is org.springframework.amqp.AmqpAuthenticationException: com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.
        org.springframework.beans.factory.support.SimpleInstantiationStrategy.instantiate(SimpleInstantiationStrategy.java:185)
    [...]
        java.lang.Thread.run(Unknown Source)
</pre><p><b>Root Cause</b></p><pre>org.springframework.amqp.AmqpAuthenticationException: com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.
        org.springframework.amqp.rabbit.support.RabbitExceptionTranslator.convertRabbitAccessException(RabbitExceptionTranslator.java:61)
    [...]
        org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
        java.lang.Thread.run(Unknown Source)
</pre><p><b>Root Cause</b></p><pre>com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.
        com.rabbitmq.client.impl.AMQConnection.start(AMQConnection.java:339)
        com.rabbitmq.client.ConnectionFactory.newConnection(ConnectionFactory.java:647)
        com.rabbitmq.client.ConnectionFactory.newConnection(ConnectionFactory.java:694)
    [...]
        java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source)
        java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)
        org.apache.tomcat.util.threads.TaskThread$WrappingRunnable.run(TaskThread.java:61)
        java.lang.Thread.run(Unknown Source)
* Closing connection 0
* TLSv1.2 (OUT), TLS alert, Client hello (1):
</pre><p><b>Note</b> The full stack trace of the root cause is available in the server logs.</p><hr class="line" /><h3>Apache Tomcat</h3></body></html>


From the output above, collect the following snippet mentioned previously:

threw exception; nested exception is org.springframework.amqp.AmqpAuthenticationException: com.rabbitmq.client.AuthenticationFailureException: ACCESS_REFUSED - Login was refused using authentication mechanism PLAIN. For details see the broker logfile.

Resolution

Avamar versions 19.x onwards:

1. Take a backup of mcserver.xml and update the RabbitMQ password in mcserver.xml to the default 'Avamar_Rabbit' and edit the file:

cp -p /usr/local/avamar/var/mc/server_data/prefs/mcserver.xml /usr/local/avamar/var/mc/server_data/prefs/x-mcserver.xml

vi /usr/local/avamar/var/mc/server_data/prefs/mcserver.xml


2. Change the <entry key="rabbitmqAP" to the default password 'Avamar_Rabbit'

<entry key="rabbitmqAP" value="Avamar_Rabbit" />


3. Restart the Management Console Service (MCS), as admin user:

mcserver.sh --restart --force


4. Re-create the RabbitMQ User/Permissions/Password/vHost as root user, and use the following steps to do so automatically.

service rabbitmq-server stop
cd /data01/avamar/var/rabbitmq/mnesia
mkdir /data01/rabbit_mnesia_backup
mv rabbit@localhost* /data01/rabbit_mnesia_backup/
ls -ltr /data01/rabbit_mnesia_backup/
service rabbitmq-server start
msgbrokerctl.pl --remove
msgbrokerctl.pl --stop
msgbrokerctl.pl --start


5. Restart Tomcat as root user.

emwebapp.sh --restart


6. Test PDM recommendation.
