PowerEdge: PERC11 of 10 - HII-configuratiehulpprogramma en iDRAC bieden geen ondersteuning voor arrayuitbreiding

Summary: PowerEdge RAID Controller (PERC11, PERC10), Human Interface Infrastructure (HII)-configuratiehulpprogramma en iDRAC bieden geen ondersteuning voor arrayuitbreiding.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

Wanneer de harde schijven in een schijfgroep worden vervangen door grotere schijven, is de optie Virtuele schijf uitbreiden niet beschikbaar in het PERC HII Configuration Utility: System Setup -> PERC Setup -> VD Operation drop down list

HII-configuratie Utility-VD-bewerkingFigure 1:  HII-configuratiehulpprogramma - VD-bewerking

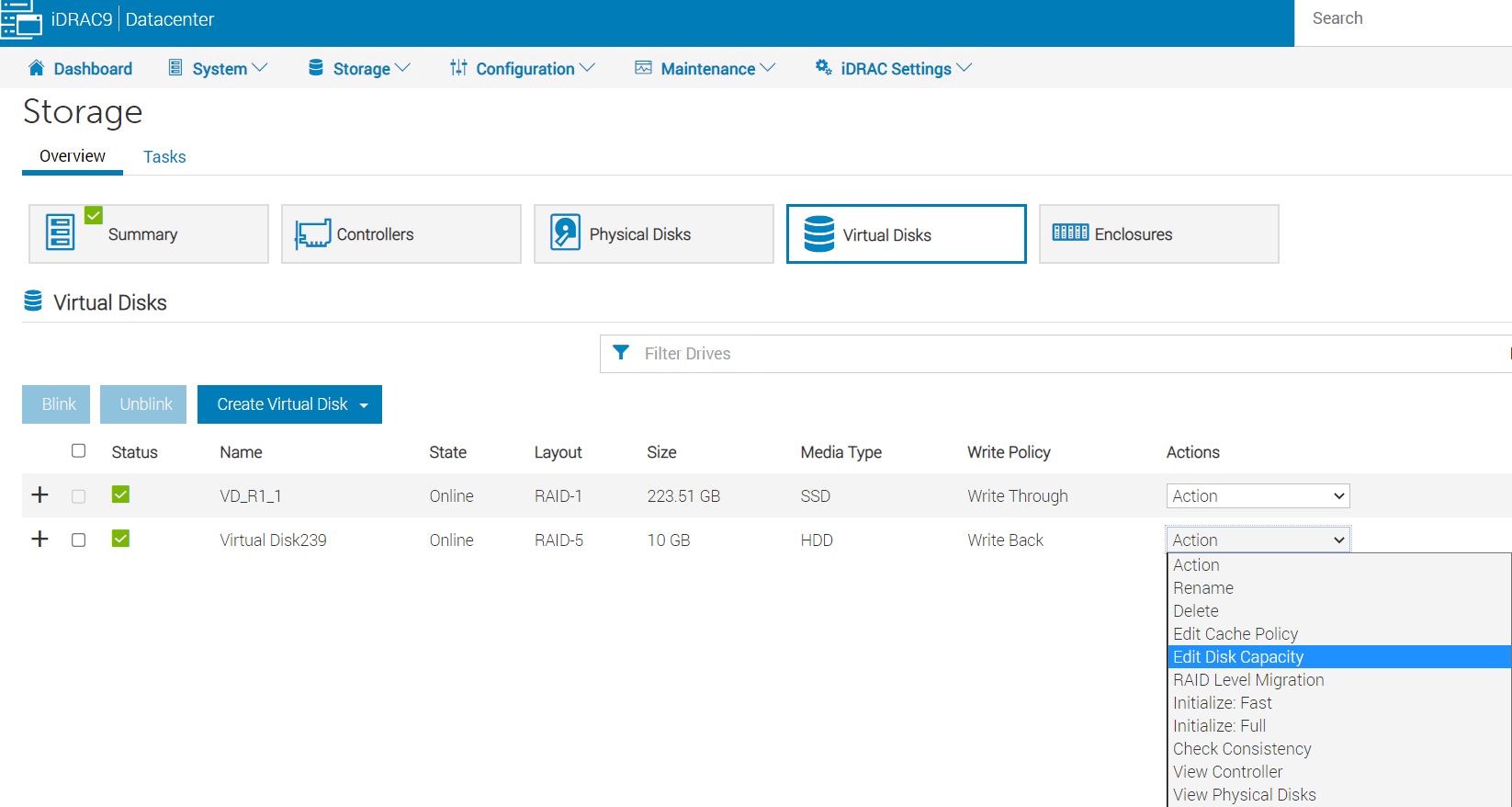

De optie Edit Disk Capacity is beschikbaar in de vervolgkeuzelijst iDRAC WebGUI-Storage> -> Virtual Disks -> VD Actions.
iDRAC WebGUI-Storage-Virtual>> Disk
Afbeelding 2: iDRAC WebGUI-Storage-Virtuele>> schijf

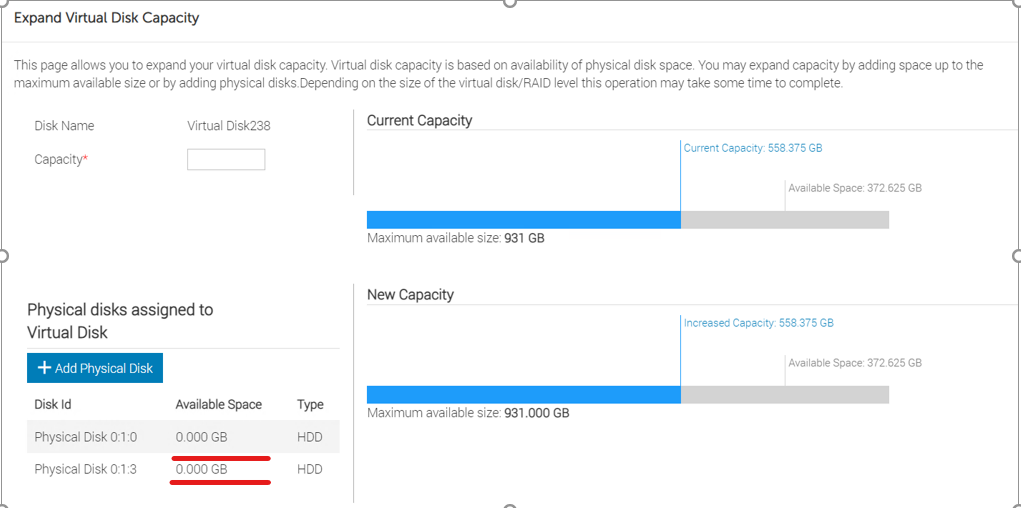

Na het selecteren van "Edit Disk Capacity", toont de "Available Space" 0,00 GB.
iDRAC WebGUI - Expand Virtual Disk Capacity-pagina>
Afbeelding 3: iDRAC WebGUI -> Expand Virtual Disk Capacity.

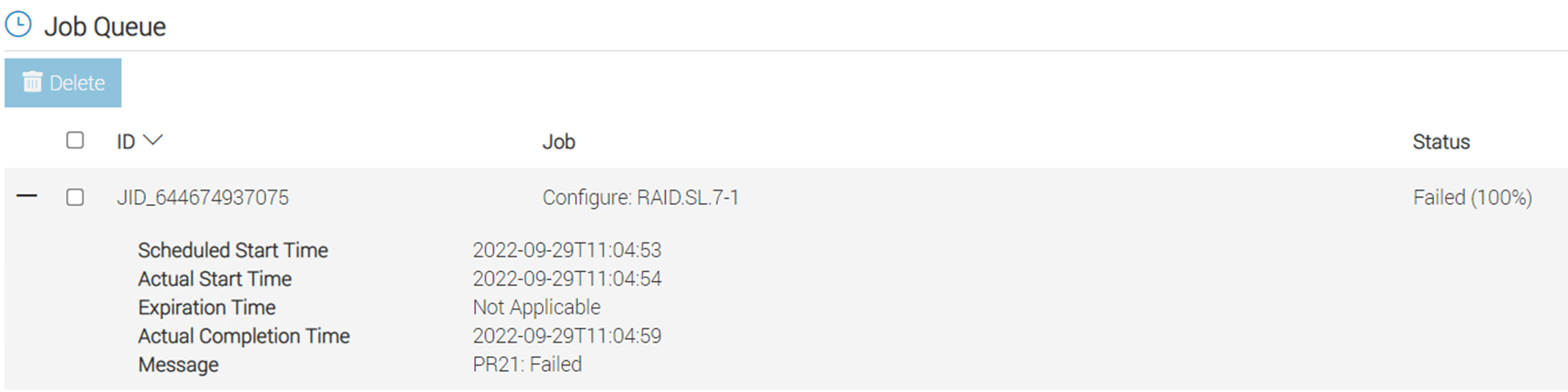

De bewerking mislukt wanneer u probeert de capaciteit van de virtuele schijf uit te breiden door de maximaal beschikbare grootte in te voeren in het veld "Capacity".
Foutbericht taakwachtrij
Figuur 4: Foutbericht

taakwachtrij Als er ruimte beschikbaar is in een bestaande array, gebruikt u het hulpprogramma PERCCLI om uit te breiden.

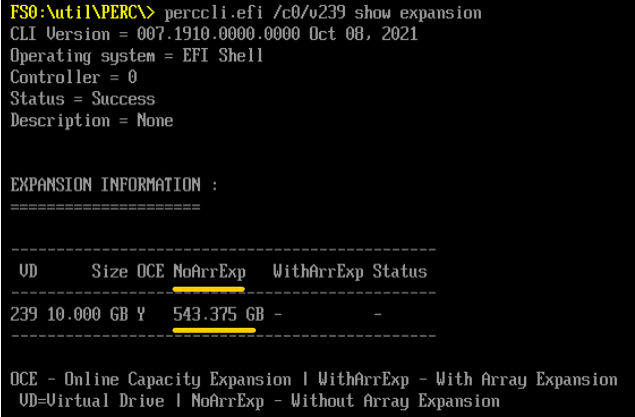

"PERCCLI /cx/vx show expansion" toont de beschikbare ruimte onder NoArrExp.
PERCCLI uitgang NoArrExp
Afbeelding 5: PERCCLI uitvoer NoArrExp

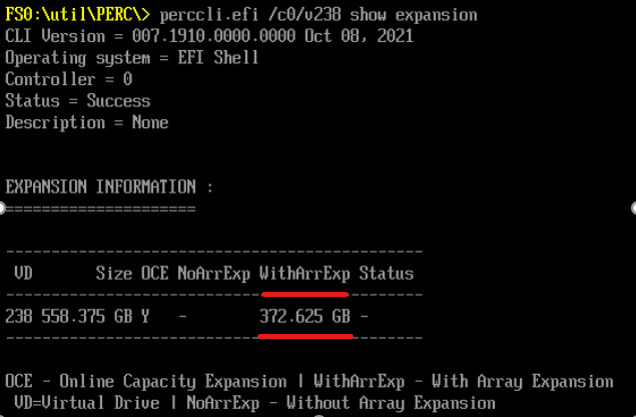

Als de harde schijven in een schijfgroep echter zijn vervangen door grotere schijven, wordt de beschikbare ruimte weergegeven onder WithArrExp in de uitvoer van "PERCCLI /cx/vx show expansion."PERCCLI uitvoer WithArrExp

Figuur 6: PERCCLI uitvoer WithArrExp

Cause

Het PERC HII-configuratiehulpprogramma en iDRAC bieden geen ondersteuning voor het uitbreiden van de arraycapaciteit.

Resolution

De arraycapaciteit uitbreiden met behulp van het Dell PERCCLI nut:


  • 1. Run "perccli /cx/vx show expansion" to determine the available expansion space.

2. Then run "perccli /cx/vx expand Size=<xx> expandarray" to perform the array expansion.

            The expand command will expand the virtual drive within the existing array if there is available space, or expand into additional capacity if the drives have been replaced with larger ones.
            The <xx> size value is specified in GB.
            If the "expandarray" option is specified, the full array capacity will be expanded.
            If this option is not specified, only the virtual drive capacity will be expanded rather than the full array.

Nadat u alle arrayleden hebt vervangen door grotere stations, gebruikt u het pictogram PERCCLI hulpprogramma om de bestaande virtuele schijf uit te breiden naar een groter formaat met behulp van de "expandarray" parameter.

Dit gedrag wordt ook beschreven in de gebruikershandleiding van de PERC11 onder het gedeelte Functies van PowerEdge RAID Controller 11 -> Virtuele schijven opnieuw configureren:
https://www.dell.com/support/home/en-us/product-support/product/perc-h755/docs
