PowerEdge: PERC11 eller 10 – HII-konfigurationsverktyg och iDRAC stöder inte disksystemexpansion

Summary: PowerEdge RAID-styrenhet (PERC11, PERC10), konfigurationsverktyget för Human Interface Infrastructure (HII) och iDRAC stöder inte disksystemexpansion.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

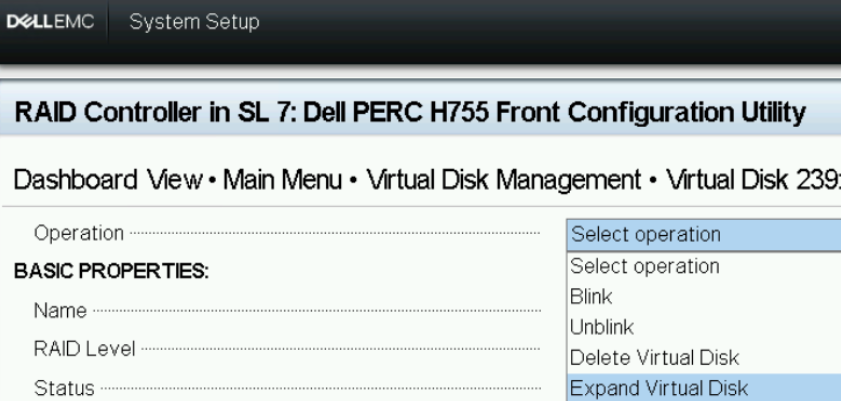

När hårddiskarna i en diskgrupp byts ut mot större diskar är alternativet "Expand Virtual Disk" inte tillgängligt i PERC HII-konfigurationsverktyget: ListrutanHII-konfigurationsverktyg – VD-drift

Systeminstallationsprogram –> PERC-konfiguration –> VD-åtgärdBild 1:  Verktyg för HII-konfiguration – VD-åtgärd

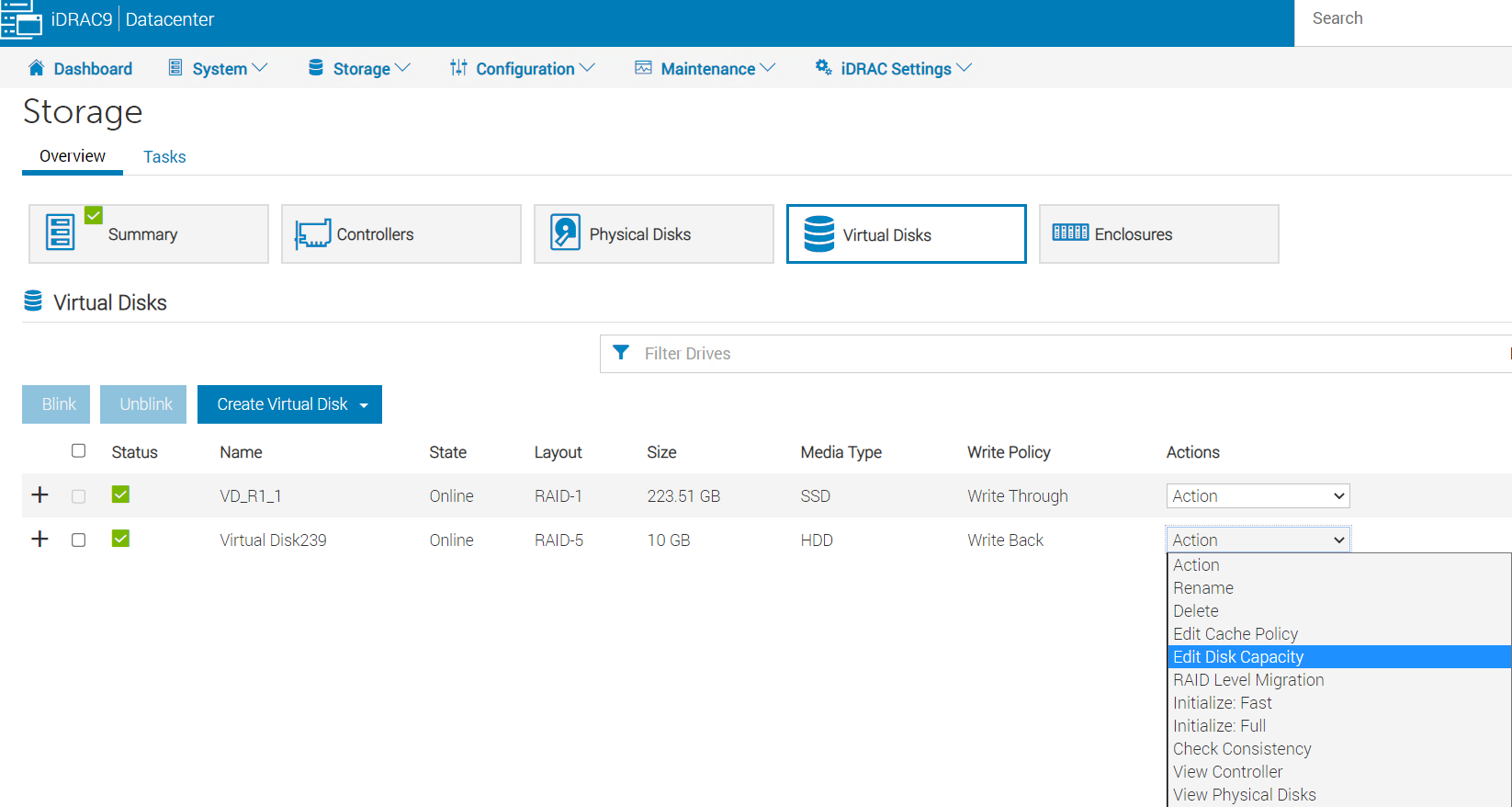

Alternativet Edit Disk Capacity finns i listrutan iDRAC WebGUI-Storage>->"Virtual Disks" –> VD Actions.
iDRAC WebGUI-Storage-Virtual>> Disk
Bild 2: iDRAC WebGUI-Storage-Virtual>> Disk

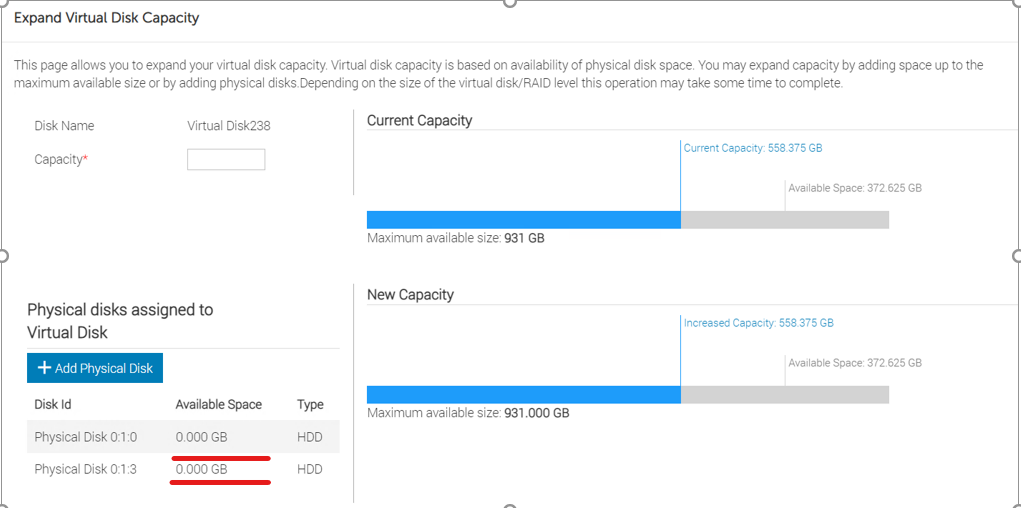

När du har valt Edit Disk Capacity visas 0,00 GB i Available Space.
iDRAC WebGUI –> Utöka sidan Virtual Disk Capacity
Bild 3: Sidan iDRAC WebGUI –> Expand Virtual Disk Capacity.

Åtgärden misslyckas när du försöker utöka den virtuella diskkapaciteten genom att ange den maximala tillgängliga storleken i fältet Capacity.
Felmeddelande för jobbkö
Figur 4: Felmeddelande

för jobbkö Om det finns tillgängligt utrymme i ett befintligt disksystem använder du verktyget PERCCLI för att expandera."

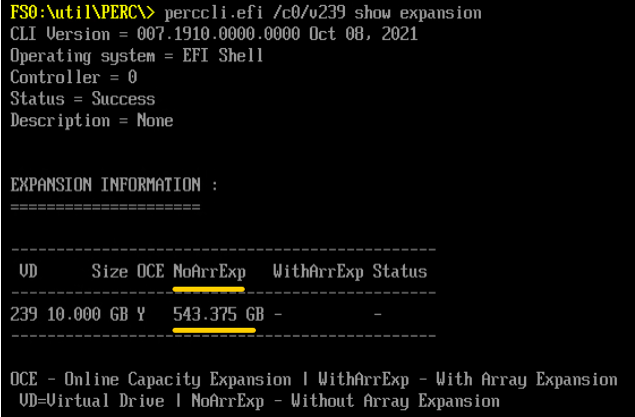

PERCCLI /cx/vx show expansion" visar det tillgängliga utrymmet under NoArrExp.
PERCCLI-utgång NoArrExp
Bild 5: PERCCLI utdata NoArrExp

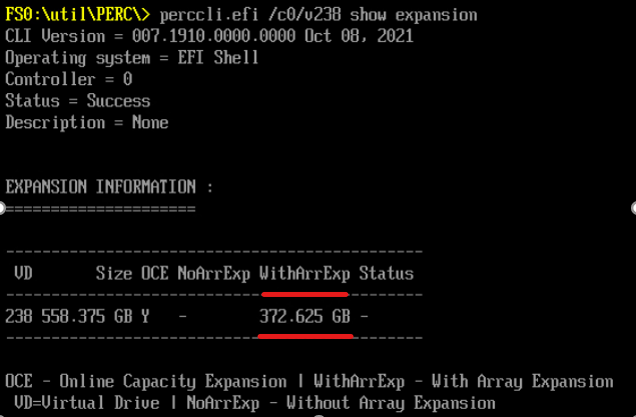

Men om hårddiskarna i en diskgrupp har bytts ut mot större diskar visas det tillgängliga utrymmet under WithArrExp i utgången av "PERCCLI /cx/vx show expansion."PERCCLI-utdata med ArrExp

Figur 6: PERCCLI utdata WithArrExp

Cause

PERC HII-konfigurationsverktyget och iDRAC stöder inte utökning av disksystemkapaciteten.

Resolution

Utöka disksystemkapaciteten med hjälp av Dell PERCCLI nytta:


  • 1. Run "perccli /cx/vx show expansion" to determine the available expansion space.

2. Then run "perccli /cx/vx expand Size=<xx> expandarray" to perform the array expansion.

            The expand command will expand the virtual drive within the existing array if there is available space, or expand into additional capacity if the drives have been replaced with larger ones.
            The <xx> size value is specified in GB.
            If the "expandarray" option is specified, the full array capacity will be expanded.
            If this option is not specified, only the virtual drive capacity will be expanded rather than the full array.

När du har bytt ut alla matriselement mot större enheter använder du PERCCLI för att expandera den befintliga virtuella disken till en större storlek med hjälp av "expandarray"-parametern.

Det här beteendet finns även dokumenterat i bruksanvisningen för PERC11 i avsnittet "Funktioner i PowerEdge RAID-styrenhet 11" –> "konfigurera om virtuella diskar":
https://www.dell.com/support/home/en-us/product-support/product/perc-h755/docs
