PowerEdge: PERC11 ou 10 - o utilitário de configuração HII e o iDRAC não são compatíveis com a expansão de array

Summary: O PowerEdge RAID Controller (PERC11, PERC10), o utilitário de configuração da Human Interface Infrastructure (HII) e o iDRAC não são compatíveis com a expansão de array.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

Quando os discos rígidos de um grupo de discos são substituídos por discos maiores, a opção "Expand Virtual Disk" não está disponível no utilitário de configuração do PERC HII: Lista suspensa System Setup -> PERC Setup -> VD Operation

Operação do disco virtual do utilitário de configuração HIIFigura1:  Utilitário de configuração HII - Operação

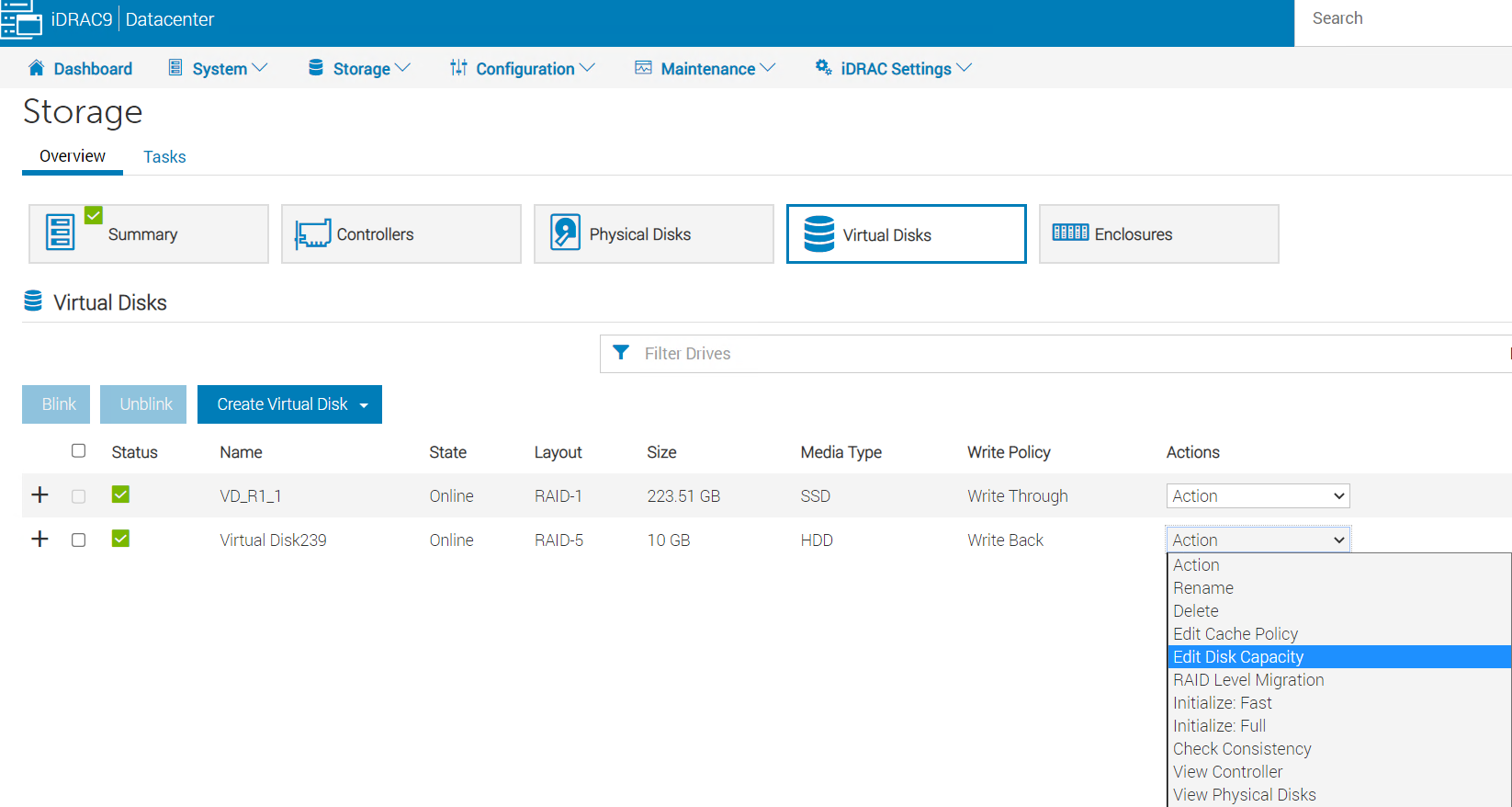

VD A opção "Edit Disk Capacity" está disponível na lista drop-down iDRAC WebGUI-Storage>->"Virtual Disks" -> VD Actions.
iDRAC WebGUI -> Armazenamento -> Disco virtual
Figura 2: iDRAC WebGUI-Storage-Virtual>> Disk

Depois de selecionar "Edit Disk Capacity", o "Available Space" mostra 0,00 GB.

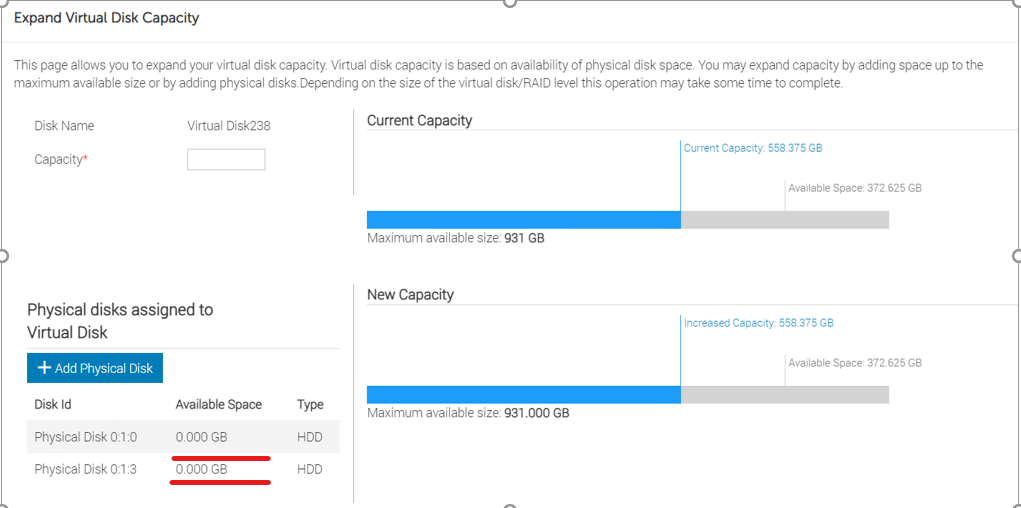

Página iDRAC WebGUI-Expand> Virtual Disk Capacity
Figura 3: página "Expand Virtual Disk Capacity" do iDRAC WebGUI>.

A operação falha ao tentar expandir a capacidade do disco virtual digitando o tamanho máximo disponível no campo "Capacity".

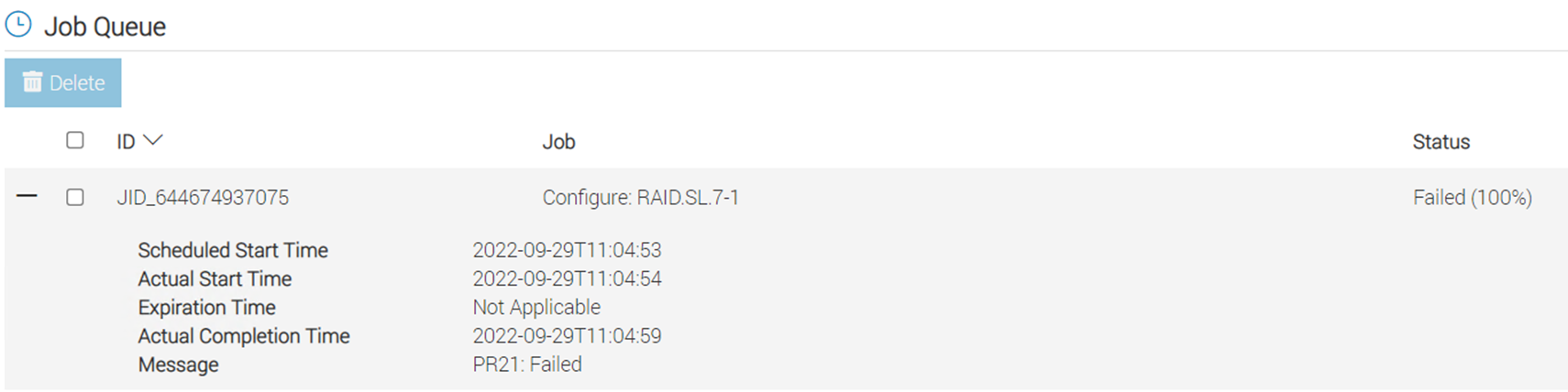

Mensagem de erro da fila de trabalhos
Figura 4: Mensagem
de erro da fila de trabalhos Se houver espaço disponível em um array existente, use o utilitário PERCCLI para expandir.
"

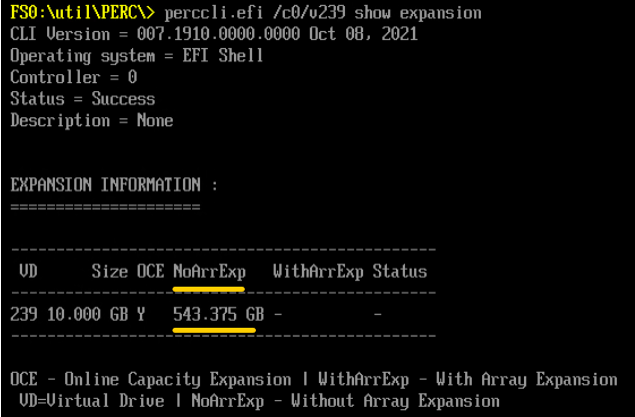

PERCCLI /cx/vx show expansion" mostra o espaço disponível em NoArrExp.
Saída PERCCLI NoArrExp
Figura 5: PERCCLI saída NoArrExp

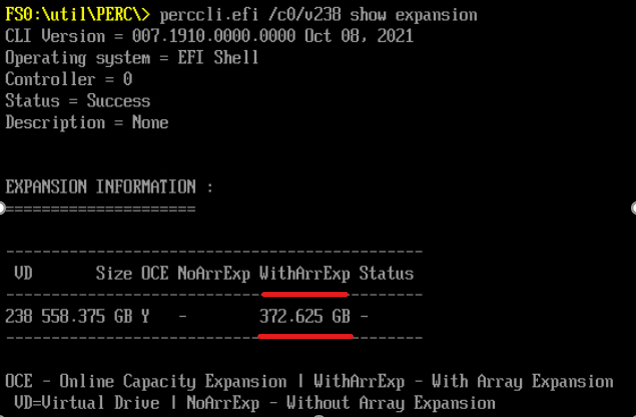

No entanto, se os discos rígidos em um grupo de discos tiverem sido substituídos por discos maiores, o espaço disponível será mostrado em WithArrExp na saída de "PERCCLI /cx/vx show expansion."Saída PERCCLI WithArrExp

Figura 6: PERCCLI saída WithArrExp

Cause

O utilitário de configuração PERC HII e o iDRAC não são compatíveis com a expansão da capacidade do array.

Resolution

Expandindo a capacidade do array usando o PERCCLI utilidade:


  • 1. Run "perccli /cx/vx show expansion" to determine the available expansion space.

2. Then run "perccli /cx/vx expand Size=<xx> expandarray" to perform the array expansion.

            The expand command will expand the virtual drive within the existing array if there is available space, or expand into additional capacity if the drives have been replaced with larger ones.
            The <xx> size value is specified in GB.
            If the "expandarray" option is specified, the full array capacity will be expanded.
            If this option is not specified, only the virtual drive capacity will be expanded rather than the full array.

Depois de substituir todos os membros do array por unidades maiores, use o comando PERCCLI utilitário para expandir o disco virtual existente para um tamanho maior usando o "expandarray" parâmetro.

Esse comportamento também está documentado no Guia do usuário do PERC11, na seção "Recursos do controlador RAID PowerEdge 11" —> "reconfigurando discos virtuais":
https://www.dell.com/support/home/en-us/product-support/product/perc-h755/docs
