OS6 | ip netdirbcast command is replaced to ip directed-broadcast since 6.7.0
Summary: OS6 | "ip netdirbcast" command is replaced to "ip directed-broadcast" since 6.7.0
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Instructions
"ip netdirbcast" command is replaced to "ip directed-broadcast" since 6.7.0.
There is no change in the command description.

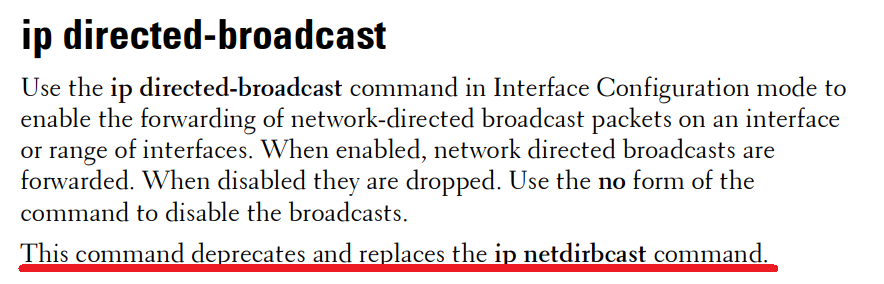

--- CLI Reference Guide page 1534 ---
https://downloads.dell.com/manuals/all-products/esuprt_networking_int/esuprt_networking_switches_series/esuprt_networking_switches_powerswitch/networking-n2200-series_user%27s-guide16_en-us.pdf
Certainly, if you perform this command with 6.7 or 6.8, it is like below.
If you upgrade to 6.8 or later, the "ip netdirbcast" command is automatically replaced by "ip directed-broadcast."
There is no change in the command description.
--- CLI Reference Guide page 1534 ---
https://downloads.dell.com/manuals/all-products/esuprt_networking_int/esuprt_networking_switches_series/esuprt_networking_switches_powerswitch/networking-n2200-series_user%27s-guide16_en-us.pdf
Certainly, if you perform this command with 6.7 or 6.8, it is like below.
If you upgrade to 6.8 or later, the "ip netdirbcast" command is automatically replaced by "ip directed-broadcast."
Additional Information
I upgrade for verification from 6.3.3.14 to 6.8.1.0.
Then the "ip netdirbcast" command was automatically replaced by "ip directed-broadcast" after upgrade.
But I have not tried it with all combinations of upgrades, so we should be careful.
In the DPSearch, either of the following actions is required.
1.Once install FW 6.6 or less, configure ip netdirbcast, and then upgrade to 6.7 or later.
2.Install FW6.7 or later and replace the command when you restore the configuration.
Then the "ip netdirbcast" command was automatically replaced by "ip directed-broadcast" after upgrade.
But I have not tried it with all combinations of upgrades, so we should be careful.
In the DPSearch, either of the following actions is required.
1.Once install FW 6.6 or less, configure ip netdirbcast, and then upgrade to 6.7 or later.
2.Install FW6.7 or later and replace the command when you restore the configuration.
