Dell VxRail: Solmun laajennus epäonnistuu vahvistuksen yhteydessä virheen PrimaryStorageReadyForExpansionValidator vuoksi

Summary: Solmun laajennus epäonnistuu vahvistuksessa virheen PrimaryStorageReadyForExpansionValidator vuoksi.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

Solmun laajennus epäonnistuu vahvistuksen yhteydessä virheen vuoksi:
General Error
An unknown validation error occurred in PrimaryStorageReadyForExpansionValidator

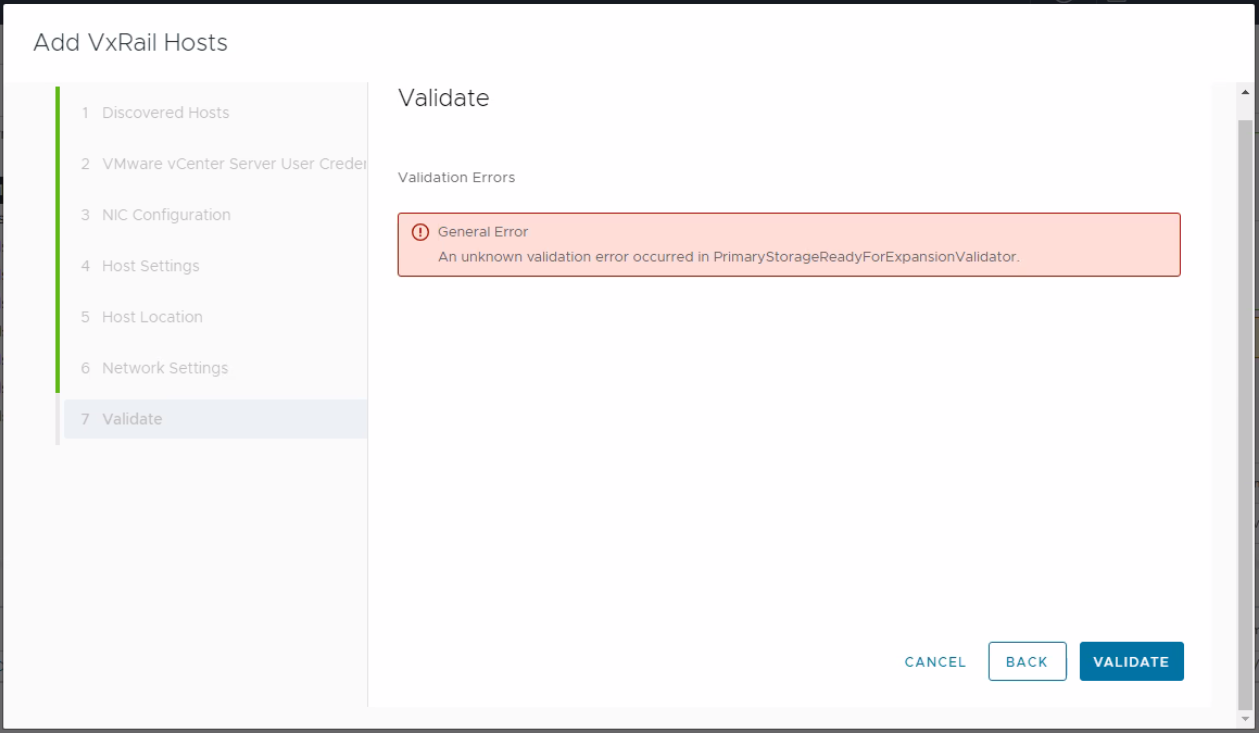

Näyttökuva virheilmoituksesta
Kuva 1: Näyttökuva virheilmoituksesta

Kun Dayone.log - tai shortterm.log-tiedostoa tarkastellaan, määritetyt isännät, joiden get_customized_vibs valittu, epäonnistuvat. Tätä käytetään uuden solmun ja määritetyn solmun vertailuun.
"2023-10-18 09:30:03,412" microservice.do-host "2023-10-18T09:30:02.599693731Z stderr F 2023-10-18 09:30:02,599 [ERROR] <Dummy-52:140561398021704> esxcli_client2.py run() (154): Error occurred when running: esxcli.software.component.list"
"2023-10-18 09:31:01,413" microservice.do-host "2023-10-18T09:31:01.21374762Z stderr F 2023-10-18 09:31:01,213 [ERROR] <Dummy-60:140561395805768> esxcli_client2.py run() (154): Error occurred when running: esxcli.hardware.platform.get"

"2023-10-18 09:30:05,898" microservice.workflow-engine "2023-10-18T09:30:05.791005812Z stdout F INFO [wfengine.status] task host_customized_driver_validation_False____exp67b67ad3_d786_508bd1f536 failure"
"2023-10-18 09:30:05,898" microservice.workflow-engine "2023-10-18T09:30:05.809971889Z stdout F INFO [wfengine.status] notify {'level': 'step', 'id': 'host_customized_driver_validation', 'state': 'FAILED', 'progress': 97, 'status': {'id': 'host_customized_driver_validation', 'internal_id': 'host_customized_driver_validation_False____exp67b67ad3_d786_508bd1f536', 'internal_family': 'host_customized_driver_validation', 'status': 'FAILED', 'startTime': 1697621394266, 'stage': '', 'params':

{'has_customized_component': False}
, 'error':

{'result': 'FAILED'}
}}"
"2023-10-18 09:30:05,898" microservice.workflow-engine "2023-10-18T09:30:05.863154343Z stdout F INFO [luigi-interface] Informed scheduler that task host_customized_driver_validation_False____exp67b67ad3_d786_508bd1f536 has status FAILED"

Solmun kuntotarkistuskomentosarja on juuttunut kyselyyn, määritetty solmuprosessi ja solmun kuntotarkistusloki osoittaa, että se palauttaa 504 yhdyskäytävän aikakatkaisun.
23-10-19 02:59 - DEBUG - curl --unix-socket /var/lib/vxrail/nginx/socket/nginx.sock -H "Content-Type: application/json" http://127.0.0.1/rest/vxm/internal/do/v1/host/query -d '{"query": "{configuredHosts { moid, name, hardware{ sn, psnt, applianceId, model}, runtime{ agent {ready ,backend },  connectionState, powerState, inMaintenanceMode, overallStatus}, summary { config { product { version }}}, config { diskgroup{current{type}},network{vnic{device portgroup mtu interfaceTags}},biosUUID, isPrimary, product {name, version, build} }}}"}'
23-10-19 03:09 - DEBUG - <html>
<head><title>504 Gateway Time-out</title></head>
<body>
<center><h1>504 Gateway Time-out</h1></center>
<hr><center>nginx</center>
</body>
</html>

shortterm.log
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602210134Z stdout F 2023-10-18 09:29:53,602 ERROR [StorageDeviceService.py:352] get_configured_hosts_model_dg_map: Failed to get current hosts info by do-host graphql."
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602593053Z stdout F 2023-10-18 09:29:53,602 ERROR [validator.py:68] execute: Validator MultiDGConfigurationValidator raise a Exception {'message': ""(vmodl.fault.SystemError) {\n   dynamicType = <unset>,\n   dynamicProperty = (vmodl.DynamicProperty) [],\n   msg = 'A general system error occurred: Too many outstanding operations',\n   faultCause = <unset>,\n   faultMessage = (vmodl.LocalizableMessage) [],\n   reason = 'Too many outstanding operations'\n}"", 'locations': [\{'line': 11, 'column': 9}], 'path': ['configuredHosts', 2, 'config', 'diskgroup', 'options']}"

"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602603034Z stdout F Traceback (most recent call last):"
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602606355Z stdout F   File ""/home/app/common/validator.py"", line 66, in execute"
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602608952Z stdout F     self.perform(*args, **kwargs)"
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602611897Z stdout F   File ""/home/app/multidiskgroupconfigurationvalidator/multi_disk_group_configuration_validator.py"", line 70, in perform"
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602616418Z stdout F     model_dg_map = StorageDeviceService().get_configured_hosts_model_dg_map()"
...........
...........
Unknown macro: {n   dynamicType = <unset>,n   dynamicProperty = (vmodl.DynamicProperty) [],n   msg = 'A general system error occurred}
"", 'locations': [\{'line': 11, 'column': 9}], 'path': ['configuredHosts', 2, 'config', 'diskgroup', 'options']}"
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.603258112Z stdout F 2023-10-18 09:29:53,603 INFO [utils.py:131] wrapper: log_call 72 return: [{'result': {'result': 'FAILED', 'name': 'MultiDGConfigurationValidator', 'context':

Unknown macro: {'invalid_fields'}
, 'errors': [{'type': 'THOROUGH-VALIDATOR', 'field': 'General Error ', 'code': 'config.validation.common.unknown.error', 'placeholders': ['MultiDGConfigurationValidator'], 'message': 'An unknown validation error occurred in MultiDGConfigurationValidator.'}], 'warnings': []}}]"

Cause

Ongelma ilmenee, kun tietty rutiinitehtävä (vScheduleCheckVsanConfigLro) käynnistetään, kun vCenterin LRO-työjono on jo täynnä jonossa olevia tehtäviä. vCenterin vpxd-palvelut lakkaavat vastaamasta. Tämä voi johtaa siihen, että isäntäkone ei saa tietoja määritetystä solmusta.

Lisätietoja on VMware-artikkelissa vCenter Server vpxd service crashes due to "Too many outstanding operations" (89742). Tämä hyperlinkki vie sinut Dell Technologiesin ulkopuoliseen sivustoon.

Resolution

Ongelma on korjattu vCenter Server 7.0 Update 3i -versiossa (koontiversion numero 20845200).

Workaround:
Muuta vCenterin config.vmacore.threadPool.TaskMax-arvoksi vähintään 200.

Käynnistä kaikki vCenterin palvelut sekä kunkin isännän vpxa- ja hostd-palvelut uudelleen. Aseta jokainen isäntä huoltotilaan ennen komentojen suorittamista.
On ESXi hosts:
#Rolling restart the ESXi host daemon and vCenter Agent services using these commands:
/etc/init.d/hostd restart
/etc/init.d/vpxa restart

On vCenter
#take a snapshot of vcenter server
#service-control --stop --all
#service-control --start --all
