Dell VxRail: Nodeutvidelse mislykkes ved validering med feilen PrimaryStorageReadyForExpansionValidator

Summary: Nodeutvidelse mislykkes ved validering med feilen PrimaryStorageReadyForExpansionValidator.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

Nodeutvidelse mislykkes ved validering med feilen:
General Error
An unknown validation error occurred in PrimaryStorageReadyForExpansionValidator

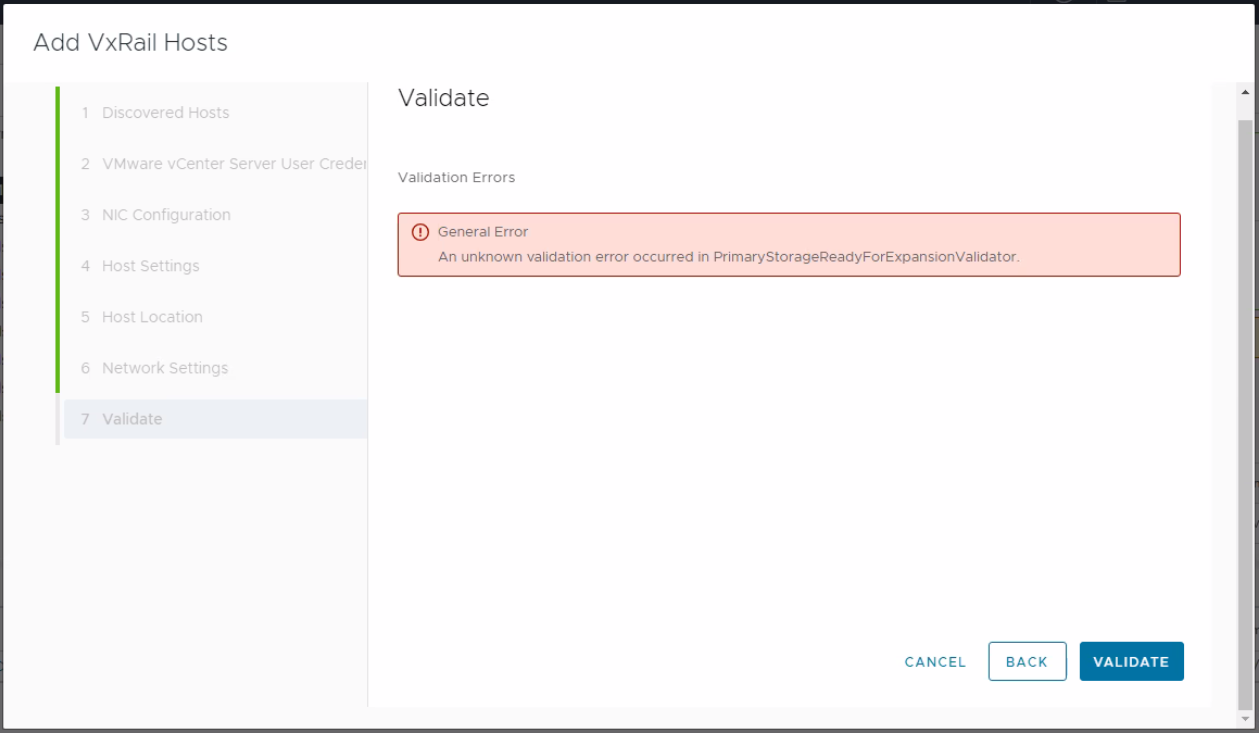

Skjermbilde av feilmelding
Figur 1: Skjermbilde av feilmeldingen

Når du viser Dayone.log eller shortterm.log, mislykkes de konfigurerte vertene med get_customized_vibs valgte. Dette brukes til å sammenligne den nye noden og den konfigurerte noden.
"2023-10-18 09:30:03,412" microservice.do-host "2023-10-18T09:30:02.599693731Z stderr F 2023-10-18 09:30:02,599 [ERROR] <Dummy-52:140561398021704> esxcli_client2.py run() (154): Error occurred when running: esxcli.software.component.list"
"2023-10-18 09:31:01,413" microservice.do-host "2023-10-18T09:31:01.21374762Z stderr F 2023-10-18 09:31:01,213 [ERROR] <Dummy-60:140561395805768> esxcli_client2.py run() (154): Error occurred when running: esxcli.hardware.platform.get"

"2023-10-18 09:30:05,898" microservice.workflow-engine "2023-10-18T09:30:05.791005812Z stdout F INFO [wfengine.status] task host_customized_driver_validation_False____exp67b67ad3_d786_508bd1f536 failure"
"2023-10-18 09:30:05,898" microservice.workflow-engine "2023-10-18T09:30:05.809971889Z stdout F INFO [wfengine.status] notify {'level': 'step', 'id': 'host_customized_driver_validation', 'state': 'FAILED', 'progress': 97, 'status': {'id': 'host_customized_driver_validation', 'internal_id': 'host_customized_driver_validation_False____exp67b67ad3_d786_508bd1f536', 'internal_family': 'host_customized_driver_validation', 'status': 'FAILED', 'startTime': 1697621394266, 'stage': '', 'params':

{'has_customized_component': False}
, 'error':

{'result': 'FAILED'}
}}"
"2023-10-18 09:30:05,898" microservice.workflow-engine "2023-10-18T09:30:05.863154343Z stdout F INFO [luigi-interface] Informed scheduler that task host_customized_driver_validation_False____exp67b67ad3_d786_508bd1f536 has status FAILED"

Skriptet for nodetilstandskontroll stopper på spørringen, konfigurert nodeprosess og nodetilstandskontrollloggen viser at den returnerer tidsavbrudd for 504 gateway.
23-10-19 02:59 - DEBUG - curl --unix-socket /var/lib/vxrail/nginx/socket/nginx.sock -H "Content-Type: application/json" http://127.0.0.1/rest/vxm/internal/do/v1/host/query -d '{"query": "{configuredHosts { moid, name, hardware{ sn, psnt, applianceId, model}, runtime{ agent {ready ,backend },  connectionState, powerState, inMaintenanceMode, overallStatus}, summary { config { product { version }}}, config { diskgroup{current{type}},network{vnic{device portgroup mtu interfaceTags}},biosUUID, isPrimary, product {name, version, build} }}}"}'
23-10-19 03:09 - DEBUG - <html>
<head><title>504 Gateway Time-out</title></head>
<body>
<center><h1>504 Gateway Time-out</h1></center>
<hr><center>nginx</center>
</body>
</html>

shortterm.log
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602210134Z stdout F 2023-10-18 09:29:53,602 ERROR [StorageDeviceService.py:352] get_configured_hosts_model_dg_map: Failed to get current hosts info by do-host graphql."
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602593053Z stdout F 2023-10-18 09:29:53,602 ERROR [validator.py:68] execute: Validator MultiDGConfigurationValidator raise a Exception {'message': ""(vmodl.fault.SystemError) {\n   dynamicType = <unset>,\n   dynamicProperty = (vmodl.DynamicProperty) [],\n   msg = 'A general system error occurred: Too many outstanding operations',\n   faultCause = <unset>,\n   faultMessage = (vmodl.LocalizableMessage) [],\n   reason = 'Too many outstanding operations'\n}"", 'locations': [\{'line': 11, 'column': 9}], 'path': ['configuredHosts', 2, 'config', 'diskgroup', 'options']}"

"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602603034Z stdout F Traceback (most recent call last):"
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602606355Z stdout F   File ""/home/app/common/validator.py"", line 66, in execute"
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602608952Z stdout F     self.perform(*args, **kwargs)"
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602611897Z stdout F   File ""/home/app/multidiskgroupconfigurationvalidator/multi_disk_group_configuration_validator.py"", line 70, in perform"
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.602616418Z stdout F     model_dg_map = StorageDeviceService().get_configured_hosts_model_dg_map()"
...........
...........
Unknown macro: {n   dynamicType = <unset>,n   dynamicProperty = (vmodl.DynamicProperty) [],n   msg = 'A general system error occurred}
"", 'locations': [\{'line': 11, 'column': 9}], 'path': ['configuredHosts', 2, 'config', 'diskgroup', 'options']}"
"2023-10-18 09:29:53,891" microservice.storage-service "2023-10-18T09:29:53.603258112Z stdout F 2023-10-18 09:29:53,603 INFO [utils.py:131] wrapper: log_call 72 return: [{'result': {'result': 'FAILED', 'name': 'MultiDGConfigurationValidator', 'context':

Unknown macro: {'invalid_fields'}
, 'errors': [{'type': 'THOROUGH-VALIDATOR', 'field': 'General Error ', 'code': 'config.validation.common.unknown.error', 'placeholders': ['MultiDGConfigurationValidator'], 'message': 'An unknown validation error occurred in MultiDGConfigurationValidator.'}], 'warnings': []}}]"

Cause

Dette problemet oppstår når en bestemt rutineoppgave (vScheduleCheckVsanConfigLro) startes når vCenters LRO-jobbkø allerede er full av oppgaver i kø. Det fører til at vpxd-tjenester på vCenter slutter å svare. Dette kan føre til at do-host ikke henter informasjon fra den konfigurerte noden.

Se gjennom VMware-artikkelen vCenter Server vpxd service krasjer på grunn av "Too many outstanding operations" (89742) (For mange utestående operasjoner) (89742) for mer informasjon Denne hyperkoblingen tar deg til et nettsted utenfor Dell Technologies..

Resolution

Dette problemet er løst i vCenter Server 7.0 Update 3i (buildnummer 20845200).

Løsningen:
Endre de bestemte parametrene config.vmacore.threadPool.TaskMax i vCenter til en verdi ovenfor eller tilsvarende 200.

Start alle tjenestene på nytt på vCenter, vpxa- og hostd-tjenestene på hver vert. Plasser hver vert i vedlikeholdsmodus før du kjører kommandoene på den.
On ESXi hosts:
#Rolling restart the ESXi host daemon and vCenter Agent services using these commands:
/etc/init.d/hostd restart
/etc/init.d/vpxa restart

On vCenter
#take a snapshot of vcenter server
#service-control --stop --all
#service-control --start --all
