PowerEdge: Seagate-diskens I/O-ydelsesproblem på H330

Summary: Denne artikel beskriver løsningen på problemet med PowerEdge R640-diskens I/O-ydeevne.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

Kunden rapporterer, at dev/sda har problemer med ydeevnen, diskens I/O-brugshastighed 100%, afventningsforsinkelsen er høj.

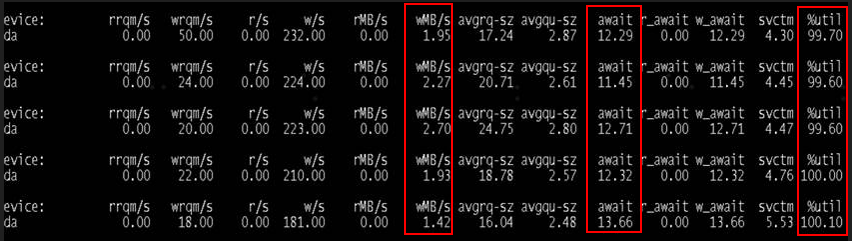

Diskens IO-brugshastighed 100%, afventningsforsinkelsen er høj



  1. TSR-log kontrollerer, at al disk- og VD-status er OK, PERC H330 RAID-kort (ingen cache) og Seagate 1.2 TB-disk (varenummer G2G54) var firmwaren forældet.

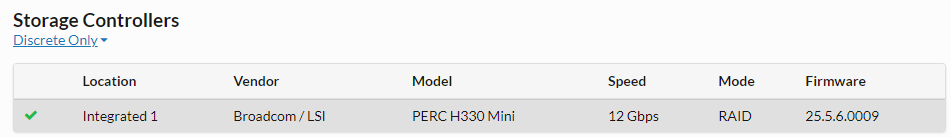

    Storagecontrollere

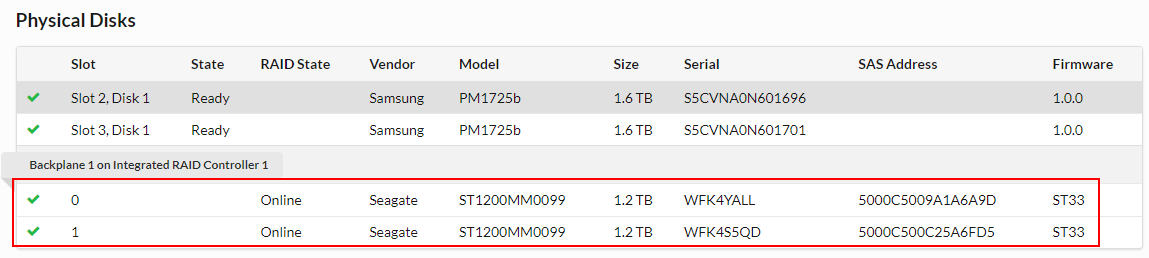

    Fysiske diske

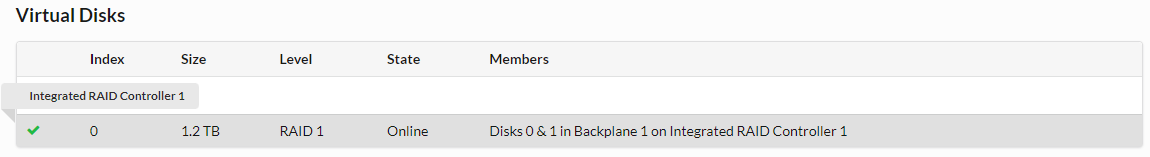

    Virtuelle diske

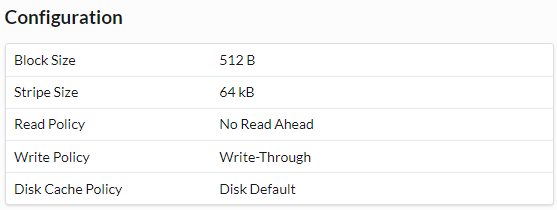

    VD-konfiguration
  2. Lifecycle-log og TTY-log check no found relateret disk og raid phy Link fejlmeddelelse.



Cause

Ingen specifik årsag



Resolution

Opdatering af PERC H330-firmwaren til 25.5.9.0001 og Seagate 1.2 TB-firmwaren til ST37 løste problemet med diskens I/O-ydeevne.
Dell PERC H330 mini-/adapter RAID-controllere, firmwareversion 25.5.9.0001
Seagate ST37 til modelnumre ST600MM0069 og ST1200MM0099
ST34-firmware: Forbedr gennemløbsydeevne for specifikke workloads.

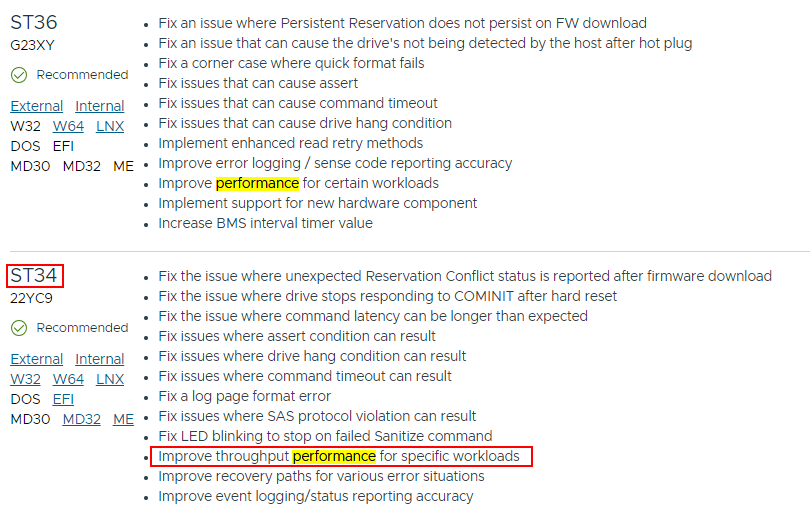

Diskfirmware



Affected Products

C Series, Modular Infrastructure, Rack Servers, Tower Servers, XR Servers, Poweredge C4140, PowerEdge C6400, PowerEdge C6420, PowerEdge FC640, PowerEdge M640, PowerEdge M640 (for PE VRTX), PowerEdge MX5016s, PowerEdge MX7000, PowerEdge MX740C , PowerEdge MX840C, PowerEdge R240, PowerEdge R340, PowerEdge R440, PowerEdge R540, PowerEdge R640, PowerEdge R6415, PowerEdge R740, PowerEdge R740XD, PowerEdge R740XD2, PowerEdge R7415, PowerEdge R7425, PowerEdge R840, PowerEdge R940, PowerEdge R940xa, PowerEdge T140, PowerEdge T340, PowerEdge T40, PowerEdge T440, PowerEdge T640 ...
