PowerEdge XE: How to install packages for DCGMI troubleshooting in Ubuntu LTS

Pre-Requisites
To run DCGM the target system must include the following NVIDIA components, listed in dependency order:
- Supported NVIDIA Datacenter Drivers
- On HGX systems, the Fabric Manager and NVSwitch Configuration and Query (NSCQ) packages
- DCGM Runtime and SDK

For Ubuntu Releases:

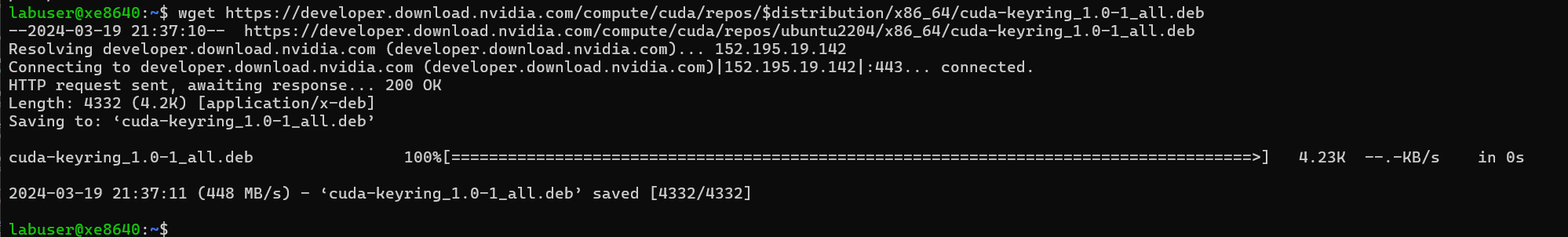

Download the meta-package for the CUDA network repository:
> wget https://developer.download.nvidia.com/compute/cuda/repos/$distribution/x86_64/cuda-keyring_1.0-1_all.deb
[Replace x86_64 with "sbsa" for arm64 or replace with "ppc64le" for ppc64le if needed. Remove quotes]

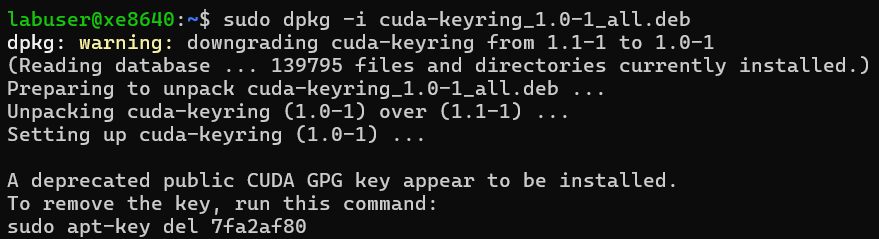

Install the repository metadata and the CUDA GPG key:
> sudo dpkg -i cuda-keyring_1.0-1_all.deb


Update APT:
> sudo apt-get update


Install DCGM:
> sudo apt-get install -y datacenter-gpu-manager

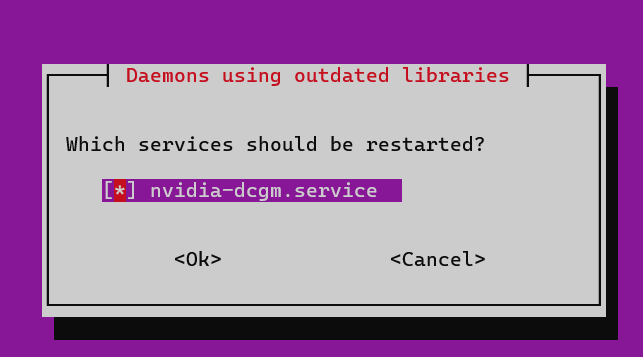

You may get this dialog box before the update finishes, select OK to continue (use tab to move to OK/Cancel)


On HGX systems (A100/A800 and H100/H800), you must install the NVIDIA Switch Configuration and Query (NSCQ) library for DCGM to enumerate the NVSwitches and provide telemetry for switches. NSCQ must match the driver version branch (XXX) installed on the system. Substitute XXX with the wanted driver branch in the commands below.
> sudo apt-get install -y libnvidia-nscq-XXX

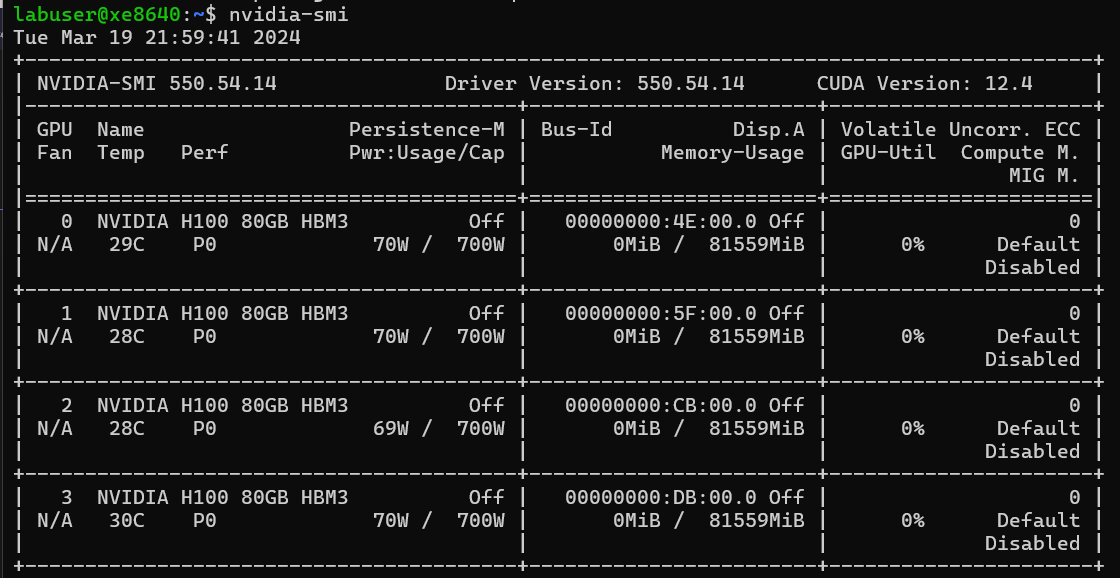

Query the OS for the driver version:
> nvidia-smi


So for this example, we use the following command:
> sudo apt-get install -y libnvidia-nscq-550


This dialog box may appear before the update finishes, select OK to continue (use tab button)


Enable the DCGM systemd service (on reboot) and start now:
> sudo systemctl --now enable nvidia-dcgm


To verify installation, use dcgmi to query the system. You should see a listing of all supported GPUs (and any NVSwitches) found in the system: (the switch is a lower case L)
> dcgmi discovery -l

[Example below does not have NvSwitches but the field populates with details if they are present/detected.]


Run the needed DCGM diagnostics.
