Avamar: Deactivating Proxy Alters vc_id with Multiple vCenter Integrations

Summary: This article explains how deactivating a proxy in an Avamar server with multiple integrated vCenters changes the vc_id.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

This article uses goav script. Use this article Avamar: GoAV Tool for more information

In this scenario, the Avamar server (av-server) has two vCenters:

  • vcenter01.lab.com
  • vcenter02.lab.com

Each vCenter contains some proxies. In this article, proxy av-proxy-08.lab.com is used.

1 - Connect to the Avamar server as admin and list the proxies:

./goav proxy show
admin@av-server:~/>: ./goav proxy show
===========================================================
GoAv    :        1.91
Avamar  :        19.10
Date    :        27 Dec 2024 10:02 EST
===========================================================
COMMAND :  ./goav proxy show
NOTE: This is not an official tool
===========================================================
+---------------------------+------------+-------------------------------+------------------------------------------+-----------+---------------+------------------------+
|           name            | domainFqdn |          vcenterHost          |                    id                    | activated | autoDsMapping |     clientVersion      |
+---------------------------+------------+-------------------------------+------------------------------------------+-----------+---------------+------------------------+
| av-proxy-01.lab.com       | /clients   | vcenter01.lab.com             | 451e50d90593232b55ead709d7c150c222c73357 | true      | false         | 19.10.100-166          |
| av-proxy-02.lab.com       | /clients   | vcenter02.lab.com             | 4c521927efd418d29ea054b983aa98cdaba0164f | true      | false         | 19.10.100-135_HF338865 |
| av-proxy-03.lab.com       | /clients   | vcenter01.lab.com             | bbf88da2fca1f51234b86348f02bd5530229e734 | true      | false         | 19.7.100-82_HF338743   |
| av-proxy-04.lab.com       | /clients   | vcenter01.lab.com             | 22a31e18f995a442a2dc745a28ffff3ee82b627b | true      | false         | 19.9.100-78            |
| av-proxy-05.lab.com       | /clients   | vcenter01.lab.com             | 90c3058d07f43532d41ea4fc82d07be6f5eecdbb | true      | false         | 19.10.100-166          |
| av-proxy-06.lab.com       | /clients   | vcenter02.lab.com             | 907da738167186a952d78850c366ba6efbed578f | true      | false         | 19.10.100-135_HF338865 |
| av-proxy-07.lab.com       | /clients   | vcenter02.lab.com             | f685ef4e7497eadf67e8e683898c9996ffffde11 | true      | false         | 19.10.100-135_HF338865 |
| av-proxy-08.lab.com       | /clients   | vcenter01.lab.com             | 170fecda603b533247db21c1c5f536f6d2bf4c1b | true      | false         | 19.4.100-116           |
+---------------------------+------------+-------------------------------+------------------------------------------+-----------+---------------+------------------------+
admin@av-server:~/>:

2 - Check the client id (cid) for the two vCenters:

psql -p 5555 mcdb -c 'select mgmt_client.cid, clients.descr, mgmt_client.uuid from mgmt_client, clients where mgmt_client.cid=clients.cid;'
admin@av-server:~/>: psql -p 5555 mcdb -c 'select mgmt_client.cid, clients.descr, mgmt_client.uuid from mgmt_client, clients where mgmt_client.cid=clients.cid;'
                   cid                    |                            descr                             |                 uuid
------------------------------------------+--------------------------------------------------------------+--------------------------------------
 70556d54b3eb4831d3e1a75742b9973fc930c1ca | /vcenter01.lab.com/vcenter01.lab.com | 1e414dc1-3107-4f05-8159-5a5beaf8f9ab
 1e1825c377e14943e6c0ec7921ceb4efc21a1934 | /vcenter02.lab.com/vcenter02.lab.com | 0ed1532e-13d2-41cb-b437-cdd244af42f8
(2 rows)
admin@av-server:~/>:

3 - Check the proxy cid and corresponding vCenter cid. The proxy av-proxy-08.lab.com belongs to vCenter vcenter01.lab.com:

psql -p 5555 mcdb -c 'select * from proxy_mgmt_mapping order by vc_cid asc ;'
admin@av-server:~/>: psql -p 5555 mcdb -c 'select * from proxy_mgmt_mapping order by vc_cid asc ;'
                proxy_cid                 |                  vc_cid
------------------------------------------+------------------------------------------
 4c521927efd418d29ea054b983aa98cdaba0164f | 1e1825c377e14943e6c0ec7921ceb4efc21a1934
 907da738167186a952d78850c366ba6efbed578f | 1e1825c377e14943e6c0ec7921ceb4efc21a1934
 f685ef4e7497eadf67e8e683898c9996ffffde11 | 1e1825c377e14943e6c0ec7921ceb4efc21a1934
 170fecda603b533247db21c1c5f536f6d2bf4c1b | 70556d54b3eb4831d3e1a75742b9973fc930c1ca --> Testing this proxy
 bbf88da2fca1f51234b86348f02bd5530229e734 | 70556d54b3eb4831d3e1a75742b9973fc930c1ca
 451e50d90593232b55ead709d7c150c222c73357 | 70556d54b3eb4831d3e1a75742b9973fc930c1ca
 22a31e18f995a442a2dc745a28ffff3ee82b627b | 70556d54b3eb4831d3e1a75742b9973fc930c1ca
 90c3058d07f43532d41ea4fc82d07be6f5eecdbb | 70556d54b3eb4831d3e1a75742b9973fc930c1ca
(8 rows)
admin@av-server:~/>:

4 - Launch Avamar Administrator console (Java GUI)

Note: This behavior cannot be reproducible using Avamar User Interface (AUI) since it does not allow deactivate the proxy.



5 - Go to Policy > Clients tab > Edit the proxy av-proxy-08.

  • Clear: Activated, Allow client initiated backups, Allow file selection on client initiated backups
  • Check: Disable all backups

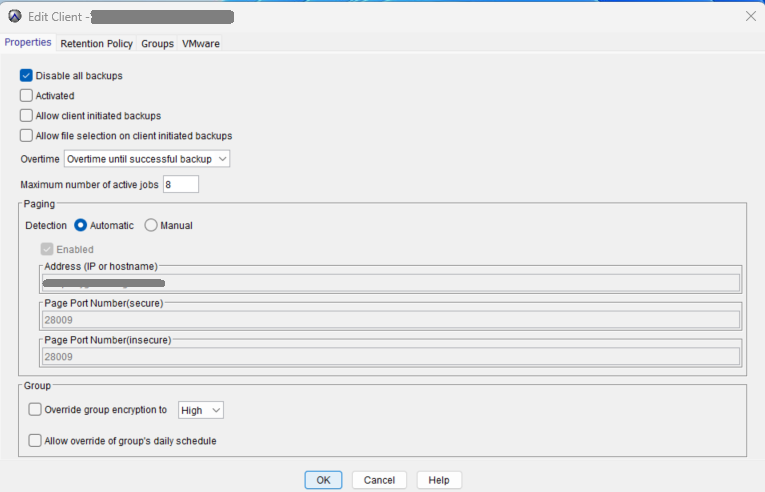

Edit the proxy client using Avamar Administrator console

6 - Click OK and go back to the command-line interface (cli)

7 - Check the proxy av-proxy-08 switches the vc_cid from "70556d54b3eb4831d3e1a75742b9973fc930c1ca" to "1e1825c377e14943e6c0ec7921ceb4efc21a1934"

psql -p 5555 mcdb -c 'select * from proxy_mgmt_mapping order by vc_cid asc ;'
admin@av-server:~/>: psql -p 5555 mcdb -c 'select * from proxy_mgmt_mapping order by vc_cid asc ;'
                proxy_cid                 |                  vc_cid
------------------------------------------+------------------------------------------
 170fecda603b533247db21c1c5f536f6d2bf4c1b | 1e1825c377e14943e6c0ec7921ceb4efc21a1934 --> Proxy vc_cid changed after de-activate it
 907da738167186a952d78850c366ba6efbed578f | 1e1825c377e14943e6c0ec7921ceb4efc21a1934
 f685ef4e7497eadf67e8e683898c9996ffffde11 | 1e1825c377e14943e6c0ec7921ceb4efc21a1934
 4c521927efd418d29ea054b983aa98cdaba0164f | 1e1825c377e14943e6c0ec7921ceb4efc21a1934
 bbf88da2fca1f51234b86348f02bd5530229e734 | 70556d54b3eb4831d3e1a75742b9973fc930c1ca
 22a31e18f995a442a2dc745a28ffff3ee82b627b | 70556d54b3eb4831d3e1a75742b9973fc930c1ca
 90c3058d07f43532d41ea4fc82d07be6f5eecdbb | 70556d54b3eb4831d3e1a75742b9973fc930c1ca
 451e50d90593232b55ead709d7c150c222c73357 | 70556d54b3eb4831d3e1a75742b9973fc930c1ca
(8 rows)
admin@av-server:~/>:

8 - Log in to the av-proxy-08 as admin and switch to root

9 - Re-register the proxy av-proxy-08:

./initproxyappliance.sh --start

Example:

av-proxy-08:/usr/local/avamarclient/etc # ./initproxyappliance.sh --start
=== Client Registration and Activation ===
This script will register and activate the client with the Administrator server.
Enter the Administrator server address (DNS text name or numeric IP address, DNS name preferred): 192.168.1.110
Enter the Avamar server domain [/clients]:
avagent.d Info: Stopping Avamar Client Agent (avagent)...
avagent.d Info: Client Agent stopped.
avagent Info <5008>: Logging to /usr/local/avamarclient/var/avagent.log
avagent Error <7531>: Unable to register /clients/av-proxy-08 with Administrator 192.168.1.110:28001
 'vCenter id(s) changed from [1e1825c377e14943e6c0ec7921ceb4efc21a1934] to [70556d54b3eb4831d3e1a75742b9973fc930c1ca]' (203)
avagent.d Info: Client activation error.
avagent Info <5008>: Logging to /usr/local/avamarclient/var/avagent.log
avagent Info <5417>: daemonized as process id 2410
avagent.d Info: Client Agent started.
Registration Failed.
Updating rpms from /extra...
Mounting CDROM...
mount: /mnt/cdrom: no medium found on /dev/sr0.
Updating rpms from /mnt/cdrom...
Public key[/mnt/cdrom/avpkgkey.pub] not exist
Verify the list of gpg public keys in RPM DB
----------------
gpg-pubkey-39db7c82-5847eb1f --> gpg(SuSE Package Signing Key <build@suse.de>)
gpg-pubkey-50a3dd1c-50f35137 --> gpg(SuSE Package Signing Key (reserve key) <build@suse.de>)
gpg-pubkey-b37b98a9-4be01a1a --> gpg(SUSE PTF Signing Key <support@suse.com>)
gpg-pubkey-7c601e3e-5d26445f --> gpg(DellEMC Avamar (https://support.emc.com) <avamar.certificate.support@emc.com>)
gpg-pubkey-cbf00d5c-54de52e3 --> gpg(RSA Security LLC - SA RPM Signer (2015 key for SA) <RSASupport@emc.com>)
gpg-pubkey-ec551f03-53619141 --> gpg(Oracle OSS group (Open Source Software group) <build@oss.oracle.com>)
----------------
Patching OS...
No security patch found on /mnt/cdrom
Checking if this script has been updated...
Nope.
av-proxy-08:/usr/local/avamarclient/etc #

10 - The re-registration process failed with the error:

avagent Error <7531>: Unable to register /clients/av-proxy-08 with Administrator 192.168.1.110:28001
 'vCenter id(s) changed from [1e1825c377e14943e6c0ec7921ceb4efc21a1934] to [70556d54b3eb4831d3e1a75742b9973fc930c1ca]' (203)

11 - Go back to the console Administration > Account Management, select the proxy av-proxy-08, and delete it.

12 - After deletion, go to the proxy av-proxy-08 and re-register again:

./initproxyappliance.sh --start

Example:

av-proxy-08:/usr/local/avamarclient/etc # ./initproxyappliance.sh --start
Please press a key now if you want to re-register this proxy with Avamar Administrator. Continuing in 10 seconds...
Please press a key now if you want to re-register this proxy with Avamar Administrator. Continuing in 9 seconds...
=== Client Registration and Activation ===
This script will register and activate the client with the Administrator server.
Enter the Administrator server address (DNS text name or numeric IP address, DNS name preferred): 192.168.1.110
Enter the Avamar server domain [/clients]:
avagent.d Info: Stopping Avamar Client Agent (avagent)...
avagent.d Info: Client Agent stopped.
avagent Info <5008>: Logging to /usr/local/avamarclient/var/avagent.log
avagent.d Info: Client activated successfully.
avagent Info <5008>: Logging to /usr/local/avamarclient/var/avagent.log
avagent Info <5417>: daemonized as process id 2746
avagent.d Info: Client Agent started.
Registration Complete.
Initialize Avamar Services, Please wait...
Do you want this proxy to be managed by PDM(Proxy Deploy Manager) in AVE [192.168.1.110][Y/N]?N
av-proxy-08:/usr/local/avamarclient/etc #

13 - The registration completes successfully.

14 - The Avamar server creates a new cid for proxy av-proxy-08 and sets the correct vc_id:

psql -p 5555 mcdb -c 'select * from proxy_mgmt_mapping order by vc_cid asc ;'
admin@av-server:~/>: psql -p 5555 mcdb -c 'select * from proxy_mgmt_mapping order by vc_cid asc ;'
                proxy_cid                 |                  vc_cid
------------------------------------------+------------------------------------------
 4c521927efd418d29ea054b983aa98cdaba0164f | 1e1825c377e14943e6c0ec7921ceb4efc21a1934
 907da738167186a952d78850c366ba6efbed578f | 1e1825c377e14943e6c0ec7921ceb4efc21a1934
 f685ef4e7497eadf67e8e683898c9996ffffde11 | 1e1825c377e14943e6c0ec7921ceb4efc21a1934
 bbf88da2fca1f51234b86348f02bd5530229e734 | 70556d54b3eb4831d3e1a75742b9973fc930c1ca
 0bf1203540d3136125f44c102556c1d201c22d25 | 70556d54b3eb4831d3e1a75742b9973fc930c1ca --> this is the proxy av-proxy-08
 451e50d90593232b55ead709d7c150c222c73357 | 70556d54b3eb4831d3e1a75742b9973fc930c1ca
 22a31e18f995a442a2dc745a28ffff3ee82b627b | 70556d54b3eb4831d3e1a75742b9973fc930c1ca
 90c3058d07f43532d41ea4fc82d07be6f5eecdbb | 70556d54b3eb4831d3e1a75742b9973fc930c1ca
(8 rows)
admin@av-server:~/>:
./goav proxy show
admin@av-server:~/>: ./goav proxy show
===========================================================
GoAv    :        1.91
Avamar  :        19.10
Date    :        27 Dec 2024 10:25 EST
===========================================================
COMMAND :  ./goav proxy show
NOTE: This is not an official tool
===========================================================
+---------------------------+------------+-------------------------------+------------------------------------------+-----------+---------------+------------------------+
|           name            | domainFqdn |          vcenterHost          |                    id                    | activated | autoDsMapping |     clientVersion      |
+---------------------------+------------+-------------------------------+------------------------------------------+-----------+---------------+------------------------+
| av-proxy-01.lab.com       | /clients   | vcenter01.lab.com             | 451e50d90593232b55ead709d7c150c222c73357 | true      | false         | 19.10.100-166          |
| av-proxy-02.lab.com       | /clients   | vcenter02.lab.com             | 4c521927efd418d29ea054b983aa98cdaba0164f | true      | false         | 19.10.100-135_HF338865 |
| av-proxy-03.lab.com       | /clients   | vcenter01.lab.com             | bbf88da2fca1f51234b86348f02bd5530229e734 | true      | false         | 19.7.100-82_HF338743   |
| av-proxy-04.lab.com       | /clients   | vcenter01.lab.com             | 22a31e18f995a442a2dc745a28ffff3ee82b627b | true      | false         | 19.9.100-78            |
| av-proxy-05.lab.com       | /clients   | vcenter01.lab.com             | 90c3058d07f43532d41ea4fc82d07be6f5eecdbb | true      | false         | 19.10.100-166          |
| av-proxy-06.lab.com       | /clients   | vcenter02.lab.com             | 907da738167186a952d78850c366ba6efbed578f | true      | false         | 19.10.100-135_HF338865 |
| av-proxy-08.lab.com       | /clients   | vcenter01.lab.com             | 0bf1203540d3136125f44c102556c1d201c22d25 | true      | false         | 19.4.100-116           |
| av-proxy-07.lab.com       | /clients   | vcenter02.lab.com             | f685ef4e7497eadf67e8e683898c9996ffffde11 | true      | false         | 19.10.100-135_HF338865 |
+---------------------------+------------+-------------------------------+------------------------------------------+-----------+---------------+------------------------+
admin@av-server:~/>:

Cause

Despite being unusual, Engineering no longer fixes or update the Avamar Administrator console (Java GUI).

Resolution

Do not deactivate for any circumstances the proxy from the Avamar Administrator console. The recommendation is to use AUI as possible.

Affected Products

Avamar, Avamar Client for VMware, Avamar Server
