How to Determine the Encryption Status of a Dell Encryption Managed Device

The calculation of protected status for Dell’s Policy Based Encryption is based on the "sweep state" of both the device and any users on the computer. For more information about how protected status is calculated, reference: Troubleshooting Shield Protected Status.

Data for encryption status of the device is stored locally on the endpoint primarily in the registry. The primary location that is used for Policy Based Encryption data is HKLM\Software\Microsoft\Windows NT\CurrentVersion\Winlogon\CMGShield. Here are the primary keys for identifying the status:

• DCID (this is also the recovery ID): Key showing device has been activated.
• GKPort (default 8000): Key to control port used for policy updates.
• GK: Key to control check-in server.
• Server: Key for original activation server.

To validate the activation status of the device, we can query the device to check the contents of HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon\CMGShield\RSST. Within this registry key, several keys detail the status of the device:

• _DEVICE_ - this is the activation status for the device. Any positive integer is an activated device.
• _INVALID_ - if this is present, the user that is logged in is not activated.
• <RandomCharacters> - the User Credant Identifier (UCID) is in this location. If this value is present and set to 1, then that specific user is activated and is within the Device Lease Period. The device lease period is a policy that defines the Dell Security Management Server, and the default value is 30 days.

Information pertaining to the current encryption sweep status of the device is located within the registry key HKLM\Software\Microsoft\Windows NT\CurrentVersion\Winlogon\CMGshield\SweepTimes. The values in this key can vary, and a unique user-based identifier is used to determine the sweep state for each user. Below is an example from a device:

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows NT\CurrentVersion\Winlogon\CMGShield\SweepTimes]
"_SDENCR_SweepStop"=dword:00000001
"9P18NZD1SweepStop"=dword:00000001
"AllSweepsCompleted"=dword:00000001
"AllSweepsCompletedInXDays"=dword:00000001
"LastUpdate"="20180409 162157"

A break-down of these keys and their meaning and usage:

• _SDENCR_SweepStop
  • A Value of 0 indicates that an encryption sweep affecting the System Data Encryption key is underway.
  • A Value of 1 indicates that all System Data Encryption sweeps are complete.
• 9P18NZD1SweepStop
  • The eight randomly generated characters are identifiers for specific users.
  • When this key is set to 0, a sweep is in process for the user that the identifier correlates to.
  • When set to 1, sweeps correlating to Common or User Encryption keys are completed on this endpoint.
• AllSweepsCompleted
  • When set to 0, this indicates that there is an active encryption sweep affecting Common or User Encryption keys.
  • When set to 1, sweeps correlating to Common or User Encryption keys are completed on this endpoint.
• AllSweepsCompletedinXDays
  • When set to 0, encryption sweeps have not completed for all users that have logged in within the Dell Security Management Server (DSMS) defined Device Lease Period.
  • When set to 1, encryption sweeps are completed for all users that have logged in within the defined Device Lease Period.

• LastUpdate - This is the last time that the internal database was polled for updates to the device sweep status within this registry entry.

Dell Encryption Self-Encrypting Drive Manager and Dell Full Disk Encryption management collect information that is based on the encryption percentage of the disk and the validation of the Pre-Boot Authentication (PBA) environment being present on the disk. These values are stored within the registry and can be found in HKLM\SYSTEM\CurrentControlSet\Services\DellMgmtAgent\Parameters" and "HKLM\Software\Dell\Dell Data Protection\.

The protected status of the device is determined on the encryption percentage of the disk. This processing is all done locally and is delivered to the server through regular polling intervals.

To determine the agent’s activation status, check the Agent ID registry key. If the key is populated, the device has successfully registered:

HKLM\Software\Dell\Dell Data Protection\
REG_SZ: AgentID
Value: <populated>

To determine if the Pre-Boot Authentication environment (PBA) is enabled on the endpoint, check the IsPBAActive registry key:

HKLM\SYSTEM\CurrentControlSet\Services\DellMgmtAgent\Parameters
DWORD: IsPBAActive
Value: 1 (1 is enabled, 0 or not present means no PBA)

To determine the installed product version, check the registry key:

HKLM\Software\Dell\Dell Data Protection\Branding
REG_SZ: EE
Value: <version #>

Agent version information can also be gathered through wmic calls by using the command:

Wmic path win32_product where (caption like '%%Dell Encryption%%') get version

Results should be displayed as:

Figure 1: (English Only) Type Wmic path win32_product where (caption like '%%Dell Encryption%%') get version

Encryption percentage information for Dell Full Disk Encryption is not able to be queried through registry. This information is populated within the DellAgent.log (stored in C:\ProgramData\Dell\Dell Data Protection\ if debug logging is enabled. To enable debug logging for Dell Full Disk Encryption, reference Increase Logging in Dell Encryption Enterprise and Dell Encryption Personal.

Example log line:

YYYY.MM.DD HH:MM:SS.MMM [ProcessID] (ThreadID) T FDE : SetEncryptionInfo - Set EncryptionPercentage to <Percentage>

Dell BitLocker Manager collects information that is based on the encryption percentage of the disk and the validation of Key Protectors being present for each managed volume. This data that the command line collects using either the manage-bde command, or the PowerShell command get-bitlockervolume.

The protected status of the device is determined on the encryption percentage of the disk. This processing is local to the endpoint and is delivered to the server through regular polling intervals.

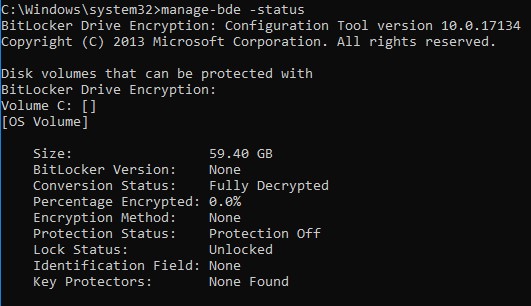

Disk volumes that can be protected with
BitLocker Drive Encryption:
Volume C: []
[OS Volume]

Size: 59.40 GB
BitLocker Version: None
Conversion Status: Fully Decrypted
Percentage Encrypted: 0.0%
Encryption Method: None
Protection Status: Protection Off
Lock Status: Unlocked
Identification Field: None
Key Protectors: None Found

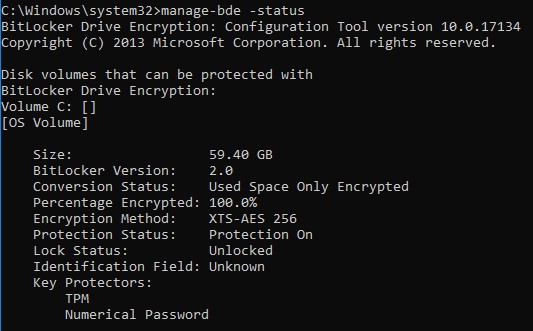

Disk volumes that can be protected with
BitLocker Drive Encryption:
Volume C: []
[OS Volume]

Size: 59.40 GB
BitLocker Version: 2.0
Conversion Status: Used Space Only Encrypted
Percentage Encrypted: 100.0%
Encryption Method: XTS-AES 256
Protection Status: Protection On
Lock Status: Unlocked
Identification Field: Unknown
Key Protectors: TPM, Numerical Password

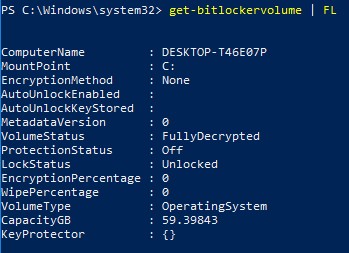

ComputerName: DESKTOP-T46E07P
MountPoint: C:
EncryptionMethod: None
AutoUnlockEnabled:
AutoUnlockKeyStored:
MetadataVersion: 0
VolumeStatus: FullyDecrypted
ProtectionStatus: Off
LockStatus: Unlocked
EncryptionPercentage: 0
WipePercentage: 0
VolumeType: OperatingSystem
CapacityGB: 59.39843
KeyProtector: {}

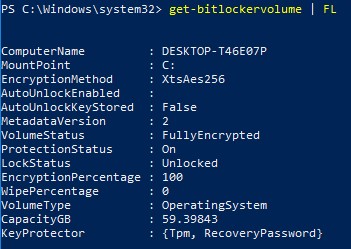

ComputerName: DESKTOP-T46E07P
MountPoint: C:
EncryptionMethod: XtsAes256
AutoUnlockEnabled:
AutoUnlockKeyStored: False
MetadataVersion: 2
VolumeStatus: FullyEncrypted
ProtectionStatus: On
LockStatus: Unlocked
EncryptionPercentage: 100
WipePercentage: 0
VolumeType: OperatingSystem
CapacityGB: 59.39843
KeyProtector: {Tpm, RecoveryPassword}
