PowerFlex 3.x: Presentation Server unlinks from MDM

Summary: - Random unlinking of Presentation Server from MDM - Found in version 3.6.700 (PowerFlex versions 3.5.x and 3.6.x)

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

The Presentation Server (mgmt-server) scaleio.log reports it is unlinking from the MDM.

/mgmt-server/logs/scaleio.log:2023-08-27 04:21:42,656 [LiveQueryQueueThreadV2|INFO |com.emc.vxflexos.webui.backend.connection.mdm.MdmLinkService.lambda$tryUnlink$38] Starting unlink from MDM



The PMDM events and trc logs report that it could not connect to the LDAP service.

PMDM events
2023-08-27 04:21:34.611000:0016332:MDM_CLI_COMMAND_RECEIVED         INFO     Command logout received, User: 'N/A'. [7529811]
2023-08-27 04:21:34.611000:0016333:CLI_COMMAND_FAILED               WARNING  Command logout was not successful. Error code: Invalid session. Please login and try again.
2023-08-27 04:21:34.619000:0016334:MDM_CLI_COMMAND_RECEIVED         INFO     Command login received, User: 'flexro@sio.lab'. [7529812] Login banner read and approved manually. Originating source IP: <IP_REMOVED>
2023-08-27 04:21:42.638000:0016335:CLI_COMMAND_FAILED               WARNING  Command login was not successful. Error code: Could not establish the connection with LDAP service. [7529812]



PMDM trc log
2023/08/27 04:21:42.637849 71d00001676f:mosLdap_Bind:00130: After ldap_sasl_bind - rc: -1, msg-id: -1
2023/08/27 04:21:42.637857 71d00001676f:mosLdap_PrintError:00193: Error in: ldap_sasl_bind, rc: Can't contact LDAP server (-1)
2023/08/27 04:21:42.637860 71d00001676f:mosLdap_PrintError:00197: Additional information: (null)
2023/08/27 04:21:42.637862 71d00001676f:mosLdap_Bind:00133: Failed to start async operation for username: <USER_REMOVED>
2023/08/27 04:21:42.638047 71d00001676f:mosLdap_SearchUserInDomainGroupsIntr:00581: User "<USER_REMOVED>" was found in 0 groups - search-user: flexro, bind-user: <USER_REMOVED>, rc: LDAP_SESSION_INITIALIZATION_FAIL, time: 8020 ms
2023/08/27 04:21:42.638117 7f09c58c0db0:ldapAuthMgr_Authenticate:00742: LDAP authentication search for user: <USER_REMOVED> in domain: ldaps://ad.sio.lab didn't find any matches (LDAP_SESSION_INITIALIZATION_FAIL)
2023/08/27 04:21:42.638236 7f09c58c0db0:mosEventLog_PostInternal:00609: New event added. Message: "Command login was not successful. Error code: Could not establish the connection with LDAP service. [7529812]". Additional info: "" Severity: Warning

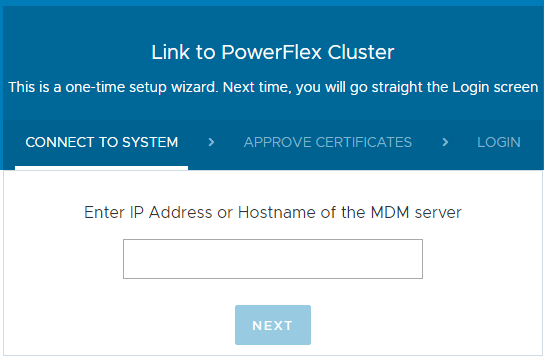

The Presentation Server UI will prompt to link a PowerFlex MDM.


presentation server login



Cause

In this scenario, the end-user is using LDAP authentication.

The Presentation Server has an 8-hour token from when a user logs in. After the 8-hour token expires, a subsequent login attempt is made. However, if this attempt fails to establish a connection with the LDAP service, it can lead to the Presentation Server becoming unlinked from the cluster.

Resolution

Re-link the Presentation Server to the PowerFlex cluster via the web UI.
