Il gruppo SONiC MC-LAG di Dell Networking sarà interessato quando lo stato della sessione Keepalive si interrompe
Summary: Questo articolo spiega in che modo il gruppo MC-LAG è interessato quando lo stato della sessione keep-live si interrompe in SONiC.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
Il gruppo MC-LAG è interessato quando lo stato della sessione keep-live si interrompe in SONiC.
Il seguente stato del gruppo MC-LAG viene visualizzato al momento della sessione keep-live inattiva:
Il seguente stato del gruppo MC-LAG viene visualizzato al momento della sessione keep-live inattiva:
SONIC-1# show mclag brief Domain ID : 1 Role : active Session Status : down Peer Link Status : up Source Address : 192.168.2.1 Peer Address : 192.168.2.2 Peer Link : PortChannel100 Keepalive Interval : 1 secs Session Timeout : 30 secs Delay Restore : 300 secs System Mac : XX:XX:XX:XX:XX:XX Mclag System Mac : 00:00:00:00:00:01 Number of MLAG Interfaces:1 ----------------------------------------------------------- MLAG Interface Local/Remote Status ----------------------------------------------------------- PortChannel1 up/unknown
Cause

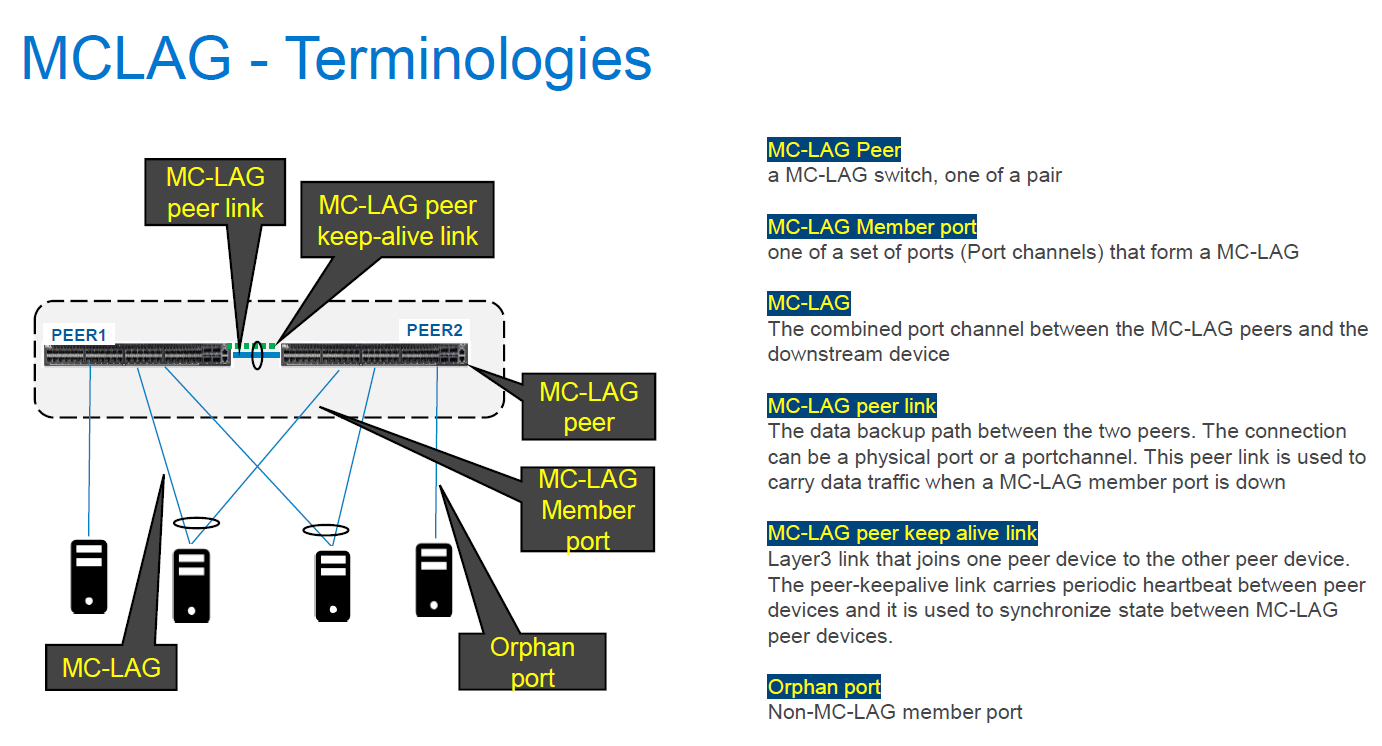

Il gruppo MC-LAG viene influenzato quando lo stato della sessione keep-live si interrompe in SONiC. Il keepalive in SONiC è configurato con la comunicazione IPv4 L3 simile al backup-link in OS9 e OS10, che in genere non influisce sullo stato del canale VLT-Port. Lo stato di peer-link in OS9 e OS10 influirà invece sullo stato del canale VLT-Port. Tuttavia, in SONiC, lo stato della sessione keep-live deve essere attivo affinché MC-LAG sia attivo. Per il link keepalive, trasporta l'heartbeat periodico tra i dispositivi peer MC-LAG e viene utilizzato anche per sincronizzare lo stato tra dispositivi peer MC-LAG. A differenza di SONiC, OS9 e OS10 utilizzano il peer-link per sincronizzare lo stato tra dispositivi peer VLT.

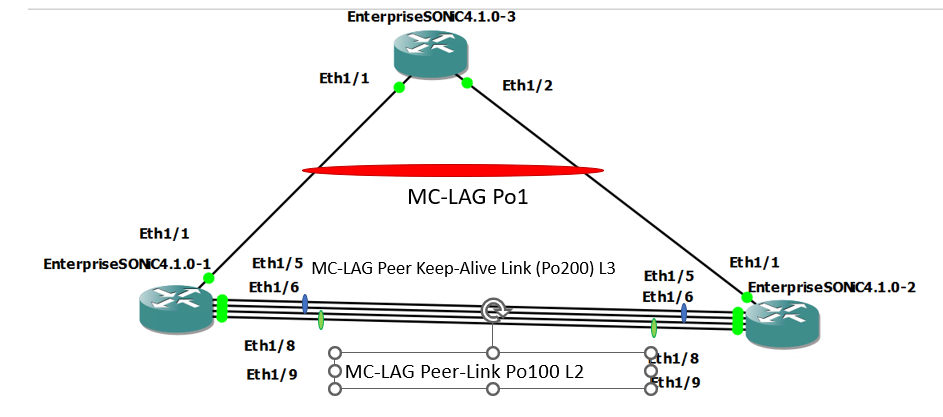

Una volta che il link della sessione keep-live si interrompe, lo stato del gruppo MC-LAG su entrambi i dispositivi peer MC-LAG diventa up/unknown a causa dell'errore di sincronizzazione tra entrambi i dispositivi peer.
In stato normale
In Problem State (Keepalive-Link Status Down by Shut Down Po200 Member Ports)
Una volta che il link della sessione keep-live si interrompe, lo stato del gruppo MC-LAG su entrambi i dispositivi peer MC-LAG diventa up/unknown a causa dell'errore di sincronizzazione tra entrambi i dispositivi peer.
In stato normale
SONIC-1#show version Software Version : 4.1.0-Enterprise_Base Product : Enterprise SONiC Distribution by Dell Technologies Distribution : Debian 10.13 Kernel : 5.10.0-8-2-amd64 Config DB Version : version_4_1_1 Build Commit : 93589a15db Build Date : Tue Apr 18 17:56:48 UTC 2023 Built By : sonicbld@sonic-lvn-csg-001 Platform : x86_64-kvm_x86_64-r0 HwSKU : DellEMC-S5248f-P-25G-DPB SONIC-1# show ip interfaces Flags: U-Unnumbered interface, A-Anycast IP ----------------------------------------------------------------------------------------------------------------- Interface IP address/mask VRF Admin/Oper Flags ----------------------------------------------------------------------------------------------------------------- PortChannel200 192.168.2.1/24 up/up Vlan636 172.16.0.1/24 up/up SONIC-1# SONIC-1# SONIC-1# show PortChannel summary Flags(oper-status): D - Down U - Up (portchannel) P - Up in portchannel (members) ---------------------------------------------------------------------------------------------------------------------------- Group PortChannel Type Protocol Member Ports ---------------------------------------------------------------------------------------------------------------------------- 1 PortChannel1 (U) Eth LACP Eth1/1(P) 100 PortChannel100 (U) Eth NONE Eth1/8(P) Eth1/9(P) 200 PortChannel200 (U) Eth LACP Eth1/5(P) Eth1/6(P) SONIC-1# SONIC-1# SONIC-1# show mclag brief Domain ID : 1 Role : active Session Status : up Peer Link Status : up Source Address : 192.168.2.1 Peer Address : 192.168.2.2 Peer Link : PortChannel100 Keepalive Interval : 1 secs Session Timeout : 30 secs Delay Restore : 300 secs System Mac : XX:XX:XX:XX:XX:XX Mclag System Mac : 00:00:00:00:00:01 Number of MLAG Interfaces:1 ----------------------------------------------------------- MLAG Interface Local/Remote Status ----------------------------------------------------------- PortChannel1 up/up SONIC-1# SONIC-1# SONIC-1# show running-configuration interface PortChannel 1 ! interface PortChannel1 mode active switchport trunk allowed Vlan 636 no shutdown mclag 1 SONIC-1# show running-configuration interface PortChannel 100 ! interface PortChannel100 mode on switchport trunk allowed Vlan 1-4094 no shutdown SONIC-1# show running-configuration interface PortChannel 200 ! interface PortChannel200 mode active no shutdown ip address 192.168.2.1/24 SONIC-1# SONIC-1# SONIC-1# ping 172.16.0.3 //IP address assigned to VLAN636 on uplink SW. PING 172.16.0.3 (172.16.0.3) 56(84) bytes of data. 64 bytes from 172.16.0.3: icmp_seq=1 ttl=64 time=3.26 ms 64 bytes from 172.16.0.3: icmp_seq=2 ttl=64 time=3.47 ms 64 bytes from 172.16.0.3: icmp_seq=3 ttl=64 time=3.21 ms 64 bytes from 172.16.0.3: icmp_seq=4 ttl=64 time=2.84 ms 64 bytes from 172.16.0.3: icmp_seq=5 ttl=64 time=11.1 ms ^C SONIC-1#
SONIC-2#show version
Software Version : 4.1.0-Enterprise_Base
Product : Enterprise SONiC Distribution by Dell Technologies
Distribution : Debian 10.13
Kernel : 5.10.0-8-2-amd64
Config DB Version : version_4_1_1
Build Commit : 93589a15db
Build Date : Tue Apr 18 17:56:48 UTC 2023
Built By : sonicbld@sonic-lvn-csg-001
Platform : x86_64-kvm_x86_64-r0
HwSKU : DellEMC-S5248f-P-25G-DPB
SONIC-2# show ip interfaces
Flags: U-Unnumbered interface, A-Anycast IP
-----------------------------------------------------------------------------------------------------------------
Interface IP address/mask VRF Admin/Oper Flags
-----------------------------------------------------------------------------------------------------------------
PortChannel200 192.168.2.2/24 up/up
Vlan636 172.16.0.2/24 up/up
SONIC-2#
SONIC-2#
SONIC-2# show PortChannel summary
Flags(oper-status): D - Down U - Up (portchannel) P - Up in portchannel (members)
----------------------------------------------------------------------------------------------------------------------------
Group PortChannel Type Protocol Member Ports
----------------------------------------------------------------------------------------------------------------------------
1 PortChannel1 (U) Eth LACP Eth1/1(P)
100 PortChannel100 (U) Eth NONE Eth1/8(P)
Eth1/9(P)
200 PortChannel200 (U) Eth LACP Eth1/5(P)
Eth1/6(P)
SONIC-2#
SONIC-2#
SONIC-2# show mclag brief
Domain ID : 1
Role : standby
Session Status : up
Peer Link Status : up
Source Address : 192.168.2.2
Peer Address : 192.168.2.1
Peer Link : PortChannel100
Keepalive Interval : 1 secs
Session Timeout : 30 secs
Delay Restore : 300 secs
System Mac : XX:XX:XX:XX:XX:XX
Mclag System Mac : 00:00:00:00:00:01
Number of MLAG Interfaces:1
-----------------------------------------------------------
MLAG Interface Local/Remote Status
-----------------------------------------------------------
PortChannel1 up/up
SONIC-2#
SONIC-2#
SONIC-2#
SONIC-2#
SONIC-2# show running-configuration interface PortChannel 1
!
interface PortChannel1 mode active
switchport trunk allowed Vlan 636
no shutdown
mclag 1
SONIC-2# show running-configuration interface PortChannel 100
!
interface PortChannel100 mode on
switchport trunk allowed Vlan 1-4094
no shutdown
SONIC-2# show running-configuration interface PortChannel 200
!
interface PortChannel200 mode active
no shutdown
ip address 192.168.2.2/24
SONIC-2#
SONIC-2#
SONIC-2# ping 172.16.0.3
PING 172.16.0.3 (172.16.0.3) 56(84) bytes of data.
64 bytes from 172.16.0.3: icmp_seq=1 ttl=64 time=3.48 ms
64 bytes from 172.16.0.3: icmp_seq=2 ttl=64 time=2.94 ms
^CSONIC-2#
In Problem State (Keepalive-Link Status Down by Shut Down Po200 Member Ports)
SONIC-1# show mclag brief Domain ID : 1 Role : active Session Status : down Peer Link Status : up Source Address : 192.168.2.1 Peer Address : 192.168.2.2 Peer Link : PortChannel100 Keepalive Interval : 1 secs Session Timeout : 30 secs Delay Restore : 300 secs System Mac : XX:XX:XX:XX:XX:XX Mclag System Mac : 00:00:00:00:00:01 Number of MLAG Interfaces:1 ----------------------------------------------------------- MLAG Interface Local/Remote Status ----------------------------------------------------------- PortChannel1 up/unknown SONIC-1# SONIC-1# SONIC-1# ping 172.16.0.3 PING 172.16.0.3 (172.16.0.3) 56(84) bytes of data. 64 bytes from 172.16.0.3: icmp_seq=1 ttl=64 time=8.00 ms 64 bytes from 172.16.0.3: icmp_seq=2 ttl=64 time=3.08 ms 64 bytes from 172.16.0.3: icmp_seq=3 ttl=64 time=2.99 ms 64 bytes from 172.16.0.3: icmp_seq=4 ttl=64 time=2.92 ms 64 bytes from 172.16.0.3: icmp_seq=5 ttl=64 time=3.07 ms ^C SONIC-1#
SONIC-2# show PortChannel summary
Flags(oper-status): D - Down U - Up (portchannel) P - Up in portchannel (members)
----------------------------------------------------------------------------------------------------------------------------
Group PortChannel Type Protocol Member Ports
----------------------------------------------------------------------------------------------------------------------------
1 PortChannel1 (U) Eth LACP Eth1/1(P)
100 PortChannel100 (U) Eth NONE Eth1/8(P)
Eth1/9(P)
200 PortChannel200 (D) Eth LACP Eth1/5(D)
Eth1/6(D)
SONIC-2# show mclag brief
Domain ID : 1
Role : standby
Session Status : down
Peer Link Status : up
Source Address : 192.168.2.2
Peer Address : 192.168.2.1
Peer Link : PortChannel100
Keepalive Interval : 1 secs
Session Timeout : 30 secs
Delay Restore : 300 secs
System Mac : XX:XX:XX:XX:XX:XX
Mclag System Mac : 00:00:00:00:00:01
Number of MLAG Interfaces:1
-----------------------------------------------------------
MLAG Interface Local/Remote Status
-----------------------------------------------------------
PortChannel1 up/unknown
SONIC-2#
SONIC-2# ping 172.16.0.3
PING 172.16.0.3 (172.16.0.3) 56(84) bytes of data.
From 172.16.0.2 icmp_seq=1 Destination Host Unreachable
From 172.16.0.2 icmp_seq=1 Destination Host Unreachable
From 172.16.0.2 icmp_seq=1 Destination Host Unreachable
From 172.16.0.2 icmp_seq=1 Destination Host Unreachable
^C
Resolution
Affinché MC-LAG rimanga operativo senza problemi, anche lo stato del link keepalive deve rimanere operativo. La porta di gestione viene normalmente utilizzata per il link keepalive, ma il canale della porta con indirizzo IP assegnato può essere utilizzato per il link keepalive a scopo di ridondanza. Il comportamento (che influirà sul gruppo MC-LAG quando lo stato del link keepalive si interrompe) descritto in questo articolo della Knowledge Base è previsto in tutte le versioni fino alla versione SONiC 4.2.0.
Affected Products
Enterprise SONiC Distribution, Dell EMC Networking N3200-ON, PowerSwitch S5212F-ON, PowerSwitch S5224F-ON, PowerSwitch S5232F-ON, PowerSwitch S5248F-ON, PowerSwitch S5296F-ON, PowerSwitch Z9100-ON, PowerSwitch Z9264F-ON, PowerSwitch Z9332F-ONArticle Properties
