O DELL Networking SONiC MC-LAG será afetado quando o status da sessão keepalive ficar inativo
Summary: Este artigo explica como o MC-LAG é afetado quando o status da sessão keepalive fica inativo no SONiC.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
O MC-LAG é afetado quando o status da sessão keepalive fica inativo no SONiC.
O seguinte status mc-LAG é visto no momento da sessão keepalive inativa:
O seguinte status mc-LAG é visto no momento da sessão keepalive inativa:
SONIC-1# show mclag brief Domain ID : 1 Role : active Session Status : down Peer Link Status : up Source Address : 192.168.2.1 Peer Address : 192.168.2.2 Peer Link : PortChannel100 Keepalive Interval : 1 secs Session Timeout : 30 secs Delay Restore : 300 secs System Mac : XX:XX:XX:XX:XX:XX Mclag System Mac : 00:00:00:00:00:01 Number of MLAG Interfaces:1 ----------------------------------------------------------- MLAG Interface Local/Remote Status ----------------------------------------------------------- PortChannel1 up/unknown
Cause

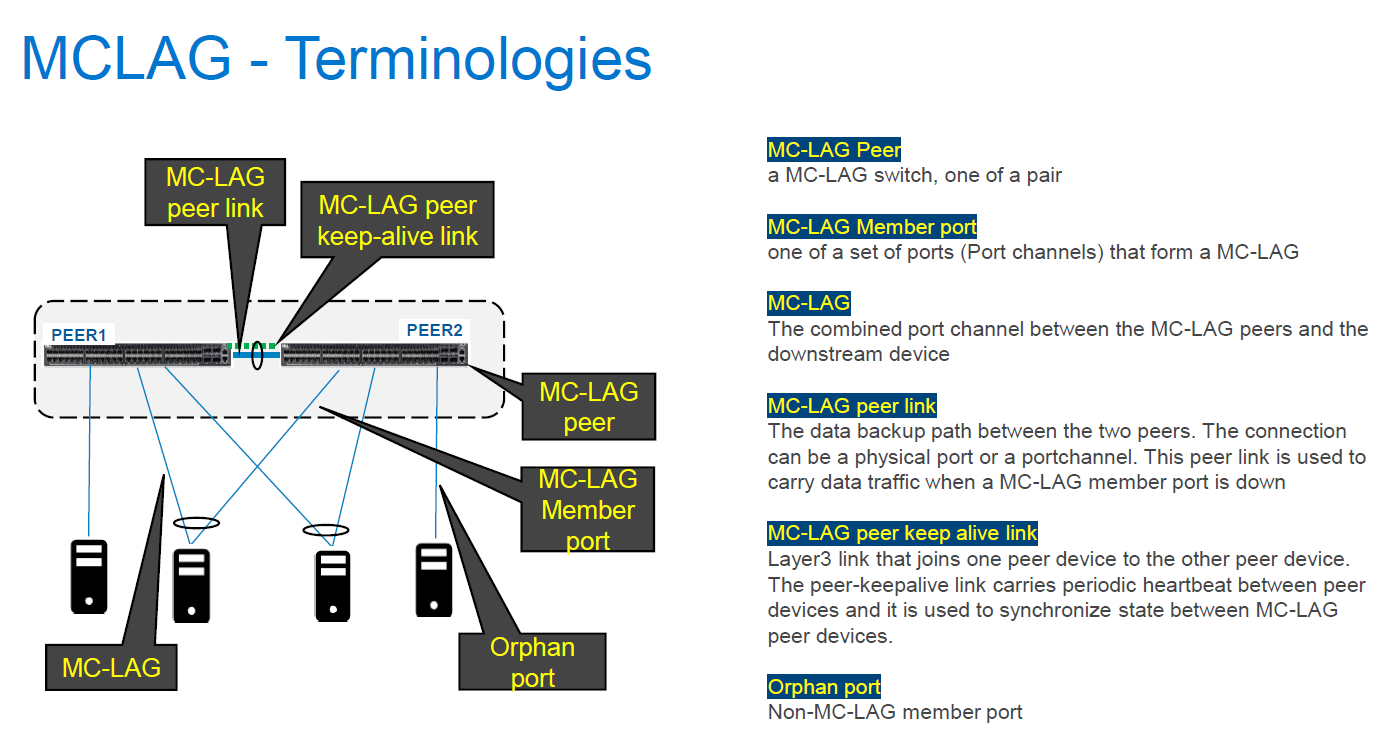

O MC-LAG é afetado quando o status da sessão keepalive fica inativo no SONiC. O keepalive no SONiC é configurado com comunicação L3 IPv4 semelhante ao link de backup no OS9 e no OS10, o que geralmente não afeta o status VLT-Portchannel. O status do peer-link no OS9 e no OS10 afetará o status VLT-Portchannel. No entanto, no SONiC, o status da sessão keepalive deve estar ativo para que o MC-LAG fique ativo. Para o link keepalive, o carrega heartbeat periódico entre dispositivos de mesmo nível do MC-LAG e também é usado para sincronizar o estado entre dispositivos de mesmo nível do MC-LAG. Ao contrário do SONiC, o OS9 e o OS10 usam o link par para sincronizar o estado entre os dispositivos de mesmo nível do VLT.

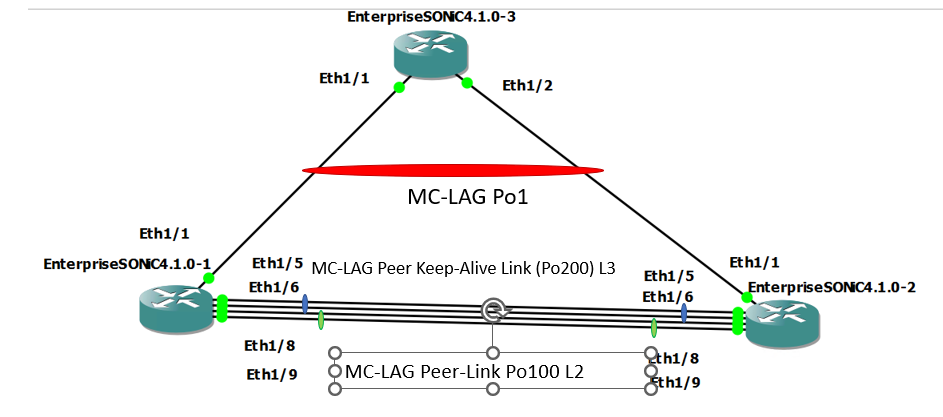

Depois que o link da sessão keepalive fica inativo, o status do MC-LAG em ambos os dispositivos de mesmo nível do MC-LAG fica ativo/desconhecido devido à falha de sincronização entre os dois dispositivos de mesmo nível.
Em estado normal
Em Estado de problema (status keepalive-link desligado desligando as portas membro do Po200)
Depois que o link da sessão keepalive fica inativo, o status do MC-LAG em ambos os dispositivos de mesmo nível do MC-LAG fica ativo/desconhecido devido à falha de sincronização entre os dois dispositivos de mesmo nível.
Em estado normal
SONIC-1#show version Software Version : 4.1.0-Enterprise_Base Product : Enterprise SONiC Distribution by Dell Technologies Distribution : Debian 10.13 Kernel : 5.10.0-8-2-amd64 Config DB Version : version_4_1_1 Build Commit : 93589a15db Build Date : Tue Apr 18 17:56:48 UTC 2023 Built By : sonicbld@sonic-lvn-csg-001 Platform : x86_64-kvm_x86_64-r0 HwSKU : DellEMC-S5248f-P-25G-DPB SONIC-1# show ip interfaces Flags: U-Unnumbered interface, A-Anycast IP ----------------------------------------------------------------------------------------------------------------- Interface IP address/mask VRF Admin/Oper Flags ----------------------------------------------------------------------------------------------------------------- PortChannel200 192.168.2.1/24 up/up Vlan636 172.16.0.1/24 up/up SONIC-1# SONIC-1# SONIC-1# show PortChannel summary Flags(oper-status): D - Down U - Up (portchannel) P - Up in portchannel (members) ---------------------------------------------------------------------------------------------------------------------------- Group PortChannel Type Protocol Member Ports ---------------------------------------------------------------------------------------------------------------------------- 1 PortChannel1 (U) Eth LACP Eth1/1(P) 100 PortChannel100 (U) Eth NONE Eth1/8(P) Eth1/9(P) 200 PortChannel200 (U) Eth LACP Eth1/5(P) Eth1/6(P) SONIC-1# SONIC-1# SONIC-1# show mclag brief Domain ID : 1 Role : active Session Status : up Peer Link Status : up Source Address : 192.168.2.1 Peer Address : 192.168.2.2 Peer Link : PortChannel100 Keepalive Interval : 1 secs Session Timeout : 30 secs Delay Restore : 300 secs System Mac : XX:XX:XX:XX:XX:XX Mclag System Mac : 00:00:00:00:00:01 Number of MLAG Interfaces:1 ----------------------------------------------------------- MLAG Interface Local/Remote Status ----------------------------------------------------------- PortChannel1 up/up SONIC-1# SONIC-1# SONIC-1# show running-configuration interface PortChannel 1 ! interface PortChannel1 mode active switchport trunk allowed Vlan 636 no shutdown mclag 1 SONIC-1# show running-configuration interface PortChannel 100 ! interface PortChannel100 mode on switchport trunk allowed Vlan 1-4094 no shutdown SONIC-1# show running-configuration interface PortChannel 200 ! interface PortChannel200 mode active no shutdown ip address 192.168.2.1/24 SONIC-1# SONIC-1# SONIC-1# ping 172.16.0.3 //IP address assigned to VLAN636 on uplink SW. PING 172.16.0.3 (172.16.0.3) 56(84) bytes of data. 64 bytes from 172.16.0.3: icmp_seq=1 ttl=64 time=3.26 ms 64 bytes from 172.16.0.3: icmp_seq=2 ttl=64 time=3.47 ms 64 bytes from 172.16.0.3: icmp_seq=3 ttl=64 time=3.21 ms 64 bytes from 172.16.0.3: icmp_seq=4 ttl=64 time=2.84 ms 64 bytes from 172.16.0.3: icmp_seq=5 ttl=64 time=11.1 ms ^C SONIC-1#
SONIC-2#show version
Software Version : 4.1.0-Enterprise_Base
Product : Enterprise SONiC Distribution by Dell Technologies
Distribution : Debian 10.13
Kernel : 5.10.0-8-2-amd64
Config DB Version : version_4_1_1
Build Commit : 93589a15db
Build Date : Tue Apr 18 17:56:48 UTC 2023
Built By : sonicbld@sonic-lvn-csg-001
Platform : x86_64-kvm_x86_64-r0
HwSKU : DellEMC-S5248f-P-25G-DPB
SONIC-2# show ip interfaces
Flags: U-Unnumbered interface, A-Anycast IP
-----------------------------------------------------------------------------------------------------------------
Interface IP address/mask VRF Admin/Oper Flags
-----------------------------------------------------------------------------------------------------------------
PortChannel200 192.168.2.2/24 up/up
Vlan636 172.16.0.2/24 up/up
SONIC-2#
SONIC-2#
SONIC-2# show PortChannel summary
Flags(oper-status): D - Down U - Up (portchannel) P - Up in portchannel (members)
----------------------------------------------------------------------------------------------------------------------------
Group PortChannel Type Protocol Member Ports
----------------------------------------------------------------------------------------------------------------------------
1 PortChannel1 (U) Eth LACP Eth1/1(P)
100 PortChannel100 (U) Eth NONE Eth1/8(P)
Eth1/9(P)
200 PortChannel200 (U) Eth LACP Eth1/5(P)
Eth1/6(P)
SONIC-2#
SONIC-2#
SONIC-2# show mclag brief
Domain ID : 1
Role : standby
Session Status : up
Peer Link Status : up
Source Address : 192.168.2.2
Peer Address : 192.168.2.1
Peer Link : PortChannel100
Keepalive Interval : 1 secs
Session Timeout : 30 secs
Delay Restore : 300 secs
System Mac : XX:XX:XX:XX:XX:XX
Mclag System Mac : 00:00:00:00:00:01
Number of MLAG Interfaces:1
-----------------------------------------------------------
MLAG Interface Local/Remote Status
-----------------------------------------------------------
PortChannel1 up/up
SONIC-2#
SONIC-2#
SONIC-2#
SONIC-2#
SONIC-2# show running-configuration interface PortChannel 1
!
interface PortChannel1 mode active
switchport trunk allowed Vlan 636
no shutdown
mclag 1
SONIC-2# show running-configuration interface PortChannel 100
!
interface PortChannel100 mode on
switchport trunk allowed Vlan 1-4094
no shutdown
SONIC-2# show running-configuration interface PortChannel 200
!
interface PortChannel200 mode active
no shutdown
ip address 192.168.2.2/24
SONIC-2#
SONIC-2#
SONIC-2# ping 172.16.0.3
PING 172.16.0.3 (172.16.0.3) 56(84) bytes of data.
64 bytes from 172.16.0.3: icmp_seq=1 ttl=64 time=3.48 ms
64 bytes from 172.16.0.3: icmp_seq=2 ttl=64 time=2.94 ms
^CSONIC-2#
Em Estado de problema (status keepalive-link desligado desligando as portas membro do Po200)
SONIC-1# show mclag brief Domain ID : 1 Role : active Session Status : down Peer Link Status : up Source Address : 192.168.2.1 Peer Address : 192.168.2.2 Peer Link : PortChannel100 Keepalive Interval : 1 secs Session Timeout : 30 secs Delay Restore : 300 secs System Mac : XX:XX:XX:XX:XX:XX Mclag System Mac : 00:00:00:00:00:01 Number of MLAG Interfaces:1 ----------------------------------------------------------- MLAG Interface Local/Remote Status ----------------------------------------------------------- PortChannel1 up/unknown SONIC-1# SONIC-1# SONIC-1# ping 172.16.0.3 PING 172.16.0.3 (172.16.0.3) 56(84) bytes of data. 64 bytes from 172.16.0.3: icmp_seq=1 ttl=64 time=8.00 ms 64 bytes from 172.16.0.3: icmp_seq=2 ttl=64 time=3.08 ms 64 bytes from 172.16.0.3: icmp_seq=3 ttl=64 time=2.99 ms 64 bytes from 172.16.0.3: icmp_seq=4 ttl=64 time=2.92 ms 64 bytes from 172.16.0.3: icmp_seq=5 ttl=64 time=3.07 ms ^C SONIC-1#
SONIC-2# show PortChannel summary
Flags(oper-status): D - Down U - Up (portchannel) P - Up in portchannel (members)
----------------------------------------------------------------------------------------------------------------------------
Group PortChannel Type Protocol Member Ports
----------------------------------------------------------------------------------------------------------------------------
1 PortChannel1 (U) Eth LACP Eth1/1(P)
100 PortChannel100 (U) Eth NONE Eth1/8(P)
Eth1/9(P)
200 PortChannel200 (D) Eth LACP Eth1/5(D)
Eth1/6(D)
SONIC-2# show mclag brief
Domain ID : 1
Role : standby
Session Status : down
Peer Link Status : up
Source Address : 192.168.2.2
Peer Address : 192.168.2.1
Peer Link : PortChannel100
Keepalive Interval : 1 secs
Session Timeout : 30 secs
Delay Restore : 300 secs
System Mac : XX:XX:XX:XX:XX:XX
Mclag System Mac : 00:00:00:00:00:01
Number of MLAG Interfaces:1
-----------------------------------------------------------
MLAG Interface Local/Remote Status
-----------------------------------------------------------
PortChannel1 up/unknown
SONIC-2#
SONIC-2# ping 172.16.0.3
PING 172.16.0.3 (172.16.0.3) 56(84) bytes of data.
From 172.16.0.2 icmp_seq=1 Destination Host Unreachable
From 172.16.0.2 icmp_seq=1 Destination Host Unreachable
From 172.16.0.2 icmp_seq=1 Destination Host Unreachable
From 172.16.0.2 icmp_seq=1 Destination Host Unreachable
^C
Resolution
Para que o MC-LAG continue funcionando sem nenhum problema, o status keepalive link também deve manter o funcionamento. A porta de gerenciamento é normalmente usada para o link keepalive, mas o port channel com endereço IP atribuído a ele pode ser usado para o link keepalive para fins de redundância. O comportamento (que o MC-LAG será afetado quando o status do link keepalive ficar inativo) descrito neste artigo da KB é esperado em todas as versões pelo menos até o SONiC versão 4.2.0.
