Keepalive Session 상태가 다운되면 Dell Networking SONiC MC-LAG가 영향을 받습니다.
Summary: 이 문서에서는 SONiC에서 유지 세션 상태가 다운되는 경우 MC-LAG가 어떻게 영향을 받는지 설명합니다.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
SONiC에서 유지 세션 상태가 다운되면 MC-LAG가 영향을 받습니다.
Keepalive 세션이 중단되는 시점에 다음과 같은 MC-LAG 상태가 표시됩니다.
Keepalive 세션이 중단되는 시점에 다음과 같은 MC-LAG 상태가 표시됩니다.
SONIC-1# show mclag brief Domain ID : 1 Role : active Session Status : down Peer Link Status : up Source Address : 192.168.2.1 Peer Address : 192.168.2.2 Peer Link : PortChannel100 Keepalive Interval : 1 secs Session Timeout : 30 secs Delay Restore : 300 secs System Mac : XX:XX:XX:XX:XX:XX Mclag System Mac : 00:00:00:00:00:01 Number of MLAG Interfaces:1 ----------------------------------------------------------- MLAG Interface Local/Remote Status ----------------------------------------------------------- PortChannel1 up/unknown
Cause

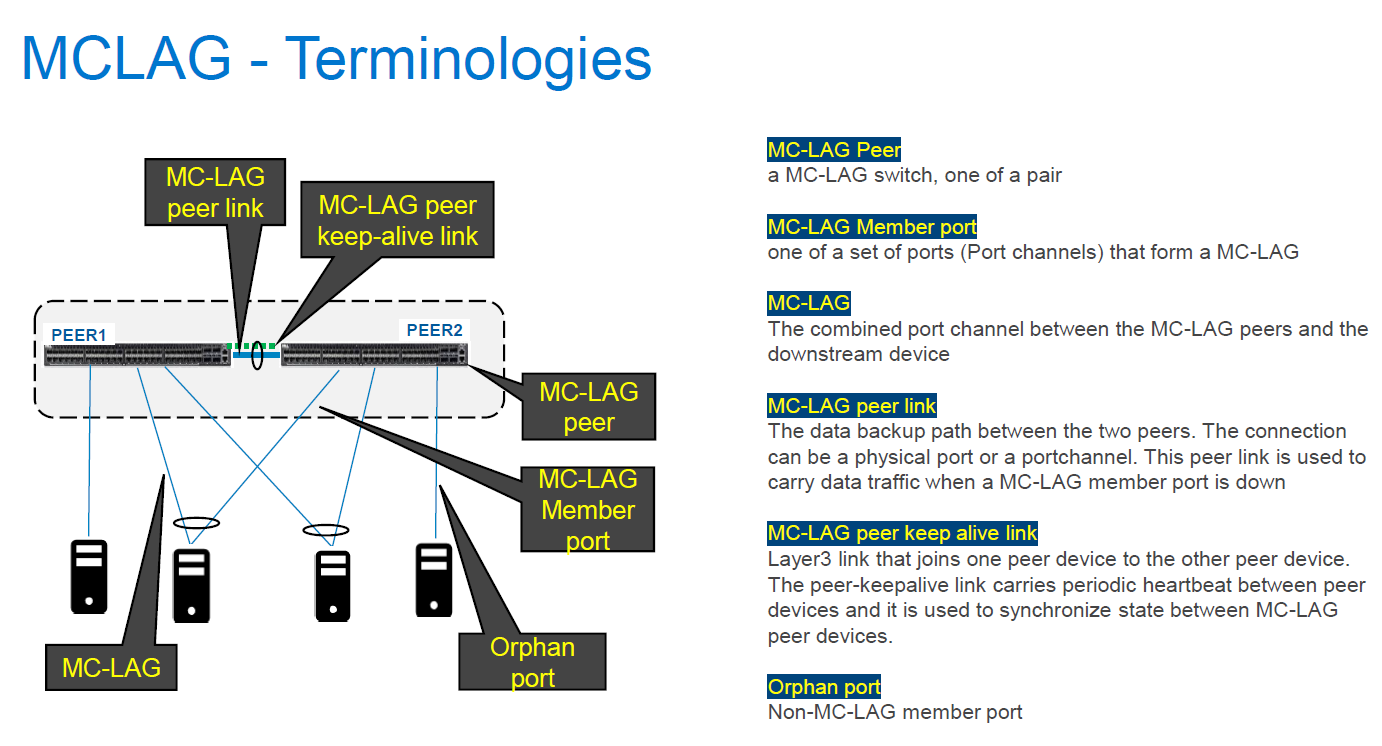

SONiC에서 유지 세션 상태가 다운되면 MC-LAG가 영향을 받습니다. SONiC의 Keepalive는 OS9 및 OS10의 백업 링크와 유사한 IPv4 L3 통신으로 구성되며 일반적으로 VLT-Portchannel 상태에 영향을 주지 않습니다. OS9 및 OS10의 피어 링크 상태는 대신 VLT-Portchannel 상태에 영향을 미칩니다. 그러나 SONiC에서는 MC-LAG가 가동되려면 유지 세션 상태가 가동되어야 합니다. Keepalive Link의 경우 MC-LAG 피어 디바이스 간에 주기적으로 하트비트 전송되며 MC-LAG 피어 디바이스 간의 상태를 동기화하는 데도 사용됩니다. SONiC와 달리 OS9 및 OS10은 피어 링크를 사용하여 VLT 피어 디바이스 간의 상태를 동기화합니다.

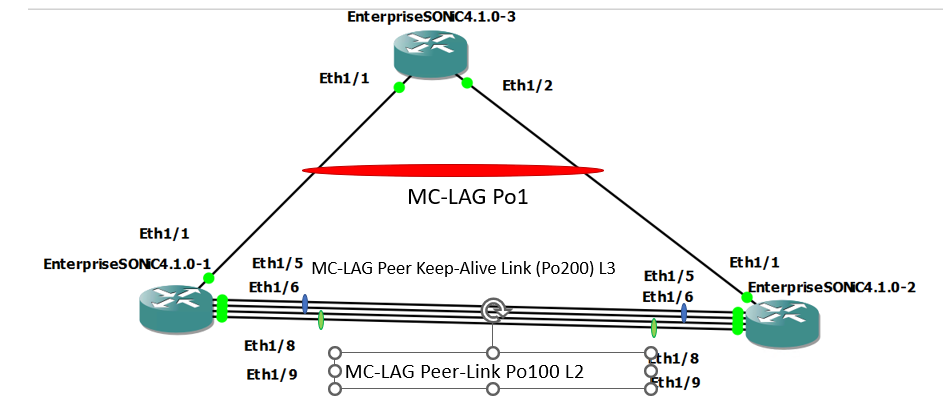

Keepalive 세션 링크가 다운되면 두 피어 디바이스 간의 동기화 실패로 인해 MC-LAG 피어 디바이스의 MC-LAG 상태가 작동/알 수 없게 됩니다.
정상 상태
문제 상태(Po200 구성원 포트를 종료하여 Keepalive-link Status Down)
Keepalive 세션 링크가 다운되면 두 피어 디바이스 간의 동기화 실패로 인해 MC-LAG 피어 디바이스의 MC-LAG 상태가 작동/알 수 없게 됩니다.
정상 상태
SONIC-1#show version Software Version : 4.1.0-Enterprise_Base Product : Enterprise SONiC Distribution by Dell Technologies Distribution : Debian 10.13 Kernel : 5.10.0-8-2-amd64 Config DB Version : version_4_1_1 Build Commit : 93589a15db Build Date : Tue Apr 18 17:56:48 UTC 2023 Built By : sonicbld@sonic-lvn-csg-001 Platform : x86_64-kvm_x86_64-r0 HwSKU : DellEMC-S5248f-P-25G-DPB SONIC-1# show ip interfaces Flags: U-Unnumbered interface, A-Anycast IP ----------------------------------------------------------------------------------------------------------------- Interface IP address/mask VRF Admin/Oper Flags ----------------------------------------------------------------------------------------------------------------- PortChannel200 192.168.2.1/24 up/up Vlan636 172.16.0.1/24 up/up SONIC-1# SONIC-1# SONIC-1# show PortChannel summary Flags(oper-status): D - Down U - Up (portchannel) P - Up in portchannel (members) ---------------------------------------------------------------------------------------------------------------------------- Group PortChannel Type Protocol Member Ports ---------------------------------------------------------------------------------------------------------------------------- 1 PortChannel1 (U) Eth LACP Eth1/1(P) 100 PortChannel100 (U) Eth NONE Eth1/8(P) Eth1/9(P) 200 PortChannel200 (U) Eth LACP Eth1/5(P) Eth1/6(P) SONIC-1# SONIC-1# SONIC-1# show mclag brief Domain ID : 1 Role : active Session Status : up Peer Link Status : up Source Address : 192.168.2.1 Peer Address : 192.168.2.2 Peer Link : PortChannel100 Keepalive Interval : 1 secs Session Timeout : 30 secs Delay Restore : 300 secs System Mac : XX:XX:XX:XX:XX:XX Mclag System Mac : 00:00:00:00:00:01 Number of MLAG Interfaces:1 ----------------------------------------------------------- MLAG Interface Local/Remote Status ----------------------------------------------------------- PortChannel1 up/up SONIC-1# SONIC-1# SONIC-1# show running-configuration interface PortChannel 1 ! interface PortChannel1 mode active switchport trunk allowed Vlan 636 no shutdown mclag 1 SONIC-1# show running-configuration interface PortChannel 100 ! interface PortChannel100 mode on switchport trunk allowed Vlan 1-4094 no shutdown SONIC-1# show running-configuration interface PortChannel 200 ! interface PortChannel200 mode active no shutdown ip address 192.168.2.1/24 SONIC-1# SONIC-1# SONIC-1# ping 172.16.0.3 //IP address assigned to VLAN636 on uplink SW. PING 172.16.0.3 (172.16.0.3) 56(84) bytes of data. 64 bytes from 172.16.0.3: icmp_seq=1 ttl=64 time=3.26 ms 64 bytes from 172.16.0.3: icmp_seq=2 ttl=64 time=3.47 ms 64 bytes from 172.16.0.3: icmp_seq=3 ttl=64 time=3.21 ms 64 bytes from 172.16.0.3: icmp_seq=4 ttl=64 time=2.84 ms 64 bytes from 172.16.0.3: icmp_seq=5 ttl=64 time=11.1 ms ^C SONIC-1#
SONIC-2#show version
Software Version : 4.1.0-Enterprise_Base
Product : Enterprise SONiC Distribution by Dell Technologies
Distribution : Debian 10.13
Kernel : 5.10.0-8-2-amd64
Config DB Version : version_4_1_1
Build Commit : 93589a15db
Build Date : Tue Apr 18 17:56:48 UTC 2023
Built By : sonicbld@sonic-lvn-csg-001
Platform : x86_64-kvm_x86_64-r0
HwSKU : DellEMC-S5248f-P-25G-DPB
SONIC-2# show ip interfaces
Flags: U-Unnumbered interface, A-Anycast IP
-----------------------------------------------------------------------------------------------------------------
Interface IP address/mask VRF Admin/Oper Flags
-----------------------------------------------------------------------------------------------------------------
PortChannel200 192.168.2.2/24 up/up
Vlan636 172.16.0.2/24 up/up
SONIC-2#
SONIC-2#
SONIC-2# show PortChannel summary
Flags(oper-status): D - Down U - Up (portchannel) P - Up in portchannel (members)
----------------------------------------------------------------------------------------------------------------------------
Group PortChannel Type Protocol Member Ports
----------------------------------------------------------------------------------------------------------------------------
1 PortChannel1 (U) Eth LACP Eth1/1(P)
100 PortChannel100 (U) Eth NONE Eth1/8(P)
Eth1/9(P)
200 PortChannel200 (U) Eth LACP Eth1/5(P)
Eth1/6(P)
SONIC-2#
SONIC-2#
SONIC-2# show mclag brief
Domain ID : 1
Role : standby
Session Status : up
Peer Link Status : up
Source Address : 192.168.2.2
Peer Address : 192.168.2.1
Peer Link : PortChannel100
Keepalive Interval : 1 secs
Session Timeout : 30 secs
Delay Restore : 300 secs
System Mac : XX:XX:XX:XX:XX:XX
Mclag System Mac : 00:00:00:00:00:01
Number of MLAG Interfaces:1
-----------------------------------------------------------
MLAG Interface Local/Remote Status
-----------------------------------------------------------
PortChannel1 up/up
SONIC-2#
SONIC-2#
SONIC-2#
SONIC-2#
SONIC-2# show running-configuration interface PortChannel 1
!
interface PortChannel1 mode active
switchport trunk allowed Vlan 636
no shutdown
mclag 1
SONIC-2# show running-configuration interface PortChannel 100
!
interface PortChannel100 mode on
switchport trunk allowed Vlan 1-4094
no shutdown
SONIC-2# show running-configuration interface PortChannel 200
!
interface PortChannel200 mode active
no shutdown
ip address 192.168.2.2/24
SONIC-2#
SONIC-2#
SONIC-2# ping 172.16.0.3
PING 172.16.0.3 (172.16.0.3) 56(84) bytes of data.
64 bytes from 172.16.0.3: icmp_seq=1 ttl=64 time=3.48 ms
64 bytes from 172.16.0.3: icmp_seq=2 ttl=64 time=2.94 ms
^CSONIC-2#
문제 상태(Po200 구성원 포트를 종료하여 Keepalive-link Status Down)
SONIC-1# show mclag brief Domain ID : 1 Role : active Session Status : down Peer Link Status : up Source Address : 192.168.2.1 Peer Address : 192.168.2.2 Peer Link : PortChannel100 Keepalive Interval : 1 secs Session Timeout : 30 secs Delay Restore : 300 secs System Mac : XX:XX:XX:XX:XX:XX Mclag System Mac : 00:00:00:00:00:01 Number of MLAG Interfaces:1 ----------------------------------------------------------- MLAG Interface Local/Remote Status ----------------------------------------------------------- PortChannel1 up/unknown SONIC-1# SONIC-1# SONIC-1# ping 172.16.0.3 PING 172.16.0.3 (172.16.0.3) 56(84) bytes of data. 64 bytes from 172.16.0.3: icmp_seq=1 ttl=64 time=8.00 ms 64 bytes from 172.16.0.3: icmp_seq=2 ttl=64 time=3.08 ms 64 bytes from 172.16.0.3: icmp_seq=3 ttl=64 time=2.99 ms 64 bytes from 172.16.0.3: icmp_seq=4 ttl=64 time=2.92 ms 64 bytes from 172.16.0.3: icmp_seq=5 ttl=64 time=3.07 ms ^C SONIC-1#
SONIC-2# show PortChannel summary
Flags(oper-status): D - Down U - Up (portchannel) P - Up in portchannel (members)
----------------------------------------------------------------------------------------------------------------------------
Group PortChannel Type Protocol Member Ports
----------------------------------------------------------------------------------------------------------------------------
1 PortChannel1 (U) Eth LACP Eth1/1(P)
100 PortChannel100 (U) Eth NONE Eth1/8(P)
Eth1/9(P)
200 PortChannel200 (D) Eth LACP Eth1/5(D)
Eth1/6(D)
SONIC-2# show mclag brief
Domain ID : 1
Role : standby
Session Status : down
Peer Link Status : up
Source Address : 192.168.2.2
Peer Address : 192.168.2.1
Peer Link : PortChannel100
Keepalive Interval : 1 secs
Session Timeout : 30 secs
Delay Restore : 300 secs
System Mac : XX:XX:XX:XX:XX:XX
Mclag System Mac : 00:00:00:00:00:01
Number of MLAG Interfaces:1
-----------------------------------------------------------
MLAG Interface Local/Remote Status
-----------------------------------------------------------
PortChannel1 up/unknown
SONIC-2#
SONIC-2# ping 172.16.0.3
PING 172.16.0.3 (172.16.0.3) 56(84) bytes of data.
From 172.16.0.2 icmp_seq=1 Destination Host Unreachable
From 172.16.0.2 icmp_seq=1 Destination Host Unreachable
From 172.16.0.2 icmp_seq=1 Destination Host Unreachable
From 172.16.0.2 icmp_seq=1 Destination Host Unreachable
^C
Resolution
MC-LAG가 문제 없이 계속 작동하려면 Keepalive Link 상태도 계속 가동 및 실행되어야 합니다. 관리 포트는 일반적으로 유지 링크에 사용되지만 IP 주소가 할당된 포트 채널은 이중화를 위해 유지 링크에 사용할 수 있습니다. 적어도 SONiC 버전 4.2.0까지 모든 버전에서 이 KB 문서에 설명된 동작(유지 링크 상태가 다운될 때 MC-LAG가 영향을 받음)이 예상됩니다.
Affected Products
Enterprise SONiC Distribution, Dell EMC Networking N3200-ON, PowerSwitch S5212F-ON, PowerSwitch S5224F-ON, PowerSwitch S5232F-ON, PowerSwitch S5248F-ON, PowerSwitch S5296F-ON, PowerSwitch Z9100-ON, PowerSwitch Z9264F-ON, PowerSwitch Z9332F-ONArticle Properties
