Precision 7740: Visual Guide to your computer
Summary: This article is a visual guide to the external ports and features of the Dell Precision 7740 Mobile Workstation.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
The following article provides a visual guide to your Precision 7740 Mobile Workstation and lists the external ports and features of your PC.
Note: For a more detailed description of each location, please go to the system manuals at www.dell.com/support
Table of Contents:
- Front View
- Top View
- Rear View
- Bottom View
- Left-Hand Side View
- Right-Hand Side View
- AC Adapter View
- Additional Info:
Front View
(Fig.1 Front View)
| 1 | Microphone (Optional) | 2 | Camera w/Shutter (Optional) |
| 3 | Camera Status LED (Optional) | 4 | Microphone (Optional) |
| 5 | LCD Panel | 6 | Battery Status LED |
| 7 | Speakers |
Top View
(Fig.2 Top View)
| 1 | Power Button | 2 | Keyboard |
| 3 | Fingerprint Reader (Optional) | 4 | Contactless Card Reader (Optional) |
| 5 | Touchpad |
Rear View

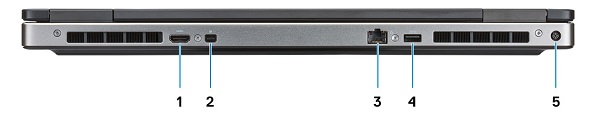

(Fig.3 Rear View)
| 1 | HDMI Connector | 2 | Mini DisplayPort Connector |
| 3 | Ethernet (NIC) Connnector | 4 | USB 3.1 Gen1 w/PowerShare |
| 5 | Power Connector |
Bottom View
(Fig.4 Bottom View)
| 1 | Service Tag | 2 | Battery Door Release Catch |
| 3 | Battery Door |
Left-Hand Side View

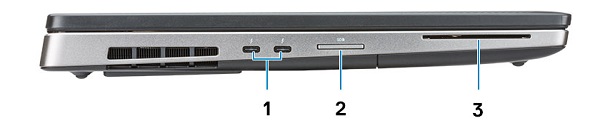

(Fig.5 Left-Hand Side View)
| 1 | Thunderbolt 3 Type-C Connector | 2 | SD Card Reader |
| 3 | SmartCard Reader |
Right-Hand Side View

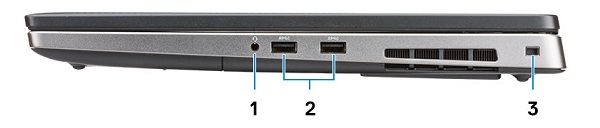

(Fig.6 Right-Hand Side View)
| 1 | Headset Connector | 2 | USB 3.1 Gen1 Connector x2 w/PowerShare |
| 3 | Security Cable Slot |
AC Adapter View
(Fig.7 240W Adapter)
| Type 240W Series | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 12.31 A (Continuous) |
| Output Power | 240 W |
| Output Voltage | 19.5 VDC |
Additional Info:
- Precision 7740 Teardown removal guide for customer replaceable units (CRUs)
- Dell Precision 7740 Service Manual
Cause
N/A
Resolution
N/A
