NVP-vProxy: NetWorker workflow modification Failed: The vProxy name is invalid

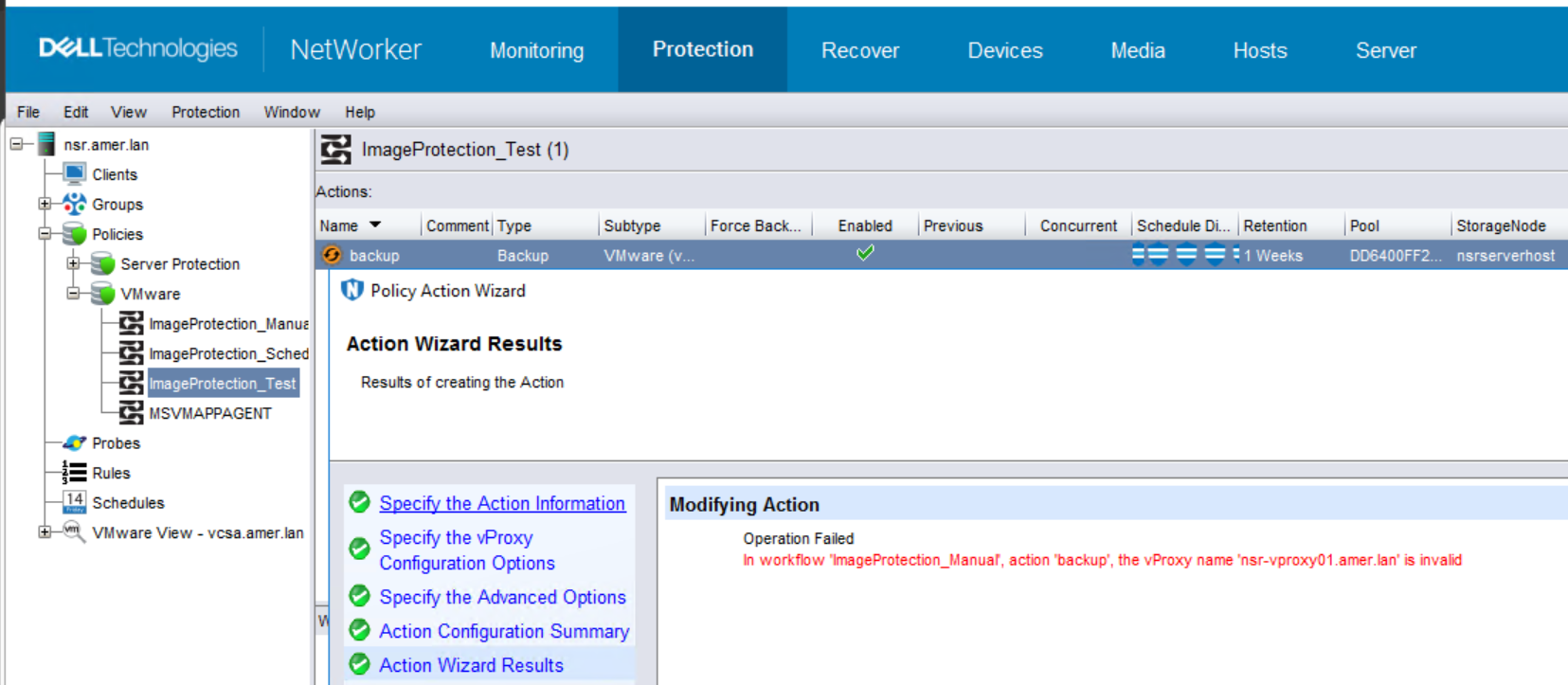

Modifying a NetWorker VMware Protection (NVP) vProxy workflow results in the following error:



The error indicates that there is an issue with a vProxy in another workflow under the same policy. This vProxy no longer exists in this datazone.

On modifying one of the workflows, NetWorker attempts to update the whole policy. NetWorker cannot modify the policy, because there is a vProxy in another workflow which has no vProxy resource in the NetWorker resource database.

The nsrpolicy command identifies that another action is still using a deleted vProxy node:

nsrpolicy action display --policy_name=POLICY_NAME --workflow_name=WORKFLOW_NAME --action_name=ACTION_NAME

Example:

[root@nsr ~]# nsrpolicy action display --policy_name=VMware --workflow_name=ImageProtection_Manual --action_name=backup
{
    "actionName": "backup",
    "actionSpecific": {
        "actions": {
            "actionType": "backup",
            "actionBackupSubtypeSpecific": {
                "backupSubtypes": {
                    "abBackupSubtype": "vmware-vproxy",
                    "abvProxyDestinationPool": "ddve01_VMbackup",
                    "abvProxyName": "nsr-vproxy01.amer.lan",
                    "abvProxyZDDRetentionLockTime": "",
                    "abvProxyZEnableDDRetentionLock": false
                }
            },
...
...
...
}

The nsradmin command-line utility can also be used:

nsradmin
option hidden
print type: nsr protection policy; name: POLICY_NAME

Example:

nsradmin> option hidden
Hidden display option turned on

Display options:
        Dynamic: Off;
        Hidden: On;
        Raw I18N: Off;
        Resource ID: Off;
        Regexp: Off;
nsradmin> print type: nsr protection policy; name: vmware
                        type: NSR Protection Policy;
                        name: VMware;
                     comment: ;
                   start now: ;
                 restart now: ;
                    stop now: ;
         override parameters: ;
     operational information: ;
           policy definition: \
"...{\"workflowName\:\"ImageProtection_Manual\",\"synthesisRoot\":\
[\"NSR group/ImageProtection_Manual\",\"NSR Snapshot Policy/ImageProtection_Manual\"]\
,\"workflowActions\":[{\"actionName\":\"backup\",\"actionSpecific\":{\"actions\":{\"a\
ctionType\":\"backup\",\"actionBackupSubtypeSpecific\":{\"backupSubtypes\":{\"abBacku\
pSubtype\":\"vmware-vproxy\",\"abvProxyDestinationPool\":\"ddve01_VMbackup\",\"abvPro\
xyName\":\"nsr-vproxy01.amer.lan\",\"...";
...
...
...

The vProxy must be added back to the NetWorker server. This can be done even if the vProxy Virtual Machine (VM) no longer exists. The vProxy must be added as an "NSR VMware proxy" resource in the NetWorker Server Resource Database (NSRDB); successful registration is not required. This can be done by following.

1. Add Entries in the NetWorker hosts file with the vProxy name.

2. In the NetWorker Management Console (NMC), go to Devices > VMware Proxies > New.
3. Right-click in the VMware Proxies window and select New.
   1. In the General tab, specify the name of the vProxy.

2. In the Configuration tab, select the vCenter, admin username, and password. No other fields are required, these fields are only required so that you can add the vProxy as a resource in NetWorker.

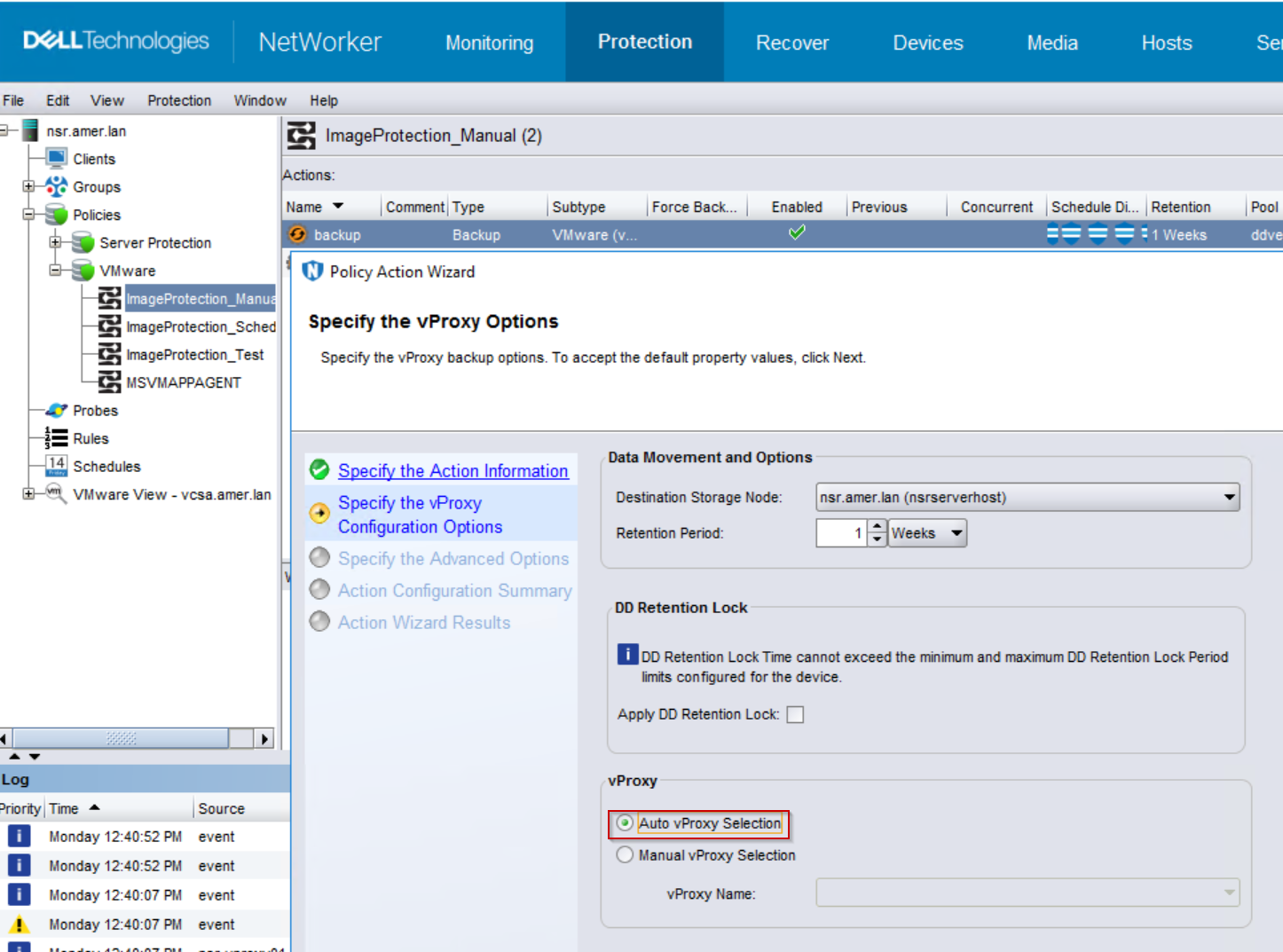

4. Edit the affected workflow. Check if the "dummy" vProxy is configured in any action under any of the workflows in the policy. If the "dummy" vProxy is listed, select "auto" (or select a valid vProxy) and save the changes.


5. Once the all actions referencing the decommissioned vProxy have been changed to auto selection, remove the vProxy resource from NetWorker: Open NMC > Devices > VMware Proxies > right click the vProxy > delete
