Latitude 5590: Visual guide to your Computer
Summary: This article is a visual guide to the external ports and features of the Dell Latitude 5590 Notebook system.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
The following article provides a visual guide to your Latitude 5590 Computer and lists the external ports and features of your PC.
Note: For a more detailed description about each location, please go to the system manuals at www.dell.com/support
Table of Contents:
- Front View
- Top View
- Rear View
- Service Tag View
- Left Hand Side View
- Right Hand Side View
- AC Adapter View
- Additional Info:
Front View

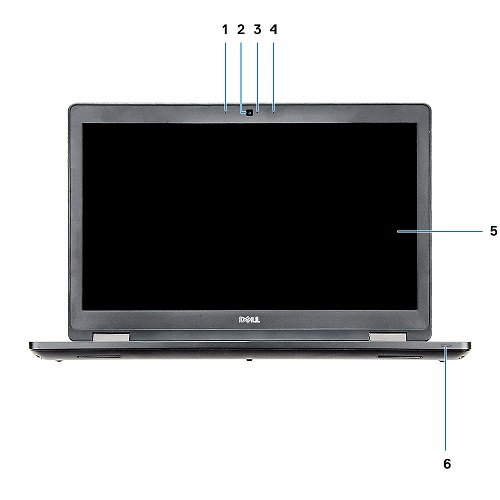

(Fig.1 Front View)
| 1 | Array Microphone | 2 | Camera (Optional) |
| 3 | Camera Status LED | 4 | Array Microphone |
| 5 | LCD Panel | 6 | Battery and Charge Status LED |
Note: This computer has the option of shipping with an HD camera Module.
Top View

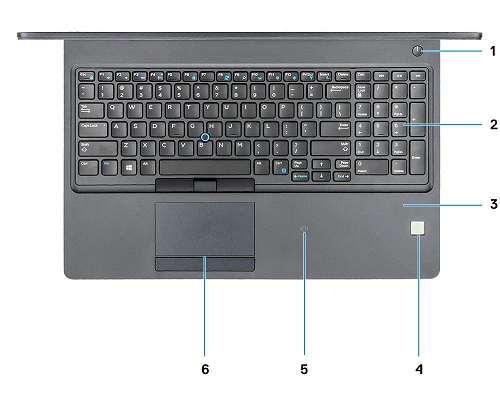

(Fig.2 Top View)
| 1 | Power Button / Power Status LED | 2 | Keyboard |
| 3 | Palm Rest | 4 | Fingerprint Reader (Optional) |
| 5 | NFC Receiver (Optional) | 6 | Touchpad |
Rear View

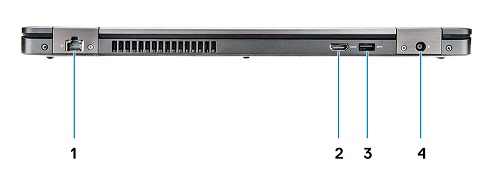

(Fig.3 Rear View)
| 1 | Network Connector (NIC) | 2 | HDMI Connector |
| 3 | USB 3.1 Gen1 Connector | 4 | Power Connector |
Service Tag View

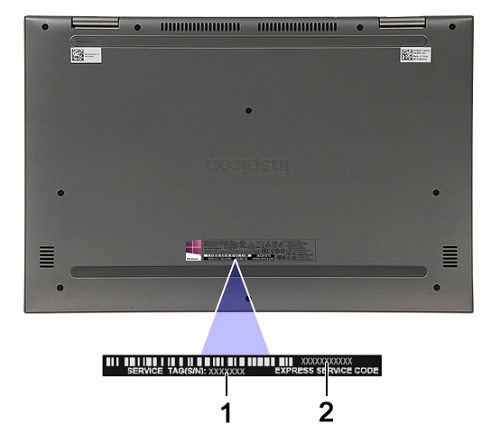

(Fig.4 Service Tag View)
| 1 | Service Tag | 2 | Express Service Code |
Left Hand Side View

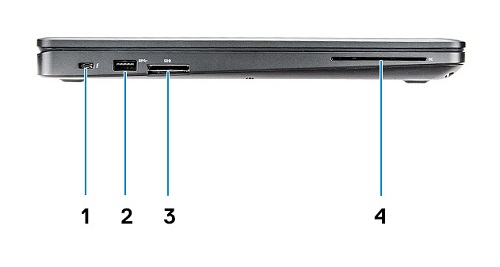

(Fig.5 Left Hand Side View)
| 1 | DisplayPort over USB Type-C | 2 | USB 3.1 Gen1 Connector |
| 3 | SD Card Reader | 4 | SmartCard Reader (Optional) |
Right Hand Side View

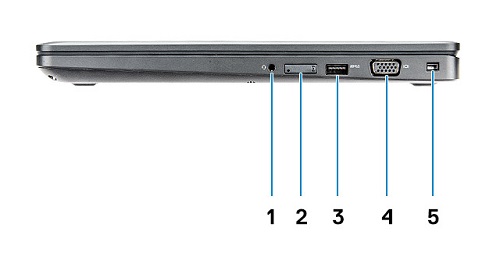

(Fig.6 Right Hand Side View)
| 1 | Headset / Microphone Connector | 2 | SIM-card Slot (Optional) |
| 3 | USB 3.1 Gen1 Connector | 4 | VGA Connector |
| 5 | Noble Wedge Lock Slot |
AC Adapter View
(Fig.7 65W Adapter)
| Type 65W Series | Description |
| Input Voltage | 100 V AC to 240 V AC |
| Output Current | 3.34 A (Continuous) |
| Output Power | 65 W |
| Output Voltage | 19.5 V DC |
(Fig.8 90W Adapter)
| Type 90W E4 Series Optional | Description |
| Input Voltage | 100 V AC to 240 V AC |
| Output Current | 4.62 A (Continuous) |
| Output Power | 90 W |
| Output Voltage | 19.5 V DC |
Additional Info:
- Latitude 5590 Teardown removal guide for customer replaceable units (CRUs)
- Latitude 5590 Owner's Manual
