Dell Networking N Series - How to configure SNMPv3

Summary: How to configure SNMPv3 on Dell Networking N series switches.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

 Steps in configuring SNMPv3

  1. Creating a SNMpv3 view.

  2. Creating a SNMPv3 Group and associating with the View.

  3. Creating a SNMPv3 user and associating with the Group


1. Creating a SNMPv3 View

  • A SNMPv3 view defines what we can see on the switch.

  • A View defines what MIB family that we have access to from the MIB Subtree.

  • For Example, if we select the View as "system" from the MIB subtree, the user could poll all the information which is below "system" Object Identifier (OID).

  • Similarly, if we need visibility to all the parameters, we can configure the view as "iso" from the MIB subtree.


Commands

console# configure
console(config)# snmp-server view test_view internet included



CLI Breakdown


Parameter Description
test_view name we create locally on the switch for the SNMP view
internet

MIB family which we select from the OID subtree.



2. Creating an SNMPV3 Group

  • The next step after creating a SNMPv3 view is to create a SNMPv3 group and associate it with the view that has been created.

Commands:

console(config)# snmp-server group test_group v3 ‘noauth/auth/priv’ ‘read/write’ test_view



CLI Breakdown


Parameter Description
test_group name we create locally on the switch for the SNMP group
noauth/auth/priv authentication type
test_view Associating the SNMPV3 group with the SNMPV3 view created earlier.

auth - Specifies authentication of a packet without encrypting it.

noauth - Specifies no authentication of a packet.

priv - Specifies authentication of a packet with encryption.


3. Creating an SNMPV3 User

The next step after creating a SNMPv3 group is to create a SNMPv3 user and associate it with the group that has been created.


Commands

console(config)# snmp-server user test_user test_group auth-md5 password1 priv-3des password2



CLI Breakdown


Parameter Description
test_user name we create locally on the switch for the SNMP user
test_group Associating the SNMPV3 user with the SNMPV3 group created earlier.
Auth Authentication password
Priv Encryption key

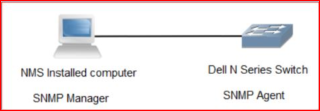

Configuration Example


SLN320821_en_US__1image(14832)


console# configure
console(config) snmp-server view test_view internet included
console(config) snmp-server group test_group v3 priv read test_view
console(config) snmp-server user test_user test_group auth-md5 password1 priv-3des password2



Switch Running Configuration output

console# show running-config
...
snmp-server view "test_view" internet included
snmp-server group "test_group" v3 priv read "test_view"
snmp-server user "test_user" test_group auth-md5-key 240826d65a17fe9d8826630917f60b0f priv-3des-key 240826d65a17fe9d8826630917f60b0f400dd0592395032de9b2ad0759c017e9
...



Cause

.

Resolution

.

Affected Products

N Series, PowerSwitch, PowerSwitch N1500 Series, PowerSwitch N2000 Series, Dell EMC PowerSwitch N3000E-ON Series, PowerSwitch N4000 Series
