Latitude 5300: Visual Guide to your computer
Summary: This article is a visual guide to the external ports and features of the Latitude 5300 notebook.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
The following article provides a visual guide to your Latitude 5300 notebook and lists the external ports and features of your PC.
Note: For a more detailed description of each location, please go to the system manuals at www.dell.com/support
Table of Contents:
- Front View
- Top View
- Bottom View
- Left Hand Side View
- Right Hand Side View
- AC Adapter View
- Additional Info:
Cause

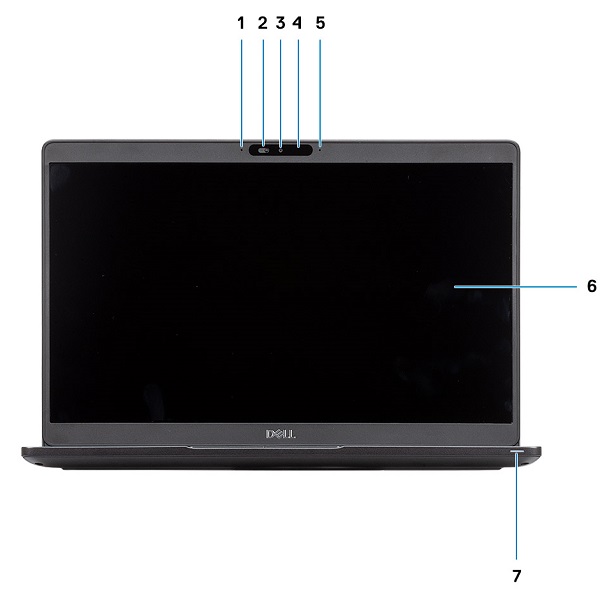

Front View
(Fig.1 Front View)
| 1 | Array Microphone | 2 | Camera Shutter |
| 3 | Camera | 4 | Camera Status LED |
| 5 | Array Microphone | 6 | LCD Display Panel |
| 7 | LED Activity Light |

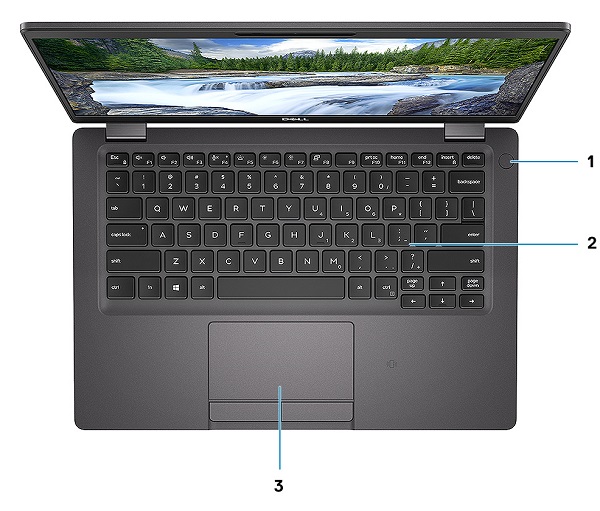

Top View
(Fig.2 Top View)
| 1 | Power Button w/fingerprint reader (Optional) | 2 | Keyboard |
| 3 | Touchpad |

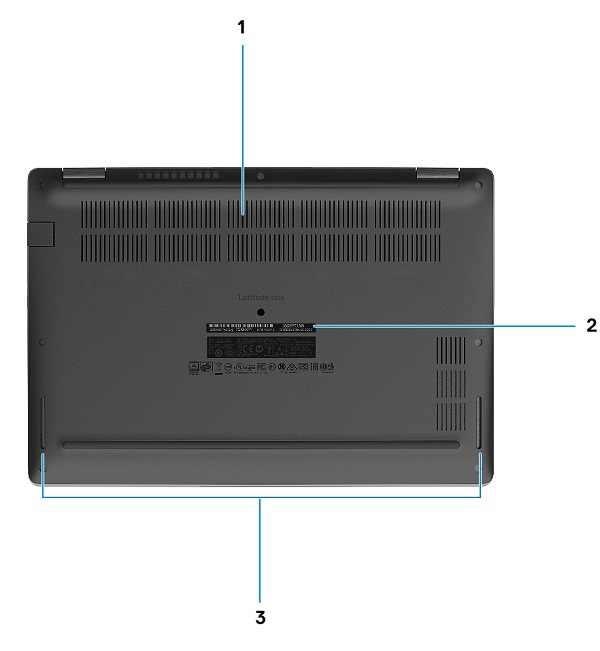

Bottom View
(Fig.3 Bottom View)
| 1 | Thermal Vent | 2 | Service Tag Label |
| 3 | Speakers |

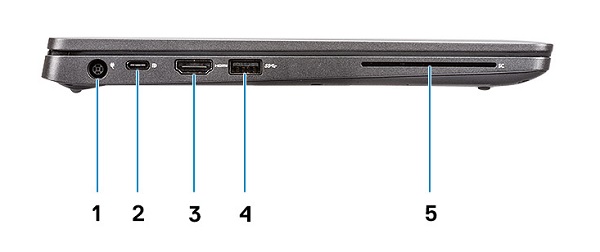

Left Hand Side View
(Fig.4 Left Hand Side View)
| 1 | Power Adapter Connector | 2 | USB Type-C 3.1 Gen2 Connector w/ Thunderbolt / DisplayPort (Optional) |
| 3 | HDMI Connector | 4 | USB Type-A 3.1 Gen1 Connector |
| 5 | Smart Card Reader (Optional) |

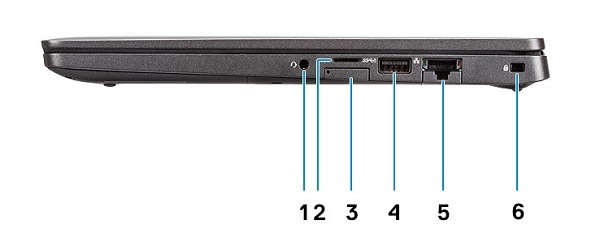

Right Hand Side View
(Fig.5 Right Hand Side View)
| 1 | Headset/Microphone Connector | 2 | microSD Card Reader |
| 3 | micro-SIM Card Slot | 4 | USB Type-A 3.1 Gen1 Connector (PowerShare Capable) |
| 5 | Network (NIC) Connector | 6 | Wedge-Shaped Lock Slot |
Resolution
AC Adapter View
(Fig.6 65W AC Adapter)
| Type 65W E5 Series | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 3.34 A (Continuous) |
| Output Power | 65 W |
| Output Voltage | 19.5 VDC |
Additional Info:
- Latitude 5300: Teardown removal guide for customer replaceable units (CRUs)
- Dell Latitude 5300 Service Manual
