Microsoft Deployment Tools 2013 Update 2 Contains a Bug in UEFI Deployment Sequence

Summary: Steps for resolving a bug in Microsoft Deployment Tools 2013 Update 2.

This article may have been automatically translated. If you have any feedback regarding its quality, please let us know using the form at the bottom of this page.

Article Content


Resolution


MDT 2013 Will Not Image

While using Microsoft Deployment Toolkit (MDT) 2013  Update 2 you may encounter a situation where the system will not image if the BIOS is configured in the UEFI mode despite having the UEFI option selected in MDT 2013..

The logs indicate an error of "UEFI=false,"

Research has determined this is occurring because the "Format and Partition Disk (UEFI)" property is not working correctly.


Solution

Microsoft Deployment Toolkit (MDT) 2013 Update 2 will require a manual edit to the formatting script in order to image through UEFI. Follow the steps below (Figure 1).

  1. Cut and paste "Format and Partition Disk" from an older existing task sequence.
  2. Disable the BIOS and UEFI "Format and Partition Disk" steps and paste the "Format and Partition Disk."
  3. Internal MDT scripts will automatically convert the drive to GPT mode and work with UEFI.

SLN301421_en_US__1MDT-2013

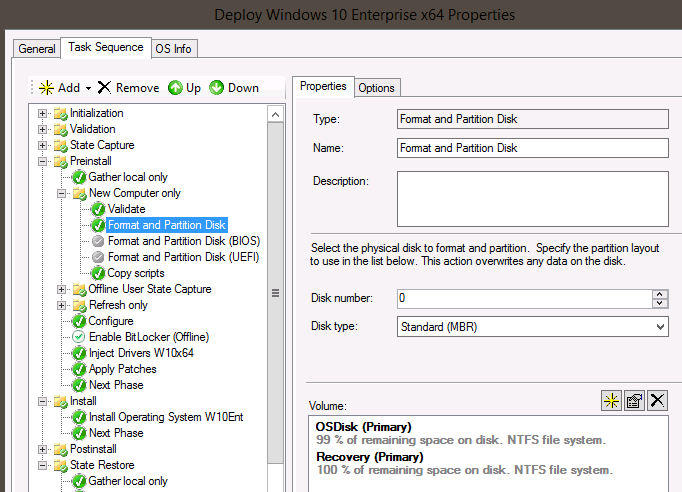

Figure 1

If you have further questions about this solution, please contact Dell Technical Support.
