PowerFlex：无法针对 PowerFlex IM 网关运行 REST API 调用

Summary: 当您尝试从 IM 测试 REST API 或尝试针对其 IP 地址使用 REST API 工具（例如“curl”）时，IM 网关返回 HTTP 错误 428。

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

尝试将 IM 网关用作 REST API 端点时，可能会出现此问题。

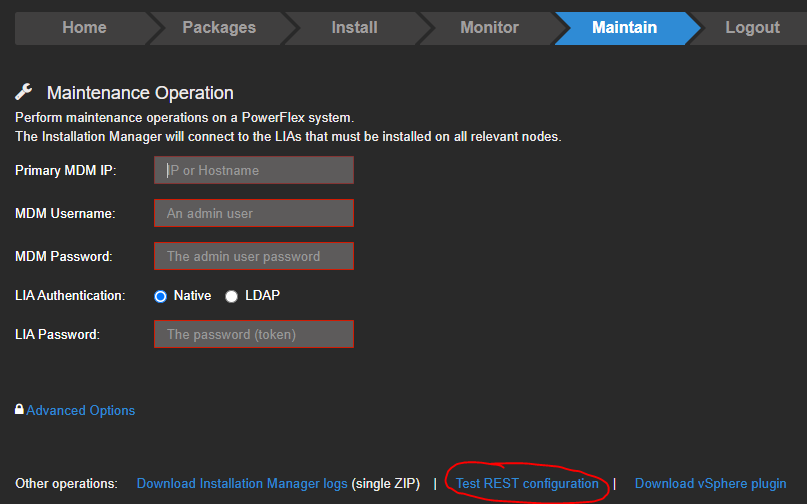

尝试从网关使用“Test REST configuration”时出错：

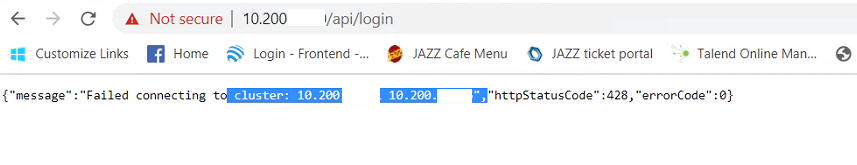

尝试连接到 API 服务器（网关）时出错：


尝试使用“curl”时出现的错误消息：

curl -k -v --basic --user admin:password https://10.200.x.x/api/login [10.200.x.x]

* About to connect() to 10.200.x.x port 443 (#0)
*   Trying 10.200.x.x...
* Connected to 10.200.x.x (10.200.x.x) port 443 (#0)
* Initializing NSS with certpath: sql:/etc/pki/nssdb
* skipping SSL peer certificate verification
* SSL connection using TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256
* Server certificate:
*       subject: CN=ScaleIO-10-200-x-x-GW.sioesxinode06,OU=ASD,O=EMC,L=Hopkinton,ST=Massachusetts,C=US
*       start date: Dec 02 07:30:05 2019 GMT
*       expire date: Nov 05 07:30:05 2024 GMT
*       common name: ScaleIO-10-200-x-x-GW.sioesxinode06
*       issuer: CN=ScaleIO-10-200-x-x-GW.sioesxinode06,OU=ASD,O=EMC,L=Hopkinton,ST=Massachusetts,C=US
* Server auth using Basic with user 'admin'
> GET /api/login HTTP/1.1
> Authorization: Basic YWRtaW46U2NhbAFAta==
> User-Agent: curl/7.29.0
> Host: 10.200.x.x
> Accept: */*
>
< HTTP/1.1 428
< Cache-Control: no-cache
< Expires: Thu, 01 Jan 1970 00:00:00 GMT
< Pragma: no-cache
< Cache-Control: no-store
< Content-Type: application/json;charset=UTF-8
< Transfer-Encoding: chunked
< Vary: Accept-Encoding
< Date: Fri, 25 Jun 2021 14:00:00 GMT
< Server: ScaleIO Gateway
<
* Connection #0 to host 10.200.x.x left intact
{"message":"Failed connecting to cluster: 10.200.x.x 10.200.x.x","httpStatusCode":428,"errorCode":0}

IM 网关“scaleio.log”：


2021-06-25 05:14:27,153 [https-jsse-nio-443-exec-7] INFO  c.e.s.s.s.ConnectionServiceImpl - Got exception when trying to connect to cluster: tcp://10.200.x.x:6611 (with configured 10 concurrent requests)
com.emc.ecs.net.exceptions.SecureConnectionDisabledException: null



影响
无法将 REST API 与 PowerFlex 配合使用。

Cause

MDM 群集已配置为禁用安全管理通信：


# scli --query_all | grep -i secure
        Management Clients secure communication: Disabled


IM 网关已配置为使用以下配置：


# grep -i secure /opt/emc/scaleio/gateway/webapps/ROOT/WEB-INF/classes/gatewayUser.properties
#######Secure connection with MDM properties#######
# Allow a non-secured REST connection to the MDM if a secured connection can't be established
gateway-security.allow_non_secure_communication=true


由于软件问题，网关和 MDM 之间的通信不成功。

Resolution

将 MDM 管理客户端通信设置为安全：
scli --set_management_client_communication --enable_client_secure_communication

Additional Information

受影响的版本：
PowerFlex 操作系统 3.0.x.x。

已解决问题的版本：
PowerFlex 操作系统 3.0.1.4 和更高版本。

Affected Products

PowerFlex Software
