Article Number: 000205901
You can run UEMCLI commands in two methods:
From a host or PC which has the Unisphere CLI tool installed.
Through SSH.
Both methods require that you're on the same management network as the Storage Processors.
Go to Downloads in the Unity product support page.
Expand Product Tool sub-menu.
You'll find multiple available tools, including Unisphere CLI, available for different Operating Systems.
Click the one which matches your OS to download the tool.
Install the tool, steps will vary depending on your OS.
After installation, and the installation directory being added to the PATH system variable, you can now launch UEMCLI.
On Windows, in a command line prompt / shell, type: uemcli.exe
On Linux, in a terminal window, type: /usr/bin/uemcli
This should show a help page showing various available options to run.
In order to make contact with the Unity primary SP and issue commands, you need the syntax to be as follows:
uemcli.exe -d <management IP> -u <user> -p <password> <object path> <action>
You can also have additional object and action qualifiers for more control over which objects to address.

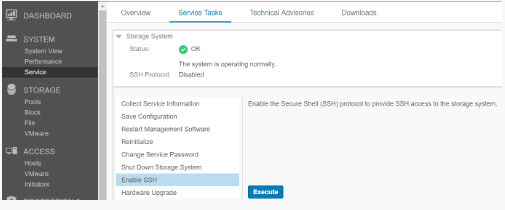

Alternatively, you can directly connect to the primary SP using an SSH client. However before you do, SSH access must be enabled on the Unity array. This can be done through the Unisphere GUI; under System > Service > Service Tasks > Enable SSH > Execute.
This will prompt you to enter the service account password.
Once enabled, use an SSH client to connect to the management IP address of the Unity array, and log in using the service user credentials.
Now you can run UEMCLI commands directly on SSH, you do not need to user the IP address or user credentials options in the command syntax.
UEMCLI command structure always needs an object path, in order to be able to view or configure the particular object you want. For example, if you want to view storage pools on the system, the command syntax would be:
uemcli /stor/config/pool show
The /stor/config/pool is the object path part of the command, and show is the action to run on all objects under that path.
Here is a further breakdown of a more detailed command:
To see all the available object paths, type in uemcli / --help
To see available actions to run on a certain object, type in uemcli <object path> --help
