Error in Device Manager After Installing the Intel Chipset Device Software After a Windows 10 Install

Device Manager will have an error in the Device Manager on "PCI Data Acquisition and Signal Processing Controller" after installing the Intel Chipset Device Software on a system with a new install of Windows 10.

Affected Systems:

• Latitude 5340
• Latitude 5440
• Latitude 7340
• Latitude 7440
• Latitude 7640
• Latitude 9440 2-in-1
• Precision 3580
• Precision 3581
• Precision 5480
• Precision 5680
• Precision 7680
• Precision 7780

No cause information is available.

Intel Chipset Device Software Driver

The following two methods can be used to resolve this issue.

1. Connect the system to the Internet and do a "Windows Update" to install the latest driver.
2. Uninstall the Intel chipset driver and install an older version.

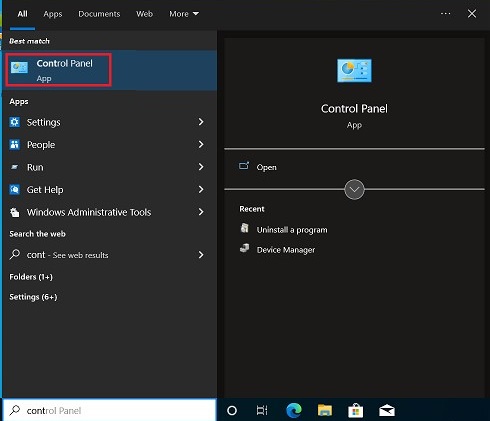

   1. Press the "Windows" key, search, and choose "Control Panel" (Figure 1).

      Figure 1

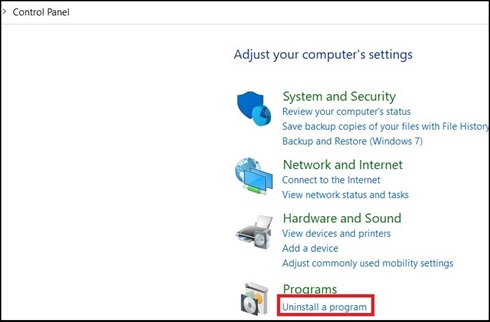

   2. Choose "Uninstall a program" (Figure 2).

      Figure 2

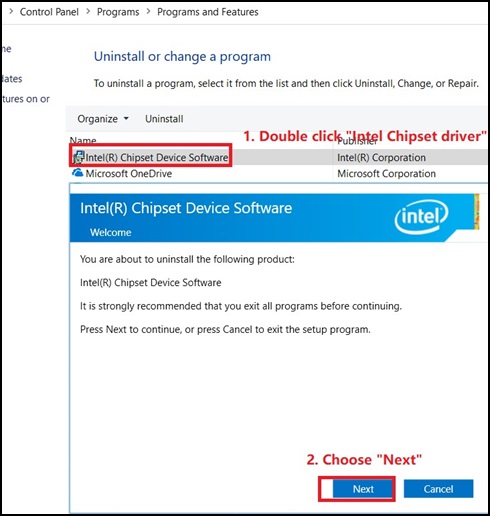

   3. Double-click on "Intel Chipset Device Software and choose "Next" in the new window to uninstall the Chipset driver (Figure 3).

      Figure 3

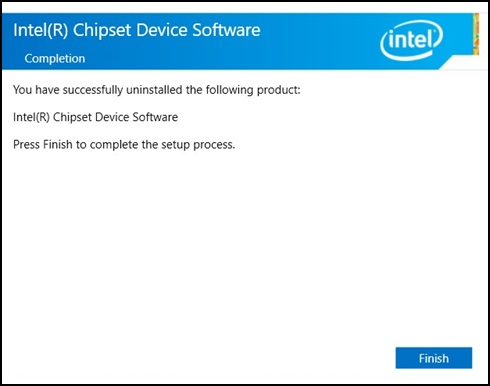

   4. In the Intel Chipset Device Software Window, click "Finish" (Figure 4).

      Figure 4

   5. No "Intel chipset driver" should be shown in the Control Panel (Figure 5).

      Figure 5

   6. Download the old chipset driver from the following link: Intel Chipset

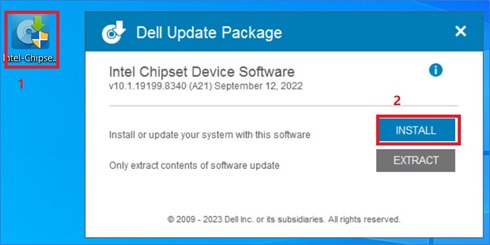

   7. Double-click on the downloaded package and then click "Install", begin the installation (Figure 6).

      Figure 6

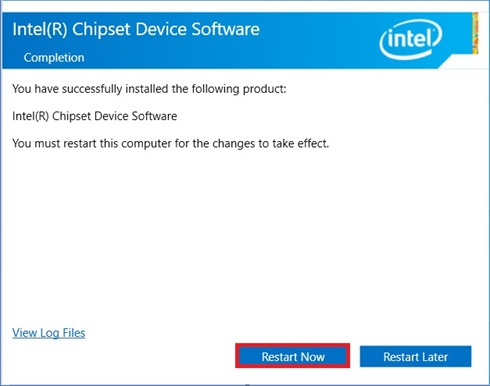

   8. Follow the install wizard, until the pop up complete message appears, then choose "Restart Now" (Figure 7).

      Figure 7

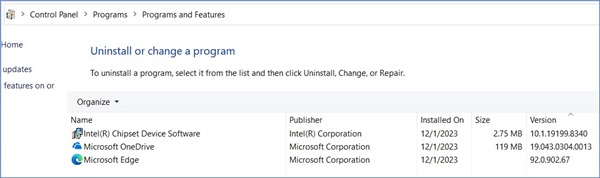

   9. After the system reboot, open "Control Panel" to check if the older chipset driver is installed (Figure 8).

      Figure 8

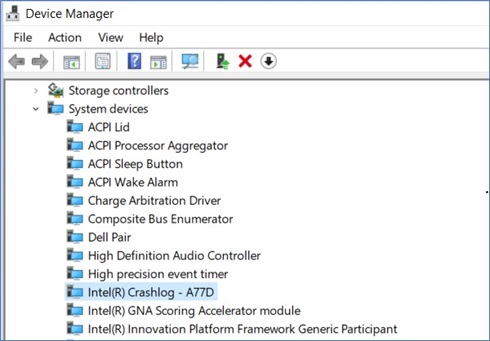

   10. There should be no error in the Device Manager (Figure 9).

       Figure 9


A new driver, version 10.1.19600.8418 should be available on the Dell Driver site on January 16, 2024 (Pending).
