Data Domain - 5342: ASSOC failed: Encrypted replication incompatible between source and destination

Summary: KB to show the symptoms and errors associated with File Replication Encryption mismatch and how to resolve on CLI and GUI

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms



Scenario
  • SR opened due to Netbackup Auto Image Replication (NBU AIR) replication failing bidirectionally
  • New configuration
  • NBU bpdm logs showing lost of nfs errors;
    • Err: 5004-nfs lookup failed (nfs: No such file or directory)
    • Err: 5009-nfs remote file op failed (nfs: I/O error)
    • Err: 5008-nfs imageset op failed (nfs: Invalid argument)

Cause

The replication was failing bidirectionally because of DDBoost file replication encryption incompatibility.

Basically there is a mismatch between the DD systems.
  • One DD has file replication encryption enabled.
  • The other DD has file replication encryption disabled
How to Verify
  • On Support Bundle if you check messages.engineering and ddfs.info on the Source DD (or both is bidirectional) and you will see lots of the following error;

messages.engineering
Jan  2 15:35:08 xxxxxx ddfs[1879]: ERROR: MSG-NFS-00005: Failed to do a filecopy, err = [5342: ASSOC failed: Encrypted replication incompatible between source and destination (5342), ddr/repl/lrepl_originator.c, filecopy_do_associate, 1586]


ddfs.info
12/20 16:31:55.554 (tid 0x7f4496732760): filecopy: ASSOC failed: Encrypted replication incompatible between source and destination

12/20 16:31:55.554 (tid 0x7f4496732760): filecopy: ASSOCIATE failed ASSOC failed: Encrypted replication incompatible between source and destination (5342)


To verify using Autosupports;
  • Go to both DD Autosupports
  • Search for "DDBOOST File-Replication Option Show"
  • The below is what you will see;

On one DD, we see enabled
------------
DDBOOST File-Replication Option Show
------------------------------------
Option         Value
------------   --------
Low-bw-optim   disabled
Encryption     enabled
Ipversion      ipv4
------------   --------

----------------------------------------------------------------------------------------------------------------------------------------

On other DD we see disabled
-----------------
DDBOOST File-Replication Option Show
------------------------------------
Option         Value
------------   --------
Low-bw-optim   enabled
Encryption     disabled
Ipversion      ipv4
------------   --------

Resolution

Both DD systems must have the same option. Either both have file replication encryption enabled or disabled

  • Ask customer if they want both sides with file replication encryption enabled or disabled
  • Then they can change the file replication encryption option as desired

Command Line Example

If you wanted to enable encryption on one DD to match the other, you can run following command;

# ddboost file-replication option set encryption enabled
# ddboost file-replication option show

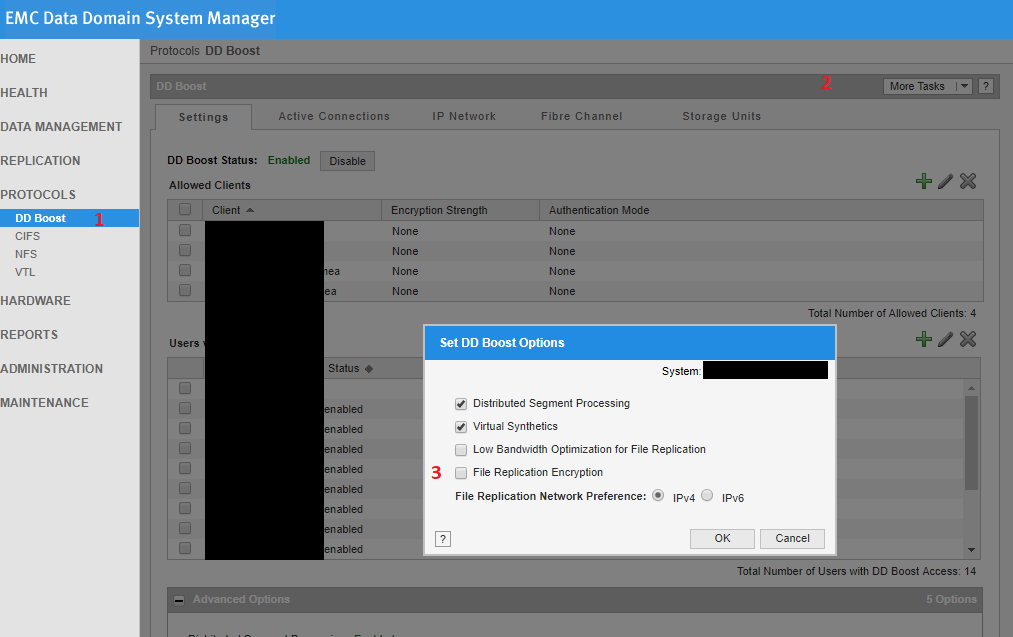

DD System Manager GUI Example
1. Click DD Boost
2. Click More Tasks (top right) and click "Set Options"
3. Click radio button on/off to enable/disable "File Replication Encryption"
4. Click OK

kA2f1000000KBNZCA4_2_0

Affected Products

Data Domain

Products

Data Domain, Data Domain Boost, Data Domain Encryption
Article Properties
Article Number: 000050345
Article Type: Solution
Last Modified: 08 Sep 2025
Version:  3
