OptiPlex 5070: Visual guide to your computers

Summary: This article is a visual guide to the external ports and features on the various form factors of the Dell OptiPlex 5070 desktop series.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

The following article provides a visual guide to your OptiPlex 5070 Computer and lists the external ports and features of your PC.


SLN317724_en_US__1icon Note: For a more detailed description about each location, please go to the system manuals at www.dell.com/support


Table of Contents:

  1. Mini Tower (MT) Front View
  2. Mini Tower (MT) Rear View
  3. Small Form Factor (SFF) Front View
  4. Small Form Factor (SFF) Rear View
  5. Micro Form Factor (MFF) Front View
  6. Micro Form Factor (MFF) Rear View
  7. Additional Info:

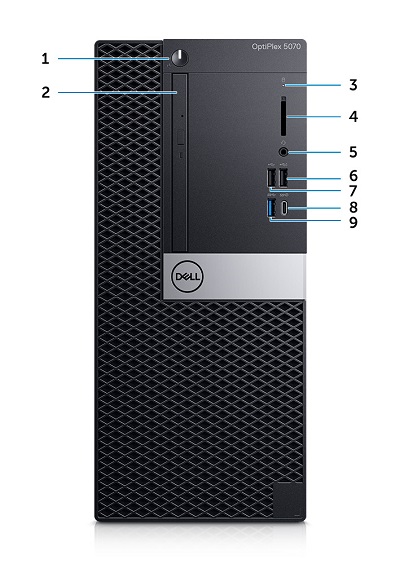

Mini Tower (MT) Front View



SLN317724_en_US__25070_Front_View_MT_BK

(Fig.1 MT Front View)



1 Power Button and Power LED 2 Optical Drive (Optional)
3 Hard Drive Activity LED 4 Memory Card Reader (Optional)
5 Headset / Universal Audio Jack Connector 6 USB 2.0 Connector w/PowerShare
7 USB 2.0 Connector 8 USB 3.1 Gen2 Type-C Connector w/PowerShare
9 USB 3.1 Gen1 Type-A Connector


Back to Top

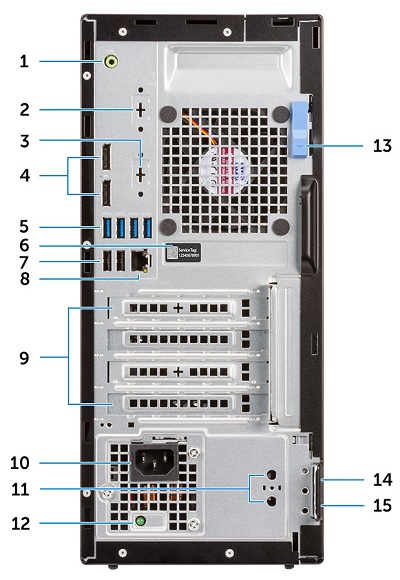

Mini Tower (MT) Rear View



SLN317724_en_US__35070_Back_View_MT_BK

(Fig.2 MT Rear View)



1 Line-Out Audio Connector 2 Serial Connector (Optional)
3 DisplayPort/HDMI 2.0b/VGA/USB Type-C Alt-Mode (Optional) 4 DisplayPort Connector x 2
5 USB 3.1 Gen1 Type-A Connector x 4 6 Service Tag
7 USB 2.0 Type-A Connector x 2 (Supports SmartPower On) 8 NIC Ethernet Connector
9 Expansion Card Slots x 4 10 Power Connector
11 External SMA Antenna Connectors (Optional) 12 Power Supply Diagnostic LED
13 Release Latch 14 Kensington Security Cable Slot
15 Padlock Ring


Back to Top

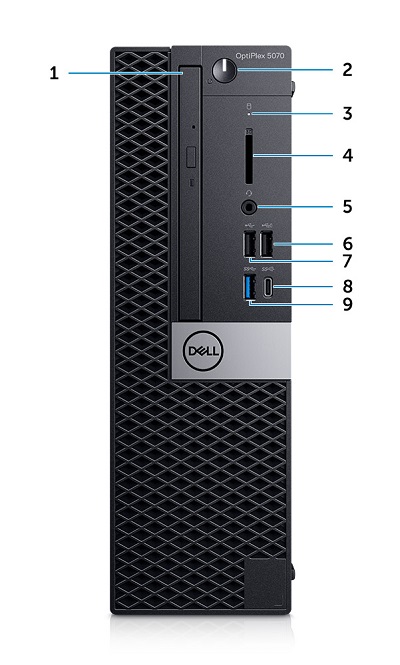

Small Form Factor (SFF) Front View



SLN317724_en_US__45070_Front_View_SFF_BK

(Fig.3 SFF Front View)



1 Optical Drive (Optional) 2 Power Button and Power LED
3 Hard Drive Activity LED 4 Memory Card Reader (Optional)
5 Headset / Universal Audio Jack Connector 6 USB 2.0 Connector w/PowerShare
7 USB 2.0 Connector 8 USB 3.1 Gen2 Type-C Connector w/PowerShare
9 USB 3.1 Gen1 Type-A Connector


Back to Top

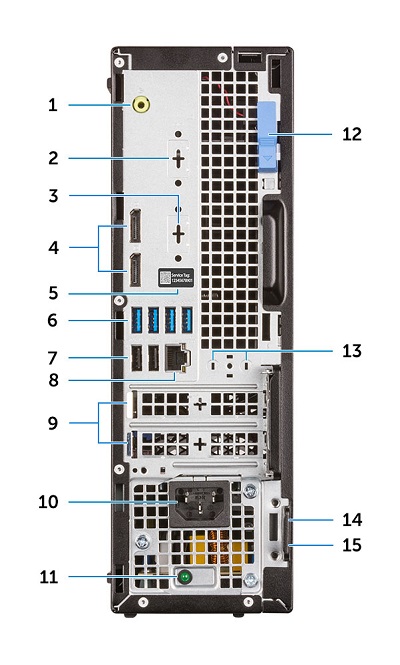

Small Form Factor (SFF) Rear View



SLN317724_en_US__55070_Back_View_SFF_BK

(Fig.4 SFF Rear View)



1 Line-Out Audio Connector 2 Serial Connector (Optional)
3 DisplayPort/HDMI 2.0b/VGA/USB Type-C Alt-Mode (Optional) 4 DisplayPort Connector x 2
5 Service Tag 6 USB 3.1 Gen1 Type-A Connector x 4
7 USB 2.0 Conector x 2 (Supports SmartPower On) 8 NIC Ethernet Connector
9 Expansion Card Slots x 2 10 Power Connector
11 Power Supply Diagnostic LED 12 Release Latch
13 External SMA Antenna Connectors (Optional) 14 Kensington Security Cable Slot
15 Padlock Ring


Back to Top

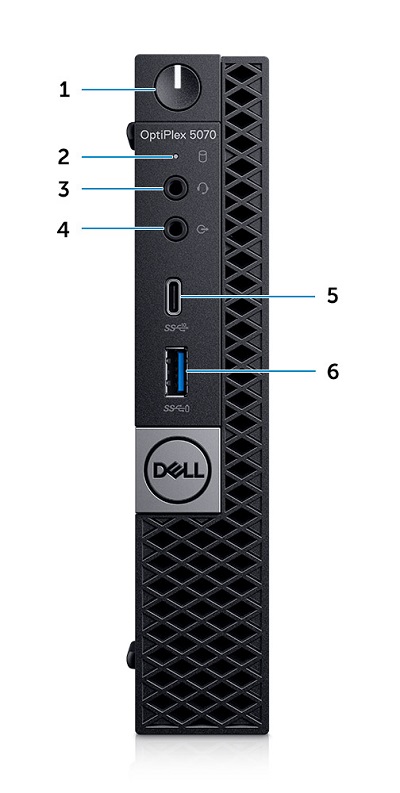

Micro Form Factor (MFF) Front View



SLN317724_en_US__65070_Front_View_MFF_BK

(Fig.5 MFF Front View)



1 Power Button and Power LED 2 Hard Drive Activity LED
3 Headset / Universal Audio Jack Connector 4 Line-Out Connector
5 USB 3.1 Gen2 Type-C Connector w/PowerShare 6 USB 3.1 Gen1 Type-A Connector w/PowerShare


Back to Top



Micro Form Factor (MFF) Rear View



SLN317724_en_US__75070_Back_View_MFF_BK

(Fig.6 MFF Rear View)



1 External SMA Antenna Connectors (Optional) 2 DisplayPort/HDMI 2.0b/VGA/USB Type-C Alt-Mode (Optional)
3 USB 3.1 Gen1 Type-A Connector x 3 4 Cable Holder
5 Padlock Ring 6 NIC Ethernet Connector
7 USB 3.1 Gen1 Type-A Connector w/SmartPower On 8 Service Tag
9 Kensington Security Cable Slot 10 DisplayPort Connector x 2
11 Power Adapter Connector


Back to Top



Additional Info:




Back to Top

Cause

N/A

Resolution

N/A

Affected Products

OptiPlex 5070 Tower, OptiPlex 5070 Micro, OptiPlex 5070 Small Form Factor
