XPS 13 9343: How to Install Ubuntu Developer Edition 14.04 on a Dell PC Configured for the Unified Extensible Firmware Interface (UEFI) BIOS

Summary: Steps for installing Ubuntu Developer Edition 14.04 on the XPS 13 9343 with the Unified Extensible Firmware Interface BIOS.

Article Content


Resolution

XPS 13 (9343) Developer Edition

XPS 13 (9343) developer edition comes with a factory installation of Ubuntu Linux 14.04. (All of the system types that shipped at this period with Ubuntu installed from the factory, shipped with this version of Ubuntu)


Ubuntu 14.04 / 15.04 Installation for UEFI

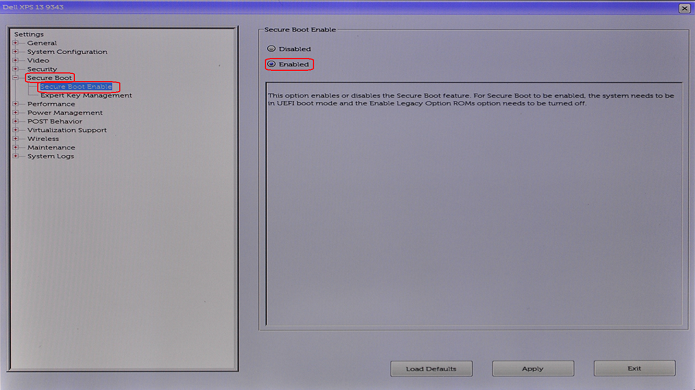

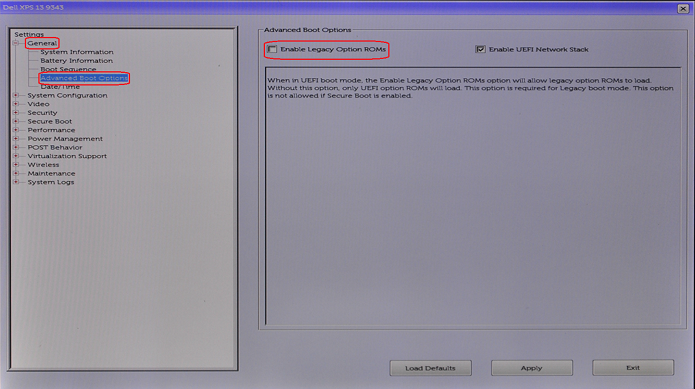

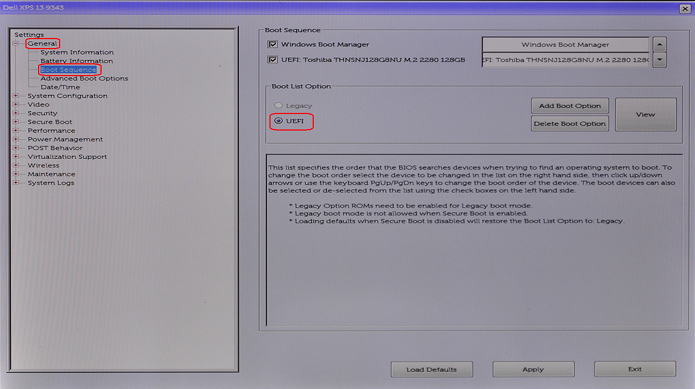

First you just need to ensure the BIOS is set to UEFI, disable "Legacy option ROMS" and enable secure boot (Secure boot is optional). (Figures 1 - 3)

SLN297060_en_US__1XPS13BIOS1
Figure 1

SLN297060_en_US__2XPS13BIOS2
Figure 2

SLN297060_en_US__3XPS13BIOS3
Figure 3

Follow the steps indicated below to install Ubuntu 14.04/15.04 on your XPS 13 9343 system and configure the BIOS to use SHIMx64.EFI (Required for normal operation):

  1. Download and create a bootable Ubuntu Linux SLN297060_en_US__4iC_External_Link_BD_v1 USB key. (You may want to use a 3rd party application like Rufus SLN297060_en_US__4iC_External_Link_BD_v1 to create the bootable USB key.)

SLN297060_en_US__6icon NOTE: Dell does not recommend or support applications like Rufus. Third party applications are use at your own risk.
  1. Once the UBUNTU install from the USB key is finished and you reboot the system, Press F2 when you see the Dell logo to enter the BIOS. Once in the BIOS choose Boot Sequence.

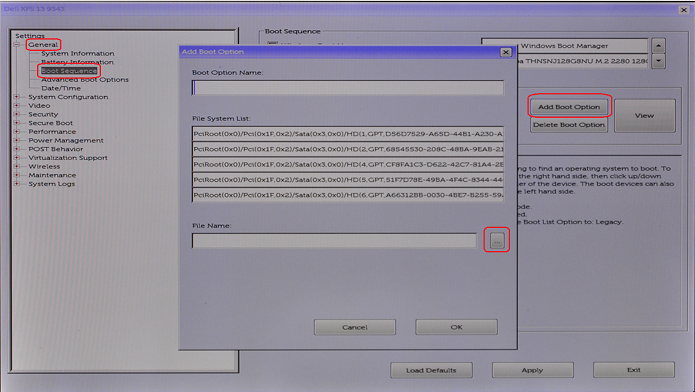

  2. In the boot sequence screen that pops up click on the Add Boot Option button. The Add Boot Option window will pop up. Type a name in the Boot Option Name text area (Ubuntu for example). Click the button to the left of the File Name text area. The EFI Boot Selection window will pop up. (Figure 4)

SLN297060_en_US__7XPS13BIOS4
Figure 4

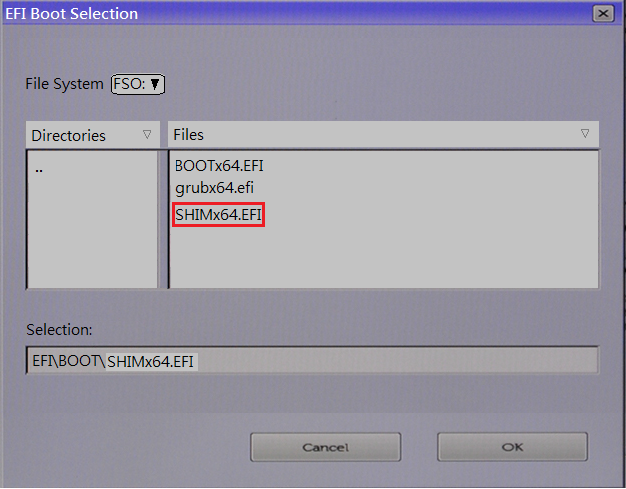

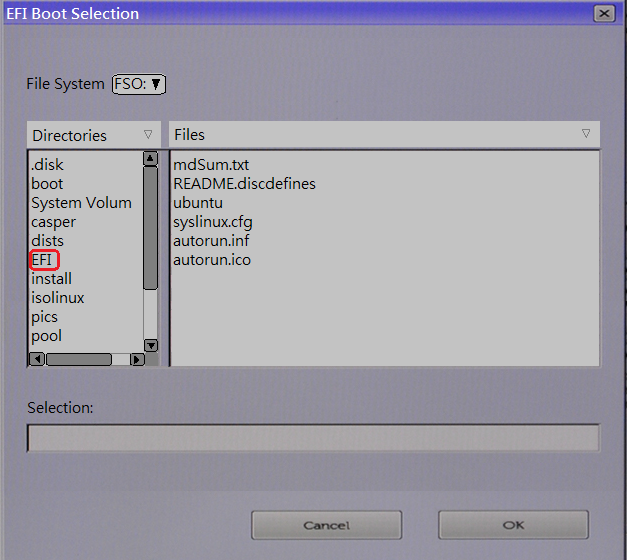

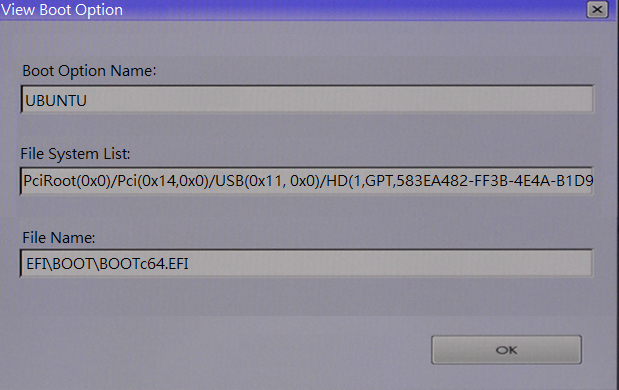

  1. In the File System drop down menu choose "FS0:". Then using the Directories section, navigate until you can choose SHIMx64.EFI file in the Files section. (Figures 5 - 7)

SLN297060_en_US__8ubuntu-efi-boot-1
Figure 5

SLN297060_en_US__9ubuntu-efi-boot-2-1
Figure 6

SLN297060_en_US__10ubuntu-view-boot-option
Figure 7

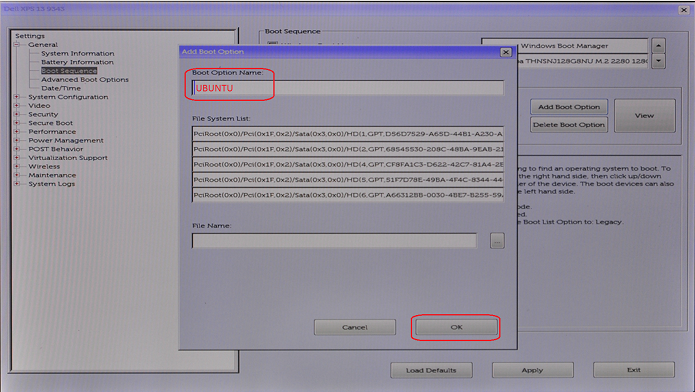

  1. Type a name in the Boot Option Name text area (Ubuntu for example). Click OK. Click Apply. (Figure 8)

SLN297060_en_US__11XPS13BIOS5
Figure 8

  1. Exit the BIOS and you should now be able to boot to UBUNTU normally from the boot drive.



SLN297060_en_US__6icon NOTE: Dell have moved on to the 16.04 version of Ubuntu on our newer systems. If you are having issues with a newer system or version of Ubuntu, please check out the link below to see a list of the most commonly used Ubuntu articles on the Dell Support Site.
