Article Number: 000175879
Support for Dell EMC OpenManage Enterprise
Summary: Provides an overview and details of Dell EMC OpenManage Enterprise - the “next generation” of the OpenManage Essentials console. This systems management console is designed toSee more
Article Content
Instructions

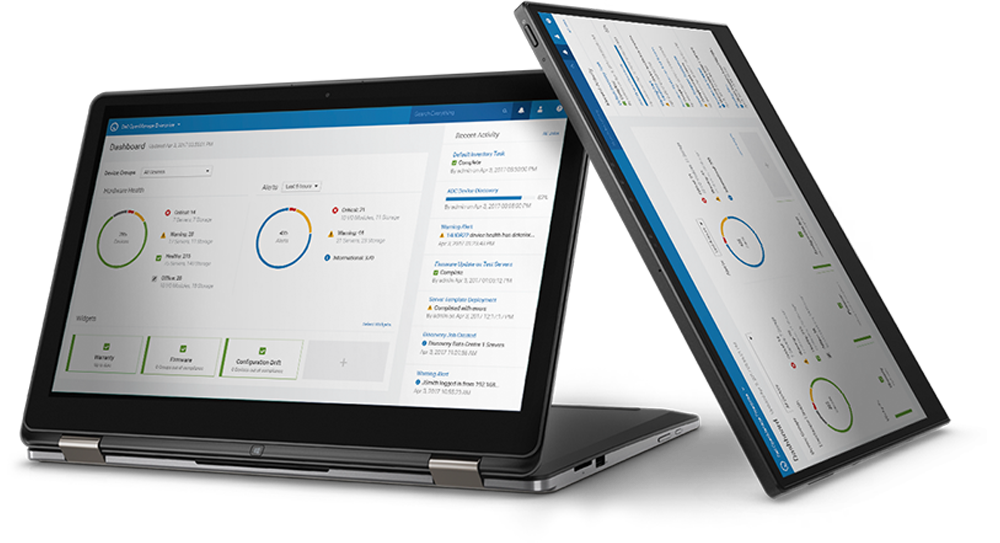

Dell EMC OpenManage Enterprise
- One-to-Many management from a single console; built for scale
- Robust, intuitive, management capabilities, regardless of form-factor
- Automate IT processes for greater efficiency
Dell EMC OpenManage Enterprise is an intuitive infrastructure management console. OpenManage Enterprise is a systems management and monitoring application that provides a comprehensive view of the Dell EMC servers, chassis, storage, and network switches on the enterprise network.
Features & Benefits of OpenManage Enterprise
Simplify: Reduces complexity with an intuitive system management solution
Unify: One to many console, built to scale
OpenManage Enterprise is a one-to-many systems management console for the data center.
Automate: IT management tasks from discovery to retirement
Secure: Security is a top priority
OpenManage Enterprise detects drift from a user-defined configuration template, alerts users, and remediates misconfigurations based on presetup policies.
Enhancements to Dell EMC OpenManage Enterprise
Dell EMC is constantly improving OpenManage Enterprise. The QuickMigrate tool enables the migration from OpenManage Essentials to OpenManage Enterprise.
New Features in OpenManage Enterprise 3.8.2, 3.8.1 and 3.8
See the OpenManage Enterprise Release Notes for the complete list of enhancements as well as limitations, fixed issues and known issues.
New Features in OpenManage Enterprise 3.7 and 3.6.x
Improvements in OpenManage 3.7 and 3.6
See the OpenManage Enterprise Version 3.7 Release Notes for the complete list of enhancements as well as limitations, fixed issues and known issues.
Dell EMC OpenManage Enterprise 3.6.1 replaced OpenManage Enterprise 3.6
New Features in OpenManage Enterprise 3.6.1 and 3.6
Improvements
See the OpenManage Enterprise 3.6.1 Release Notes for the complete list of enhancements as well as limitations, fixed issues and known issues.
New Features in OpenManage Enterprise 3.5
- Two new plugins - OpenManage Enterprise SupportAssist Enterprise plug-in and OpenManage Enterprise Update Manager plug-in – are supported with this release.
- For catalogs on a Network Share (NFS/CIFS/HTTP/HTTPS), OME can download DUPs from directly from Dell.com; downloading DUPs manually or via DRM is not longer required.
- Log into OME using authorized client identity access tokens issued by OpenID Connect providers: Keycloak and PingFederate (The user type must be configured as part of the client policy management on the OIDC provider).
Improvements
- Configuration compliance report support advanced filters, sorting and selection across pages, and includes IP addresses. Advanced filters will also allow viewing non-compliant devices.
- Warranty report now includes device names.
- OME previously supported discovery with a single IPv6 address. Discovery expanded to support an IPv6 range.
See the OpenManage Enterprise 3.5 Release Notes for the complete list of enhancements as well as limitations, fixed issues and known issues.
New Features in OpenManage Enterprise 3.4.1
- For third-party MIBS, ability to select specific actions to be taken depending on the type of alert received
Improvements
- Warranty data refresh once per week by default
- Firmware compliance status of components that are not present in the catalog as unknown
- Improved security with the removal of less secure CBC and AES 128 ciphers for HTTPS
See the OpenManage Enterprise 3.4.1 Release Notes for the complete list of enhancements as well as limitations, fixed issues and known issues.
New Features in OpenManage Enterprise 3.4
- Server initiated discovery: Decrease deployment time and prevent costly human errors by automating and securely discovering and onboarding PowerEdge servers
- Template deployment, editing, and identity management enhancements: Simplify and streamline deployment by automating virtual ID pools and otherwise expanding template capabilities and associated editing
- Unified systems management experiences across PowerEdge rack servers and MX chassis at scale via single integrated interface
- Pool based profile management
- Reserved/migrating profiles (by device)
- Automated modular component discovery
- In-band driver compliance and update: simplify system maintenance by tracking/updating firmware and Windows drivers
Improvements
- Improved appliance upgrade process to reduce downtime
- Support for SNMP discovery of OS10 IOM switches in PowerEdge MX7000 infrastructure
- Collect device warranty information from Dell.com and feed into OpenManage Enterprise with the newly integrated V5 API
- Enriched configuration and deployment manageability:
- Ability to gather configuration inventory information when creating a baseline
- Enhanced device grid sorting for IP addresses
- Improved alert policy automation scheduling and filtering – ability to add time range without entering an end date
- Enhanced IO pool usage grid UI sorting and network setting
- Added a sample import file for automated deployment
- Enhanced security against vertical privilege escalation by invalidating old user session upon privilege change
See the OpenManage Enterprise 3.4 Release Notes for the complete list of enhancements as well as limitations, fixed issues and known issues.
New Features in OpenManage Enterprise 3.3.1
- Multi-homing networks help to isolate internal and external network via OpenManage Enterprise Read more >
- Simplify operation tasks without manually switching networks
- Enhance security with the isolation of data traffic
Improvements
- Improved appliance upgrade process to reduce downtime
- Support for SNMP discovery of OS10 IOM switches in PowerEdge MX7000 infrastructure
- Collect device warranty information from Dell.com and feed into OpenManage Enterprise with the newly integrated V5 API
- Enriched configuration and deployment manageability:
- Ability to gather configuration inventory information when creating a baseline
- Enhanced device grid sorting for IP addresses
- Improved alert policy automation scheduling and filtering – ability to add time range without entering an end date
- Enhanced IO pool usage grid UI sorting and network setting
- Added a sample import file for automated deployment
- Enhanced security against vertical privilege escalation by invalidating old user session upon privilege change
See the OpenManage Enterprise 3.3.1 Release Notes for the complete list of enhancements as well as limitations, fixed issues and known issues.
New Features in OpenManage Enterprise 3.2.1
- Fetch warranty information when OpenManage Enterprise configured with proxy settings
- Alert notification pushes to OpenManage Mobile from OpenManage Enterprise without setting up a proxy
- Intel XXV710 NICs are listed on the Device Firmware Compliance Page
Improvements
- Improved appliance upgrade process to reduce downtime
- VLAN Import from OpenManage Enterprise-Modular Edition increases efficiency
- VLAN propagation without reboot improves uptime
- Support for Quasi Attributes enables granular device control
- Support for Secure Attributes to do 1:many credentials updates
- Improved Identity management reduces chances for operator error
See the OpenManage Enterprise 3.2.1 Release Notes for the complete list of enhancements as well as limitations, fixed issues and known issues.
New Features in OpenManage Enterprise 3.2
- Extend management capabilities with an intuitive integrated OpenManage Enterprise Power Manager plugin architecture
- Decrease deployment time while preventing costly errors and downtime with auto-deployment: Ability to designate an existing template to configure servers and chassis that are yet to be discovered
- Support for discovery and monitoring of PowerVault MD and ME storage devices
- Extend support for the latest versions of KVM, ESXi, and Hyper-V
- Support for programmatic appliance deployment on VMware ESXi version 6.5 or later (OVF form factor only)
- Faster login with AD accounts
- Unified management by onboarding servers and MX7000 chassis enables both alert receptions and sets the community string
- Support for multiple device management URLs (if available, such as iDRAC, VxRail manager, XC Prism, etc.)
Improvements
- Maximize IT efficiency with editable templates to manage, deploy and monitor server, chassis, and IOA
- Streamline a series of remote management tasks into a single batch, run immediately or schedule for later
- Maintain up-to-date repositories from the OpenManage Enterprise interface
- Identify newly available updates on-demand, or schedule a search on Dell.com
- Better grouping and systems labeling ability with enhanced customizable filtering, sorting and selecting across pages
- Locate root causes and gain immediate insights for remediation with detailed log information
- Reduce potential duplicate effort with new alert settings that enable viewing of only the unacknowledged alerts in the alert log display
- An improved process for tracking users who acknowledge alerts
- Enhanced efficiency with new filtering and display, options on custom report builder
- Streamline a series of remote management tasks into a single batch, run immediately or schedule for later with the enhanced remote script execution. Run up to 100 individual RACADM/IPMI, or SSH commands in a single batch
- Improvements to Warranty - settings are uniformly reflected in home widget, warranty report, and dashboard
- Streamline firmware update process with the ability to schedule automatic updating of the firmware catalogs
- Enhanced Firmware compliance report to show only components that have updates in critical or warning status
See he OpenManage Enterprise 3.2 Release Notes for the complete list of enhancements as well as limitations, fixed issues and known issues.
New Features in OpenManage Enterprise 3.1
- Ability to forward audit logs for remote monitoring through Syslog servers
- Support for the latest 14th generation PowerEdge servers
Improvements
- Availability of additional alert categories for creating alert policies
- Enhanced SMB security settings to support the server message block signing
- Use of secured CIFS network share for firmware updates, and improvements and bug fixes during a firmware update job
New Features in OpenManage Enterprise 3.0
- Support for discovery and inventory of MX7000 chassis—as a standalone chassis and as a lead chassis in a Multi-Chassis Management (MCM) group
- Support for configuration compliance and remediation of MX7000 chassis
- Ability to assign virtual identities to servers and perform stateless deployment, and support for VLAN management
- Ability to monitor devices and remediate tasks in Dell EMC OpenManage Mobile by integrating with OpenManage Enterprise
Improvements
- REST API services for network configuration, identity pool creation, device template configuration, and profile management
- Support of additional remote tokens for remote script execution.
- Support of alert policies for devices not discovered in OpenManage Enterprise.
Licensing for Dell EMC OpenManage Enterprise
Use of Dell OpenManage Enterprise to monitor devices is free. Use of advanced features requires the OpenManage Enterprise Advanced license is installed on the target server. The OpenManage Enterprise Advanced license is a perpetual license that is valid for the life of a server, and can be bound to the Service Tag of only one server at a time. To view the list of devices and their licenses, select OpenManage Enterprise > Monitor > Reports > License Report, and then click Run.
OpenManage Enterprise Advanced licensed based features
The OpenManage Portfolio Software Licensing Guide provides additional information for licensing options for your organization.
Evaluate, Purchase and Download of the OpenManage Enterprise Advanced license
Managing OpenManage Enterprise Licenses
OpenManage Enterprise Advanced licenses can be managed on either an individual server basis or through the Dell EMC License Manager which is a one-to-many license and deployment tool.
Download and install of OpenManage Enterprise
Dell EMC OpenManage Enterprise is an appliance that is deployed to a hypervisor. Deployment is supported on most versions of VMware vShpere, Microsoft Hyper-V and Kernel-based Virtual Machine. Install as a new appliance or upgrade an existing appliance.
Deploy Dell EMC OpenManage Enterprise Virtual Appliance on Different Hypervisors is a technical document that describes the process of deploying OME as a virtual appliance on hypervisors.
The QuickMigrate tool enables the migration from OpenManage Essentials to OpenManage Enterprise.
OME is supported on VMware vSphere ESXi 5.5 or newer
- Download the openmanage_enterprise_ovf_format_3.8.2.zip file and extract the file to a location accessible by VMware vSphere Client. It is recommended to use a local drive or CD/DVD, because installing from a network location can take up to 30 minutes.
- In vSphere Client, select File > Deploy OVF Template. The Deploy OVF Template wizard is displayed.
- On the Source page, click Browse, and then select the OVF package. Click Next.
- On the OVF Template Details page, review the information that is displayed. Click Next.
- On the End User License Agreement page, read the license agreement and click Accept. To continue, click Next.
- On the Name and Location page, enter a name with up to 80 characters, and then select an inventory location where the template will be stored. Click Next.
- Depending on the vCenter configuration, one of the following options is displayed:
- If resource pools are configured — On the Resource Pool page, select the pool of virtual servers to deploy the appliance VM.
- If resource pools are NOT configured — On the Hosts/Clusters page, select the host or cluster on which you want to deploy the appliance VM.
- If there are more than one datastore available on the host, the Datastore page displays such datastores. Select the location to store virtual machine (VM) files, and then click Next.
- On the Disk Format page, click Thick provision to pre-allocate physical storage space to VMs at the time a drive is created.
- On the Ready to Complete page, review the options you selected on previous pages and click Finish to run the deployment job. A completion status window displays where you can track job progress.
- Connect to the VM, on the Text User Interface screen, accept the EULA and when prompted, change the password of the appliance and set network parameters to the IP of the appliance.
Deploy OpenManage Enterprise on Hyper-V 2019
- Download the openmanage_enterprise_vhd_format_3.8.2.zip file. Extract the file and then move or copy the enclosed VHD file into an appropriate location on your system where you want to store the OpenManage Enterprise virtual drive.
- Start the Hyper-V Manager in the Windows Server 2019. The Windows Hyper-V should be displayed under the Hyper-V Manager. If not, right-click Hyper-V Manager, and then select Connect to Server.
- Click Actions > New > Virtual Machine to start the New Virtual Machine Wizard.
- Click Next on the initial Before You Begin page.
- On the Specify Name and Location page
- provide the Virtual machine name.
- (Optional) Select the Store the virtual machine in a different location checkbox to activate the Location field, and then browse and navigate to capture a folder location where the VM would be stored.
- Click Next
- On the Specify Generation page, select Generation 1 and click Next.
- On the Assign Memory page, enter the startup memory in the Startup memory field and click Next. Ensure that a minimum of 16 GB is assigned.
- On the Configure Networking page, select the network adapter in the Connection drop-down list. Ensure that the virtual switch is connected to the network. Click Next.
- On the Connect Virtual Hard Disk page, select Use an existing virtual disk drive, and then browse to the location where the VHD file is copied as mentioned in step 1. Click Next. Ensure a minimum storage of size of 20 GB.
- Complete the on-screen instructions.
- Open the Settings of the newly created VM and power on the VM.
- On the Text User Interface screen, accept the EULA and when prompted, change the password of the appliance and set network parameters to the IP of the appliance.
Deploy OpenManage Enterprise on Hyper-V 2016
- Download the openmanage_enterprise_vhd_format_3.8.2.zip file. Extract the file and then move or copy the enclosed VHD file into an appropriate location on your system where you want to store the OpenManage Enterprise virtual drive.
- Start the Hyper-V Manager in the Windows Server 2016. The Windows Hyper-V should be displayed under the Hyper-V Manager. If not, right-click Hyper-V Manager, and then select Connect to Server.
- Click Actions > New > Virtual Machine to start the New Virtual Machine Wizard.
- Click Next on the initial Before You Begin page.
- On the Specify Name and Location page
- provide the Virtual machine name.
- (Optional) Select the Store the virtual machine in a different location checkbox to activate the Location field, and then browse and navigate to capture a folder location where the VM would be stored.
- Click Next
- On the Specify Generation page, select Generation 1 and click Next.
- On the Assign Memory page, enter the startup memory in the Startup memory field and click Next. Ensure that a minimum of 16 GB is assigned.
- On the Configure Networking page, select the network adapter in the Connection drop-down list. Ensure that the virtual switch is connected to the network. Click Next.
- On the Connect Virtual Hard Disk page, select Use an existing virtual disk drive, and then browse to the location where the VHD file is copied as mentioned in step 1. Click Next. Ensure a minimum storage of size of 20 GB.
- Complete the on-screen instructions.
- Open the Settings of the newly created VM and power on the VM.
- On the Text User Interface screen, accept the EULA and when prompted, change the password of the appliance and set network parameters to the IP of the appliance.
Deploy OpenManage Enterprise on Hyper-V 2012 R2 and earlier host
- Download the openmanage_enterprise_vhd_format_3.8.2.zip file. Extract the file and then move or copy the enclosed VHD file into an appropriate location on your system where you want to store the OpenManage Enterprise virtual drive.
- Start the Hyper-V Manager in the Windows Server. The Windows Hyper-V should be displayed under the Hyper-V Manager. If not, right-click Hyper-V Manager, and then select Connect to Server.
- Click Actions > New > Virtual Machine to start the New Virtual Machine Wizard.
- Click Next on the initial Before You Begin page.
- On the Specify Name and Location page
- provide the virtual machine name.
- (Optional) Select the Store the virtual machine in a different location checkbox to activate the Location field, and then browse and navigate to capture a folder location where the VM would be stored.
- Click Next
- On the Specify Generation page, select Generation 1 and click Next.
- On the Assign Memory page, enter the startup memory in the Startup memory field and click Next. Ensure that a minimum of 16 GB is assigned.
- On the Configure Networking page, select the network adapter in the Connection drop-down list. Ensure that the virtual switch is connected to the network. Click Next.
- On the Connect Virtual Hard Disk page, select Use an existing virtual disk drive, and then browse to the location where the VHD file is copied as mentioned in step 1. Click Next. Ensure a minimum storage of size of 20 GB.
- Complete the on-screen instructions.
- Open the Settings of the newly created VM and power on the VM.
- On the Text User Interface screen, accept the EULA and when prompted, change the password of the appliance and set network parameters to the IP of the appliance.
- Install the required virtualization packages while installing the operating system.
- Download the openmanage_enterprise_kvm_format_3.8.2.zip file. Extract the file to an appropriate location on your system where you want to store the OpenManage Enterprise virtual drive.
- Start the virtual manager and select File > Properties.
- On the Network Interfaces page, click Add.
- Select Bridge as the interface type and click Forward.
- Set the start mode to on boot and select the Activate now checkbox.
- Select the interface to bridge from the list and ensure the properties match with the host device, and then click Finish. A virtual interface is now created, and you can configure the firewall settings by using the terminal.
- On the Virtual Machine Manager, click File > New.
- Enter a name for the VM and select the Import existing disk image option, and then click Forward.
- Navigate the file system and select the QCOW2 file that is downloaded in step 1, and then click Forward.
- Assign 16 GB as the memory and select two processor cores, and then click Forward.
- Assign the required disk space for the VM and click Forward.
- Under Advanced options, ensure that the bridged host device network is selected and KVM is selected as the Virt Type.
- Click Finish. OpenManage Enterprise appliance is now deployed by using the KVM.
- On the Text User Interface screen, accept the EULA and when prompted, change the password of the appliance and set network parameters to the IP of the appliance.
Upgrading to OME 3.8.2 from OME 3.8.1, 3.8, 3.7, 3.6.2, OME 3.6.1, or OME 3.6 requires a full upgrade. There are multiple ways to upgrade.
Before you begin the update, ensure to take a VM snapshot of the console as a backup in case something unexpected occurs.
- OME appliance is connected to Dell.com (online)
- Select one of the following options to display information about the available update:
- Automatic and Online: Updates are automatically checked each week.
- Manual and Online: Updates are checked when user-initiated.
- Click Check Now. The available update version with a brief description of the new features is displayed.
- Click Update, and perform an update.
- Select one of the following options to display information about the available update:
- Update from an internal network share
- Download the OME 3.8.2 full update file and save on a network share preserving the same folder structure that can be accessed by the console.
- Select Manual and Offline.
- Enter the local path information where the downloaded files are saved, and then click Check Now. Example paths: nfs://IP Address/Folder_Name (only supported from OME 3.1), http://IP Address/Folder_Name, https://IP Address/Folder_Name. The available update version with a brief description of the new features is displayed.
- To validate a connection to the catalog click Test now. If the connection to the catalog is established, a Connection Successful message is displayed. If the connection to the shared address or the catalog file path is not established, Connection to path failed error message is displayed. This step is optional.
- Click Update, and perform an update.
After the appliance is updated: (1) Clear the browser cache. Not clearing the browser cache, may cause failure of new tasks post update. (2) Post update, the discovery task will run in the background and you can see the progress occasionally.
Upgrading to OME 3.8.2 from OME 3.5, 3.4.1, 3.4, 3.3.1, 3.3.0, 3.2.1, OME 3.2.0, OME 3.1 OME 3.0 or OME Tech Release (1.0) directly is not supported.
- Upgrade to intermediate version of OME following the upgrade instructions provided in the using the Manual upgrade OpenManage Enterprise by using Offline information after downloading the intermediate appliance to a local share.
- For OME OME 3.5, 3.4.1, or 3.4,0, upgrade will require upgrade to OME 3.6 as an intermediate version
- For OME 3.3.1, 3.3.0, 3.2.1, 3.2, 3.1, 3.0 or for OME Tech Release (1.0), upgrade will requite multiple intermediate versions. For example, upgrade to OME 3.1 then upgrade to OME 3.3.1 then upgrade to OME 3.5
- Upgrade from the intermediate version to OME 3.8.2 as described above
Resources for OpenManage Enterprise
Migration
The QuickMigrate Tool enables the migration of various settings configured in OpenManage Essentials to OpenManage Enterprise. Detailed instructions and known issues are documented in the included Readme_QM.txt.
Download QuickMigrate tool
- The following settings can be migrated:
- SMTP settings (SMTP server, Credentials)
- Proxy settings (Proxy server, credentials)
- Discovery ranges with different formats
- Online catalog
- Query groups
- Minimum supported versions:
- OpenManage Essentials version 2.5
- OpenManage Enterprise version 3.2.1
Documentation
Refer to Dell EMC OpenManage Enterprise Documentation for the latest documentation.
- Boost data center staff productivity with OpenManage Enterprise, this Principled Technologies report summaries the time and effort savings using OpenManage Enterprise 3.4.
- Multihoming on OpenManage Enterprise 3.3.1, this Direct from Development tech note describes the configuration options for OpenManage Enterprise that enable multihoming and the current limitations of these options.
- Configuration Compliance Baseline Management, this Direct from Development tech note summarizes the configuration compliance baseline feature and describes best-practice methods to get the most out of the feature.
- Device Onboarding with OpenManage Enterprise, this tech note describes how to enable server management using administrator privileges, or to simply monitor them using reduced, non-administrator privileges.
Videos
OpenManage Enterprise Boosts Data Center staff productivity
Increase data center staff productivity by using OpenManage Enterprise
June 2020OpenManage Enterprise Console
OpenManage Enterprise console simplifies management by providing powerful automation capabilities, enabling admins to extend their span of control and use of time.
August 2019OpenManage Enterprise Overview
OpenManage Enterprise empowers IT pros with intelligent automation that delivers real-time efficiencies and cost savings
March 2019Discovering devices
How to discover Dell EMC devices in OpenManage Enterprise
February 2019Active Directory services integration
How to add Active Directory services to OpenManage Enterprise
February 2019Lightweight Directory Access Protocol integration
How to integrate Lightweight Directory Access Protocol (LDAP) in OpenManage Enterprise
May 2019Viewing Device Details
Demonstrates the process of viewing various device details by using OpenManage Enterprise–Tech Release
January 2018Email alert policy
Demonstrates the process of creating an email alert policy in OpenManage Enterprise–Tech Release
January 2018Firmware baseline
Demonstrates the process of creating a firmware baseline and viewing the noncompliant attributes in OpenManage Enterprise–Tech Release
January 2018Article Properties
Affected Product
Dell EMC OpenManage Enterprise
Product
OpenManage Enterprise SupportAssist, OpenManage Essentials, OpenManage Enterprise Power Manager
Last Published Date
05 Jan 2022
Version
27
Article Type
How To
