NetWorker: NetWorker configureren voor het gebruik van SNMP

Summary: De NetWorker-server configureren voor het gebruik van SNMP-trap

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Instructions

1. zorg ervoor dat de volgende pakketten op de SNMP traps-ontvangerserver zijn geïnstalleerd.
  • net-snmp-agent-libs
  • net-snmp-libs
  • net-snmp
2. Kopieer het NetWorker mib-bestand naar de SNMP-map
/opt/nsr/snmp/NETWORKER-MIB.txt

3. Voeg op de host van de SNMP-ontvanger een regel hieronder met bovenstaande informatie toe aan /etc/snmp/snmptrapd.conf
root@networker-mc:~# cat /etc/snmp/snmptrapd.conf
# Example configuration file for snmptrapd
#
# No traps are handled by default, you must edit this file!
#
authCommunity   log,execute,net public

Zie voor SNMPv3: NetWorker SNMPV3-configuratie


5. Start snmptrapd op de SNMP-ontvangerhost:

# snmptrapd -f -C -c /etc/snmp/snmptrapd.conf -Lf /var/log/snmptrap.log -M /usr/share/snmp/mibs -m NETWORKER-MIB &

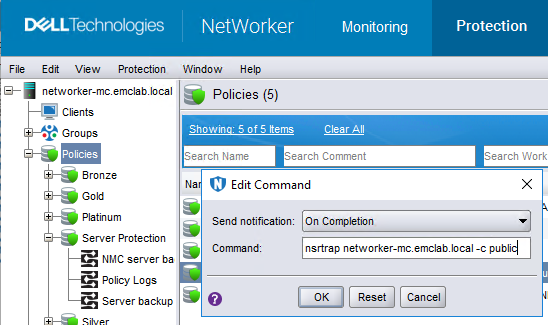

6. NetWorker-taak configureren voor het verzenden van SNMP-trap

Opmerking:

  • Back-upconfiguratie op actieniveau ondersteunt alleen SNMPv2
  • Back-upconfiguratie op beleidsniveau ondersteunt zowel SNMPv2 als v3

Voor SNMP v2: /usr/sbin/nsrtrap <snmp receiver IP> -c community-string


7. U kunt "SNMP Notification request" ook configureren op het tabblad Server op NMC. Raadpleeg de bijgevoegde handleiding.

8. U kunt het logboek /var/log/snmptrap.log tailen om te zien of SNMP wordt verzonden voor taken.

root@networker-mc:~# tail -n 71 /var/log/snmptrap.log
2024-03-05 13:02:58 networker-mc.emclab.local [UDP: [192.168.25.10]:58200->[192.168.25.10]:162]:
SNMPv2-SMI::mib-2.1.3.0 = Timeticks: (301267624) 34 days, 20:51:16.24   SNMPv2-SMI::snmpModules.1.1.4.1.0 = OID: NETWORKER-MIB::nwServerNotification    SNMPv2-SMI::mib-2.1.1.0 = STRING: "--- Server Backup Action Report ---
Policy name:Server Protection
Workflow name:Server backup
Action name:Server db backup
Action status:succeeded
Action start time:03/05/24 13:02:33
Action duration:0 hours 0 minutes 25 seconds
--- Successful Server Backup Save Sets ---
        3353828926/1709661758 networker-mc.emclab.local: index:networker-mc.emclab.local level=1, 53 MB, 62 files
        ...(removed for brevity)...
        3152502350/1709661774 networker-mc.emclab.local: bootstrap level=full, 9668 KB, 294 files
--- Bootstrap backup report ---
      date     time       ssid        volume            device                      access info
  02/05/2024 10:00:24 AM  3485530120  ddveBootstrap.002 ddve.emclab.local_Bootstrap ddve.emclab.local:/networker-mc/Bootstrap
...(removed for brevity)...
  03/05/2024 01:02:54 PM  3152502350  ddveBootstrap.002 ddve.emclab.local_Bootstrap ddve.emclab.local:/networker-mc/Bootstrap
--- Failed Server Backup Save Sets ---
        none"
2024-03-05 13:02:59 networker-mc.emclab.local [UDP: [192.168.25.10]:45415->[192.168.25.10]:162]:
SNMPv2-SMI::mib-2.1.3.0 = Timeticks: (301267768) 34 days, 20:51:17.68   SNMPv2-SMI::snmpModules.1.1.4.1.0 = OID: NETWORKER-MIB::nwServerNotification    SNMPv2-SMI::mib-2.1.1.0 = STRING: "---Summary notification report---
Policy name:Server Protection
        Workflow name:Server backup, Workflow status:succeeded, Workflow start time:03/05/24 13:02:32, Duration:0 hours 0 minutes 27 seconds
                Action name:Server db backup, Action status:succeeded, Action start time:03/05/24 13:02:33, Duration:0 hours 0 minutes 25 seconds
                Action name:Expiration, Action status:succeeded, Action start time:03/05/24 13:02:58, Duration:0 hours 0 minutes 1 seconds"
root@networker-mc:~#

Additional Information

Aanvullende informatie over SNMP-traps vindt u in de NetWorker Administration Guide: https://www.dell.com/support/home/product-support/product/networker/docs
