VCF on VxRail: Upgrade or Node Add operation fails after adding a VUM cluster into the VLCM environment

In a vLCM (vSphere Lifecycle Manager) enabled VCF on VxRail environment, after adding a VUM (vSphere Update Manager) cluster, the HCIA role permissions are overwritten by the VUM cluster. If you attempt to add a node to the vLCM cluster or upgrade the vLCM cluster, the operation will fail.

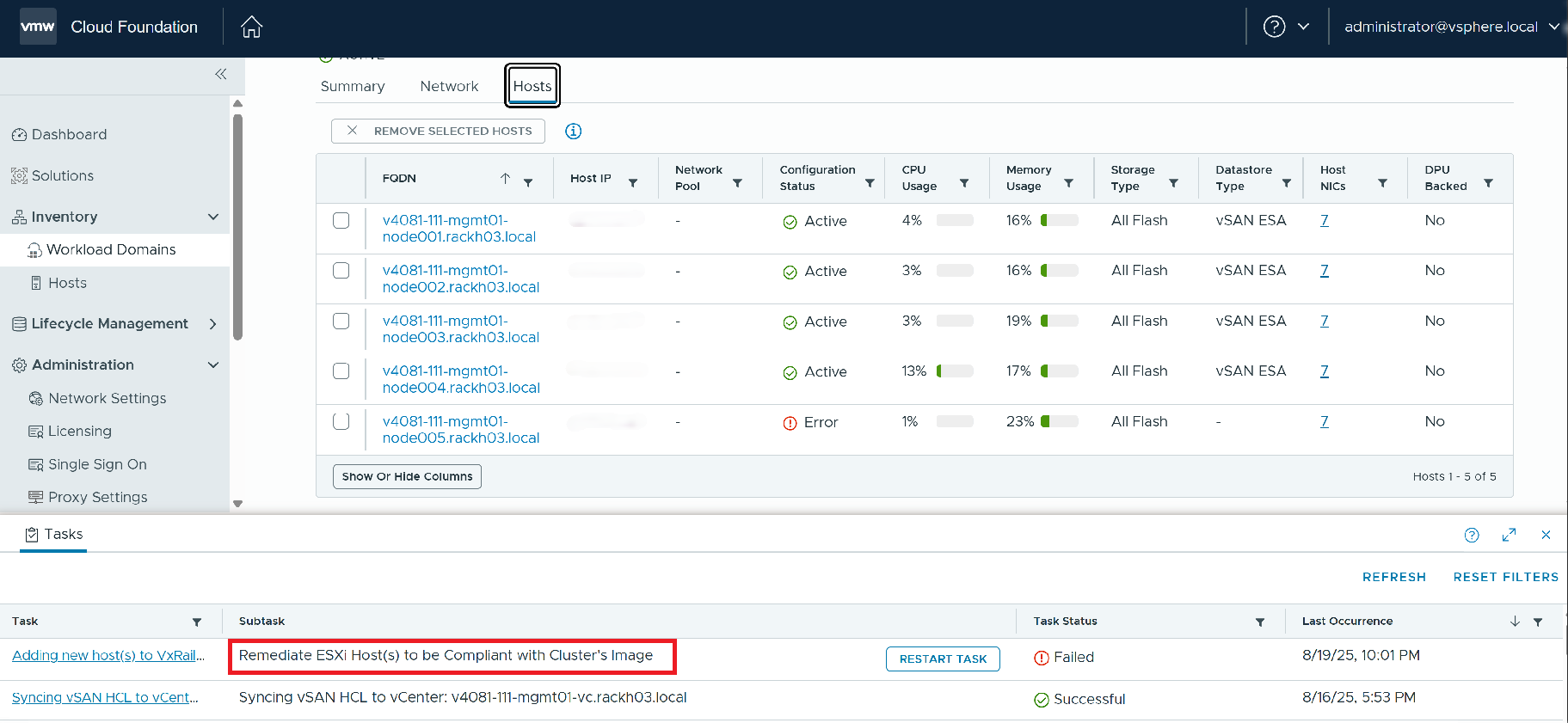

Scenario 1: Add host on vCenter success, however when triggering Add VxRail Hosts on SDDC it failed at host remediation task.

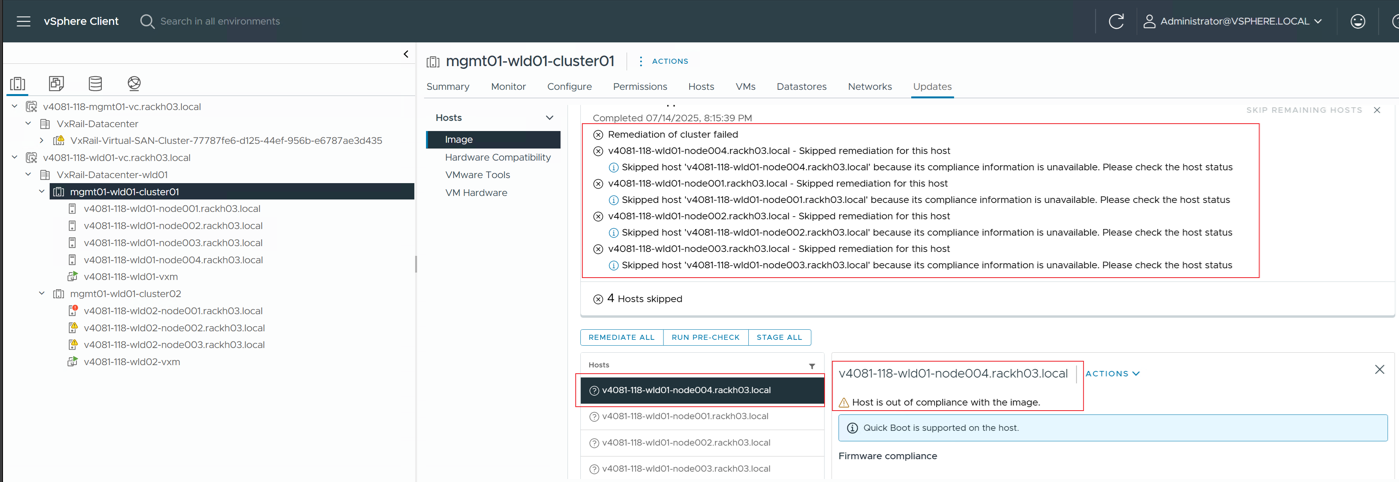

 Check from the vCenter UI, Remediation of cluster failed.

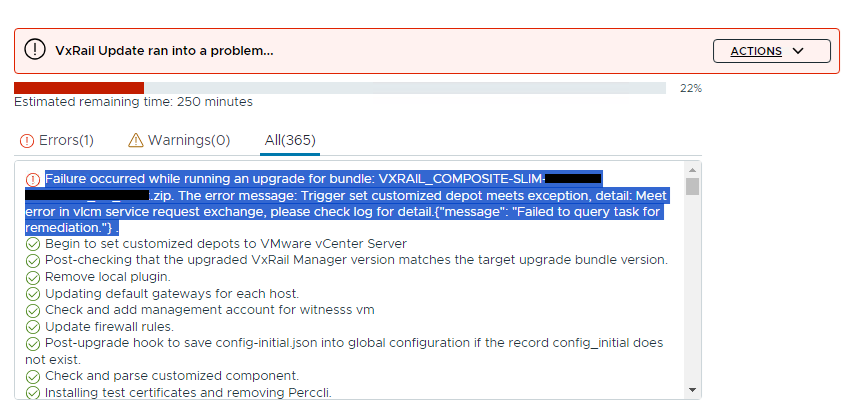

Scenario 2: Upgrade fails with the following error message: Trigger set customized depot meets exception, detail: Meet error in vlcm service request exchange.

Note: The upgrade failed issue has been fixed in 8.0.361, if the upgrade target version is equal or higher than 8.0.361, you will not hit this issue.


When the VMware Cloud Foundation (VCF) brings up the management (MGMT) domain with the vSphere Lifecycle Manager (vLCM) feature activated, the vCenter of the MGMT domain is automatically granted the Sessions and VMware vSphere Lifecycle Manager privileges within the VMware HCIA Management Role by the MGMT domain VxRail Manager. However, these privileges are revoked from the vCenter of the MGMT domain when adding a new VUM cluster (vLCM feature disabled). These privileges are essential for the vLCM functionality, vLCM cannot operate properly without them. Consequently, any operation using vLCM will fail, e.g. node add (vlcm compliance scan), vlcm upgrade.

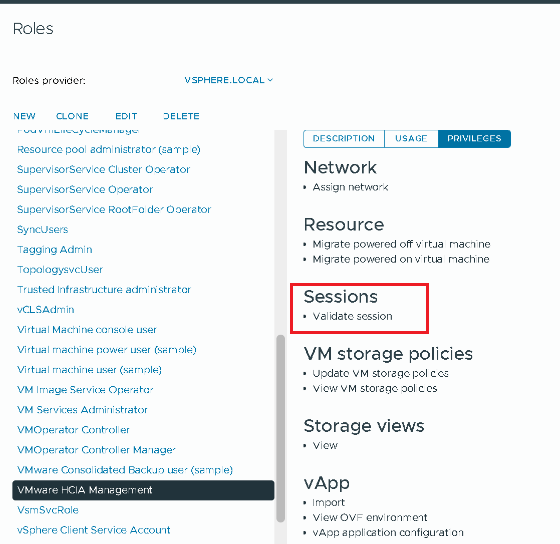

Before adding the cluster with vLCM disabled, you will notice that within the VMware HCIA Management role, it has the 'Sessions' privilege, which includes the ability to validate sessions.


It also has the full capabilities of the 'VMware vSphere Lifecycle Manager' privileges.

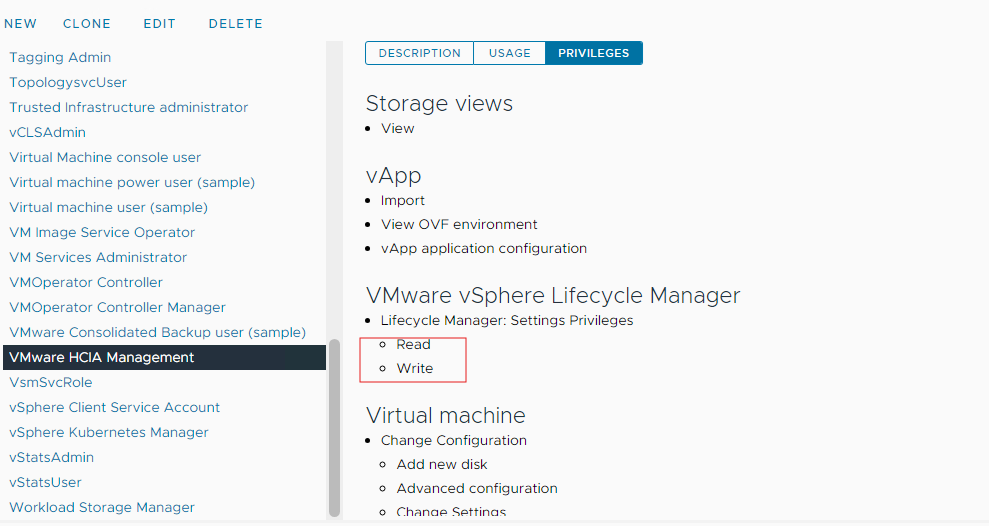

After adding the cluster with vLCM disabled, the 'Sessions' privilege is removed from the VMware HCIA Management role, and the 'VMware vSphere Lifecycle Manager' retains only the "Lifecycle Manager: Settings Privileges"


To restore the missing privileges to the vCenter of the MGMT domain, follow these steps using the vCenter UI

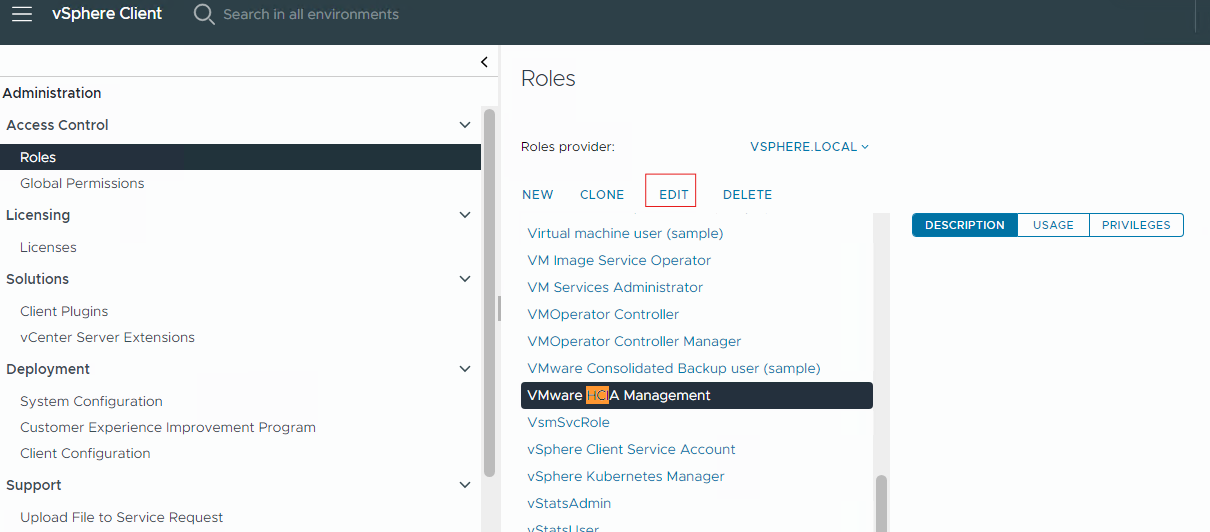

1. Log in to the vCenter and go to 'Administrator' > 'Access Control' > 'Roles'.
2. Look for the 'VMware HCIA Management' role, and then click 'EDIT'.

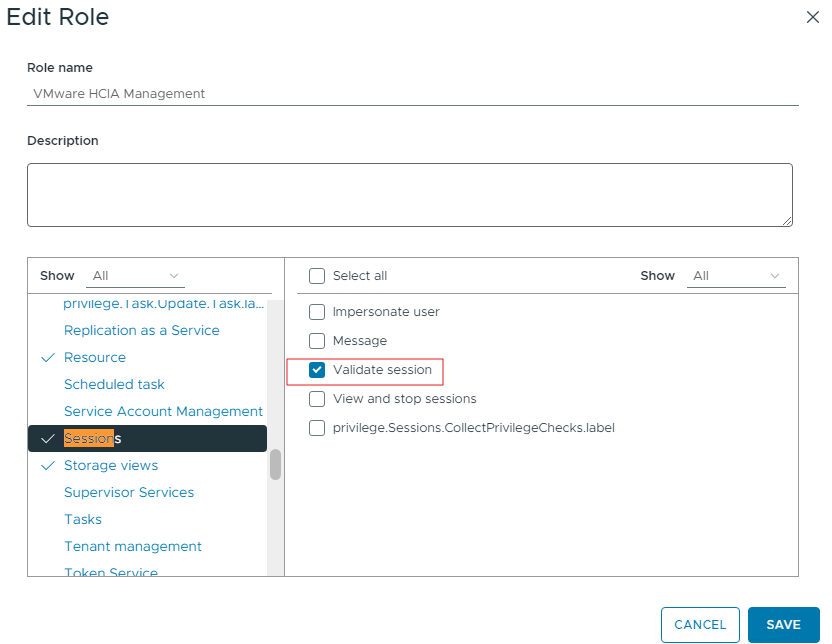

3. Use the search function with the keyword 'Sessions', select 'Validate session', and then save the changes.

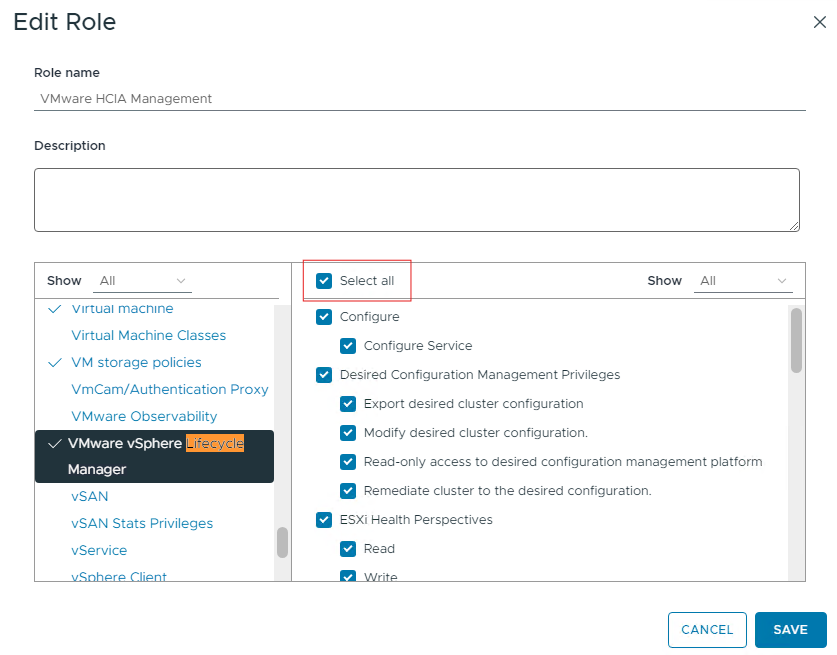

4. Search for 'VMware vSphere Lifecycle Manager', opt for 'Select all', and then save the changes.

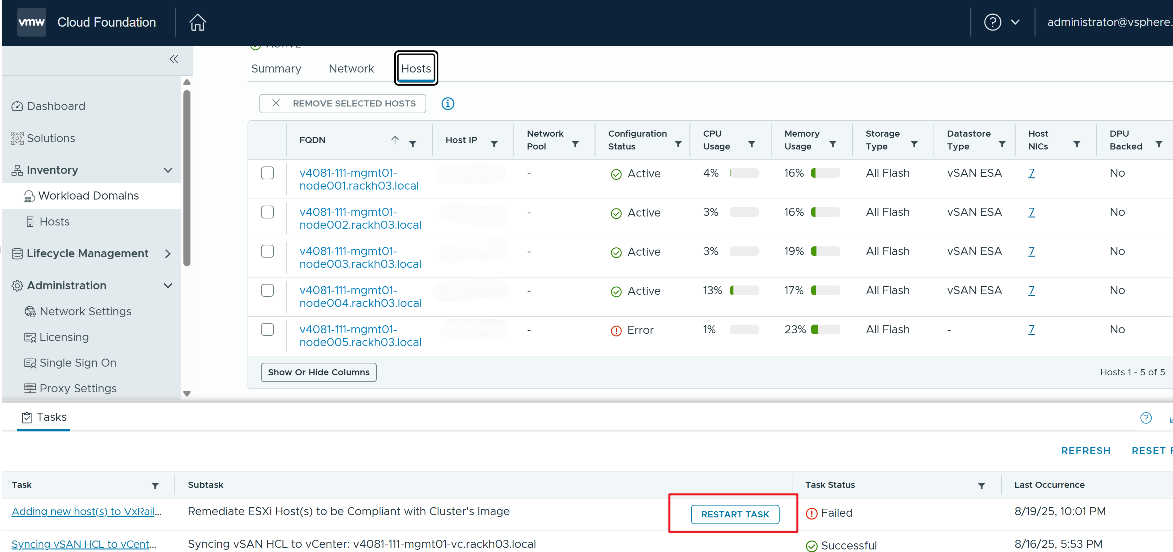

To proceed host add operation, restart the failed task on SDDC manager

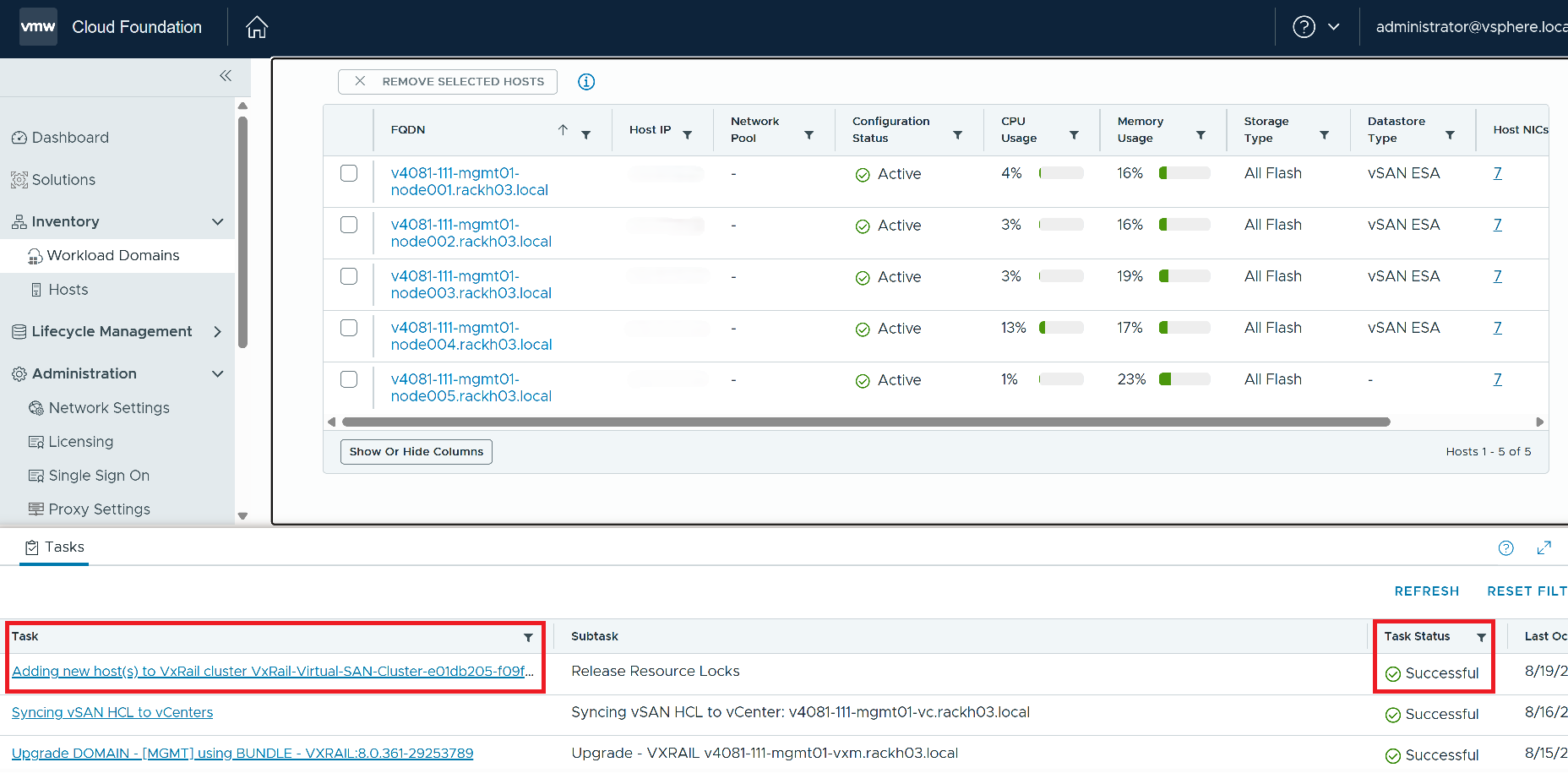

Monitor the task status until Add VxRail Host successful.

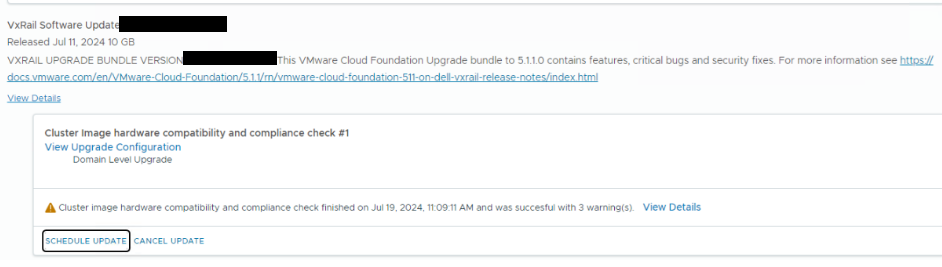

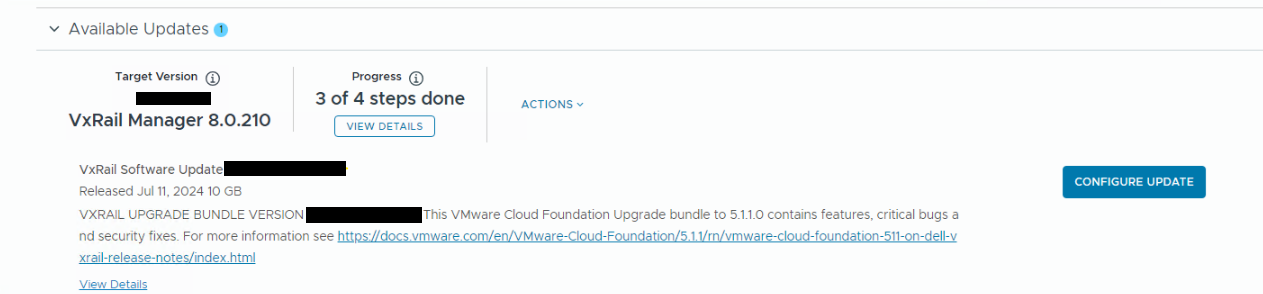

To proceed with the upgrade, return to the SDDC UI, configure the update settings, and then schedule the update
