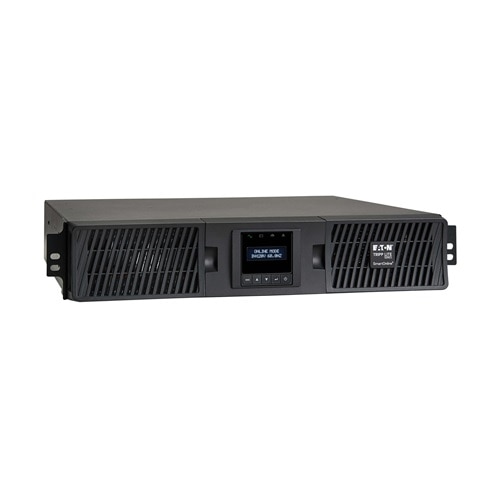

      Tripp Lite UPS Smart Online 1500VA 1350W Rackmount 120V LCD USB DB9 2URM - UPS - 1.35 kW - 1500 VA

      Add to Cart
      Manufacturer part SU1500RTXLCD2U | Dell part A7037617 | Order Code a7037617 | TrippLite

      SU1500RTXLCD2U SmartOnline® 1500VA Double-Conversion Rack/Tower Sine Wave UPS with Expandable Runtime, Network Slot and LCD

      for servers and network hardware

      This on-line, double-conversion UPS system protects critical network systems from damage, downtime and data loss.
      • True on-line, double-conversion operation delivers pure sine wave output, precise voltage regulation and isolation from power problems.
      • Expandable battery backup supports critical systems during outages.
      • LCD/LED control panel displays power conditions and permits easy access to settings.
      • Network card slot supports optional remote access and network management.
      • USB and DB9 serial ports connect to computers for power management.
      • 2-year warranty and $250,000 insurance reflect commitment to reliability.
      • ENERGY STAR® certified efficiency and economy mode operation reduce operating costs.
      SU1500RTXLCD2U SmartOnline® 1500VA Double-Conversion Rack/Tower Sine Wave UPS with Expandable Runtime, Network Slot and LCD
      Why is this UPS a Good Investment? 4:06

      Why is this UPS a Good Investment?

      The success of your organization depends on critical information systems like servers and network hardware. If your critical systems don't have reliable power, employees can't work, communications go down, automated systems malfunction and productivity grinds to a halt. It would be nice if utility power was always reliable, but it isn't. Between severe weather, the aging electrical grid and hazards lurking inside your own walls, your servers and network hardware are under attack from power problems. Even a brief loss of power or a momentary surge can damage your equipment, corrupt your data, bring down your network and hurt your bottom line.

      The potential costs of downtime are alarming. Surveyed averages range from $1,167 per minute for mid-size businesses (IDC) to $7,908 per minute for larger operations (Ponemon Institute). For a tiny fraction of these costs, you can prevent damage, downtime and data loss by installing this SmartOnline UPS system. True on-line double conversion is the highest level of power protection available. It provides precise voltage regulation, delivers continuous sine wave output and isolates equipment from power problems. This UPS system also has a high power factor, allowing you to connect a heavier load without overloading the UPS.

      Common Applications

      Protect Mission-Critical Servers and Network Hardware
      Application Servers, Storage Servers, Database Servers, File Servers, Virtualization Servers, Proxy Servers, Web Servers, Cloud Platform Servers, Media Servers, VoIP Servers, Converged Infrastructure, Network Switches, PoE Switches, Firewalls, Network Appliances, Bridges, Gateways, Routers

      Protect Equipment with Active PFC Power Supplies
      Active PFC power supplies found in many devices require sine wave power.

      Expandable Battery Backup

      • Half-Load Runtime: This UPS system will support a 50% load (675W) for up to 14 minutes using the included batteries.
      • Extended Runtime: This UPS system allows you to connect one or more optional external battery packs to provide additional backup runtime. Some external battery packs can also be daisy-chained, allowing you to scale runtime to match almost any application requirement.
      • Hot-Swappable Batteries: You can add or replace batteries without turning off the UPS system and disrupting the operation of connected equipment.

      On-Line, Double-Conversion Operation

      This UPS system provides the highest level of power protection available:
      • Continuous on-line, double-conversion operation provides precise voltage regulation and sine wave output. It isolates connected equipment from most power problems, including blackouts, brownouts, overvoltages, transient voltages surges, electromagnetic (EMI/RFI) line noise, harmonic distortion, electrical impulses and frequency variations.
      • Zero transfer time to battery prevents malfunctions and reboots of sensitive equipment potentially caused by the transition from line power to battery-derived power during outages.
      • Fault-tolerant automatic bypass maintains utility output and avoids downtime during a variety of fault and overload conditions.

      Flexible Management Options

      There are several ways to manage this UPS system:
      1. Use the multifunction LCD screen for comprehensive local management.
      2. Use the USB port with your computer's built-in power management features.
      3. Use the USB or serial port with your computer and Tripp Lite's PowerAlert® software. PowerAlert provides enhanced features like automatic file saves, event notification, logging, advanced device control and an SNMP agent that supports centralized management. Select UPS models include a convenient CD-ROM, or you can download the latest version of PowerAlert for free at Tripp Lite's website.
      4. Install an optional network card to enable standalone network management via SNMP, Web, SSH or telnet. The network card has an Ethernet port and embedded interface, allowing you to access advanced monitoring, control and notification features without directly connecting the UPS system to a computer. The network card also supports connecting one or more optional sensors for remote temperature, humidity and contact closure monitoring. (Available network cards and sensors include TLNETCARD with TLNETEM sensor; WEBCARDLX with E2MT, E2MTDO, E2MTDI and E2MTHDI sensors; and SNMPWEBCARD with ENVIROSENSE sensor. Refer to each model for specific features.)
      This UPS system also has two switched outlet banks, allowing you to reboot locked devices remotely or turn off nonessential loads during extended outages to provide additional runtime.

      Multifunction LCD/LED Control Panel

      The convenient LCD/LED control panel provides easy access to detailed UPS settings and information. The illuminated LCD screen displays a variety of helpful data, including input/output voltage, input/output frequency, output load percentage, output load wattage, power status, battery status, operating mode, battery voltage, battery capacity, estimated backup runtime remaining and power consumption. An LED block diagram supplements the LCD screen by indicating the UPS operating mode and power conditions. The control panel also allows you to change the UPS system's operating mode and other settings. The control panel provides more information and greater control than comparable models, allowing you to diagnose and respond to power problems at the rack before they cause downtime. If you decide to install the UPS system in a tower configuration, you can rotate the LCD to match.

      Eco-Friendly Design

      • Economy Mode: This UPS system provides user-selectable economy mode operation to increase efficiency and cut operating costs. In economy mode, the UPS system suspends double conversion and operates with increased efficiency as long as input power quality is satisfactory. If input power quality becomes unsatisfactory, the UPS system immediately resumes double conversion until power quality returns to normal.
      • ENERGY STAR: This UPS system is independently certified to use less energy and cause fewer of the emissions that contribute to climate change.
      • User-Replaceable Battery: This UPS system has a user-replaceable, recyclable battery, allowing it to remain in service instead of going to a landfill.
      • RoHS Compliance: This UPS system complies with the RoHS (Restriction of Hazardous Substances) Directive, limiting the use of hazardous substances in manufacturing.

      Dependable Service from an Industry Leader

      Service and Support
      • 2-Year Product Warranty: If this UPS system (including the internal battery) proves defective in material or workmanship within that period, Tripp Lite will repair or replace it at no charge.
      • $250,000 Insurance: Tripp Lite will repair or replace connected equipment damaged by surges – even lightning strikes!
      • Free Tech Support: Chicago-based, in-house tech specialists are available by phone, email and chat.
      Industry Leader
      • Over 90 Years: Founded in 1922, Tripp Lite has a long-established and proven track record of providing reliable products and responsive customer service.
      • Trusted Name: From the smallest office to the largest data center, customers worldwide trust Tripp Lite to power, protect, manage and connect valuable IT equipment.
      • Third-Party Safety Testing and ISO 9001 Certification

      Key Specifications

      Model: SU1500RTXLCD2U
      Load Capacity:
      1.5 kVA (1.35 kW)
      Power Factor: 0.9
      Nominal AC Input: 100V; 110V; 115V; 120V; 127V (50/60 Hz)
      Nominal AC Output: 100V; 110V; 115V; 120V; 127V (50/60 Hz)
      Output Voltage Regulation (Line Mode): +/- 2%
      AC Outlets: 6 x 5-15R
      Switched Outlet Banks: 2 Banks of 3 Outlets
      Output Waveform (AC Mode): Pure Sine Wave
      Output Waveform (Battery Mode): Pure Sine Wave
      Input Cord: 10 ft. (3 m) Cord with 5-15P Plug
      Half-Load Runtime (Included Batteries): 14 min. (675 W Load)
      User-Replaceable Battery: Yes (RBC94-2U)
      Expandable Battery Runtime:
      Yes (Requires Optional External Battery Pack)
      Compatible External Battery Packs:
      BP48V24-2U (Limit 1); BP48V60RT-3U (Multi-Pack Compatible); BP48V27-2US (Multi-Pack Compatible)
      Data Line Protection:
      Tel/Network (1 Line)
      USB Port (HID-Compliant); Serial Port (DB9); Contact Closure; Network Card Slot; EPO
      Primary Form Factor: 2U Rack (Supports 4-post rack installation with included kit. Add 2POSTRMKITWM for 2-post rack or wall-mount installation. Add 2-9USTAND for tower installation.)
      Dimensions: 3.5 x 17.5 x 18.5 in. (8.9 x 44.5 x 47 cm)
      Unit Weight: 45.2 lb. (20.5 kg)
      Standards: UL 1778 (USA); CSA (Canada); NOM (Mexico); FCC A (EMI); RoHS; ENERGY STAR
      Product Warranty (Worldwide): 2-Year Limited Warranty
      Connected Equipment Insurance (U.S., Canada and Puerto Rico): $250,000
      What's Included: UPS, 4-Post Rack Installation Kit, USB/Serial/EPO Cabling, PowerAlert Software, Manual

      ENERGY STAR and the ENERGY STAR mark are registered trademarks owned by the U.S. Environmental Protection Agency. ENERGY STAR products are third-party certified by an EPA-recognized Certification Body. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Actual products may differ slightly from photos. Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. Runtime varies with load, battery condition and other factors. Go to Tripp Lite's website for more information, including complete warranty terms and conditions.

      Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves.

      Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Highly efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and optional SNMPWEBCARD network interface.

      Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation, ECO mode status and output power availability.

      LED/LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode LCD configuration options. Programmable self-test. Fault-tolerant auto-bypass mode. Field-replaceable, hot-swappable internal batteries and external battery packs.

      Tech Specs

      Device Type
      UPS - rack-mountable
      Battery Enclosure Type
      Plug-in module
      Height (Rack Units)
      Rack Size

      Power Device
      UPS Technology
      Input Voltage
      AC 100/110/115/120/127 V
      Frequency Provided
      50/60 Hz
      Frequency Required
      50/60 Hz
      Input Connectors
      Power NEMA 5-15
      Power Output Connectors Details
      6 x power NEMA 5-15
      Output Voltage
      AC 100/110/115/120/127 V ± 2% - 50/60 Hz
      Max Electric Current
      12 A
      Power Capacity
      1.35 kW / 1500 VA
      Dataline Surge Protection
      • Phone line - RJ-11
      • Network - RJ-45
      Output Waveform
      Surge Suppression
      Surge Energy Rating
      570 Joules
      Circuit Protection
      Circuit breaker

      Voltage Provided
      48 V
      Run Time (Up To)
      • 4.2 min at full load
      • 14 min at half load
      Recharge Time
      3 hours

      Remote Management Interface
      RS-232, USB

      Expansion / Connectivity
      • 1 x management (USB) - 4 pin mini-USB Type B
      • 1 x management (RS-232) - 9 pin D-Sub (DB-9)
      • 1 x EPO (emergency power off)
      Expansion Slots
      1 (total) / 1 (free) x expansion slot

      Cables Included
      • Power cable - integrated - 10 ft
      • USB cable - external
      • Serial cable - external
      Rack Mounting Kit
      Equipment Protection Value
      250000 US Dollars
      Audible alarm, LCD display, voltage monitoring, LED indicators, 6 switchable sockets, overvoltage protection, undervoltage protection, cold-start function, AC frequency monitoring, cooling fan, hot-swappable batteries, no load operation & brown-out protection
      Compliant Standards
      CSA, UL 1778, RoHS, FCC Part 15 A

      Software / System Requirements
      Software Included
      TrippLite PowerAlert

      Manufacturer Warranty
      Service & Support
      Limited warranty - 2 years

      Environmental Parameters
      Min Operating Temperature
      32 °F
      Max Operating Temperature
      104 °F
      Humidity Range Operating
      0 - 95% (non-condensing)
      Sound Emission
      45 dBA

      Dimensions & Weight
      17.5 in
      18.5 in
      3.5 in
      45.19 lbs

      Dimensions & Weight (Shipping)
      Shipping Width
      20 in
      Shipping Depth
      24 in
      Shipping Height
      9.5 in
      Shipping Weight
      57.76 lbs
