Latitude 9510: Visual Guide to your Computer
Summary: The following article provides a visual guide to your Latitude 9510 Laptop and lists the external ports and features of your computer.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
Note: For a more detailed description about each location, please go to the system manuals at www.dell.com/support
Table of Contents:
Cause
Front View

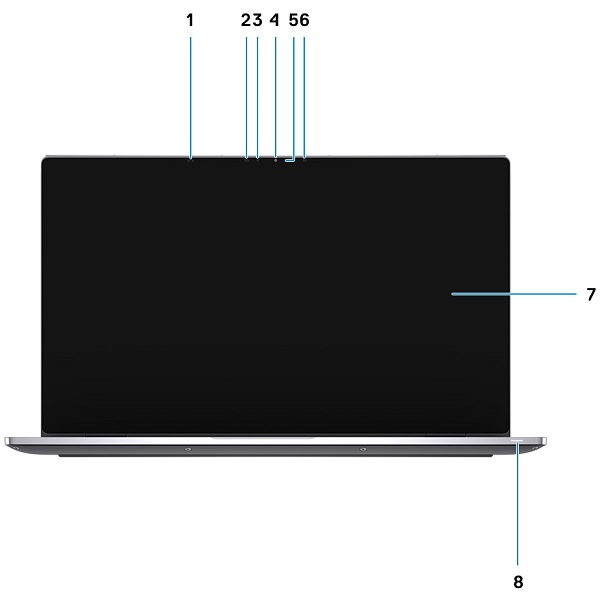

(Figure.1 Front View)
| 1 | Proximity Sensor | 2 | IR Emitter |
| 3 | Ambient Light Sensor (ALS) | 4 | Camera (IR/RGB) |
| 5 | Camera Status LED | 6 | IR Emitter |
| 7 | Display Panel | 8 | Battery/Diagnostics Status LED |
Top View
(Figure.2 Top View)
| 1 | Microphones | 2 | Power Button |
| 3 | Right-Side Speaker | 4 | Touchpad |
| 5 | Left-Side Speaker |
Bottom View
(Figure.3 Bottom View)
| 1 | Air Vent | 2 | Service Tag Location |
Left-Hand Side View

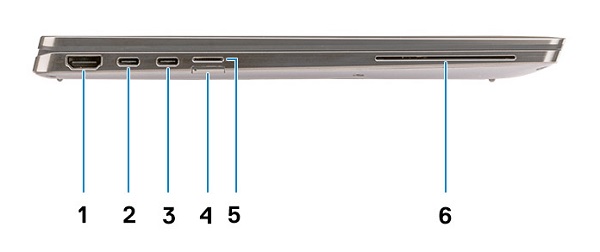

(Figure.4 Left-Hand Side View)
| 1 | HDMI 2.0 Connector | 2 | USB 3.2 Gen2 USB Type-C Connector w/Thunderbolt 3/PowerDelivery/DisplayPort |
| 3 | USB 3.2 Gen2 USB Type-C Connector w/Thunderbolt 3/PowerDelivery/DisplayPort | 4 | SIM Card Slot |
| 5 | Micro SD Card Slot | 6 | SmartCard Reader (Optional) |
Right-Hand Side View

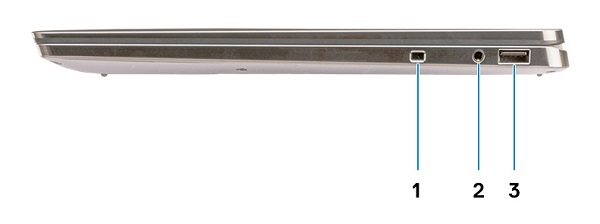

(Figure.5 Right-Hand Side View)
| 1 | Wedge-Shaped Security Slot | 2 | Universal 3.5 mm Audio Jack Connector |
| 3 | USB 3.2 Gen1 Type-A Connector w/PowerDelivery |
Chassis Modes

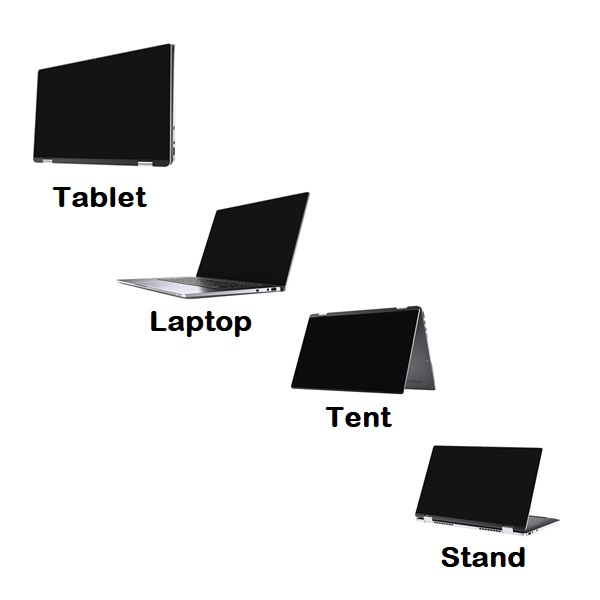

(Figure.6 Chassis Mode Types)
Resolution
AC Adapter View
(Figure.7 65/90 W Type-C AC Adapter)
| USB Type-C 65/90 W | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 4.62 A (Continuous) |
| Output Power | 65/90 W |
| Output Voltage | 19.5 VDC |
