PowerProtect Data Manager – Zotavení serveru po havárii nedokáže synchronizovat primární zdrojovou jednotku úložiště.

Summary: ASDR0009: Zotavení serveru po havárii nedokáže synchronizovat primární zdrojovou jednotku úložiště mtree.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

ASDR0009 výstrahy se zobrazují na kartě Alert v uživatelském rozhraní PowerProtect Data Manager.
ASDR0009: Server Disaster recovery is unable to synchronize the primary source storage unit mtree: //MTREE/data/col1/SysDR_ppdm with the following replication target storage unit: mtree://MTREE/data/col1/SysDR_R_ppdm

Karta Výstrahy

Z serverdr.log, z balíčku protokolů PowerProtect Data Manager, máme následující:

 "errorCode" : "DDOS_REST_AUTH_TOKEN_CREATE_EXCEPTION",
    "message" : "SDR_DDOS_REST_AUTH_TOKEN_CREATE_EXCEPTION code=500 reason=\"Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target\" remediation=\"none\"",
    "statusCode" : "INTERNAL_SERVER_ERROR",
    "reason" : "Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target",
    "remediation" : "none",
    "objects" : [ "Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target" ],
    "errorResponse" : {
      "code" : 500,
      "reason" : "Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target",
      "remediation" : "none",
      "timestamp" : 0,
      "path" : null
    },
    "superReason" : "Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target",
    "statusCodeNumber" : 500,
    "suppressed" : [ ],
    "localizedMessage" : "SDR_DDOS_REST_AUTH_TOKEN_CREATE_EXCEPTION code=500 reason=\"Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target\" remediation=\"none\""
  },
  "operation" : "REPLICATION:DO_ON_MONITOR_FAILURE"
}

Cause

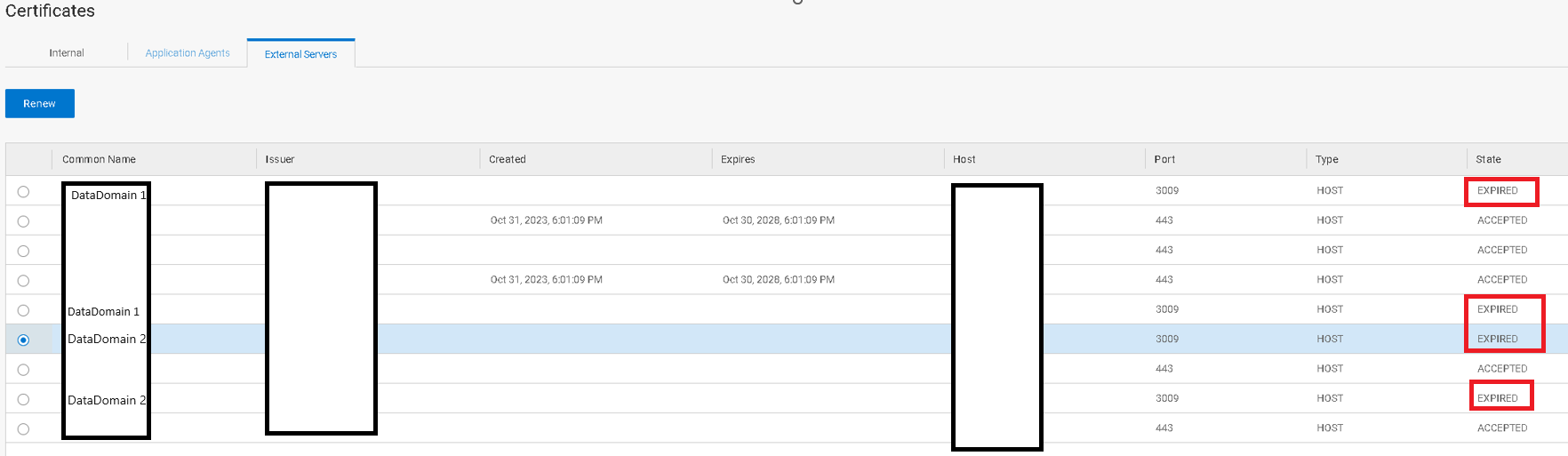

Certifikáty Data Domain byly aktualizovány ze strany Data Domain, ale nikdy nebyly aktualizovány v nástroji PowerProtect Data Manager:

certifikáty

Resolution

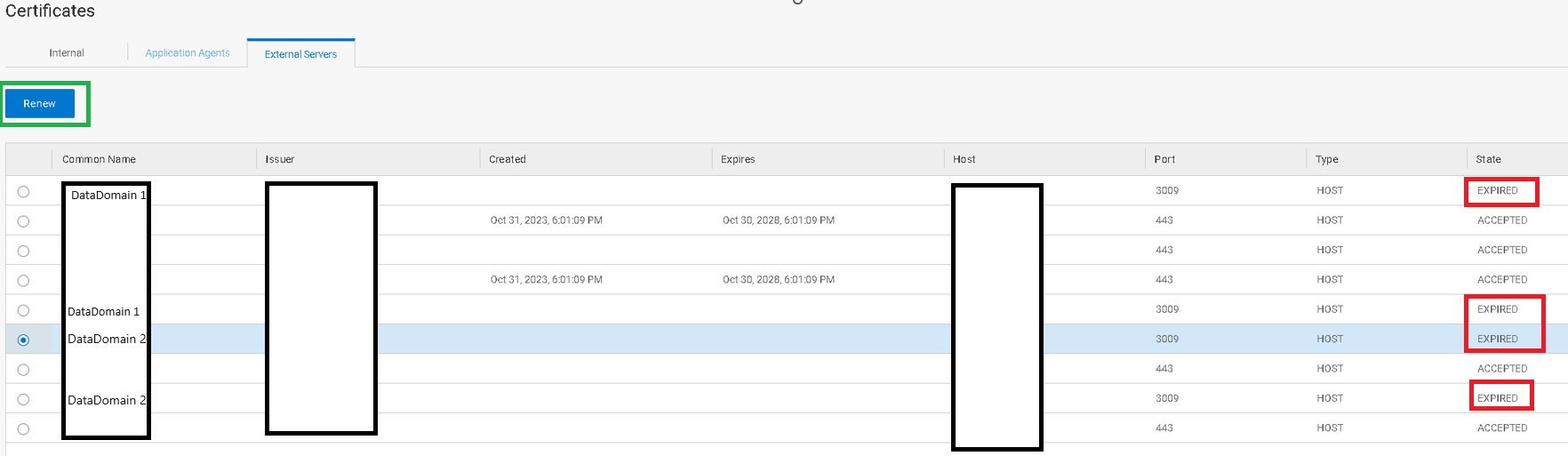

V uživatelském rozhraní PowerProtect Data Manager v části "Administration - Certificates - External Servers" vyberte jednotlivé certifikáty Data Domain, kterým vypršela platnost, a klikněte na "renew":

Obnovení certifikátů

Affected Products

PowerProtect Data Manager
Article Properties
Article Number: 000226680
Article Type: Solution
Last Modified: 05 Jul 2024
Version:  1
