PowerProtect Data Manager - Server Disaster Recovery kan de primaire bronstorage-eenheid niet synchroniseren.

Summary: ASDR0009: Server Disaster Recovery kan de primaire bron van de storage-eenheid mtree niet synchroniseren.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

ASDR0009 Alerts worden weergegeven op het tabblad Alert van de PowerProtect Data Manager gebruikersinterface.
ASDR0009: Server Disaster recovery is unable to synchronize the primary source storage unit mtree: //MTREE/data/col1/SysDR_ppdm with the following replication target storage unit: mtree://MTREE/data/col1/SysDR_R_ppdm

Tabblad Waarschuwing

In de serverdr.log, uit de PowerProtect Data Manager-logboekbundel, hebben we het volgende:

 "errorCode" : "DDOS_REST_AUTH_TOKEN_CREATE_EXCEPTION",
    "message" : "SDR_DDOS_REST_AUTH_TOKEN_CREATE_EXCEPTION code=500 reason=\"Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target\" remediation=\"none\"",
    "statusCode" : "INTERNAL_SERVER_ERROR",
    "reason" : "Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target",
    "remediation" : "none",
    "objects" : [ "Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target" ],
    "errorResponse" : {
      "code" : 500,
      "reason" : "Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target",
      "remediation" : "none",
      "timestamp" : 0,
      "path" : null
    },
    "superReason" : "Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target",
    "statusCodeNumber" : 500,
    "suppressed" : [ ],
    "localizedMessage" : "SDR_DDOS_REST_AUTH_TOKEN_CREATE_EXCEPTION code=500 reason=\"Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target\" remediation=\"none\""
  },
  "operation" : "REPLICATION:DO_ON_MONITOR_FAILURE"
}

Cause

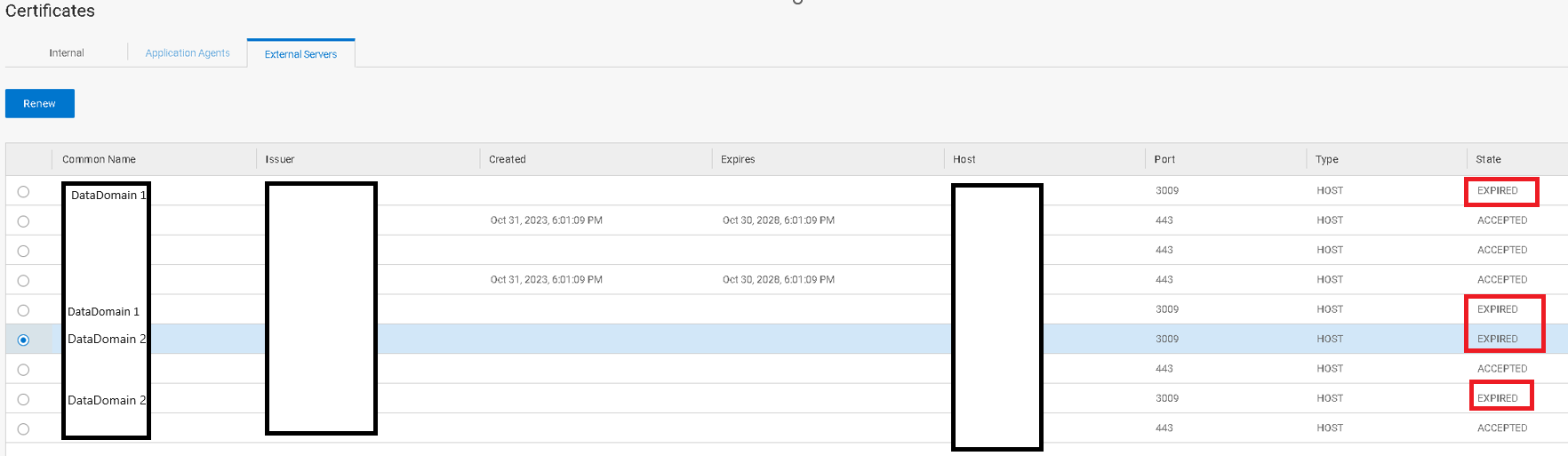

De Data Domain-certificaten zijn bijgewerkt vanaf de Data Domain-zijde, maar zijn nooit bijgewerkt in de PowerProtect Data Manager:

Certificaten

Resolution

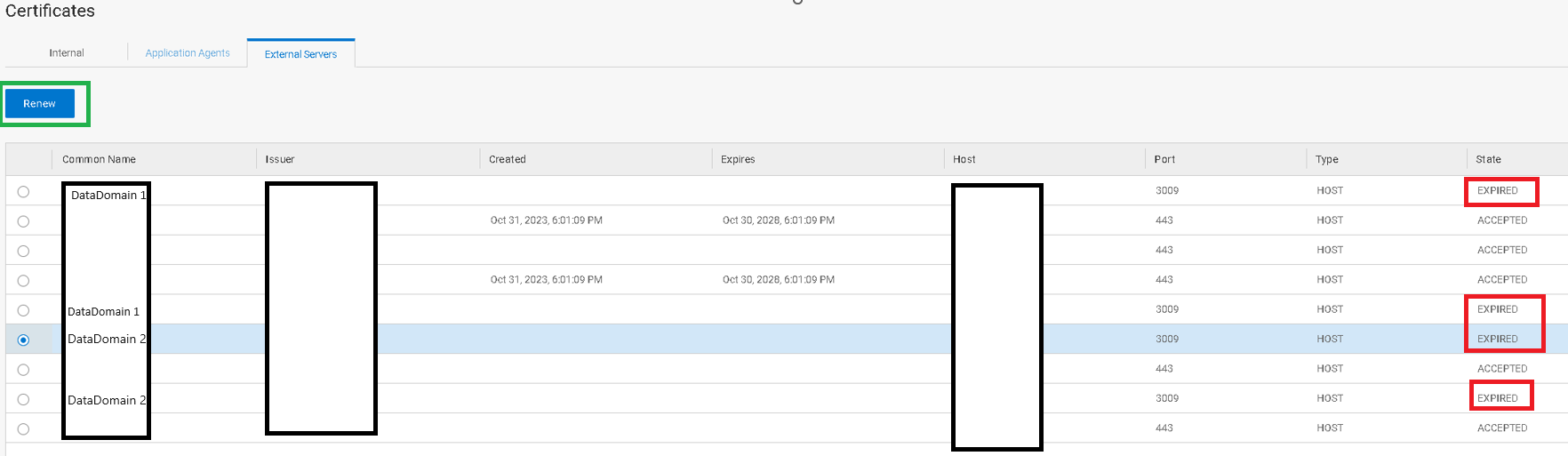

Selecteer in de PowerProtect Data Manager-gebruikersinterface in "Administration - Certificates - External Servers" elk Data Domain dat verlopen certificaten moet hebben en klik op "renew":

Certificaten vernieuwen

Affected Products

PowerProtect Data Manager
