PowerProtect Data Manager - A recuperação de desastres do servidor não consegue sincronizar a unidade de armazenamento de origem primária.

Summary: ASDR0009: A recuperação de desastres do servidor não consegue sincronizar a mtree da unidade de armazenamento de origem primária.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

ASDR0009 alertas são exibidos na guia Alert da interface do usuário do PowerProtect Data Manager.
ASDR0009: Server Disaster recovery is unable to synchronize the primary source storage unit mtree: //MTREE/data/col1/SysDR_ppdm with the following replication target storage unit: mtree://MTREE/data/col1/SysDR_R_ppdm

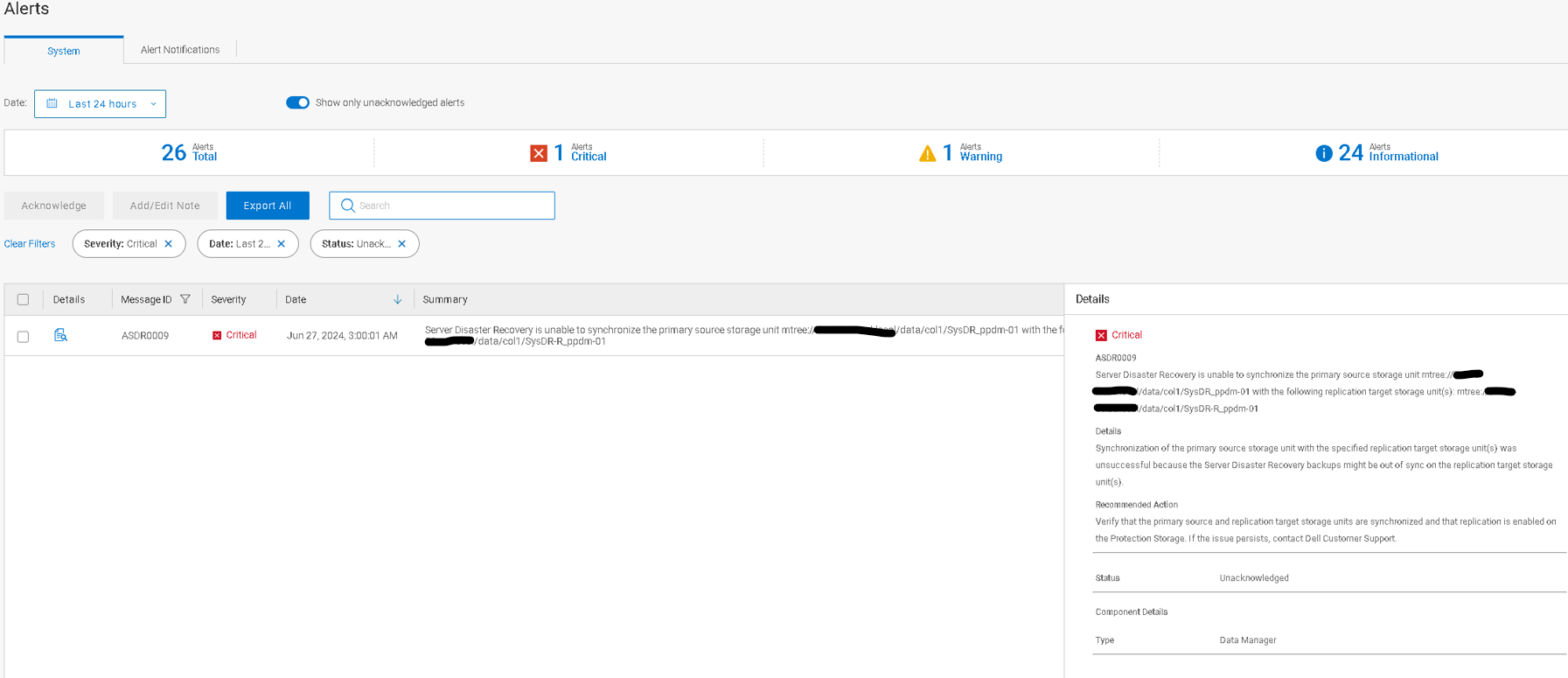

Guia Alert

No serverdr.log, no pacote de registros do PowerProtect Data Manager, temos o seguinte:

 "errorCode" : "DDOS_REST_AUTH_TOKEN_CREATE_EXCEPTION",
    "message" : "SDR_DDOS_REST_AUTH_TOKEN_CREATE_EXCEPTION code=500 reason=\"Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target\" remediation=\"none\"",
    "statusCode" : "INTERNAL_SERVER_ERROR",
    "reason" : "Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target",
    "remediation" : "none",
    "objects" : [ "Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target" ],
    "errorResponse" : {
      "code" : 500,
      "reason" : "Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target",
      "remediation" : "none",
      "timestamp" : 0,
      "path" : null
    },
    "superReason" : "Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target",
    "statusCodeNumber" : 500,
    "suppressed" : [ ],
    "localizedMessage" : "SDR_DDOS_REST_AUTH_TOKEN_CREATE_EXCEPTION code=500 reason=\"Create DDOS REST auth token failed with exception: Exception creating DD authentication token failed, Exception: I/O error on POST request for \"https://DataDomain:3009/rest/v1.0/auth [DataDomain]\": PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target; nested exception is javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target\" remediation=\"none\""
  },
  "operation" : "REPLICATION:DO_ON_MONITOR_FAILURE"
}

Cause

Os certificados do Data Domain foram atualizados no Data Domain, mas nunca foram atualizados no PowerProtect Data Manager:

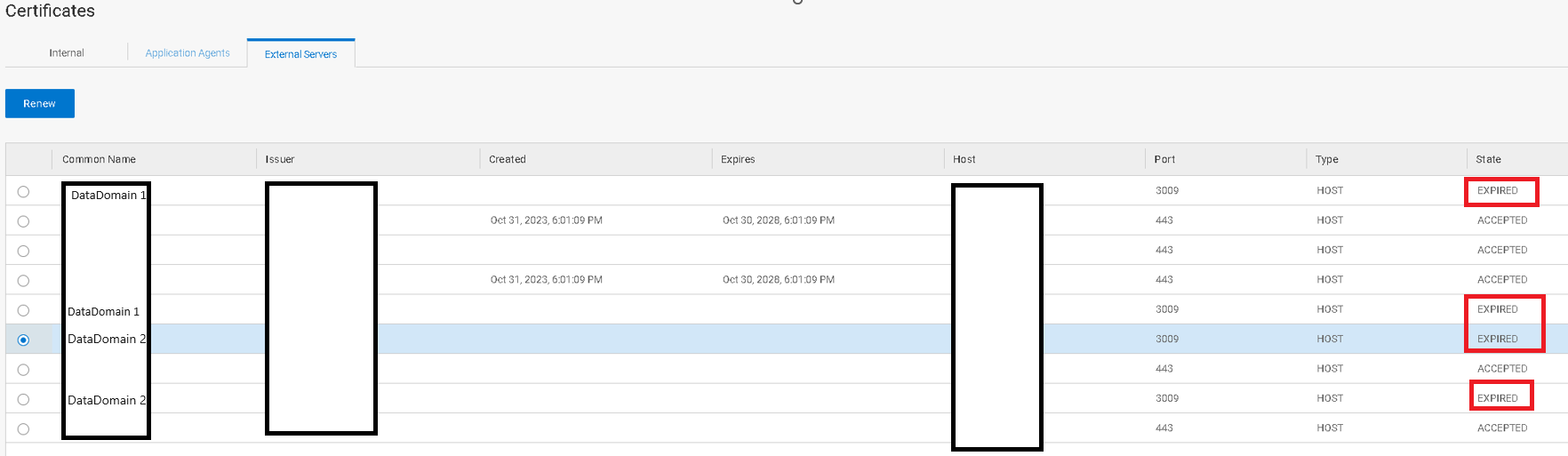

Certificados

Resolution

Na interface do usuário do PowerProtect Data Manager, em "Administração - Certificados - Servidores externos", selecione cada Data Domain que precisa ter certificados expirados e clique em "renovar":

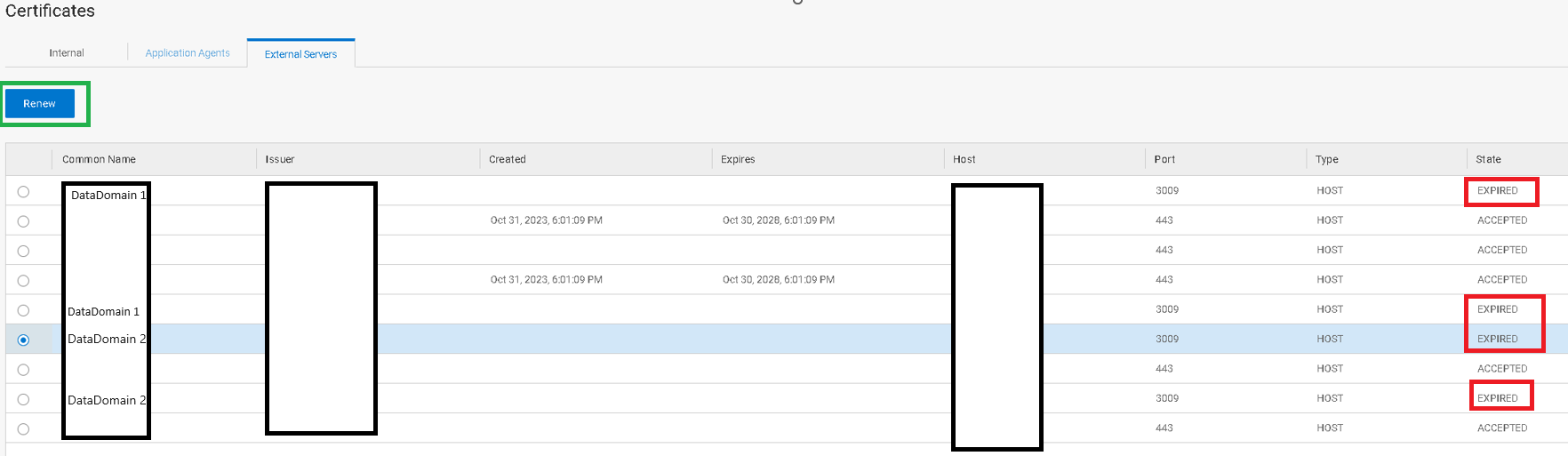

Renovar certificados

Affected Products

PowerProtect Data Manager
