OptiPlex 7780: Visual Guide to your computer
Summary: The following article provides a visual guide to your OptiPlex 7780 All In One (AIO) desktop Computer. It lists the external ports and features of your computer.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
Note: For a more detailed description about each location, please go to the system manuals at www.dell.com/support
Table of Contents:
Cause
Front View
(Figure.1 Front View)
| 1 | Full HD Webcam | 2 | Camera Status LED |
| 3 | Display | 4 | Speakers |
| 5 | Power Button and Power Status LED | 6 | Array Microphones |

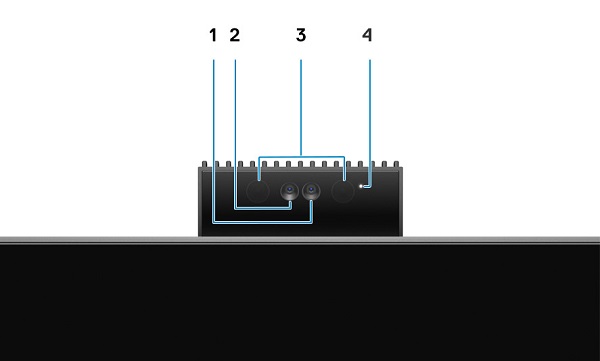

(Figure.2 Retractable Camera View)
| 1 | Camera | 2 | Infrared Camera |
| 3 | Infrared Emitter | 4 | Camera Status LED |
Resolution
Rear View
(Figure.3 Rear View)
| 1 | Back Cover | 2 | Stand Cover |
| 3 | Kensington Security-Cable Slot | 4 | Bottom Cover |
| 5 | Stand |

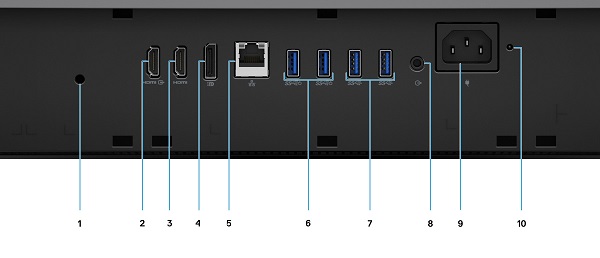

(Figure.4 Rear Ports View)
| 1 | Cable Cover Screw Hole | 2 | HDMI-In Connector |
| 3 | HDMI-Out Connector
|
4 | DP++ 1.4/HDCP 2.3 connector |
| 5 | Ethernet (NIC) Connector (10/100/1000 Mbps) | 6 | USB 3.2 Gen2 Type-A Connector w/Smart Power On x2 |
| 7 | USB 3.2 Gen2 Type-A Connector x2 | 8 | Line-Out Audio Connector |
| 9 | Power Connector | 10 | PSU Status LED |
Bottom View
(Figure.5 Bottom View)
| 1 | Display Built-In Self-Test Button | 2 | Service Tag Location |
Left-Hand Side View

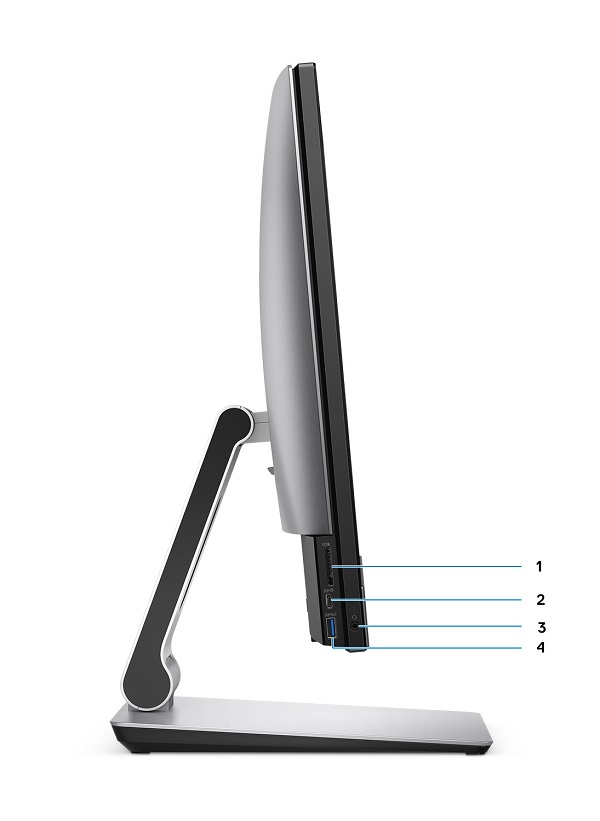

(Figure.6 Left-Hand Side View)
| 1 | SD 4.0 Card Reader | 2 | USB 3.2 Gen2 Type-C Connector |
| 3 | Universal Audio Connector | 4 | USB 3.2 Gen1 Type-A Connector w/PowerShare |
Right-Hand Side View
(Figure.7 Right-Hand Side View)
| 1 | Hard Drive Status LED |
Additional Information
Affected Products
OptiPlex 7780 All-In-OneArticle Properties
