Dell Latitude E7470 Visual Guide
Summary: This article is a visual guide that lists the external ports and features of the Latitude E7470 Notebook.
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
NOTE: For a more detailed description about each location, go to the system manuals at https://www.dell.com/support/home/en-us?app=manuals
The following article provides a visual guide to your E7470 Latitude Computer and lists the external ports and features of the personal computer.
Table of Contents:
Front View
Figure 1: Front Open View
| 4 | Microphones (only in touch screen) | 5 | Camera |
| 6 | Camera Status LED | 9 | Microphones (only in nontouchscreen) |
| 10 | Power Button (no LED indicator) | 15 | Contactless Smart Card Reader (optional) |
| 16 | Fingerprint Reader (optional) | 21 | Touchpad |
| 23 | Track Stick/Track Pad (Optional) |
NOTE: For a guide to the keyboard, see the following article:
Back to Top
Rear View

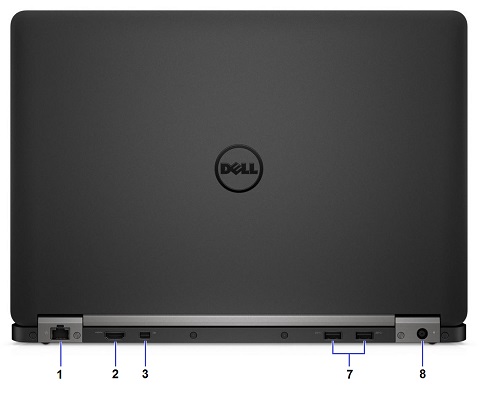

Figure 2: Rear View
| 1 | Ethernet Connector (NIC) | 2 | HDMI Connector |
| 3 | DisplayPort Connector | 7 | USB 3.0 Connector x 2 |
| 8 | Power AC-In Connector |
Front Edge View

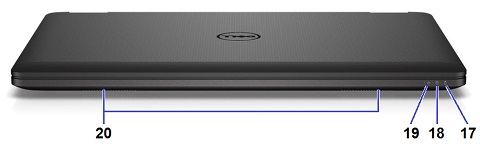

Figure 3: Front Edge View
| 17 | Battery Status LED | 18 | Hard Drive Activity LED |
| 19 | Power Status LED | 20 | Speakers |
Bottom View

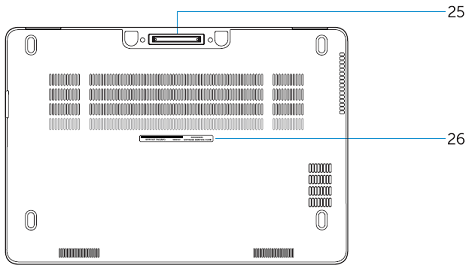

Figure 4: Bottom View
| 25 | Dock Connector | 26 | Service Tag / Express Service Code Label. |
Left View

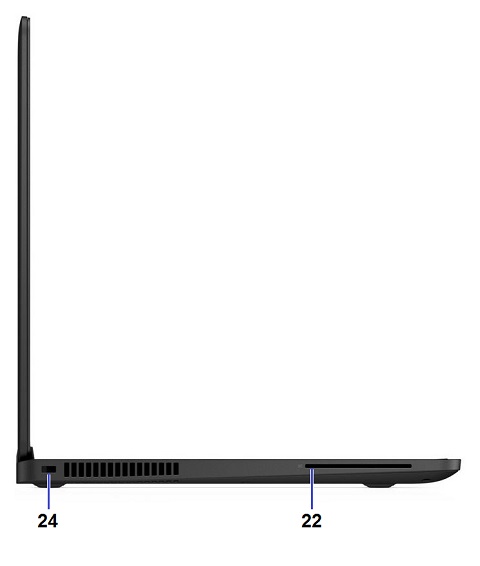

Figure 5: Left Side View
| 22 | Smart Card Reader (Optional) | 24 | Security Cable Slot |
Right View

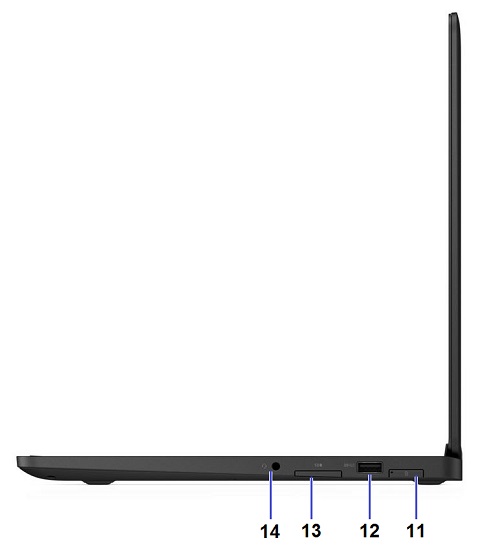

Figure 6: Right Side View
| 11 | SIM Port (Optional) | 12 | USB 3.0 Connector w/PowerShare |
| 13 | Memory Card Reader | 14 | Headset Connector |
AC Adapter View
Figure 7: 65 W AC Adapter
| Type 65 W E5 Series | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 3.34 A (Continuous) |
| Output Power | 65 W |
| Output Voltage | 19.5 VDC |
Figure 8: 90 W AC Adapter
| Type 90 W E5 | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 4.62 A (Continuous) |
| Output Power | 90 W |
| Output Voltage | 19.5 VDC |
