Article Number: 000125981
Latitude 7400: Visual Guide to your computer
Summary: The following article provides a visual guide to your Latitude 7400 laptop and lists the external ports and features of your laptop.
Article Content
Symptoms
Note: For a more detailed description about each location, please go to the system manuals at www.dell.com/support
Table of Contents:
- Front View
- Top View
- Bottom View
- Left Hand Side View
- Right Hand Side View
- AC Adapter View
- Additional Info:
Cause
Front View
(Fig.1 Front View)
| 1 | Microphone Array | 2 | SafeView Switch |
| 3 | Camera | 4 | Camera Status LED |
| 5 | Microphone | 6 | Display Panel |
| 7 | Battery Status LED |

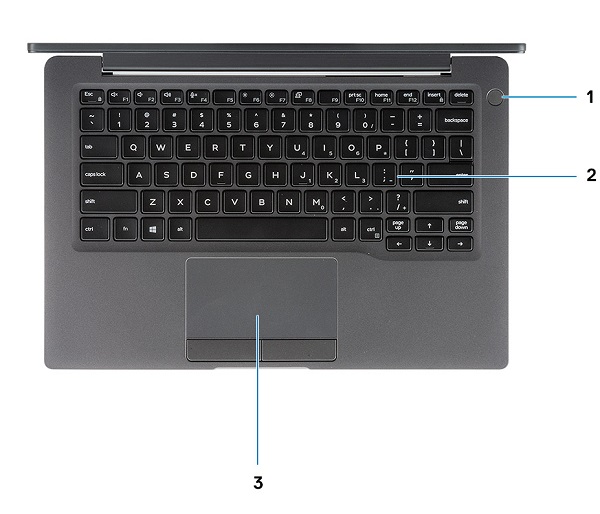

Top View
(Fig.2 Top View)
| 1 | Power Button w/fingerprint reader (Optional) | 2 | Keyboard |
| 3 | Touchpad |

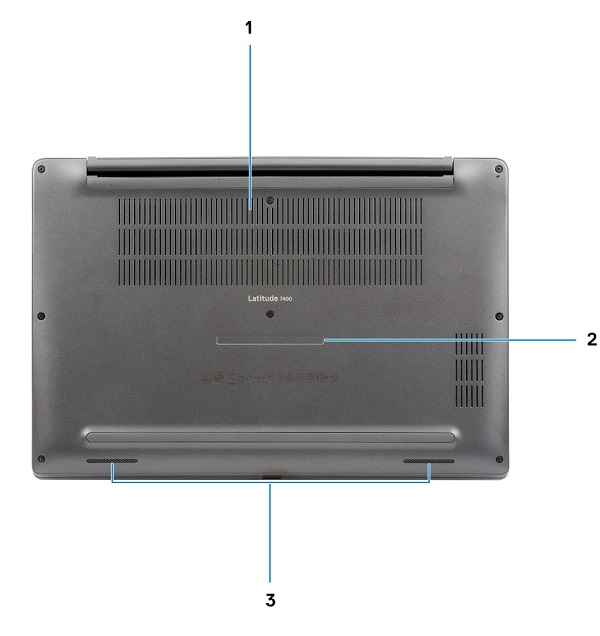

Bottom View
(Fig.3 Bottom View)
| 1 | Thermal Vent | 2 | Service Tag Label |
| 3 | Speakers |

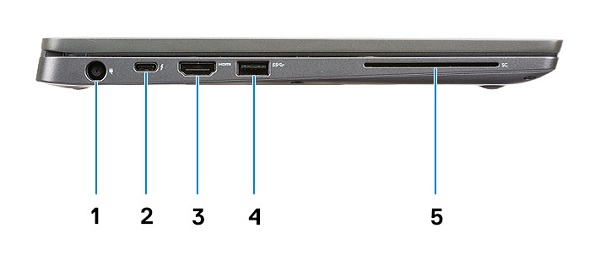

Left Hand Side View
(Fig.4 Left Hand Side View)
| 1 | Power Adapter Connector | 2 | USB Type-C 3.1 Gen2 Connector (Thunderbolt) |
| 3 | HDMI 1.4a Connector | 4 | USB Type-A 3.1 Gen1 Connector |
| 5 | Smart Card Slot |

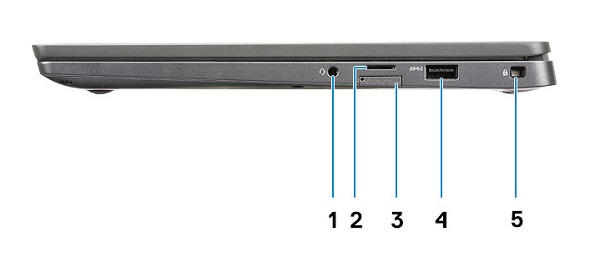

Right Hand Side View
(Fig.5 Right Hand Side View)
| 1 | Universal Audio Connector | 2 | microSD 4.0 Memory Card Reader |
| 3 | SIM Card Slot | 4 | USB Type-A 3.1 Gen1 Connector (PowerShare Capable) |
| 5 | Noble Wedge Lock Slot |

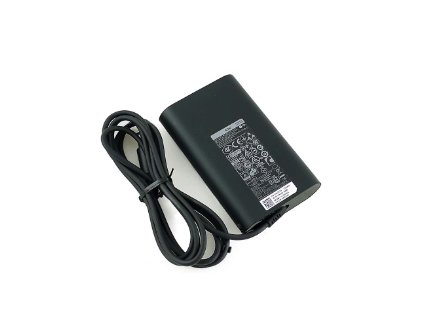

AC Adapter View
(Fig.7 65W AC Adapter)
| Type 65W E5 Series | Description |
| Input Voltage | 100 VAC to 240 VAC |
| Output Current | 3.34 A (Continuous) |
| Output Power | 65 W |
| Output Voltage | 19.5 VDC |
