OptiPlex 7071 Tower: Visual Guide to Your Computer

Summary: This article is a visual guide to the external ports and features on the various form factors of the Dell OptiPlex 7071 Tower desktop.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

The following article provides a visual guide to your OptiPlex 7071 Tower Computer and lists the external ports and features of your computer.

Cause

Not applicable

Resolution

Note: For a more detailed description of each location, go to the system manuals at www.dell.com/support.


Table of Contents:

  1. Front View
  2. Rear View
  3. Additional Info:



Front View



Front View

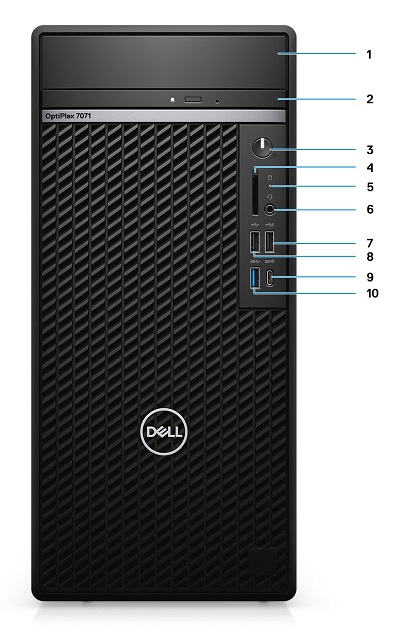

Figure 1: Front View



1 Hard Drive Bracket Cover 2 Optical Disc Drive (ODD)
3 Power Button 4 SD 4.0 Card Reader (Optional)
5 Hard Driver Activity LED 6 Headset/Universal Audio Jack Connector
7 USB 2.0 Connector w/PowerShare 8 USB 2.0 Connector
9 USB 3.1 Gen2 Type-C Connector w/PowerShare 10 USB 3.1 Gen1 Connector


Back to Top



Rear View



Rear View

Figure 2: Rear View



1 Line-Out Audio Connector 2 DisplayPort v1.2 Connector x2
3 Optional Module (HDMI 2.0, DP, VGA, or USB Type-C Alt Mode) 4 Serial Connector
5 PS/2 Keyboard Connector 6 PS/2 Mouse Connector
7 USB 3.1 Gen1 Connector x4 8 USB 2.0 Connector w/Smart PowerOn x2
9 PCI Expansion Slot 10 PCI Express Expansion Slot x3
11 Power Connector 12 Power Supply (PSU) Diagnostic LED
13 SMA Connectors x 2 (Optional) 14 Kensington Lock
15 Network (NIC) Ethernet Connector 16 Padlock Loop
17 Release Latch


Back to Top



Additional Info:




Back to Top
