Avamar: How to Create, Modify or Verify Isilon NDMP User Settings

Summary: Instructions on how to create, modify, or verify Isilon Network Data Management Protocol (NDMP) user settings.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Instructions

  1. Log in to OneFS Web UI as root
OneFS_LOGIN

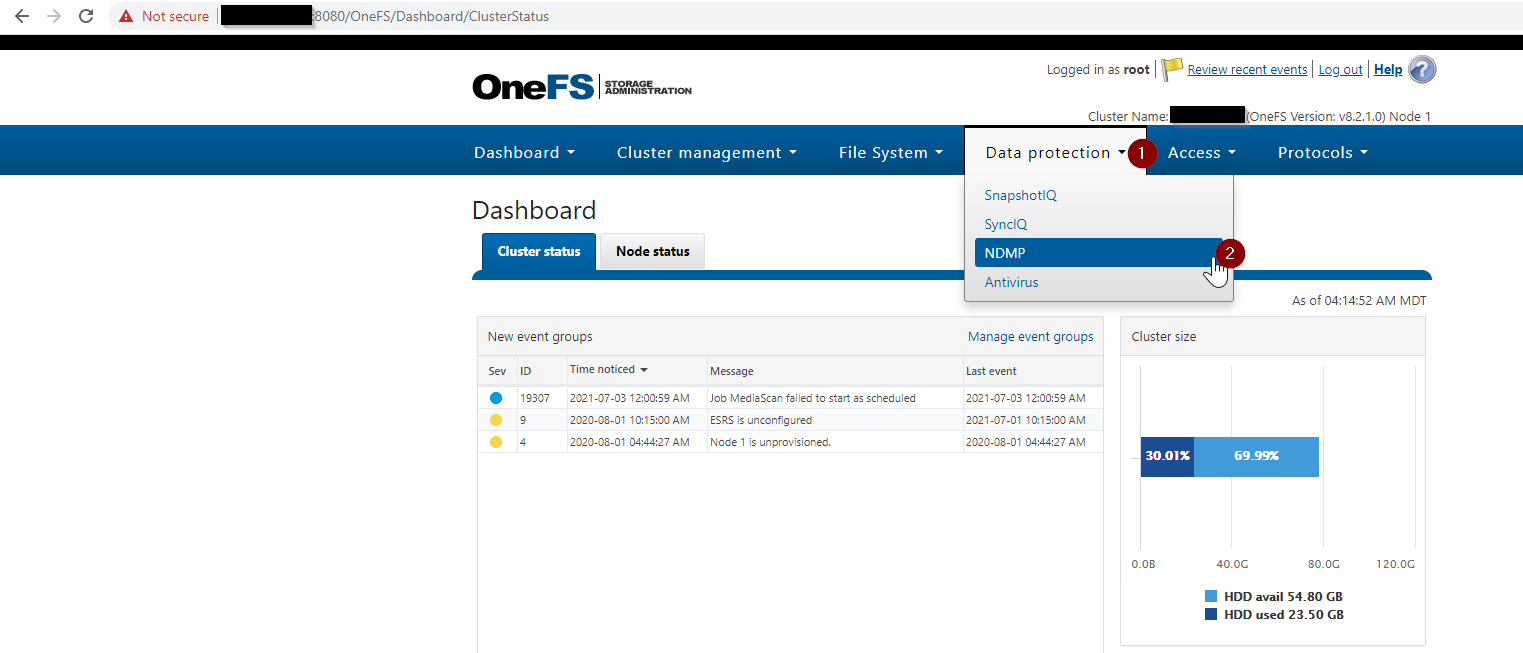

  1. Follow the path OneFS > Data Protection > NDMP > NDMP settings
OneFS_NDMP

OneFS_NDMP_SETTINGS_OFF
  1. Complete NDMP settings including the following:
    1. Enable NDMP service box is checked.
    2. Port Number is set to 10000
    3. DMA vendor is set to Generic
    4. NDMP administrator is set to administrator to NDMP and add a password

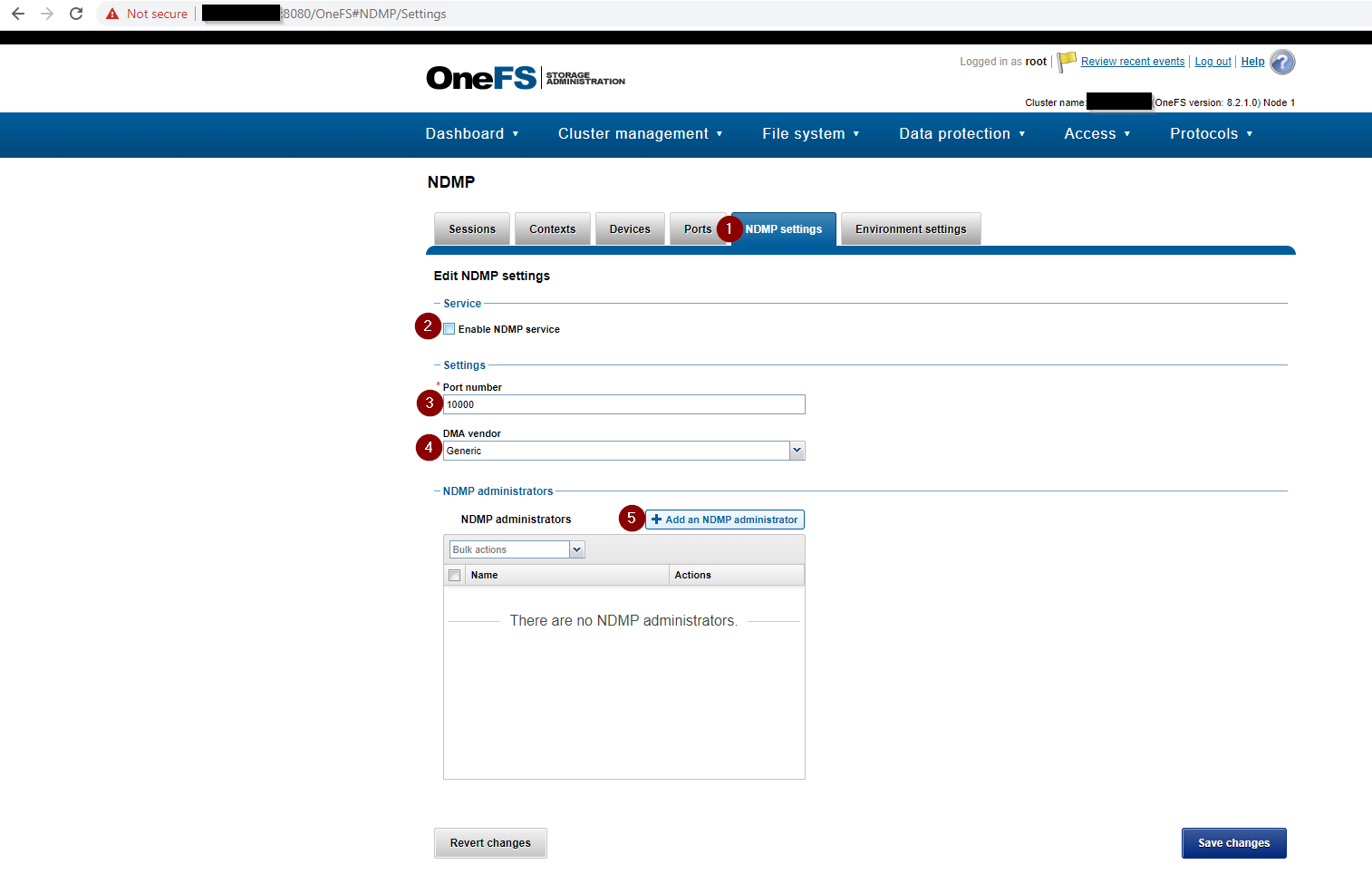

If there is no NDMP administrator user created, create one. If Isilon is a new installation, the NDMP settings page looks like the screenshot below:
OneFS_NDMP_SETTINGS_OFF
  1. Create or change the NDMP user password using the OneFS Web UI:
OneFS_NDMP_USER_CREATION
  1. Alternately, create or change the NDMP user password using the Isilon CLI:
REDACTED_ISILON_CLUSTER# isi ndmp users create --name ndmp
password:
confirm:
REDACTED_ISILON_CLUSTER#

REDACTED_ISILON_CLUSTER# isi ndmp users modify --name ndmp
password:
confirm:
REDACTED_ISILON_CLUSTER#

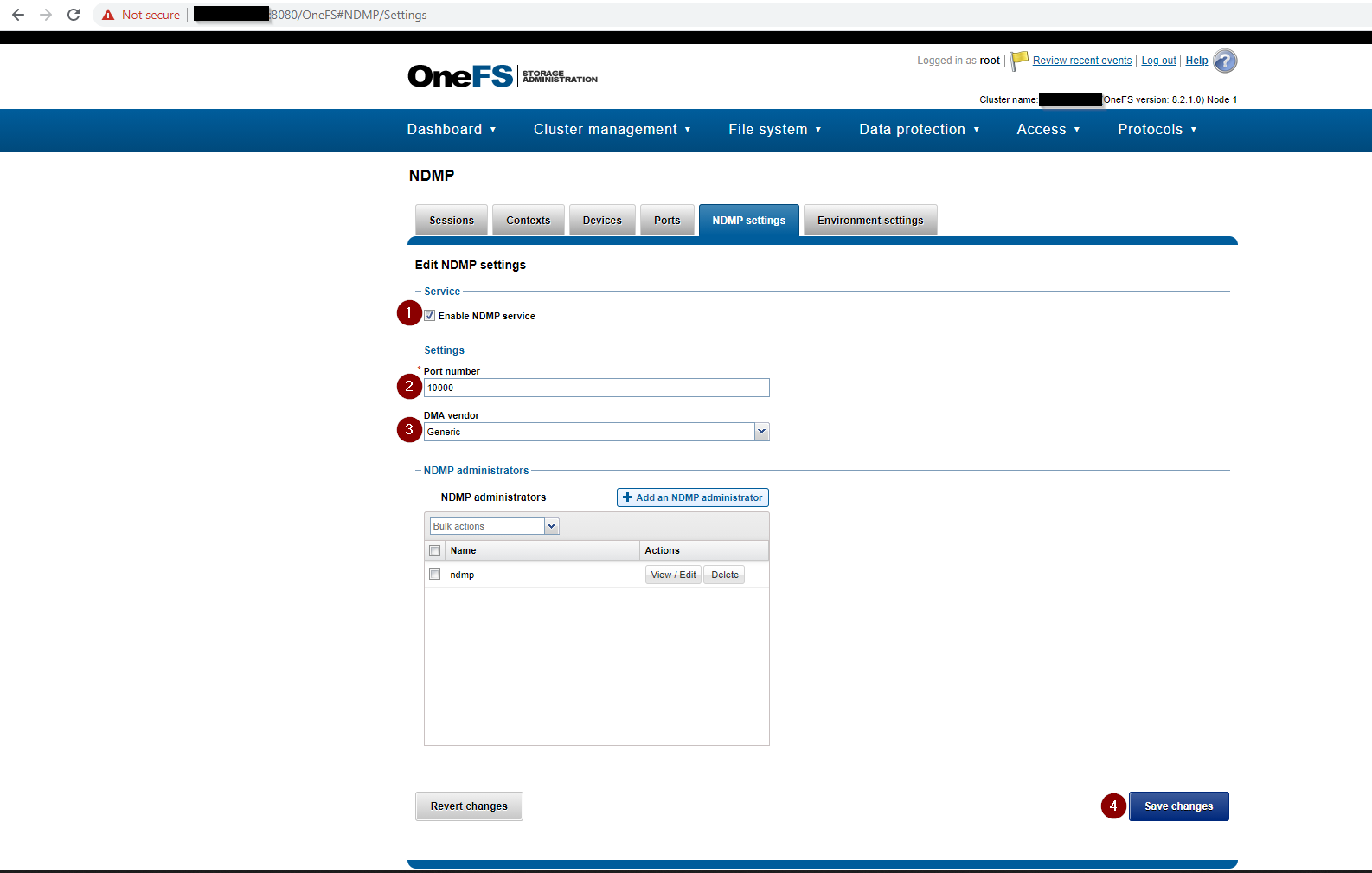

  1. Verify the NDMP settings:
OneFS_NDMP_COMPLETE_SETTINGS_SAVE

Verify NDMP settings using the Isilon CLI:
Command:
isi ndmp settings global view
Sample Output:
REDACTED_ISILON_CLUSTER# isi ndmp settings global view
                       Service: True
                          Port: 10000
                           DMA: generic
          Bre Max Num Contexts: 64
MSB Context Retention Duration: 300
MSR Context Retention Duration: 600
        Stub File Open Timeout: 10
             Enable Redirector: False
              Enable Throttler: False
       Throttler CPU Threshold: 50

REDACTED_ISILON_CLUSTER# isi ndmp users list
Name
-----
ndmp
-----
Total: 1
