RecoverPoint Classic: le volet Registered Storage s’affiche vide

Summary: Dans Unisphere for RecoverPoint, sous le stockage enregistré Clusters RPA, aucun détail de stockage ne s’affiche.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

Dans Unisphere for RecoverPoint, sous le stockage enregistré Clusters RPA, aucun détail de stockage ne s’affiche.

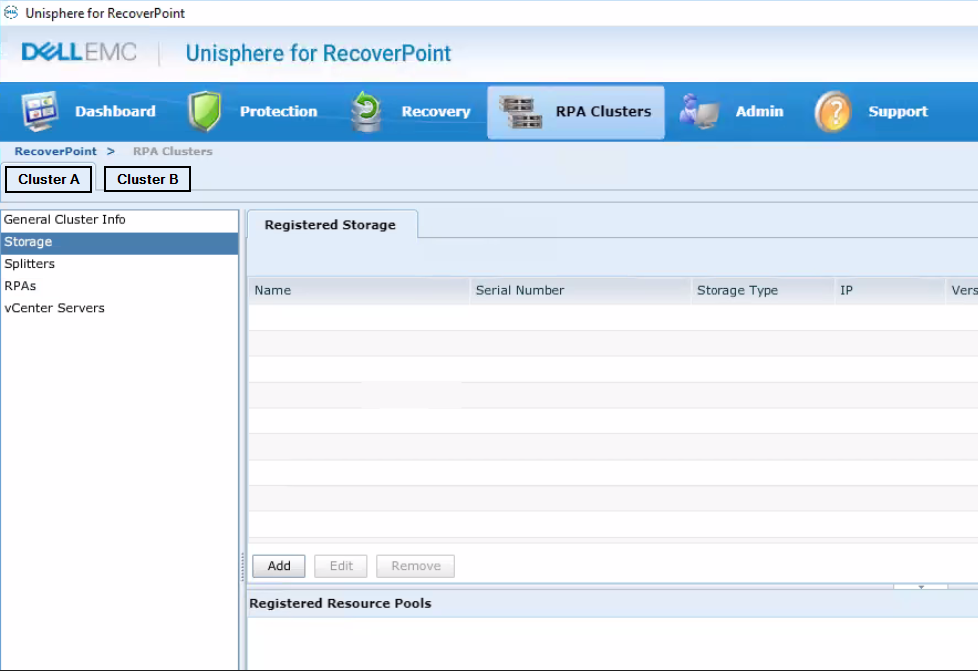

Informations Unisphere n’affichant aucun détail sur le stockage enregistré pour les clusters RPA
Figure 1 : Informations Unisphere n’affichant aucun détail sur le stockage enregistré pour les clusters RPA

Dans les détails du stockage, il doit y avoir des informations de stockage (le type de périphériques de stockage peut changer en fonction de votre environnement).

Cause

Lors de l’examen des logs RecoverPoint, vous pouvez voir les entrées ci-dessous:
Log location /home/kos/control/result.log.gz and /home/kos/mirror/result.log.gz:


2023/01/18 09:07:59.452 - #1 - 6819/6148 - ScsiInitiator: handle_input: TIMEOUT path = (0x500124800ac04a03,0x5001248000205a03,0xbbbbbbbbbb01bbbb,e_fiberChannel)
2023/01/18 09:07:59.453 - #2 - 7058/6148 - MultiPath: MPVolumeConnectedState::handleBadPath removing path (0x500124800ac04a03,0x5001248000205a03,0xbbbbbbbbbb01bbbb,e_fiberChannel)0xaaaabee482eb0101 (StorageType=KBOX, revision= a_volume = 0xaaaabee482eb0101 (StorageType=KBOX, revision=
2023/01/18 09:07:59.453 - #2 - 7058/6148 - MultiPath: PathSwitcher::removePath (0x500124800ac04a03,0x5001248000205a03,0xbbbbbbbbbb01bbbb,e_fiberChannel)0xaaaabee482eb0101 (StorageType=KBOX, revision= i = 0


Log location /home/kos/klr/result.log.gz:


2023/01/18 04:39:29.122 - sll - 0/0 - #2 - hba_0_0: sll_status_entry: CS_PORT_LOGGED_OUT status detected - removing target_index 0 wwn 5001248000205a03 from pdb
2023/01/18 04:39:29.122 - sll - 4253/4004 - #2 - hba_0_0: sll_handle_els_24xx: PRLI adding port_id: 0x0e3e00 wwn: 0x5001248000205a03 nphl: 0x0000
2023/01/18 04:39:29.122 - sll - 4253/4004 - #2 - hba_0_0: add_nphl_to_logins: added port_id: 0x0e3e00 wwn: 0x5001248000205a03 nphl: 0x0000 at idx: 3646 hash 3646
2023/01/18 04:39:29.123 - sll - 0/0 - #2 - hba_2_0: sll_status_entry: CS_PORT_LOGGED_OUT status detected - removing target_index 0 wwn 5001248000205a03 from pdb
2023/01/18 04:39:29.124 - sll - 0/0 - #2 - hba_2_0: sll_handle_els_24xx: PRLI adding port_id: 0x0e3e00 wwn: 0x5001248000205a03 nphl: 0x0000
2023/01/18 04:39:29.124 - sll - 0/0 - #2 - hba_2_0: add_nphl_to_logins: added port_id: 0x0e3e00 wwn: 0x5001248000205a03 nphl: 0x0000 at idx: 3646 hash 3646
2023/01/18 04:39:43.108 - sll - 4414/4004 - #2 - hba_0_0: sll_fabric_login: trying fabric login loop_id=133 for port=0xe3e00 wwn=0x5001248000205a03 timeout=4 timeout_reset=0
2023/01/18 04:39:43.108 - sll - 4414/4004 - #2 - pdb: hba_0_0: sll_fabric_attempt_to_add_to_pdb: device returned loop_id 0 for port_id 0xe3e00 wwn=0x5001248000205a03 - retry login
2023/01/18 04:39:43.108 - sll - 4414/4004 - #2 - hba_0_0: sll_fabric_login: trying fabric login loop_id=0 for port=0xe3e00 wwn=0x5001248000205a03 timeout=4 timeout_reset=0
2023/01/18 04:39:43.108 - sll - 4414/4004 - #2 - hba_0_0: add_nphl_to_logins: added port_id: 0x0e3e00 wwn: 0x5001248000205a03 nphl: 0x0000 at idx: 3646 hash 3646
2023/01/18 04:39:43.108 - sll - 4414/4004 - #2 - pdb: hba_0_0: sll_fabric_attempt_to_add_to_pdb: new loop_id=0 for port_id=0xe3e00 wwn=0x5001248000205a03 bInUse=1
2023/01/18 04:39:43.110 - sll - 4414/4004 - #2 - hba_2_0: sll_fabric_login: trying fabric login loop_id=133 for port=0xe3e00 wwn=0x5001248000205a03 timeout=4 timeout_reset=0
2023/01/18 04:39:43.110 - sll - 4414/4004 - #2 - pdb: hba_2_0: sll_fabric_attempt_to_add_to_pdb: device returned loop_id 0 for port_id 0xe3e00 wwn=0x5001248000205a03 - retry login
2023/01/18 04:39:43.110 - sll - 4414/4004 - #2 - hba_2_0: sll_fabric_login: trying fabric login loop_id=0 for port=0xe3e00 wwn=0x5001248000205a03 timeout=4 timeout_reset=0
2023/01/18 04:39:43.110 - sll - 4414/4004 - #2 - hba_2_0: add_nphl_to_logins: added port_id: 0x0e3e00 wwn: 0x5001248000205a03 nphl: 0x0000 at idx: 3646 hash 3646
2023/01/18 04:39:43.110 - sll - 4414/4004 - #2 - pdb: hba_2_0: sll_fabric_attempt_to_add_to_pdb: new loop_id=0 for port_id=0xe3e00 wwn=0x5001248000205a03 bInUse=0
2023/01/18 04:39:49.163 - sll - 3794/3794 - #2 - hba_2_0: PDB_RemoveDevicesNotInNS: wwn 0x5001248000205a03 port_id 0x0e3e00 loop_id 0 not in ns - remove it from PDB
2023/01/18 04:39:49.164 - sll - 3792/3792 - #2 - hba_0_0: PDB_RemoveDevicesNotInNS: wwn 0x5001248000205a03 port_id 0x0e3e00 loop_id 0 not in ns - remove it from PDB
2023/01/18 04:39:49.201 - sll - 4593/4004 - #2 - sll_ioctl_set_kbox_paths: path: 0 can't be resolved for (hba: 0:ffff8807fa700000, vp: 0, wwn: 0x5001248000205a03)

2023/01/18 04:25:24.143 - sll - 25719/25719 - #2 - hba_2_0: sll_status_entry: CS_PORT_LOGGED_OUT status detected - removing target_index 0 wwn 5001248000205a03 from pdb
2023/01/18 04:39:29.122 - sll - 0/0 - #2 - hba_0_0: sll_status_entry: CS_PORT_LOGGED_OUT status detected - removing target_index 0 wwn 5001248000205a03 from pdb
2023/01/18 04:39:29.123 - sll - 0/0 - #2 - hba_2_0: sll_status_entry: CS_PORT_LOGGED_OUT status detected - removing target_index 0 wwn 5001248000205a03 from pdb
2023/01/18 04:15:40.607 - sll - 0/0 - #2 - hba_2: sll_handle_ctio_ret: WARNING: ctio failed(status=0x2) cdb=(2a 0 0 0 0 0 0 0 1) timestamp=(time=0 trans=0 data=0) lun=0xbbbbbbbbbbbbbb52 iid=0 initiator=0x5001248000205a03


Log location /spa/EMC/CEM/log/cemtracer_health_services.log:

Line 28: 18 Jan 2023 04:29:02  - [Health] INFO - {0:45928:894976145}[26373|17535|d37feb40][findRuleInRuleVector @ ../../../components/providers/osls/Health/src/Rule.cpp:119] Rule found Rule[ state=0x8000 log=0x140006000a severity=6 health=10 descr=ALRT_INITIATOR_NO_LOGGED_IN_PATH res=initiator_fix_connection]  for 50:01:24:80:00:20:5A:02:50:01:24:80:00:20:5A:03 OperationalStatus: 0x8000
Les journaux indiquent qu’il y a un problème de communication de port.

L’examen de la structure montre qu’un port est confronté à des problèmes de connectivité:
Interrupts:        13003      Link_failure: 10         Frjt:         0

Unknown:           0          Loss_of_sync: 0          Fbsy:         0

Lli:               13003      Loss_of_sig:  60

Resolution

Contournement:
Afin de résoudre le problème de connectivité du port, recherchez les problèmes de câble ou de SFP et remplacez-les.

Résolution:
Aucune modification n’est nécessaire au niveau de RecoverPoint, car les problèmes de connectivité sont à l’origine du problème.

Affected Products

RecoverPoint Gen6 Server
