RecoverPoint Classic - Il riquadro registered storage appare vuoto

Summary: In Unisphere for RecoverPoint, sotto lo storage registrato cluster RPA, non vengono visualizzati dettagli sullo storage.

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

In Unisphere for RecoverPoint, sotto lo storage registrato cluster RPA, non vengono visualizzati dettagli sullo storage.

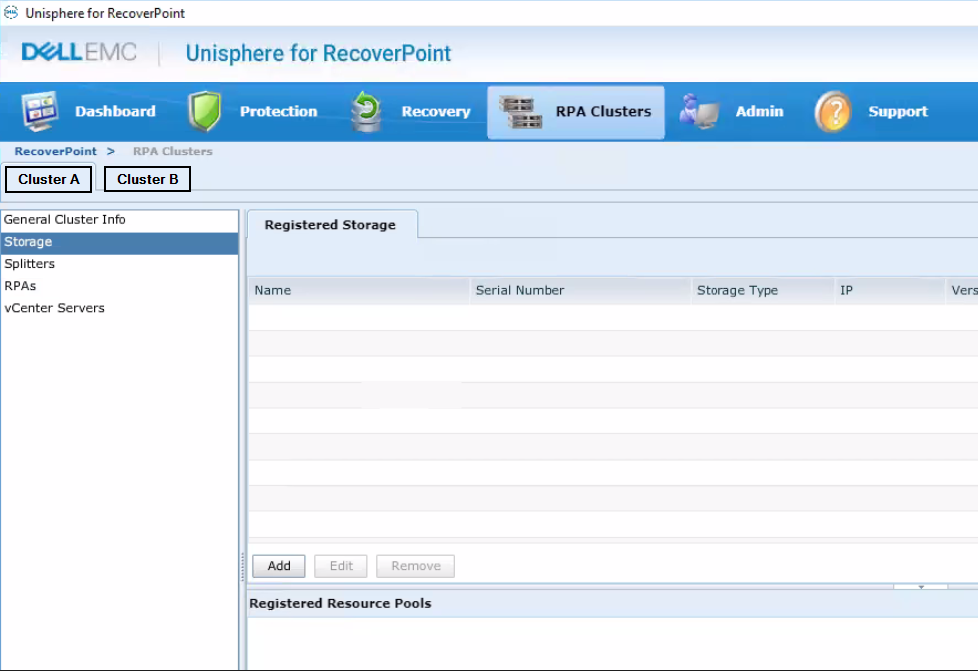

Informazioni di Unisphere che non mostrano dettagli sullo storage registrato per i cluster RPA
Figura 1. Informazioni di Unisphere che non mostrano dettagli sullo storage registrato per i cluster RPA

Nei dettagli dello storage, dovrebbero essere presenti informazioni di storage (il tipo di dispositivi di storage può variare a seconda dell'ambiente).

Cause

Durante l'analisi dei log di RecoverPoint, è possibile visualizzare le seguenti voci:
Log location /home/kos/control/result.log.gz and /home/kos/mirror/result.log.gz:


2023/01/18 09:07:59.452 - #1 - 6819/6148 - ScsiInitiator: handle_input: TIMEOUT path = (0x500124800ac04a03,0x5001248000205a03,0xbbbbbbbbbb01bbbb,e_fiberChannel)
2023/01/18 09:07:59.453 - #2 - 7058/6148 - MultiPath: MPVolumeConnectedState::handleBadPath removing path (0x500124800ac04a03,0x5001248000205a03,0xbbbbbbbbbb01bbbb,e_fiberChannel)0xaaaabee482eb0101 (StorageType=KBOX, revision= a_volume = 0xaaaabee482eb0101 (StorageType=KBOX, revision=
2023/01/18 09:07:59.453 - #2 - 7058/6148 - MultiPath: PathSwitcher::removePath (0x500124800ac04a03,0x5001248000205a03,0xbbbbbbbbbb01bbbb,e_fiberChannel)0xaaaabee482eb0101 (StorageType=KBOX, revision= i = 0


Log location /home/kos/klr/result.log.gz:


2023/01/18 04:39:29.122 - sll - 0/0 - #2 - hba_0_0: sll_status_entry: CS_PORT_LOGGED_OUT status detected - removing target_index 0 wwn 5001248000205a03 from pdb
2023/01/18 04:39:29.122 - sll - 4253/4004 - #2 - hba_0_0: sll_handle_els_24xx: PRLI adding port_id: 0x0e3e00 wwn: 0x5001248000205a03 nphl: 0x0000
2023/01/18 04:39:29.122 - sll - 4253/4004 - #2 - hba_0_0: add_nphl_to_logins: added port_id: 0x0e3e00 wwn: 0x5001248000205a03 nphl: 0x0000 at idx: 3646 hash 3646
2023/01/18 04:39:29.123 - sll - 0/0 - #2 - hba_2_0: sll_status_entry: CS_PORT_LOGGED_OUT status detected - removing target_index 0 wwn 5001248000205a03 from pdb
2023/01/18 04:39:29.124 - sll - 0/0 - #2 - hba_2_0: sll_handle_els_24xx: PRLI adding port_id: 0x0e3e00 wwn: 0x5001248000205a03 nphl: 0x0000
2023/01/18 04:39:29.124 - sll - 0/0 - #2 - hba_2_0: add_nphl_to_logins: added port_id: 0x0e3e00 wwn: 0x5001248000205a03 nphl: 0x0000 at idx: 3646 hash 3646
2023/01/18 04:39:43.108 - sll - 4414/4004 - #2 - hba_0_0: sll_fabric_login: trying fabric login loop_id=133 for port=0xe3e00 wwn=0x5001248000205a03 timeout=4 timeout_reset=0
2023/01/18 04:39:43.108 - sll - 4414/4004 - #2 - pdb: hba_0_0: sll_fabric_attempt_to_add_to_pdb: device returned loop_id 0 for port_id 0xe3e00 wwn=0x5001248000205a03 - retry login
2023/01/18 04:39:43.108 - sll - 4414/4004 - #2 - hba_0_0: sll_fabric_login: trying fabric login loop_id=0 for port=0xe3e00 wwn=0x5001248000205a03 timeout=4 timeout_reset=0
2023/01/18 04:39:43.108 - sll - 4414/4004 - #2 - hba_0_0: add_nphl_to_logins: added port_id: 0x0e3e00 wwn: 0x5001248000205a03 nphl: 0x0000 at idx: 3646 hash 3646
2023/01/18 04:39:43.108 - sll - 4414/4004 - #2 - pdb: hba_0_0: sll_fabric_attempt_to_add_to_pdb: new loop_id=0 for port_id=0xe3e00 wwn=0x5001248000205a03 bInUse=1
2023/01/18 04:39:43.110 - sll - 4414/4004 - #2 - hba_2_0: sll_fabric_login: trying fabric login loop_id=133 for port=0xe3e00 wwn=0x5001248000205a03 timeout=4 timeout_reset=0
2023/01/18 04:39:43.110 - sll - 4414/4004 - #2 - pdb: hba_2_0: sll_fabric_attempt_to_add_to_pdb: device returned loop_id 0 for port_id 0xe3e00 wwn=0x5001248000205a03 - retry login
2023/01/18 04:39:43.110 - sll - 4414/4004 - #2 - hba_2_0: sll_fabric_login: trying fabric login loop_id=0 for port=0xe3e00 wwn=0x5001248000205a03 timeout=4 timeout_reset=0
2023/01/18 04:39:43.110 - sll - 4414/4004 - #2 - hba_2_0: add_nphl_to_logins: added port_id: 0x0e3e00 wwn: 0x5001248000205a03 nphl: 0x0000 at idx: 3646 hash 3646
2023/01/18 04:39:43.110 - sll - 4414/4004 - #2 - pdb: hba_2_0: sll_fabric_attempt_to_add_to_pdb: new loop_id=0 for port_id=0xe3e00 wwn=0x5001248000205a03 bInUse=0
2023/01/18 04:39:49.163 - sll - 3794/3794 - #2 - hba_2_0: PDB_RemoveDevicesNotInNS: wwn 0x5001248000205a03 port_id 0x0e3e00 loop_id 0 not in ns - remove it from PDB
2023/01/18 04:39:49.164 - sll - 3792/3792 - #2 - hba_0_0: PDB_RemoveDevicesNotInNS: wwn 0x5001248000205a03 port_id 0x0e3e00 loop_id 0 not in ns - remove it from PDB
2023/01/18 04:39:49.201 - sll - 4593/4004 - #2 - sll_ioctl_set_kbox_paths: path: 0 can't be resolved for (hba: 0:ffff8807fa700000, vp: 0, wwn: 0x5001248000205a03)

2023/01/18 04:25:24.143 - sll - 25719/25719 - #2 - hba_2_0: sll_status_entry: CS_PORT_LOGGED_OUT status detected - removing target_index 0 wwn 5001248000205a03 from pdb
2023/01/18 04:39:29.122 - sll - 0/0 - #2 - hba_0_0: sll_status_entry: CS_PORT_LOGGED_OUT status detected - removing target_index 0 wwn 5001248000205a03 from pdb
2023/01/18 04:39:29.123 - sll - 0/0 - #2 - hba_2_0: sll_status_entry: CS_PORT_LOGGED_OUT status detected - removing target_index 0 wwn 5001248000205a03 from pdb
2023/01/18 04:15:40.607 - sll - 0/0 - #2 - hba_2: sll_handle_ctio_ret: WARNING: ctio failed(status=0x2) cdb=(2a 0 0 0 0 0 0 0 1) timestamp=(time=0 trans=0 data=0) lun=0xbbbbbbbbbbbbbb52 iid=0 initiator=0x5001248000205a03


Log location /spa/EMC/CEM/log/cemtracer_health_services.log:

Line 28: 18 Jan 2023 04:29:02  - [Health] INFO - {0:45928:894976145}[26373|17535|d37feb40][findRuleInRuleVector @ ../../../components/providers/osls/Health/src/Rule.cpp:119] Rule found Rule[ state=0x8000 log=0x140006000a severity=6 health=10 descr=ALRT_INITIATOR_NO_LOGGED_IN_PATH res=initiator_fix_connection]  for 50:01:24:80:00:20:5A:02:50:01:24:80:00:20:5A:03 OperationalStatus: 0x8000
I registri indicano che si è verificato un problema di comunicazione delle porte.

Esaminando il fabric, risulta che una porta sta affrontando problemi di connettività:
Interrupts:        13003      Link_failure: 10         Frjt:         0

Unknown:           0          Loss_of_sync: 0          Fbsy:         0

Lli:               13003      Loss_of_sig:  60

Resolution

Soluzione:
Per risolvere il problema di connettività delle porte, cercare i problemi relativi al cavo o all'SFP e sostituirli.

Risoluzione:
Non sono necessarie modifiche a livello di RecoverPoint, in quanto il problema è causato da problemi di connettività.

Affected Products

RecoverPoint Gen6 Server
Article Properties
Article Number: 000208648
Article Type: Solution
Last Modified: 20 Sep 2023
Version:  4
