NetWorker: NMM 9.1.0.x installation Error 0x80070643: Failed to execute MSI package

Summary: NetWorker: NetWorker Module for Microsoft 9.1.0.x installation issue [Error 0x80070643: Failed to execute MSI package]

This article applies to This article does not apply to This article is not tied to any specific product. Not all product versions are identified in this article.
Check out other resources

Symptoms

There is an issue with the NetWorker module for Microsoft installation or upgrade in the following environment.

  • NetWorker Server v8.2.3.8
  • NetWorker Client v8.2.1.7 upgrade 8.2.4.4, and later upgrade to 9.1.0.5. (Client + NMM)


ERROR CODE:

[7BB8:6648][2017-04-14T00:27:27]e000: Error 0x80070490: BAImpl::OnExecutePackageBegin GetVariableNumeric(StartServices, ...) error!
[7F38:4FD0][2017-04-14T00:27:27]i301: Applying execute package: NMM.msi, action: Modify, path: C:\ProgramData\Package Cache\{B4EEE00F-31E0-4CE3-BF61-8B7500CBCA6D}v9.1.0.4\NMM.msi, arguments: ' ARPSYSTEMCOMPONENT="1" MSIFASTINSTALL="7" RPVNMM_FEATURE="1" NW_SSMS_FEATURE="0" CONFIGFIREWALL="1" INSTALLLEVEL="200" SP_GLR="0" SQL_GLR="0" MOUNTPOINTDIR="C:\Program Files\EMC NetWorker\nsr\tmp\nwfs\NetWorker Virtual File System" HYPERVMOUNTPOINTDIR="C:\Program Files\EMC NetWorker\nsr\tmp" BBBMOUNTPOINTDIR="C:\Program Files\EMC NetWorker\nsr\tmp\BBBMountPoint" SETUPTYPE="Install" INSTCLIENTPUSH="0" ENABLESQLSSMSPLUGINBACKUPTAB="0" ENABLESQLSSMSPLUGINSCRIPT="0" PROXY_RA_PORT="50000" ITEMPOINTVERSION="8.2-RC2" ISUIINSTALL="1" REINSTALL="" ADDLOCAL="RpvNmm_Feature" REMOVE="BurnFlip"'
[7F38:4FD0][2017-04-14T00:27:31]e000: Error 0x80070643: Failed to run maintanance mode for MSI package.
[7F38:4FD0][2017-04-14T00:27:31]e000: Error 0x80070643: Failed to execute MSI package.
[7BB8:6648][2017-04-14T00:27:31]e000: Error 0x80070643: Failed to configure per-machine MSI package.
[7BB8:6648][2017-04-14T00:27:31]i319: Applied execute package: NMM.msi, result: 0x80070643, restart: None
[7BB8:6648][2017-04-14T00:27:31]e000: Error 0x80070643: Failed to execute MSI package.
[7BB8:6648][2017-04-14T00:27:31]e000: Error 0x80070490: BAImpl::OnExecutePackageBegin GetVariableNumeric(StartServices, ...) error!

Cause

Due product installation change in NetWorker 9.X the NetWorker Extended client installation is required before NetWorker Module for Microsoft installation and configuration.

Resolution

PROCEDURE:

  • Uninstall NMM + NetWorker client 8.2.4.X from SQL node
  • Install the NetWorker client + NetWorker Extended package.

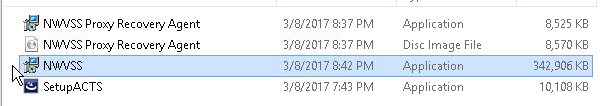

programs and features



After installation, the packages will be reported in programs and features:

programs and features



After get installed, this will be reported in programs and features:

programs and features

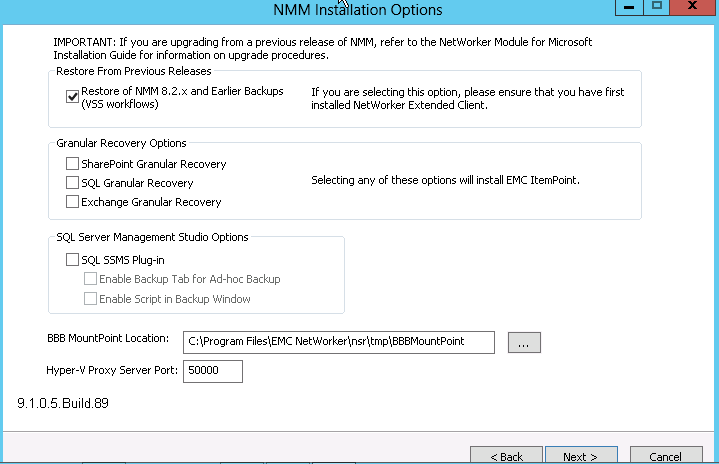

NVM installation Options

For more information check NetWorker Module for Microsoft Page:

Affected Products

NetWorker Module for Microsoft

Products

NetWorker Module for Microsoft
