Troubleshooting Light Leakage or Light Bleeding on a Dell Monitor or Laptop LCD Screen

Summary: This article provides information about how to identify and troubleshoot light leakage or backlight bleeding on any Dell Monitor or Dell laptop LCD screen.

This article may have been automatically translated. If you have any feedback regarding its quality, please let us know using the form at the bottom of this page.

Article Content


Symptoms



Identifying a light issue with your Monitor or Laptop Screen



Light leak or backlight bleeding is often noticeable around the edges or the sides of a screen. Especially while it is displaying a dark background or is in a dark environment.

Ideally, light leakage must not be inspected in a dark room. All Dell monitors are inspected as per industry standard with 150-Lux ambient lighting (similar to typical office lighting). However, for gaming monitors, ambient lighting is 70 Lux. Any visual inspection must be done in the same manner to help with the troubleshooting process.

NOTE: This article provides information about common issues that are seen on LCD screens. It is not something specific to a particular Dell computer but is something that can be seen on any LCD screen by any manufacturer.


Before proceeding to the troubleshooting section of this article, you must identify the issue that you are experiencing. Identify the light leak or light bleed issue using the examples below and ensure that this is the correct article for you.

If not, see the links to related information in the section below to find other helpful resources.


Back to Top



Cause

These issues can be seen on either LCD Monitors or laptop LCD screens:

  • Light leaks from the corners. (figure.1)

    SLN304886_en_US__2Light_Leak_Corners_BK
    Figure 1: Example of a light leak from the corners.

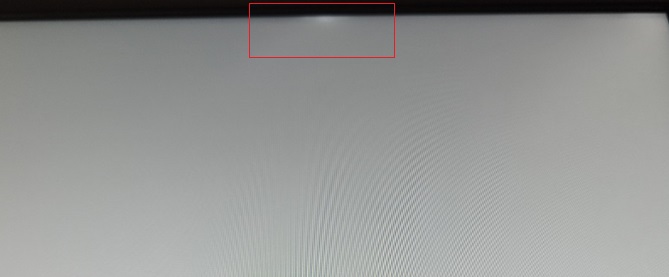

  • Light leaks from the center of the top and bottom edges. (Figure.2)

    SLN304886_en_US__3Light_Leak_TopBottom_BK
    Figure 2: Example of a light leak from the center of the top and bottom edges.

  • The entire screen is lit with light from the center of each edge. (Figure.3)

    SLN304886_en_US__4Light_Leak_Centres_BK
    Figure 3: Example of light leak from the middle of each side.

  • Multiple leaks along the bottom edge of the screen. (Figure.4)

    SLN304886_en_US__5Light_Leak_Bottom_BK

    Figure 4: Example of multiple light leaks along the bottom edge.

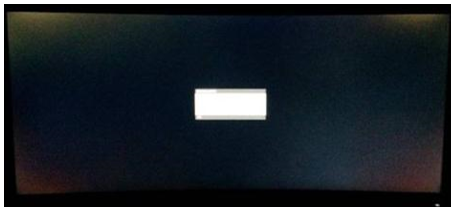

Some Dell Gaming or Alienware monitors may have some light leakage or backlight bleeding when used in a dark environment. This is NOT specific to Dell Gaming or Alienware monitors but is a common issue that is seen on monitors from any manufacturer. The following is an example of light leakage (Figure 5).

Dell Monitor with Light Leakage

(Figure.5 Dell Gaming Monitor - Light Leakage)

Dell inspects its gaming monitors for light leakage. It is in an environment with ambient light of 70 Lux according to industry standards (normal ambient light levels in a home are around 150 Lux). If the monitors are used in a dark environment with ambient light less than 70 Lux, some light leakage may be seen.


Back to Top


Resolution

To troubleshoot a light leak or light bleed issue with your Dell monitor or laptop screen:

  1. If you change the brightness level of the screen, does it change what is happening on the screen?

    • If it does, then it could be a settings issue with how you have configured the screen.

    • If it does not, go to the next step.

  2. Check the screen with a bright application (such as Microsoft Office) open, something with a bright background. Do you see the same issue? (take an image that you can use to illustrate what the issue looks like to another person.)

    • If you cannot, it could be an issue with the brightness level in your screen settings.

    • If you can, take an image using your mobile phone and go to the next step.

  3. Compare the screen to other monitors or screens of the same model. Put a similar image on both screens (preferably not a dark or mostly black image). Is one screen notably worse than the other?

    • If the screens do not show any appreciable difference, then the issue is more likely to be with the users perception than any real technical issue.

    • If the screens do show that your screen is appreciably worse than another similar screen, then contact Dell Technical Support. If possible, provide an image of the fault, so that the Dell technician can further assist you.

NOTE: Some light leakage is to be expected when viewing images with dark backgrounds in dark rooms. These monitors are working as designed and are within specifications.


Items that should be returned with a warranty monitor replacement.

List of Dell Gaming or Alienware monitors can be found here: Dell Gaming Monitor Frequently Asked Questions

Back to Top


Additional Information

Helpful links: Dell knowledge base articles that can help troubleshoot and resolve display or video related issues with your Dell monitor or Dell laptop LCD screen.


Monitor icon More information and support for your Dell monitor, desktop, laptop, or tablet screen can be found on our Monitor Support site.


Out of Warranty support Out of warranty? No problem. Browse to the Dell.com/support website and enter your Dell Service Tag and view our offers.

NOTE: Offers are only available for US, Canada, UK, France, Germany, and China personal computer customers. Server and Storage not applicable.
