Article Number: 000121530

Connectrix: How to collect Brocade Supportsave logs using SANnav, CLI, and Brocade USB

Summary: Connectrix: How to collect Brocade Supportsave logs using SANnav, CLI, and Brocade USB.

This article may have been automatically translated. If you have any feedback regarding its quality, please let us know using the form at the bottom of this page.

Article Content

Symptoms

Provide instructions and examples on how to properly collect a Brocade Supportsave using SANnav UI, SSH (CLI), and Brocade USB.

User is unfamiliar with the process on how to collect Brocade Supportsave.

Cause

Not required

Resolution

Collecting Switch Supportsave using SANnav:


  1. Select SANnav > Services > Supportsave Management

Selecting Supportsave from the menu

  1. The Supportsave Management dialog box is displayed. Select all or individual switches to generate Supportsave.

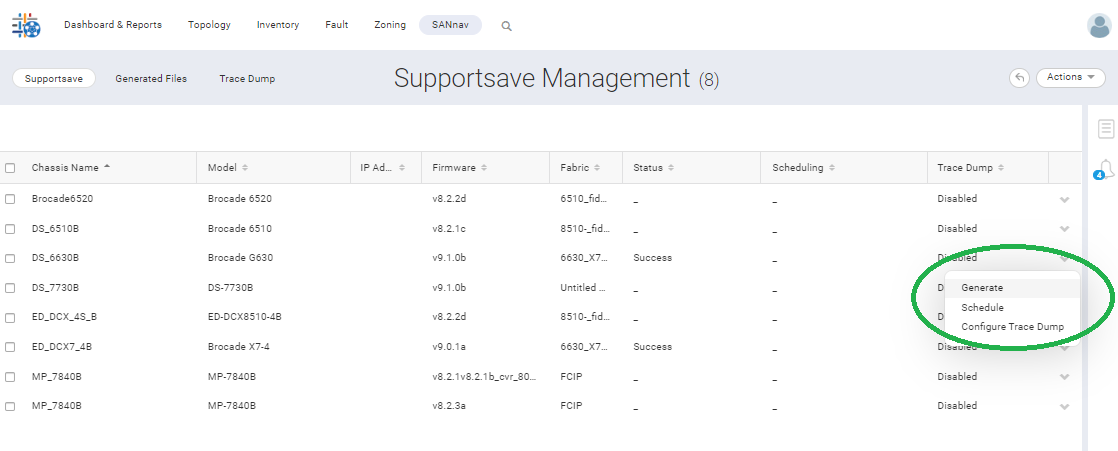

    1. Select the drop-down arrow on the right of the switch and select Generate to collect individual switches

Generate individual switches

    1. Check the box on the left next to Chassis Name and select Generate from the Action dropdown box to collect all switches

Generate all switches

  1. Once Generate is selected, the Generate Supportsave dialog box opens with several options for the user to select:

1 - Select the desired protocol               => SFTP / SCP

2 - FRU Dump:                                 => only FRU dump data will be collected.

3 - Include prefix to the file name:          => Can add for example datacenter name, or any other prefix.

4 - Upload Generated file after completion:   => Can automatically upload the file to FTP / SFTP / SCP site.

5 - Use password to protect file:             => Can give the compressed file a password if needed.

6 - Reset Counter:                            => Reset the counters on the switch AFTER the collection.

Generate Supportsave options

  1. Once the Supportsave is started, the status on the Supportsave Management dialog box shows the progress under the Status column

Supportsave status

  1. When the generation off the Supportsave is finished, under the same dialog box on the Generated Files tab, the collected Supportsave is seen. Using the drop-down box on the right, download the collected Supportsave to the local system for further processing.

Download collected Supportsave

Video:How to collect Connectrix Brocade Supportsaves using SANnav

Watch on Youtube

Collecting Switch SupportSaves using the Fabric OS CLI:


Note: This requires an internal File transfer protocol (FTP) or Secure Copy Protocol (SCP) server on the same IP network as the switches or there must be a route in the IP network that can connect to the FTP or SCP server.
  1. Log in to the switches using the user account on telnet or SSH
  2. At the command prompt, type the below CLI command for interactive usage
supportsave
  1. Answer the prompts that follow:
    1. Give the IP address of the FTP server
    2. Provide the username and password for the FTP server
    3. Select a protocol (such as FTP)
    4. Remote directory on the FTP server where you want to dump the files to
Note: If there are saved parameters using the supportftp command, run supportsave with those saved parameters using the "supportsave -c" command.

Example:
#> supportsave


This command collects RASLOG, TRACE, supportShow, core file, FFDC data, and other support information from both active and standby CPs and then transfers it to an FTP, SCP, or SFTP server or a USB device. Local CP, remote CP, and BPs' information is saved, but Supportshow information is available only on the Active CP. This operation can take several minutes.


Note: Supportsave transfers existing trace dump files first, then automatically generates and transfers the latest one. There are two trace dump files transferred after this command.

OK to proceed? (yes, y, no, n): [no] y

Host IP or Host Name: 10.10.10.10 (IP address of FTP/SCP server)
User Name: anonymous (user name used to login to the FTP/SCP server)
Protocol (ftp | scp | sftp): ftp
Remote Directory: /temp (folder in the root directory of the FTP/SCP server that you want to dump the files to.)

Saving support information for switch:Brocade, module:RAS...


Collecting Switch Supportsave using Brocade label USB:


Note: Prior to Fabric OS version 9.0, you MUST use a Brocade labeled USB as it has a special file system. This does not work with any other USB. Also, from Fabric OS version 9.0 and later, generic USB Drives are supported. See the release notes for the recommended generic branded USB drives.
  1. Mount the USB using the CLI command:
usbstorage  e
  1. List out the USB contents using the CLI command:
usbstorage  l
  1. Run the Supportsave command to create a folder and dump the files in using the CLI command:
supportsave -U -d <directory>
  1. List out the USB contents using the CLI command to confirm all the files are there. It is under the root folder called Support.
usbstorage  l
  1. Disable the USB drive using the below command and remove it from the switch:
usbstorage  d

  1. Once the log files are collected in a place where they can be transmitted to Dell, compress them.



Switch Supportsave has the filename format of:
<Switchname>-<SlotCP#>-<YearMonthDayTime>.Filename.Extension

Example:

#> usbstorage -e
Trying to enable USB device. Please wait...
USB storage enabled
#> usbstorage -l
firmware\               1775MB   2009 May 20 13:05
  v6.4.2a\              900MB    2012 Mar 09 18:31
  v6.3.1b\              875MB    2012 Feb 21 17:16
config\                 0B       2009 May 20 13:05
support\                0B       2009 May 20 13:05
firmwarekey\            0B       2009 May 20 13:05
cryptocfg\              1kB      2013 Jan 22 16:40
  bes_CPcert.pem        1kB      2013 Jan 22 16:40
Available space on usbstorage 4%

#> supportsave -U -d support
Saving support information for switch:ES_5832B, module:RAS...
.....................................
Saving support information for switch:ES_5832B, module:AP_SS...

#> usbstorage -l
firmware\               1775MB   2009 May 20 13:05
  v6.4.2a\              900MB    2012 Mar 09 18:31
  v6.3.1b\              875MB    2012 Feb 21 17:16
config\                 0B       2009 May 20 13:05
support\                0B       2009 May 20 13:05
                support\
                                ES_5832B-S0bp-201311251742.support.tar
                                [output truncated..]
firmwarekey\            0B       2009 May 20 13:05
cryptocfg\              1kB      2013 Jan 22 16:40
  bes_CPcert.pem        1kB      2013 Jan 22 16:40
Available space on usbstorage 4%

#> ...usbstorage -d
USB storage disabled

Additional Information

If there is a possibility that Supportsave must be collected using the End of Support life product Connectrix Manager Converged Network Edition (CMCNE), follow the steps below:


Collecting Switch Supportsave using CMCNE:

  1. Select Monitor > Technical Support > Product/Host Supportsave

Menu for collecting Supportsave using CMCNE

The Technical Supportsave dialog box displays

  Technical Supportsave dialog box opens

  1. The ability to move over the entire fabrics or individual switches is available.

Use arrows to move switches or fabrics

  1. After moving the switches over to the right menu, click OK to start the gathering process. A new window opens with the progress for each switch.

Click OK to start gathering process
