How to Collect Logs for Secureworks Red Cloak Endpoint Agent

This article discusses the methods for collecting the Secureworks Red Cloak Endpoint agent logs.

Affected Products:

• Secureworks Red Cloak Endpoint

Affected Operating Systems:

• Windows
• Linux

Click either Windows or Linux for the log collection process.

Windows

A user can troubleshoot the Secureworks Red Cloak Endpoint agent by manually collecting:

• Install logs: Used to troubleshoot installation issues.
• Agent logs: Used to troubleshoot activation, communication, and behavior issues.

Click the appropriate logging type for more information.

Install logs

1. Right-click the Windows start menu and then click Run.

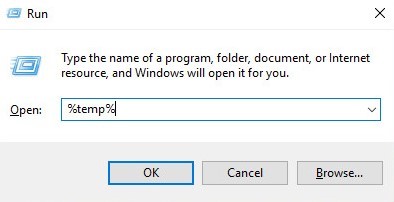

2. In the Run UI, type %temp% and then click OK.

   Note: %temp% is the Windows variable for C:\Users\[USERNAME]\AppData\Local\Temp.
3. Capture the MSI logs named MSI<XXXXX>.LOG.

   Note: <XXXXX> represents randomly generated letters and numbers.

Agent logs

1. Create a temporary log folder that is titled Logs.
2. Right-click the Windows start menu and then click Run.

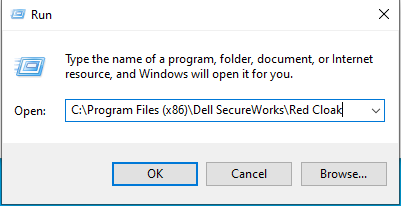

3. In the Run UI, type C:\Program Files (x86)\Dell SecureWorks\Red Cloak and then click OK.

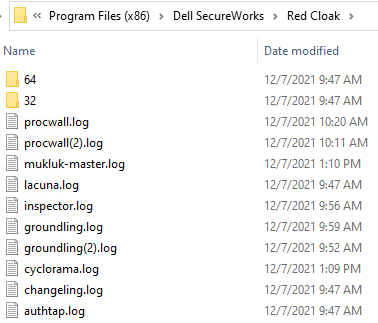

4. Sort by type to display all .log files.

5. Copy all .log and .dmp files to the Logs folder (Step 1).
6. Right-click the Windows start menu and then click Run.

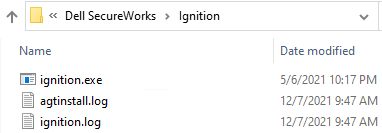

7. In the Run UI, type C:\Program Files (x86)\Dell SecureWorks\Ignition\ and then click OK.

8. Copy all .log files to the Logs folder (Step 1).

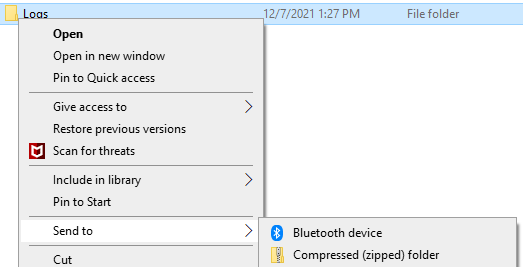

9. Right-click the Logs folder from Step 1, select Send to, and then click Compressed (zipped) folder.


Linux

A user can troubleshoot the Secureworks Red Cloak Endpoint agent by manually collecting:

• Install logs: Used to troubleshoot installation issues.
• Agent logs: Used to troubleshoot activation, communication, and behavior issues.

Click the appropriate logging type for more information.

Install logs

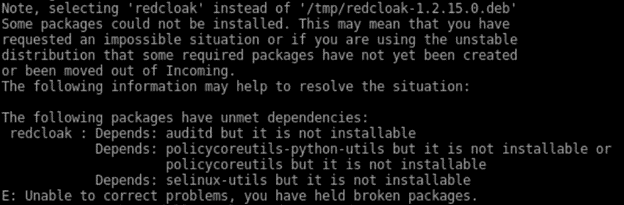

When installation is run on a Linux endpoint, any errors are displayed as text on the screen. There are no log files to be collected.

Agent logs

To successfully offload logs, the Secureworks Red Cloak Endpoint agent requires:

• A third-party FTP (file transfer protocol) client
  • Examples of an FTP client include (but are not limited to):
    • Filezilla
    • WinSCP
    • CuteFTP
• A storage device (outside of the Linux server)

1. In the FTP client, log in with an FTP user to the Linux server.

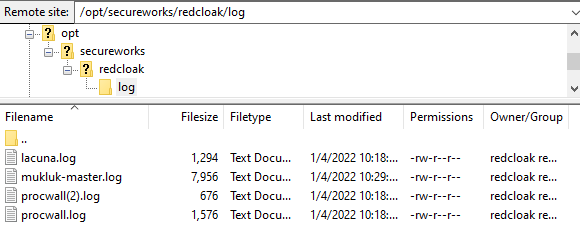

2. Go to /opt/secureworks/redcloak/log and then save all files from that folder locally.

To contact support, reference Dell Data Security International Support Phone Numbers.
Go to TechDirect to generate a technical support request online.
For additional insights and resources, join the Dell Security Community Forum.
