NetWorker: Workflow status shows "Message bus unable to open socket connection"
Summary:
NetWorker Management Console (NMC) Monitoring displays Status "Never Run" for policies even though jobs are completed. A message appears stating "Message bus unable to open socket
connection to host '' on port 5672: request timed out" when attempting to review workflow status.
...
This article applies to
This article does not apply to
This article is not tied to any specific product.
Not all product versions are identified in this article.
Symptoms
- The NetWorker Management Console (NMC) Monitoring window shows all policies as "Never Run"

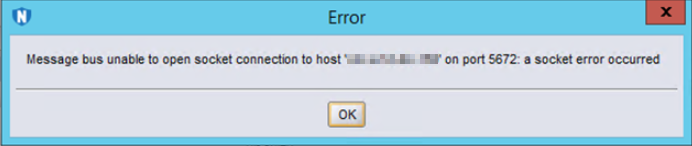

; however, backup and clone jobs completed as per schedule. - The following error appears in the NMC when trying to retrieve workflow details from the Monitoring tab:
Message bus unable to open socket connection to host "Networkerserver_hostname" on port 5672: a socket error occurred
- NetWorker server is 19.5 or older. Port 5672 is the non-SSL port used by the message queue process. Newer versions of NetWorker use SSL port 5671.
Cause
A firewall is blocking port 5671.
Resolution
NetWorker: How to disable port 5672 for DSA-2018-120, to avoid scanning software still showing the vulnerability
Open port 5671 on your NetWorker server operating system or network firewall. Once the firewall allows this port, the NMC reports the correct information in the Monitoring window.
NetWorker Processes and Ports
The rabbitmq process on the NetWorker server uses port 5671. The NetWorker processes use this port/service to relay information between each other and present them in the NetWorker user interfaces.
See operating system vendor instructions for creating firewall rules; The system/security administrator must make these changes. Once changes are applied to the operating system firewall, confirm if port 5672 connectivity succeeds between the NetWorker server and NMC server. If the connection still fails, ensure that a network firewall is not blocking the communication.
Open port 5671 on your NetWorker server operating system or network firewall. Once the firewall allows this port, the NMC reports the correct information in the Monitoring window.
NetWorker Processes and Ports
The rabbitmq process on the NetWorker server uses port 5671. The NetWorker processes use this port/service to relay information between each other and present them in the NetWorker user interfaces.
See operating system vendor instructions for creating firewall rules; The system/security administrator must make these changes. Once changes are applied to the operating system firewall, confirm if port 5672 connectivity succeeds between the NetWorker server and NMC server. If the connection still fails, ensure that a network firewall is not blocking the communication.
