PowerProtect: 원래 Data Manager 호스트 이름과 관리자 암호가 올바른지 확인하십시오.

424: Make sure that the original Data Manager Hostname and admin passwords are correct.

2024-05-28T21:40:19.481Z INFO [] [createBackupAsync-1] [][][][TRACE_ID:b63d156d5dedc196;JOB_ID:a372faf8ddd9a08d][] [c.e.d.e.c.s.c.d.r.BackupRepositoryDao.executeCommand(508)] -  executeCommand start cmd=[/opt/emc/boostfs/bin/boostfs, mount, -d, DataDomainIP, -s, SysDR_ppdm, -o, allow-others=true, /data01/server_backups, -l, /opt/emc/boostfs/lockbox/boostfs-serverdr.lockbox]
2024-05-28T21:40:19.612Z WARN [] [createBackupAsync-1] [][][][TRACE_ID:b63d156d5dedc196;JOB_ID:a372faf8ddd9a08d][] [c.e.d.e.c.s.c.u.ExecuteCommand.exec(143)] -
Cannot initialize lockbox


2024-05-28T21:40:19.612Z INFO [] [createBackupAsync-1] [][][][TRACE_ID:b63d156d5dedc196;JOB_ID:a372faf8ddd9a08d][] [c.e.d.e.c.s.c.d.r.BackupRepositoryDao.executeCommand(515)] -  executeCommand end elapsedMilliSecs=131
2024-05-28T21:40:19.612Z ERROR [] [createBackupAsync-1] [][][][TRACE_ID:b63d156d5dedc196;JOB_ID:a372faf8ddd9a08d][] [c.e.d.e.c.s.c.d.r.BackupRepositoryDao.mountFilesystem(1273)] -  SdrException during mounting process removing new mount path and rethrowing exception
2024-05-28T21:40:19.612Z INFO [] [createBackupAsync-1] [][][][TRACE_ID:b63d156d5dedc196;JOB_ID:a372faf8ddd9a08d][] [c.e.d.e.c.s.c.d.r.BackupRepositoryDao.getRepositoryHost(398)] -  Entered getRepositoryHost(String host): host=10.134.110.249
2024-05-28T21:40:19.612Z INFO [] [createBackupAsync-1] [][][][TRACE_ID:b63d156d5dedc196;JOB_ID:a372faf8ddd9a08d][] [c.e.d.e.c.s.c.d.r.BackupRepositoryDao.getRepositoryHost(403)] -  Entered getRepositoryHost(String host, String storageUnitName): host=10.134.110.249, storageUnitName=null
2024-05-28T21:40:19.612Z INFO [] [createBackupAsync-1] [][][][TRACE_ID:b63d156d5dedc196;JOB_ID:a372faf8ddd9a08d][] [c.e.d.e.c.s.c.d.r.BackupRepositoryDao.getRepositoryHost(420)] -  DataDomainIP is NOT a valid UUID, so it must be a host already.
2024-05-28T21:40:19.612Z INFO [] [createBackupAsync-1] [][][][TRACE_ID:b63d156d5dedc196;JOB_ID:a372faf8ddd9a08d][] [c.e.d.e.c.s.c.d.r.BackupRepositoryDao.getRepositoryHost(421)] -  Returning host: DataDomainIP
2024-05-28T21:40:19.612Z ERROR [] [createBackupAsync-1] [][][][TRACE_ID:b63d156d5dedc196;JOB_ID:a372faf8ddd9a08d][] [c.e.d.e.c.s.c.s.i.BackupServiceImpl.createBackup(648)] -  Exception Triggered
com.emc.dpsg.ecdm.cs.serverdr.core.exception.SdrException: SDR_MOUNT_FAILED_WITH_ERROR code=424 reason="Make sure that the original Data Manager Hostname and admin passwords are correct." remediation="none"
	at com.emc.dpsg.ecdm.cs.serverdr.core.exception.SdrExceptionUtils.throwAlways(SdrExceptionUtils.java:85)
	at com.emc.dpsg.ecdm.cs.serverdr.core.dao.repository.BackupRepositoryDao.checkCommandResultsException(BackupRepositoryDao.java:503)
	at com.emc.dpsg.ecdm.cs.serverdr.core.dao.repository.BackupRepositoryDao.executeCommand(BackupRepositoryDao.java:524)
	at com.emc.dpsg.ecdm.cs.serverdr.core.dao.repository.BackupRepositoryDao.mountBoostfs(BackupRepositoryDao.java:1634)
	at com.emc.dpsg.ecdm.cs.serverdr.core.dao.repository.BackupRepositoryDao.mountFilesystem(BackupRepositoryDao.java:1261)
	at com.emc.dpsg.ecdm.cs.serverdr.core.dao.repository.BackupRepositoryDao.mountCorrection(BackupRepositoryDao.java:953)
	at com.emc.dpsg.ecdm.cs.serverdr.core.dao.repository.BackupRepositoryDao.checkMountPoint(BackupRepositoryDao.java:927)
	at com.emc.dpsg.ecdm.cs.serverdr.core.dao.repository.BackupRepositoryDao.checkMountPoint(BackupRepositoryDao.java:554)
	at com.emc.dpsg.ecdm.cs.serverdr.core.service.impl.BackupServiceImpl.initializeDirectoryPaths(BackupServiceImpl.java:719)
	at com.emc.dpsg.ecdm.cs.serverdr.core.service.impl.BackupServiceImpl.createBackup(BackupServiceImpl.java:585)
	at jdk.internal.reflect.GeneratedMethodAccessor643.invoke(Unknown Source)
	at java.base/jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.base/java.lang.reflect.Method.invoke(Method.java:568)
	at org.springframework.aop.support.AopUtils.invokeJoinpointUsingReflection(AopUtils.java:344)
	at org.springframework.aop.framework.ReflectiveMethodInvocation.invokeJoinpoint(ReflectiveMethodInvocation.java:198)
	at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:163)
	at org.springframework.aop.interceptor.AsyncExecutionInterceptor.lambda$invoke$0(AsyncExecutionInterceptor.java:115)
	at java.base/java.util.concurrent.FutureTask.run(FutureTask.java:264)
	at java.base/java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1136)
	at java.base/java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:635)
	at java.base/java.lang.Thread.run(Thread.java:840)

##su -
##cd /opt/emc/boostfs/lockbox
##mkdir BOOSTBCKP
##mv boost* BOOSTBCKP

3. 2단계에서 인용된 오류가 관련이 없는 경우 스토리지 유닛 이름을 기록하여 DR 구성을 확인합니다.
SSH
를 사용하여 DD 터미널에 로그인합니다. 다음 명령을 실행합니다.

mtree list

mtree에 'D' 상태가 표시되면 삭제된 것입니다.
DD 웹 UI의 Data Management -> MTree -> More Tasks -> Undelete로 이동합니다.
삭제를 취소할 mtree를 선택합니다.
그러면 스토리지 유닛도 복원됩니다.

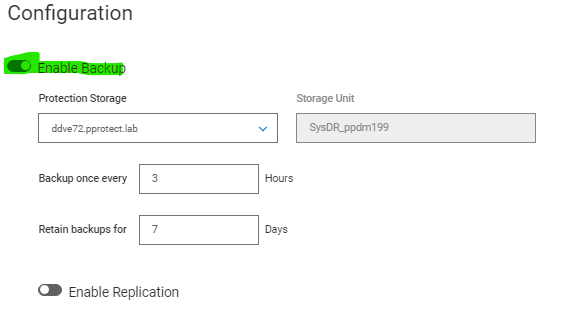

4. PowerProtect Data Manager UI로 돌아가서 Server Recovery를 다시 활성화합니다.
