NetWorker: AD over SSL (LDAPS) NMC Login Fails With "POST failed with HTTP-ERROR: 500"

• You have created an external authority in the NetWorker Management Console (NMC) for Active Directory (AD) using the "LDAP over SSL" option.
• The configuration succeeded, but AD logins fail with "POST failed with HTTP-ERROR: 500" (Internal server error)

• Local NetWorker user accounts (such as the default Administrator account) successfully log in to the NMC.

The LDAP over SSL option defaults an internal configuration parameter "is active directory" to false. This means that the configuration expects LDAP server (Linux based LDAP servers) configuration parameters. Since the values set in the Advanced Configuration Parameters are AD-specific, the login fails.

root@nwserver:~/#: authc_config -u Administrator -e find-all-configs
Enter password:
The query returns 1 records.
Config Id Config Name
3         AD_over_SSL

root@nwserver:~/#: authc_config -u Administrator -e find-config -D config-id=3
Enter password:
Config Id                    : 3
Config Tenant Id             : 1
Config Name                  : AD_over_SSL
Config Domain                : emclab.local
Config Server Address        : ldaps://winsrvr2k16.emclab.local:636/dc=emclab,dc=local
Config User DN               : cn=Administrator,cn=users,dc=emclab,dc=local
Config User Group Attribute  :
Config User ID Attribute     : sAMAccountName
Config User Object Class     : user
Config User Search Filter    :
Config User Search Path      :
Config Group Member Attribute: member
Config Group Name Attribute  : cn
Config Group Object Class    : group
Config Group Search Filter   :
Config Group Search Path     :
Config Object Class          : objectclass
Is Active Directory          : false
Config Search Subtree        : true

There are two options available.

Option 1:

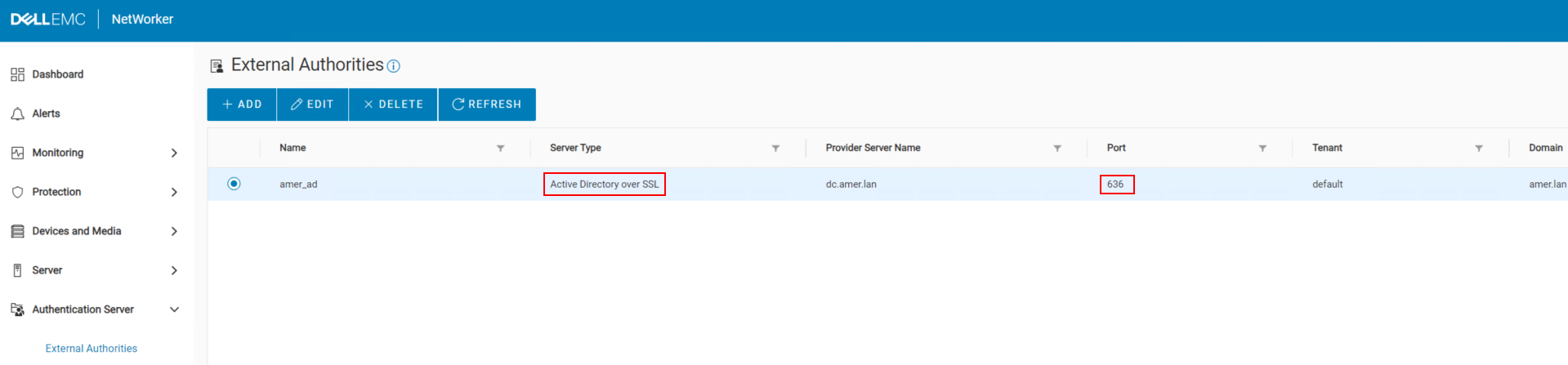

Use the NetWorker Web User Interface (NWUI) update the configuration to use AD over SSL.

6. Enter the User DN Password and click Save.

Option 2:

Update the configuration using the authc_config command to set "is active directory : True"

1. Collect your config id:

authc_config -u Administrator -e find-all-configs

2. Update the "is active directory" value to equal true:

authc_config -u Administrator -e update-config -D config-id=CONFIG_ID -D config-user-dn-password=BIND_ACCOUNT_PASSWORD -D config-active-directory=y

• You are prompted to enter the NetWorker Administrator account password (hidden).
• Replace CONFIG_ID with the config id shown in step 1.
• Replace  BIND_ACCOUNT_PASSWORD with the password for the account used to add AD to NetWorker.

root@nwserver:~/#: authc_config -u Administrator -e find-config -D config-id=3
Enter password:
Config Id                    : 3
Config Tenant Id             : 1
Config Name                  : AD_over_SSL
Config Domain                : emclab.local
Config Server Address        : ldaps://winsrvr2k16.emclab.local:636/dc=emclab,dc=local
Config User DN               : cn=Administrator,cn=users,dc=emclab,dc=local
Config User Group Attribute  :
Config User ID Attribute     : sAMAccountName
Config User Object Class     : user
Config User Search Filter    :
Config User Search Path      :
Config Group Member Attribute: member
Config Group Name Attribute  : cn
Config Group Object Class    : group
Config Group Search Filter   :
Config Group Search Path     :
Config Object Class          : objectclass
Is Active Directory          : true
Config Search Subtree        : true

4. You can confirm authentication by running the following command on your NetWorker server:

nsrlogin -t TENANT_NAME -d DOMAIN -u AD_USER_NAME

• Replace TENANT_NAME with the name of the tenant used in your configuration. Unless you manually created a tenant, the value is default.
• Replace DOMAIN with the domain value set in your configuration.
• Replace AD_USER_NAME with an Active Directory username.
• You are prompted to enter the password for the AD user specified.

Accessing the NetWorker server from the NMC

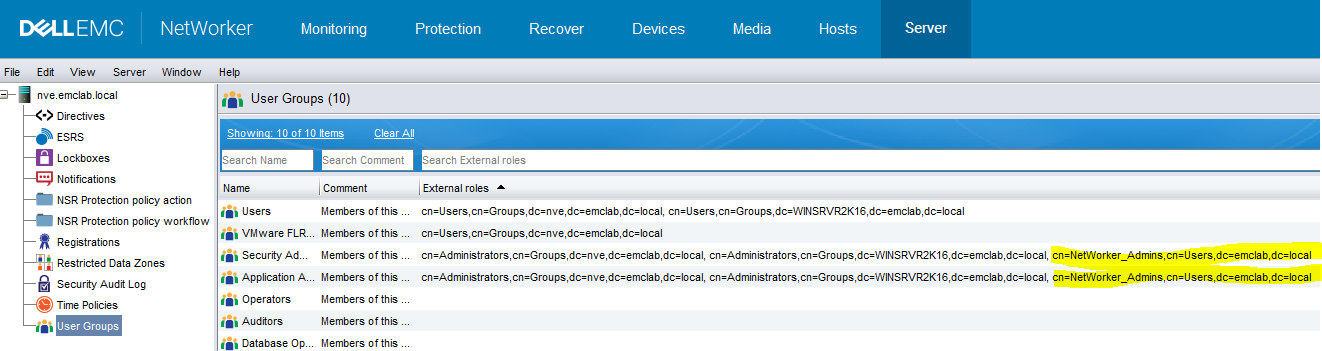

You must set the Distinguished Name (DN) of an AD group in the NMC Roles and NetWorker server User groups before you can log in to the NMC with your AD users. This can be done when logged in with the default Administrator account:
