PowerFlex: How To Collect Logs On Various Platforms In PowerFlex

Below are steps to generate PowerFlex logs for different codes and generations

• PowerFlex Manager Logs  :  Steps for PowerFlex Manager 3.8 or PowerFlex Manager 4.x
• iDRAC TSR logs : Steps for 13G and 14G
• PowerFlex OS Get_info logs : this logs should be generated from primary MDM with admin login
• PowerFlex GW logs
• Cloud Link logs
• VMware Logs

Kindly generate the logs that are only relevant to your problem and your system code

PowerFlex Manager Logs:-

PowerFlex Manager logs collect the entire service details including all the nodes in that service.

• PowerFlex Manager 3.8

Steps to collect logs:-

1. Open PowerFlex Manager UI.

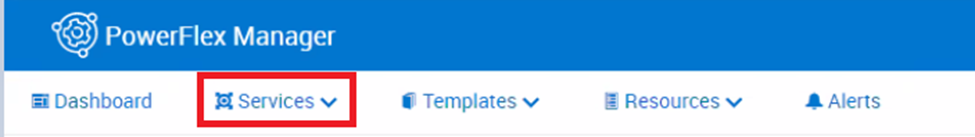

2. Click Services.

3. Select the wanted service.

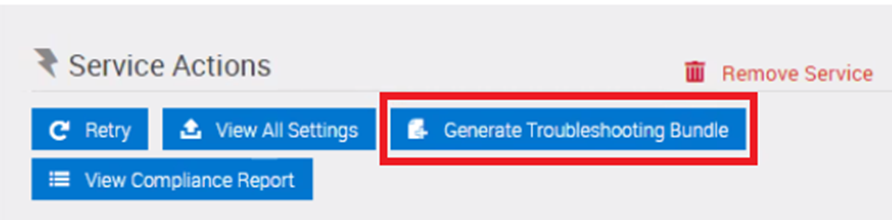

4. Under Service Actions, click Generate Troubleshooting Bundle.

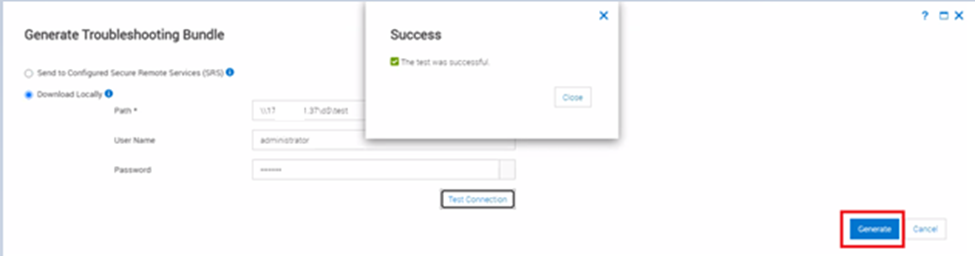

5. Enter the path and press on Test Connection. The test should be successful.
6. Click Generate to download the logs.

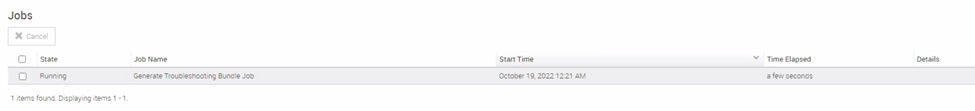

7. Monitor the Job running in PFxM for log collection.

The process takes time according to the size of the service and the number of nodes in it.

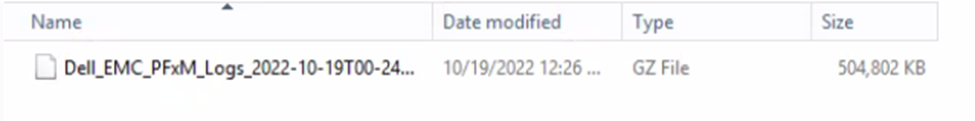

Once finished, the logs appear on the wanted location.

PowerFlex Manager also provides activity logs of user and system-generated actions to use for troubleshooting. By default, log entries display in order of occurrence.
To Export logs, follow the steps below:

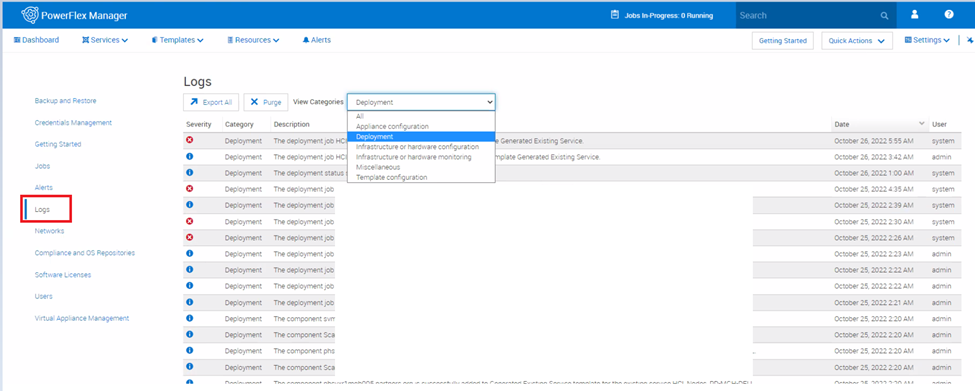

1. On the menu bar, click Settings > Logs.
2. Under View Categories, select the category of logs you want to access.
3. Click Export All. The are logged exported to a CSV file.

• PowerFlex Manager 4.x

Steps to collect PFxM logs

1- Open PFMP UI using IP or FQDN name

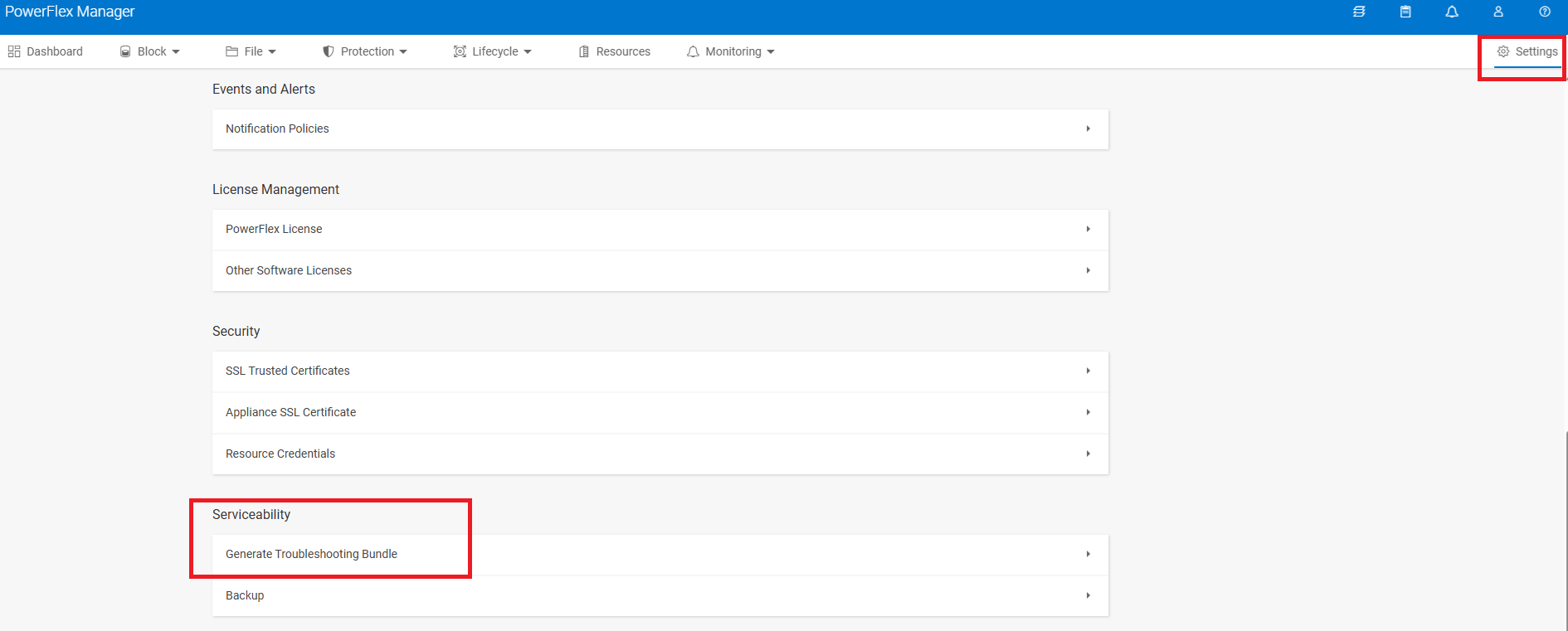

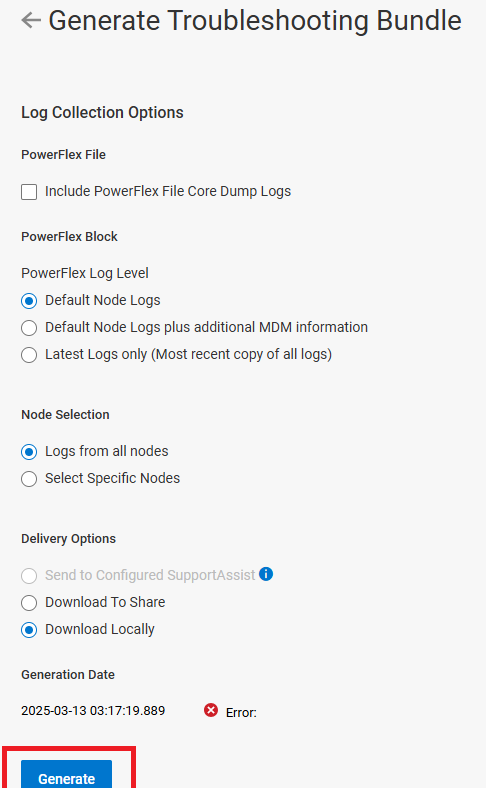

2- Go to Settings => Serviceability => Generate Troubleshooting Bundle

3- Use the default values and Generate

===========================================================================================

• iDRAC server logs:-

13G node SupportAssist Collection and RAID Controller Log
SupportAssist Collection (formally known as Tech Support Report/TSR) and the RAID Controller log provide detailed information about the status of system, firmware, and storage. Especially the RAID log is the most requested report by Dell support for troubleshooting storage issues.
Steps:-

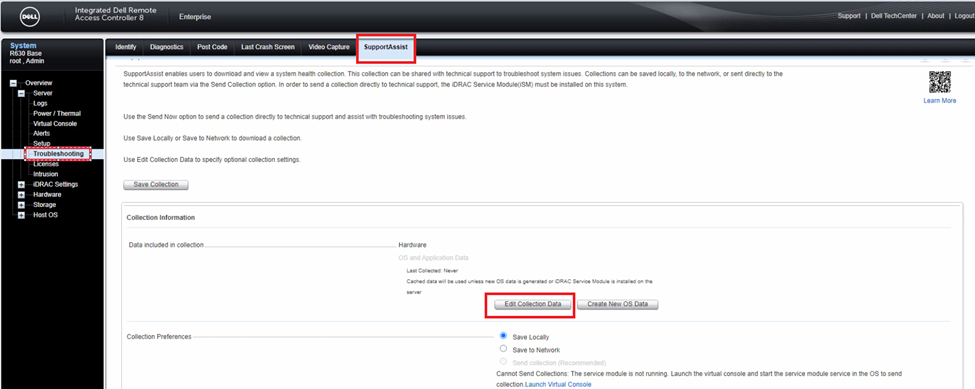

1. Open iDRAC and click Troubleshooting> SupportAssist.

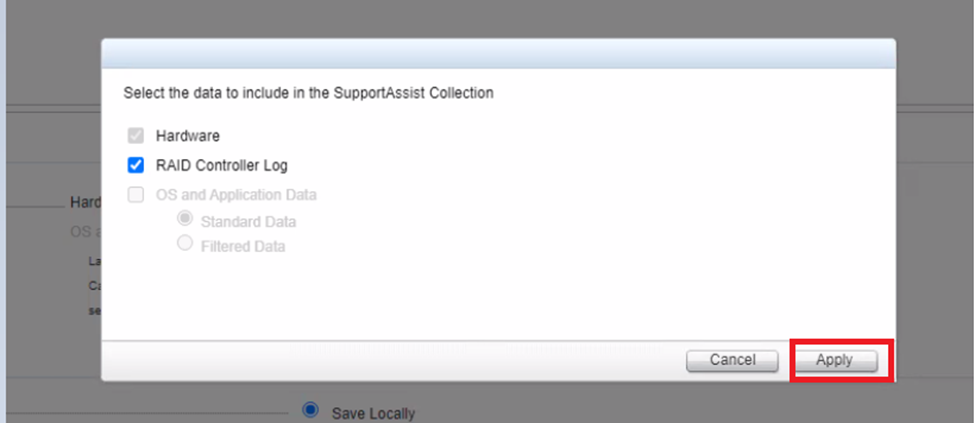

2. Click Edit collection Data and select the data to include in the logs. Either hardware or RAID Controller Log or both and click Apply.

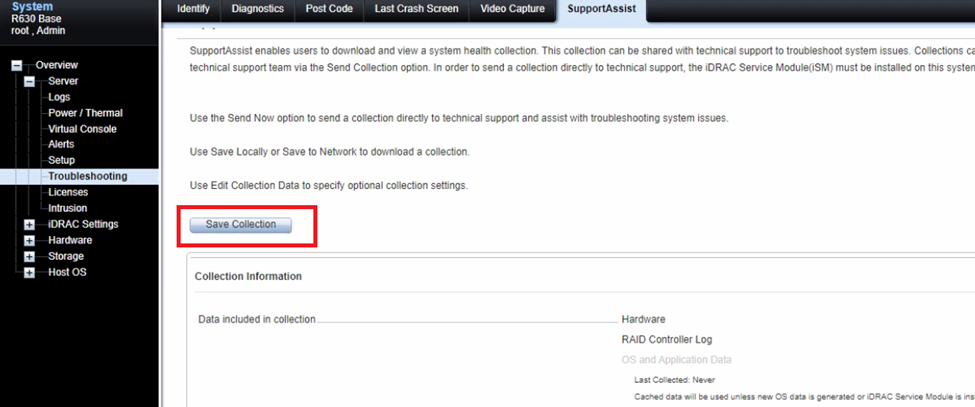

3. Click Save the collection.

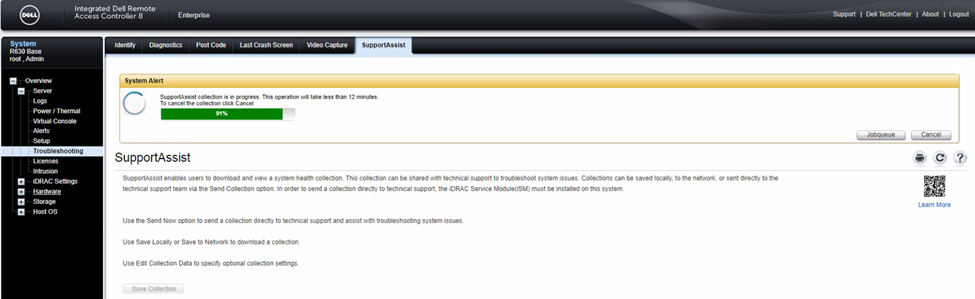

4. Monitor the progress on the same page.

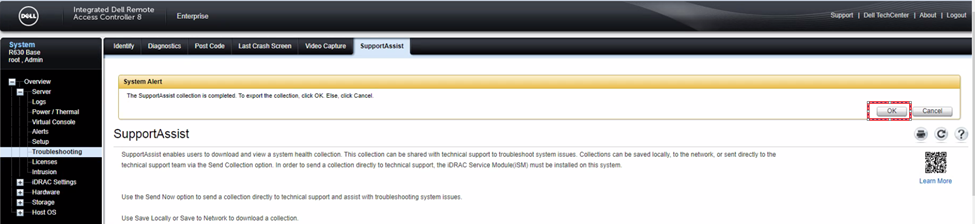

5. Once finished, click OK.

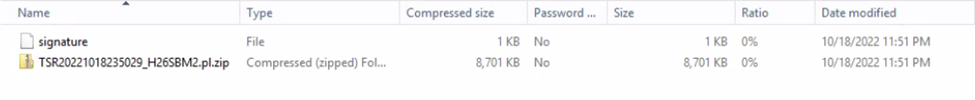

Logs get saved in the default folder.

14G node SupportAssist Collection
Steps:-

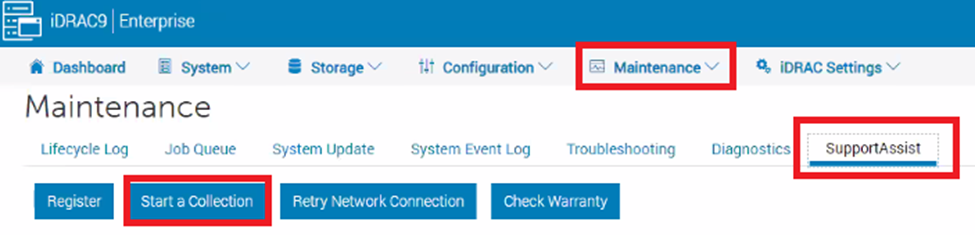

1. Launch the iDRAC UI and click Maintenance tab.
2. Click SupportAssist and press Start a Collection.

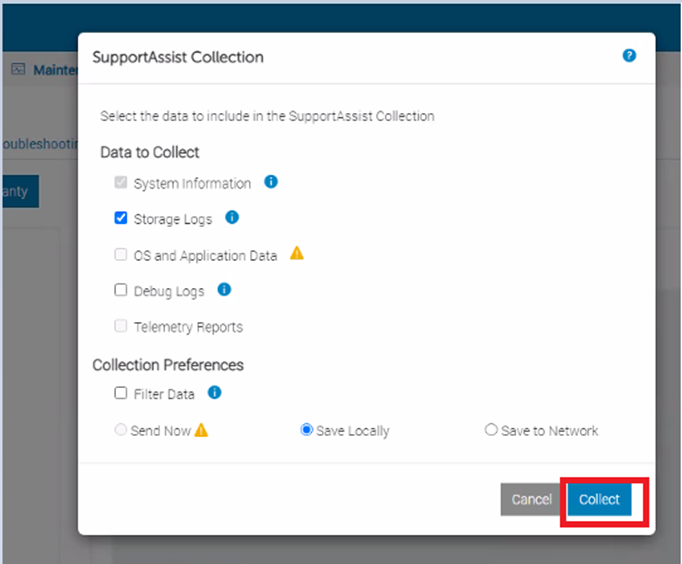

3. Select the Data to Collect and choose your preference and hit Collect.

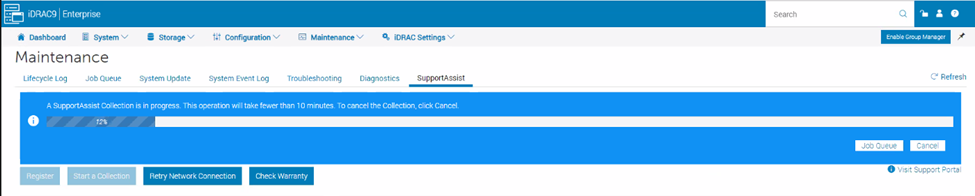

Monitor the progress on top of your screen.

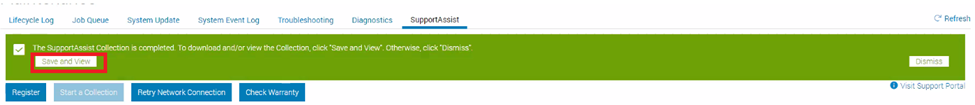

Once completed, click save and view, it is saved at the wanted location.

===========================================================================================

• Get info Logs

Get info logs should be collected from the Primary MDM with admin login and from any impacted SDS node

The steps SDS are:-

1. SSH to SVM IP using root credentials
2. Run /opt/emc/scaleio/sds/diag/get_info.sh
3. Under the username type admin and it starts collecting the logs.

Note: if you are collecting logs from the Primary MDM use the below command path with admin login

/opt/emc/scaleio/mdm/diag/get_info.sh -u admin -p <admin password>

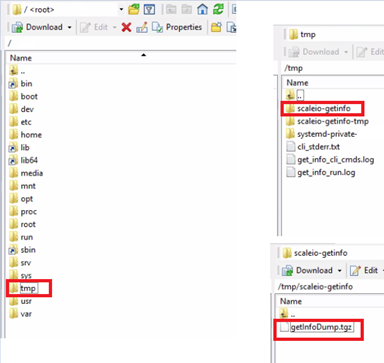

Once completed, logs get stored in the tmp/scaleio-getinfo folder which can be collected using any file transfer tool e.g: WinSCP

• Retrieve PowerFlex 3.x Installer/ Gateway logs.

Installation Manager creates logs during installation, repair, and uninstallation.
Steps are:-

1. Open the Gateway UI and login using admin credentials.

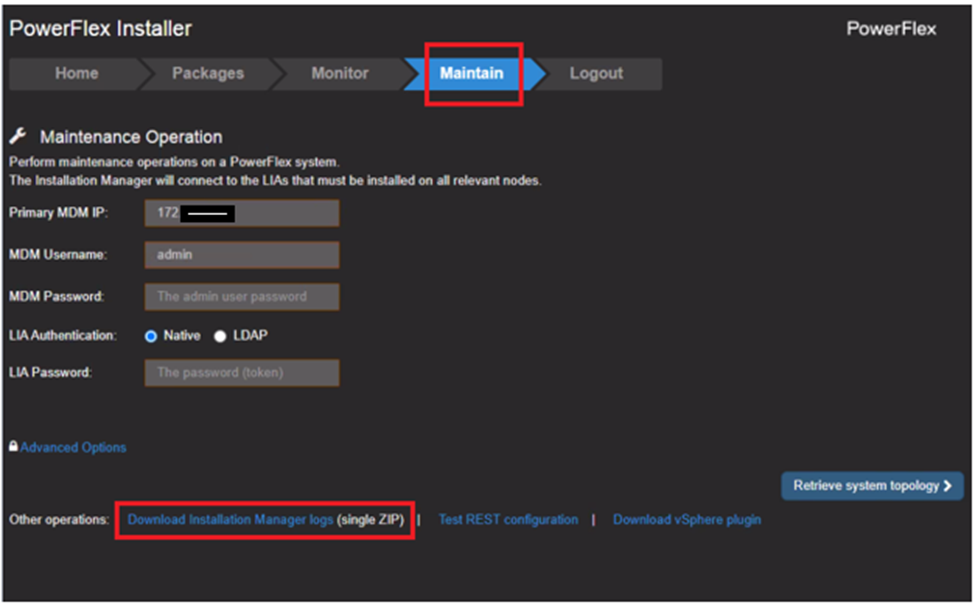

2. From the Installer main menu, select Maintain. The Maintenance operation view appears.

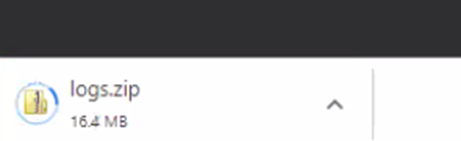

3. Click the Download Installation Manager Logs. The PowerFlex Installer logs are collected as a single ZIP file in the browser-configured location.

Monitor the progress at the bottom of the screen.

Another method to collect gateway logs is below:
This procedure collects the PowerFlex component logs on all the nodes in the system.
Steps:-

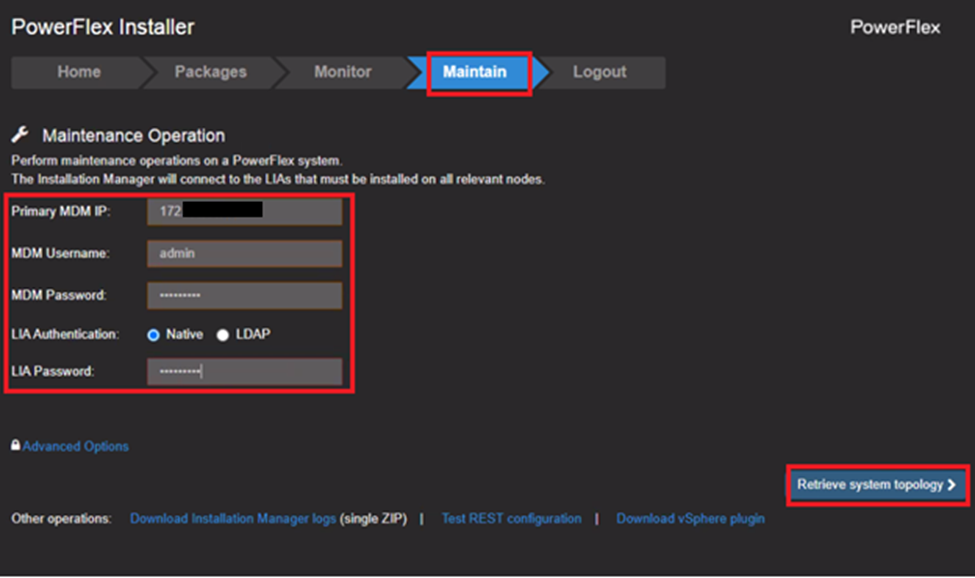

1. Log in to the Gateway UI using admin credentials and click Maintain.
2. Enter Primary MDM IP address, MDM username, MDM password and LIA password.
3. Click Retrieve System Topology.

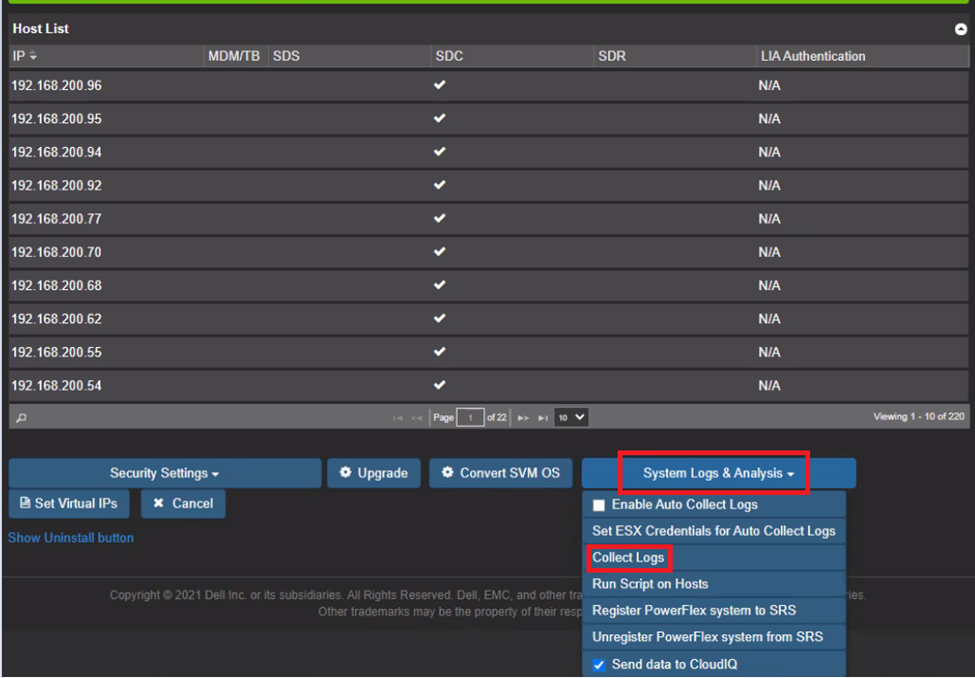

4. Click System Logs and Analysis.
5. From the list box, select Collect Logs.

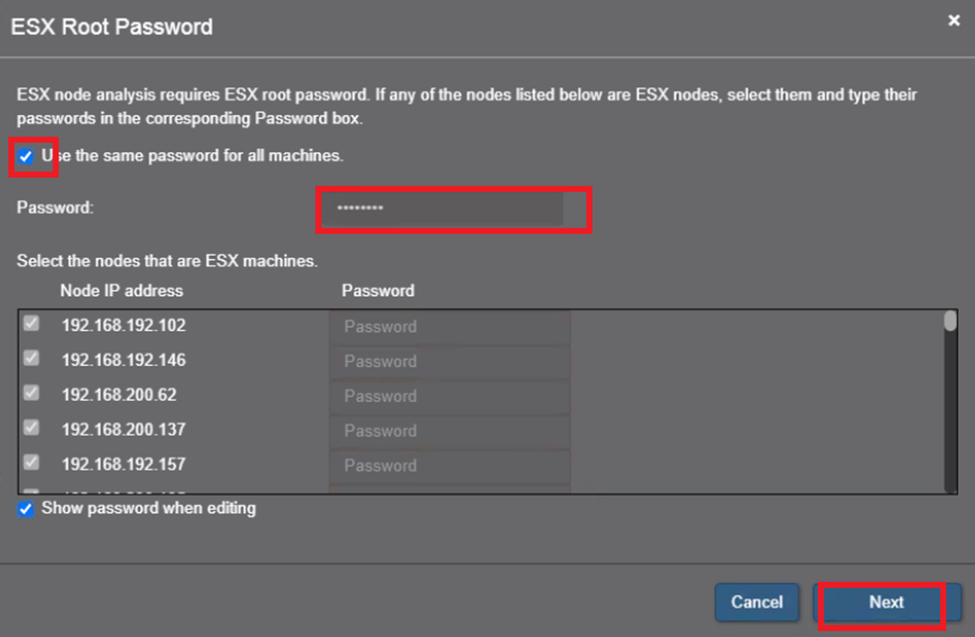

6. Enter ESXi root password and click Next.

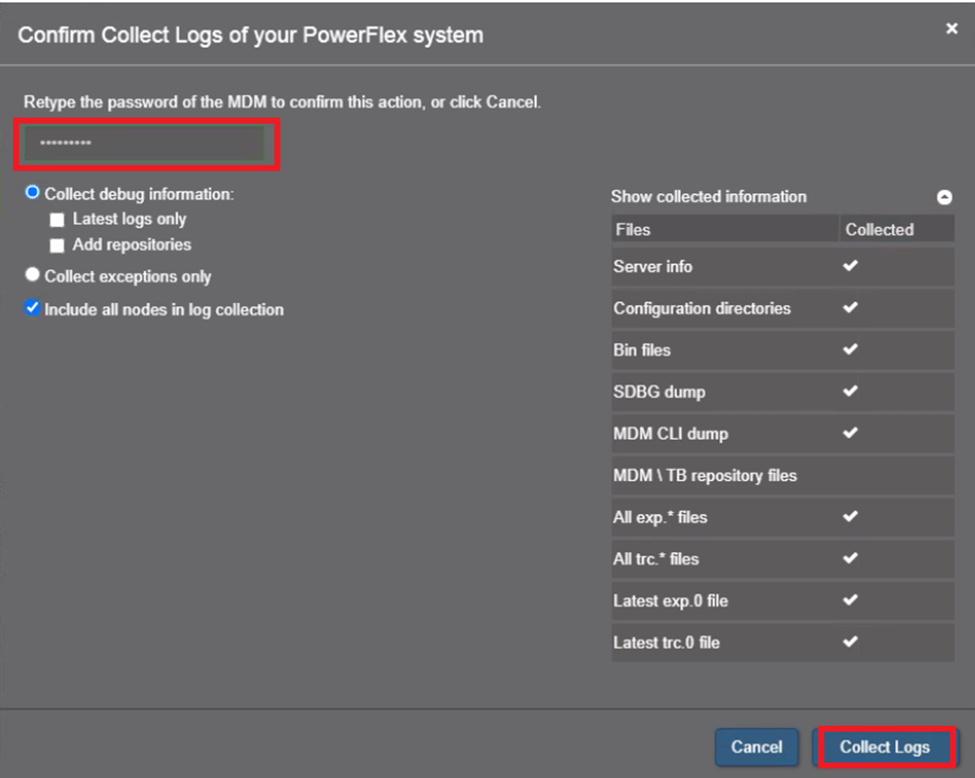

7. Enter MDM password and click Collect Logs.

The Get Info operation, the log collection function of the PowerFlex Installer, begins.

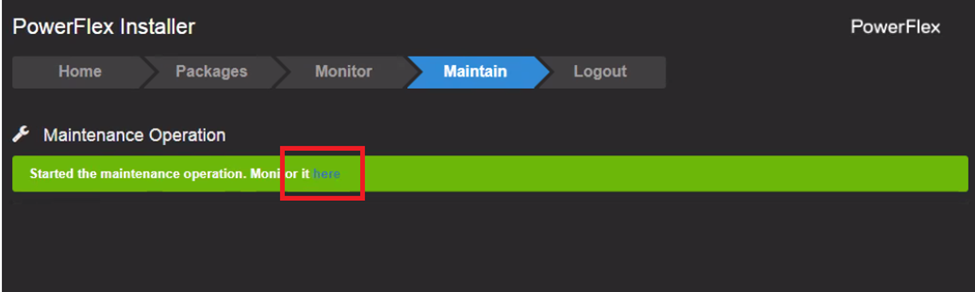

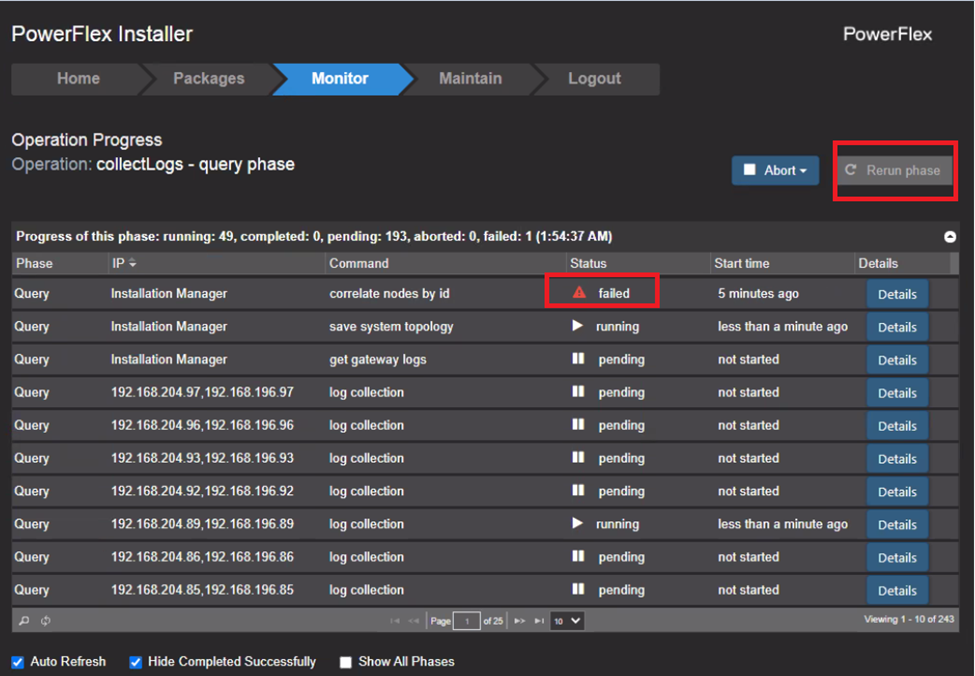

8. Select the Monitor tab. Log collection progress is displayed.

If Status shows failed, Rerun the phase.

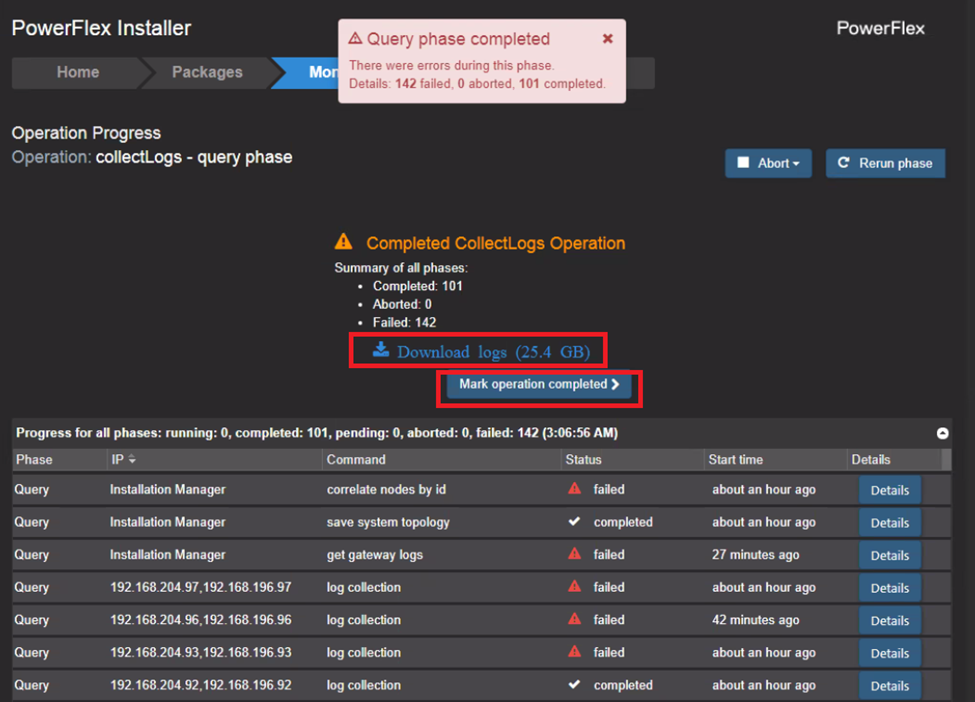

9. When the Get Info operation is complete, click Download logs to download the log files. A ZIP file, containing all PowerFlex component logs, is downloaded.
10. Click Mark operation completed to clear the log files from the PowerFlex Installer

=======================================================================================

• CloudLink Logs:-

Follow the procedure to download all the CloudLink Center log files in a compressed ZIP file. For example, when reporting an issue to Dell Technologies Customer Support, this file is required.
Steps:

1. Log in to CloudLink Center.
2. Click Monitoring > Diagnostics.
3. Click View Logs.

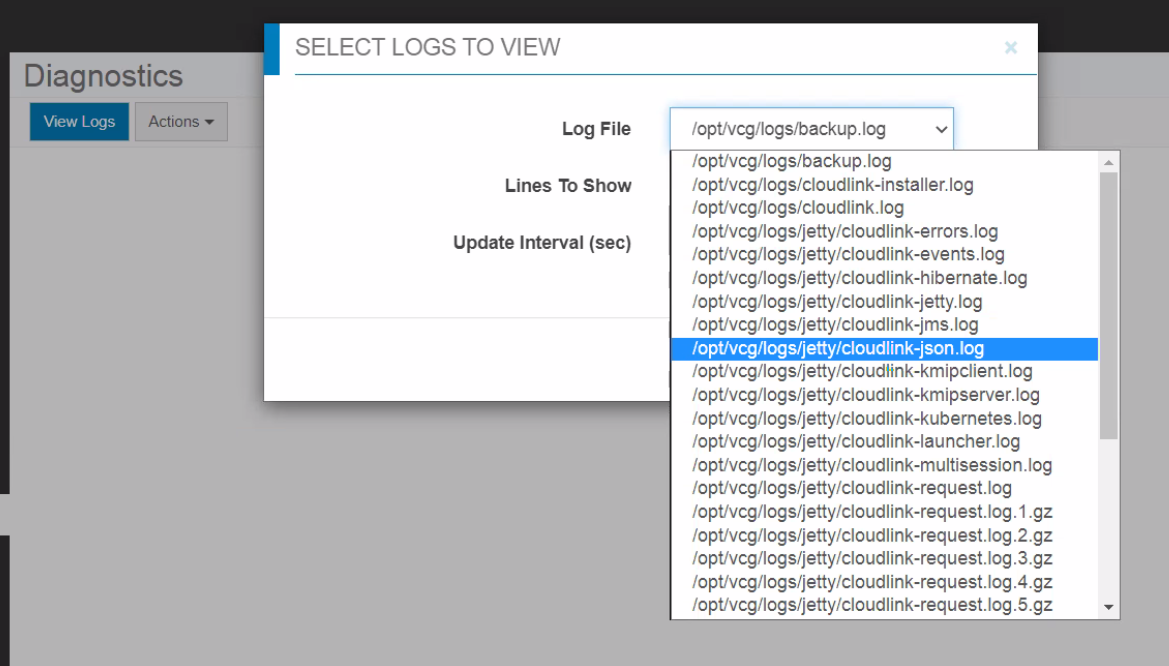

4. In the Select Logs To View dialog box, select a log file, and enter the required values for which you want to download the log files.

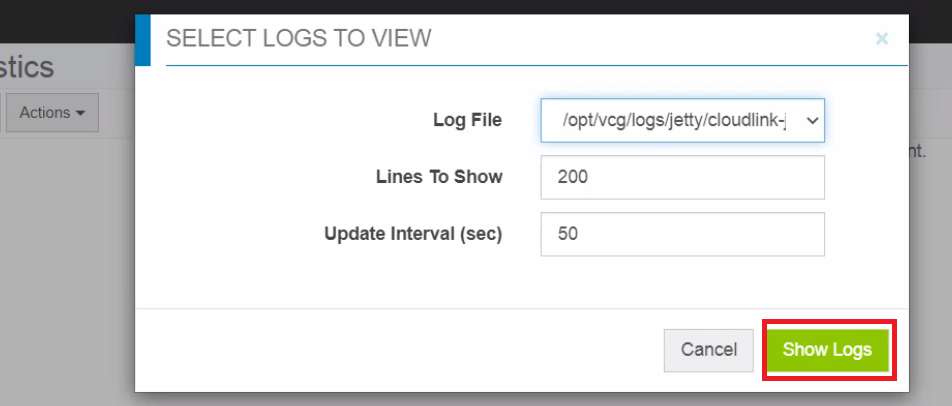

     5. Click Show Logs. The required log file is displayed.

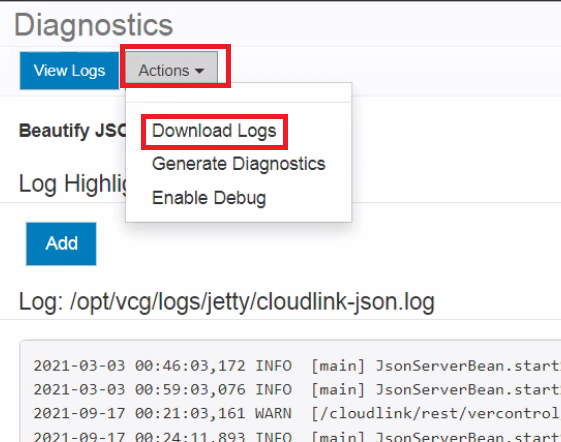

6. Click Actions > Download Logs. The log file is downloaded to the Downloads folder.

===================================================================================================================

• VMware logs:-

One ESXI host logs:-
VMware log files are important because they allow you to find the root cause of a problem or point out that something is about to break. If something strange is happening within your infrastructure, the first thing to do is gather and check the logs.
Steps are:-

1. Open vCenter UI.
2. Select the Cluster.

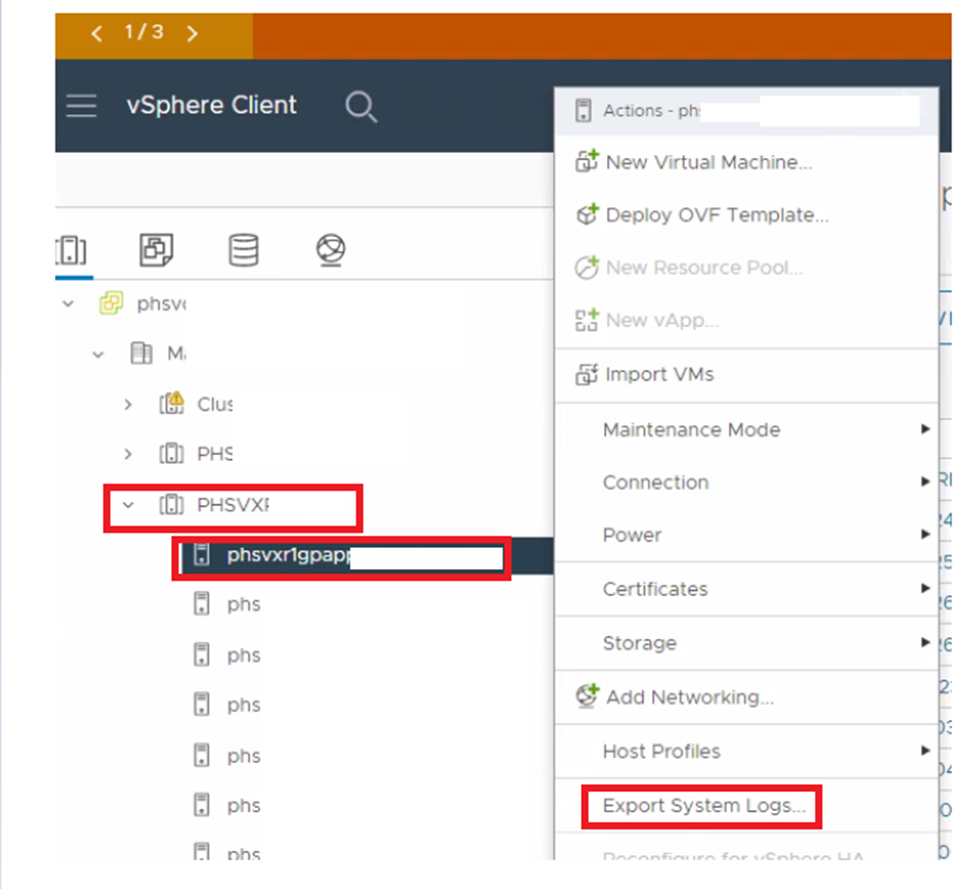

3. Click drop-down and right click the wanted host.
4. Click Export System Logs.

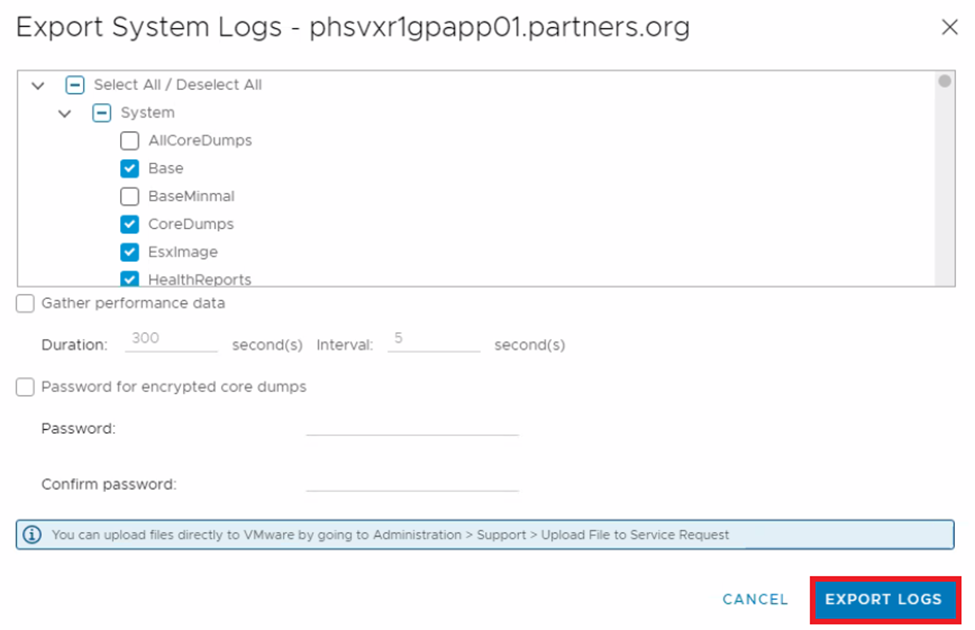

5. Select/Deselect logs and click Export Logs.

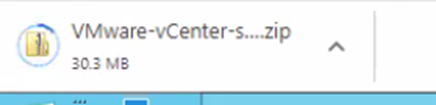

Monitor the progress at the bottom of your screen.


Multiple/all ESXI hosts logs:-
vCenter allows us to select multiple or all hosts as well.
Steps are:-

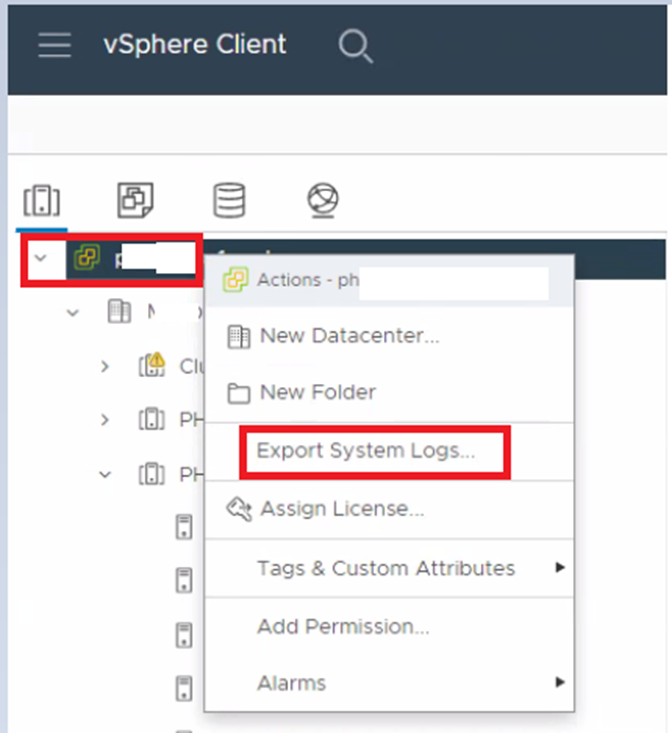

1. Select and right click vCenter.
2. Click Export System logs.

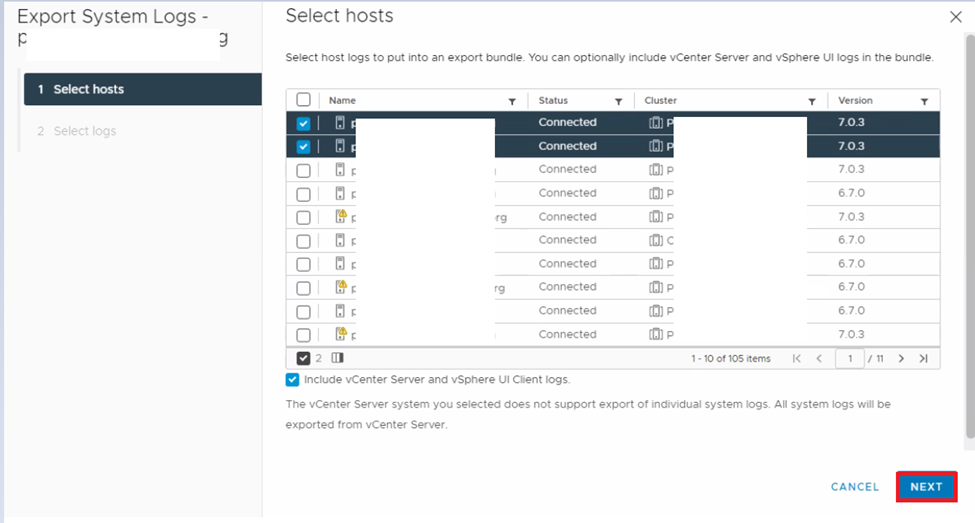

3. Select hosts and click Next.

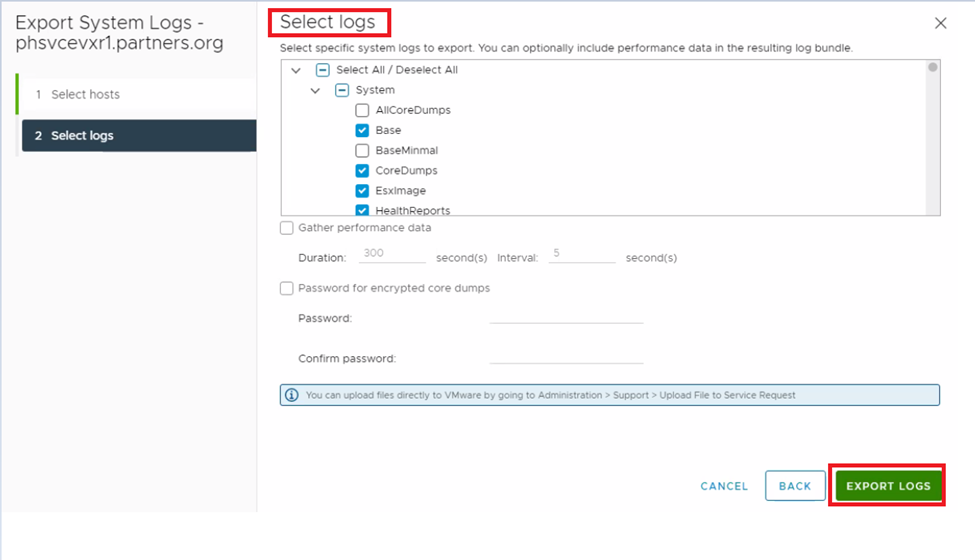

4. Select or Deselect logs and click Export Logs.
